A heavy-duty precast concrete base designed to provide exceptional stability for extra-large poles, structures, and heavy site equipment. Suitable for both temporary and permanent installations, this unit offers a practical alternative to on-site poured concrete, saving time and labor on site.

Constructed from high-strength reinforced concrete, this base delivers superior durability and long-term performance in demanding outdoor environments. Integrated fork sleeves allow safe forklift handling, while cast-in lifting points provide secure crane lifting and accurate placement.

Key Features

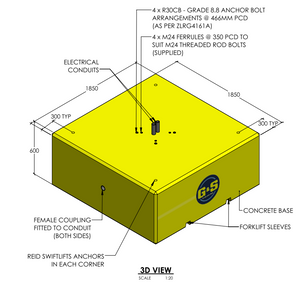

• Dimensions: 1850 × 1850 × 600 mm

• Weight: Approximately 5,500–5,800 kg

• Material: High-strength reinforced precast concrete

• Fork Sleeves: For efficient forklift handling

• Lifting Points: Cast-in for safe crane lifting

• Durable Design: Suitable for exposed outdoor conditions

Ideal For

• Extra-large lighting, signage, or solar poles

• Heavy temporary or permanent structures

• Equipment bases and infrastructure support

• Sites where poured concrete footings are impractical

Why Choose This Base

• Fast and safe installation

• Reduces on-site labor and downtime

• Factory-made quality for consistent performance

• Reliable mass-anchor foundation solution

STANDARD

ALL PRODUCTS TO CONFORM TO THE FOLLOWING AUSTRALIAN STANDARDS.
* AS 1170.2 Structural design actions - Wind actions.
* AS 1554(set) Structural steel welding set.
* AS 2159: Piling - Design & Installation.
* AS 2870: Residential slab footings - Construction.
* AS 3600: Concrete structures
* AS 3678: Structural steel - Hot rolled plates, floorplates and slabs.
* AS 4680: Hot dip galvanized (Zinc) Coatings on fabricated ferrous articles.
* AS/NZS 4671: Steel reinforcing materials.
* AS/NZS 4600: Cold formed steel structures.
