A heavy-duty precast concrete base designed to provide a secure and stable foundation for large poles, structures, and heavy site equipment. Perfect for both temporary and permanent installations, this unit offers a practical alternative to on-site poured concrete, reducing installation time and labor costs.

Constructed from high-strength reinforced concrete, the base delivers superior durability and long-term stability in demanding outdoor environments. Integrated fork sleeves allow for safe handling with a forklift, while cast-in lifting points ensure precise and secure crane placement.

Key Features

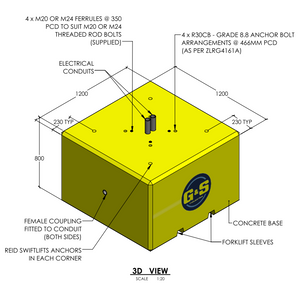

• Dimensions: 1200 × 1200 × 800 mm

• Weight: Approximately 2646 kg

• Material: High-strength reinforced precast concrete

• Fork Sleeves: For efficient forklift handling

• Lifting Points: Cast-in for safe crane lifting

• Durable Design: Suitable for exposed outdoor conditions

Ideal For

• Large lighting, signage, or solar poles

• Heavy temporary or permanent structures

• Equipment bases and infrastructure support

• Sites where poured concrete footings are impractical

Why Choose This Base

• Quick and safe installation

• Reduces on-site labor and downtime

• Consistent, factory-made quality

• Reliable mass-anchor foundation solution

STANDARDS

ALL PRODUCTS TO CONFORM TO THE FOLLOWING AUSTRALIAN STANDARDS.
* AS 1170.2 Structural design actions - Wind actions.
* AS 1554(set) Structural steel welding set.
* AS 2159: Piling - Design & Installation.
* AS 2870: Residential slab footings - Construction.
* AS 3600: Concrete structures
* AS 3678: Structural steel - Hot rolled plates, floorplates and slabs.
* AS 4680: Hot dip galvanized (Zinc) Coatings on fabricated ferrous articles.
* AS/NZS 4671: Steel reinforcing materials.
* AS/NZS 4600: Cold formed steel structures.
