A heavy-duty precast concrete base designed to provide a stable and reliable foundation for large poles, structures, and site equipment. Perfect for both temporary and permanent installations, this unit offers a convenient alternative to in-situ concrete footings, saving time and labor on site.

Made from high-strength reinforced concrete, the base delivers exceptional durability and stability in demanding outdoor environments. Integrated fork sleeves allow for safe forklift handling, while cast-in lifting points enable secure crane lifting and precise placement.

Key Features

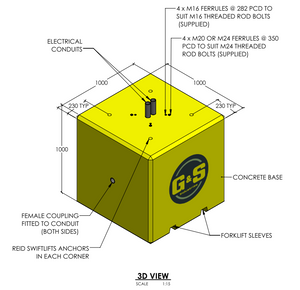

• Dimensions: 1000 × 1000 × 1000 mm

• Weight: Approximately 2313 kg

• Material: High-strength reinforced precast concrete

• Fork Sleeves: Built-in for efficient forklift handling

• Lifting Points: Cast-in for safe crane lifting

• Durable Design: Suitable for exposed outdoor conditions

Ideal For

• Large lighting, signage, or solar poles

• Heavy temporary or permanent structures

• Equipment bases and infrastructure support

• Sites where poured concrete footings are impractical

Why Choose This Base

• Fast and safe installation

• Reduces site labor and downtime

• Factory-made quality for consistent performance

• Reliable mass-anchor foundation solution


STANDARDS

ALL PRODUCTS TO CONFORM TO THE FOLLOWING AUSTRALIAN STANDARDS.
* AS 1170.2 Structural design actions - Wind actions.
* AS 1554(set) Structural steel welding set.
* AS 2159: Piling - Design & Installation.
* AS 2870: Residential slab footings - Construction.
* AS 3600: Concrete structures
* AS 3678: Structural steel - Hot rolled plates, floorplates and slabs.
* AS 4680: Hot dip galvanized (Zinc) Coatings on fabricated ferrous articles.
* AS/NZS 4671: Steel reinforcing materials.
* AS/NZS 4600: Cold formed steel structures.
