The PowerShield RackMount 800VA UPS (PSDR800) is a compact line-interactive uninterruptible power supply designed for small servers, network devices, and industrial equipment. It provides reliable battery backup, surge protection, and intelligent management via USB, all within a space-saving 1U rack form factor. It features a simulated sine wave output and supports both Windows and Linux environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model Number | PSDR800 |
| Capacity | 800VA / 480W |
| Topology | Line Interactive |
| Input Voltage | 240V (177–290V), 50/60Hz auto-sensing |
| Output Voltage | 240V ±10%, 50/60Hz ±1Hz, simulated sine wave |
| Outlets | 2x IEC 10A, 6x Australian sockets |
| Battery | 12V 9Ah ×1 |
| Backup Time | ~8 min @ 50% load |
| Recharge Time | 4–6 hours to 90% capacity |
| Protection | Overload, surge (312J / 6500A), battery overcharge/discharge |
| Management | USB & PSSNMP slot, NetGuard® software (Windows/Linux/Mac) |
| Alarms | LCD & Audible – AC/Battery Mode, Low Battery, Fault, Overload |
| Dimensions (L×W×H) | 230 × 438 × 86 mm |
| Weight | 7.7 kg |
| Noise Level | <5 dBA (fanless) |
| Operating Environment | 0–40°C, 0–90% RH (non-condensing) |
| Compliance | EN62040, IEC60950, RoHS |
The PowerShield RackMount 800VA UPS (PSDR800) is a compact line-interactive uninterruptible power supply designed for small servers, network devices, and industrial equipment. It provides reliable battery backup, surge protection, and intelligent management via USB, all within a space-saving 1U rack form factor. It features a simulated sine wave output and supports both Windows and Linux environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model Number | PSDR800 |
| Capacity | 800VA / 480W |
| Topology | Line Interactive |
| Input Voltage | 240V (177–290V), 50/60Hz auto-sensing |
| Output Voltage | 240V ±10%, 50/60Hz ±1Hz, simulated sine wave |
| Outlets | 2x IEC 10A, 6x Australian sockets |
| Battery | 12V 9Ah ×1 |
| Backup Time | ~8 min @ 50% load |
| Recharge Time | 4–6 hours to 90% capacity |
| Protection | Overload, surge (312J / 6500A), battery overcharge/discharge |
| Management | USB & PSSNMP slot, NetGuard® software (Windows/Linux/Mac) |
| Alarms | LCD & Audible – AC/Battery Mode, Low Battery, Fault, Overload |
| Dimensions (L×W×H) | 230 × 438 × 86 mm |
| Weight | 7.7 kg |
| Noise Level | <5 dBA (fanless) |
| Operating Environment | 0–40°C, 0–90% RH (non-condensing) |
| Compliance | EN62040, IEC60950, RoHS |

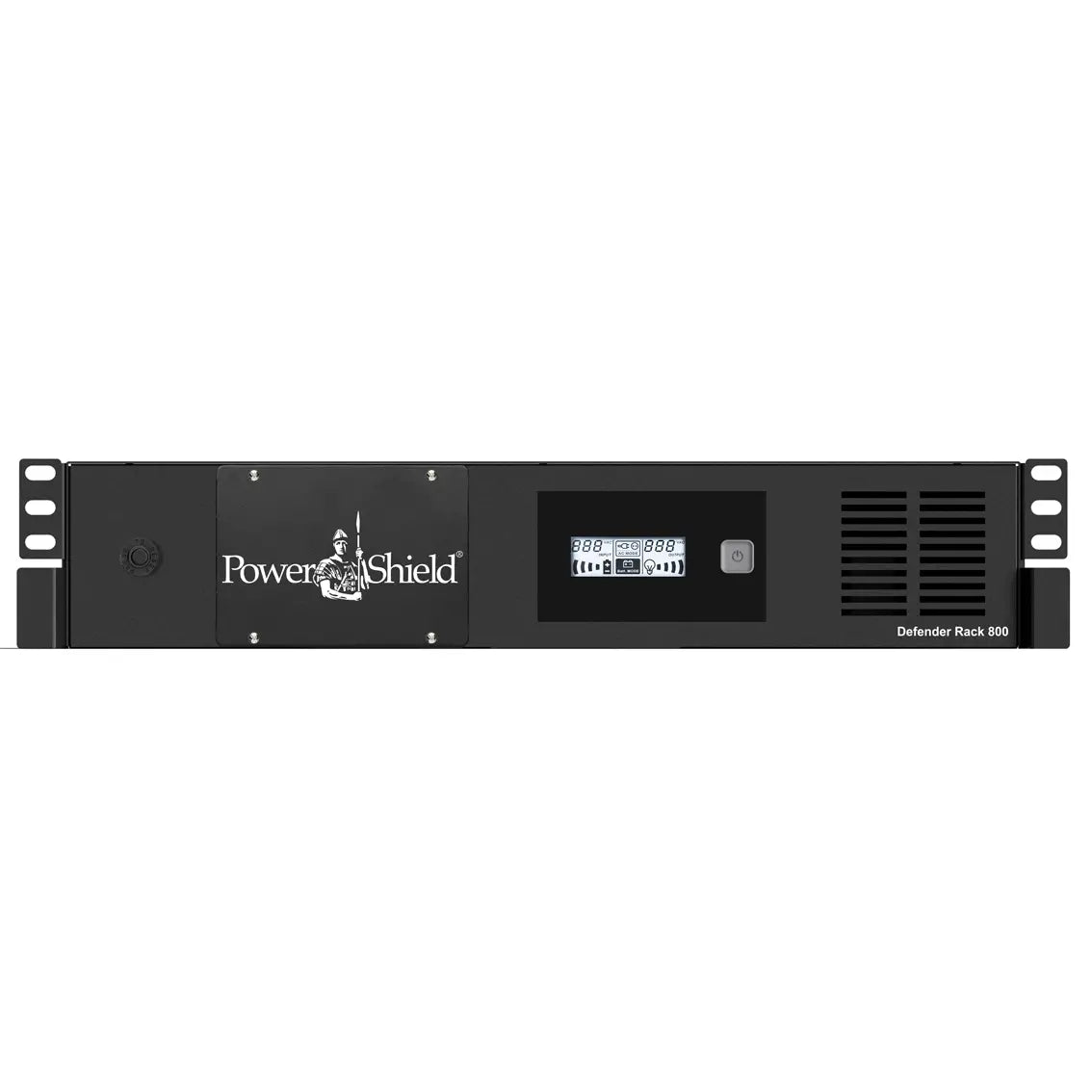

PowerShield RackMount 800VA UPS
- Regular price
- $415.00
- Sale price
- $415.00
