About

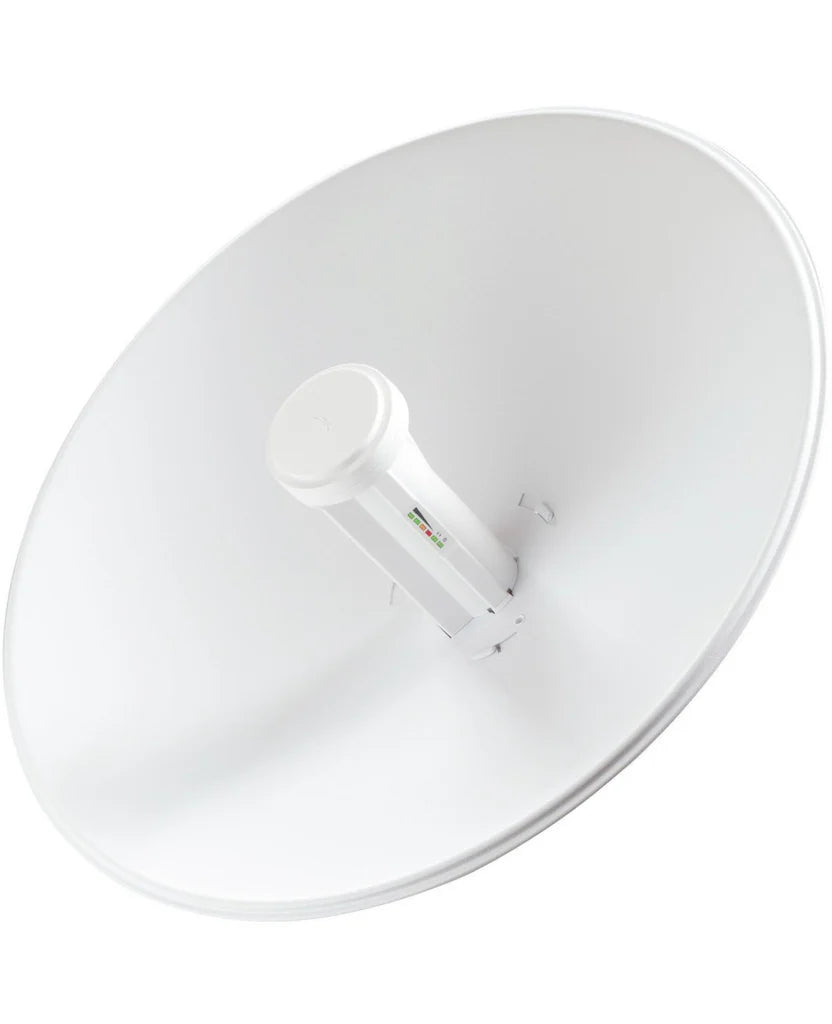

The PowerBeam 5AC Gen2 is a high‑gain, high-performance outdoor bridge built for long-distance point‑to‑point (PtP) or point‑to‑multipoint (PtMP) links in the 5 GHz band. It integrates the radio inside the dish feedhorn (Ubiquiti’s InnerFeed design) to eliminate cable losses. With 25 dBi antenna gain, support for airMAX ac, and a dedicated 2.4 GHz Wi-Fi radio for setup/management, the PowerBeam 5AC Gen2 delivers robust throughput, better noise immunity (via a tight beam), and reliable performance in challenging RF environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | PowerBeam 5AC Gen2 (PBE‑5AC‑Gen2) |
| Wireless Standard / Protocols | 802.11ac, airMAX ac (TDMA) / OFDM, QAM |
| Operating Frequency | 5150 – 5875 MHz (region-dependent) |
| Antenna Gain | 25 dBi (dish reflector, directional) |
| Maximum Throughput | Up to ~450 Mbps (real TCP/IP throughput) |
| Channels / Bandwidths | PtP: 10/20/30/40/50/60/80 MHz PtMP: 10/20/30/40 MHz |
| Radio / Polarization | 2×2 MIMO, dual linear polarization |
| Transmit Power (max) | ~25 dBm (adjustable) |
| Receiver Sensitivity | Down to –96 dBm (depending on modulation) |
| Management / Setup Radio | Dedicated 2.4 GHz Wi-Fi radio for setup/monitoring (via mobile app) |
| Network Interface | 1 × Gigabit Ethernet (10/100/1000 Mbps RJ‑45) |
| Power / PoE | 24 V, 0.5 A passive PoE (pairs 4,5+; 7,8 return) |
| Power Consumption (max) | 8.5 W |
| Processor / Memory | MIPS 74Kc CPU, 64 MB RAM |
| LED Indicators | Power, Ethernet, (4) Signal Strength LEDs |
| Dimensions | 420 × 420 × 230 mm (16.54 × 16.54 × 9.06″) |
| Weight | 2.22 kg (4.89 lb) |
| Wind Loading / Survivability | 380 N @ 200 km/h; survivability up to 200 km/h (125 mph) |
| Mounting | Pole‑mount bracket with azimuth and elevation adjustment |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 5% to 95% non‑condensing |
| ESD / Surge Protection | ±24 kV contact/air protection |
| Certifications | CE, FCC, IC |
| Management Wi-Fi Band | 2.4 GHz (2412 – 2472 MHz) for setup and monitoring |
The PowerBeam 5AC Gen2 is a high‑gain, high-performance outdoor bridge built for long-distance point‑to‑point (PtP) or point‑to‑multipoint (PtMP) links in the 5 GHz band. It integrates the radio inside the dish feedhorn (Ubiquiti’s InnerFeed design) to eliminate cable losses. With 25 dBi antenna gain, support for airMAX ac, and a dedicated 2.4 GHz Wi-Fi radio for setup/management, the PowerBeam 5AC Gen2 delivers robust throughput, better noise immunity (via a tight beam), and reliable performance in challenging RF environments.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model / Series | PowerBeam 5AC Gen2 (PBE‑5AC‑Gen2) |
| Wireless Standard / Protocols | 802.11ac, airMAX ac (TDMA) / OFDM, QAM |
| Operating Frequency | 5150 – 5875 MHz (region-dependent) |
| Antenna Gain | 25 dBi (dish reflector, directional) |
| Maximum Throughput | Up to ~450 Mbps (real TCP/IP throughput) |
| Channels / Bandwidths | PtP: 10/20/30/40/50/60/80 MHz PtMP: 10/20/30/40 MHz |
| Radio / Polarization | 2×2 MIMO, dual linear polarization |
| Transmit Power (max) | ~25 dBm (adjustable) |
| Receiver Sensitivity | Down to –96 dBm (depending on modulation) |
| Management / Setup Radio | Dedicated 2.4 GHz Wi-Fi radio for setup/monitoring (via mobile app) |
| Network Interface | 1 × Gigabit Ethernet (10/100/1000 Mbps RJ‑45) |
| Power / PoE | 24 V, 0.5 A passive PoE (pairs 4,5+; 7,8 return) |
| Power Consumption (max) | 8.5 W |
| Processor / Memory | MIPS 74Kc CPU, 64 MB RAM |
| LED Indicators | Power, Ethernet, (4) Signal Strength LEDs |
| Dimensions | 420 × 420 × 230 mm (16.54 × 16.54 × 9.06″) |
| Weight | 2.22 kg (4.89 lb) |
| Wind Loading / Survivability | 380 N @ 200 km/h; survivability up to 200 km/h (125 mph) |
| Mounting | Pole‑mount bracket with azimuth and elevation adjustment |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 5% to 95% non‑condensing |
| ESD / Surge Protection | ±24 kV contact/air protection |
| Certifications | CE, FCC, IC |
| Management Wi-Fi Band | 2.4 GHz (2412 – 2472 MHz) for setup and monitoring |
PowerBeam 5AC Gen2
- Regular price
- $230.00
- Sale price
- $230.00
- Regular price
-
$270.88
