About

Learn what makes this product unique and why it’s right for you.

The OC400 is a high-capacity hardware controller from TP‑Link’s Omada SDN product line. It’s built for large-scale, multi-site deployments, offering centralized management of up to 1,000 access points, 200 switches, and 100 Omada routers. With dual 10G SFP+ slots, multiple Gigabit Ethernet ports, redundant power supplies, and robust cloud and local management options (via Omada App / Web UI), it’s designed for enterprise‑grade reliability and performance. Rack‑mountable in a durable metal case, the OC400 is ideal when scalability, redundancy, and high throughput are required.





TECHNICAL SPECIFICATION

Category  Details
Model OC400
Product Type Omada Hardware Controller
Centralized Management Capacity Up to 1,000 Omada EAPs / Access Points; 200 Omada Switches; 100 Omada Routers :contentReference[oaicite:0]{index=0}
Ports / Interfaces 2× 10G SFP+ Slots; 4× 10/100/1000 Mbps RJ45 Ethernet Ports; 2× USB 3.0 Ports; 1× RJ45 Console Port :contentReference[oaicite:1]{index=1}
Power Supply Dual fixed redundant AC power supplies; 100–240 V AC, 50/60 Hz :contentReference[oaicite:2]{index=2}
Memory / CPU / Storage Quad‑Core CPU; 8 GB DDR4 RAM; 32 GB eMMC; 4 MB NOR flash :contentReference[oaicite:3]{index=3}
Fan / Cooling 1 × Fan :contentReference[oaicite:4]{index=4}
LED / Buttons Reset Button; LEDs for status / power / network etc. Console port included. :contentReference[oaicite:5]{index=5}
Rack‑Mountable / Casing Metal housing; Rack‑mountable (mounting kit included) :contentReference[oaicite:6]{index=6}
Management Features Cloud Access; Multi‑Site Management; Real‑Time Topology; Batch Configuration; Automatic Device Discovery; Backup & Restore; etc. :contentReference[oaicite:7]{index=7}
Operating Environment Operating Temperature: 0 °C to 40 °C; Storage Temperature: ‑40 °C to 70 °C; Operating Humidity: 10‑90% RH non‑condensing :contentReference[oaicite:8]{index=8}
Dimensions 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) :contentReference[oaicite:9]{index=9}
Weight (Not always specified; ≈ ‑ check regional datasheet)
Learn what makes this product unique and why it’s right for you.

The OC400 is a high-capacity hardware controller from TP‑Link’s Omada SDN product line. It’s built for large-scale, multi-site deployments, offering centralized management of up to 1,000 access points, 200 switches, and 100 Omada routers. With dual 10G SFP+ slots, multiple Gigabit Ethernet ports, redundant power supplies, and robust cloud and local management options (via Omada App / Web UI), it’s designed for enterprise‑grade reliability and performance. Rack‑mountable in a durable metal case, the OC400 is ideal when scalability, redundancy, and high throughput are required.





TECHNICAL SPECIFICATION

Category  Details
Model OC400
Product Type Omada Hardware Controller
Centralized Management Capacity Up to 1,000 Omada EAPs / Access Points; 200 Omada Switches; 100 Omada Routers :contentReference[oaicite:0]{index=0}
Ports / Interfaces 2× 10G SFP+ Slots; 4× 10/100/1000 Mbps RJ45 Ethernet Ports; 2× USB 3.0 Ports; 1× RJ45 Console Port :contentReference[oaicite:1]{index=1}
Power Supply Dual fixed redundant AC power supplies; 100–240 V AC, 50/60 Hz :contentReference[oaicite:2]{index=2}
Memory / CPU / Storage Quad‑Core CPU; 8 GB DDR4 RAM; 32 GB eMMC; 4 MB NOR flash :contentReference[oaicite:3]{index=3}
Fan / Cooling 1 × Fan :contentReference[oaicite:4]{index=4}
LED / Buttons Reset Button; LEDs for status / power / network etc. Console port included. :contentReference[oaicite:5]{index=5}
Rack‑Mountable / Casing Metal housing; Rack‑mountable (mounting kit included) :contentReference[oaicite:6]{index=6}
Management Features Cloud Access; Multi‑Site Management; Real‑Time Topology; Batch Configuration; Automatic Device Discovery; Backup & Restore; etc. :contentReference[oaicite:7]{index=7}
Operating Environment Operating Temperature: 0 °C to 40 °C; Storage Temperature: ‑40 °C to 70 °C; Operating Humidity: 10‑90% RH non‑condensing :contentReference[oaicite:8]{index=8}
Dimensions 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) :contentReference[oaicite:9]{index=9}
Weight (Not always specified; ≈ ‑ check regional datasheet)

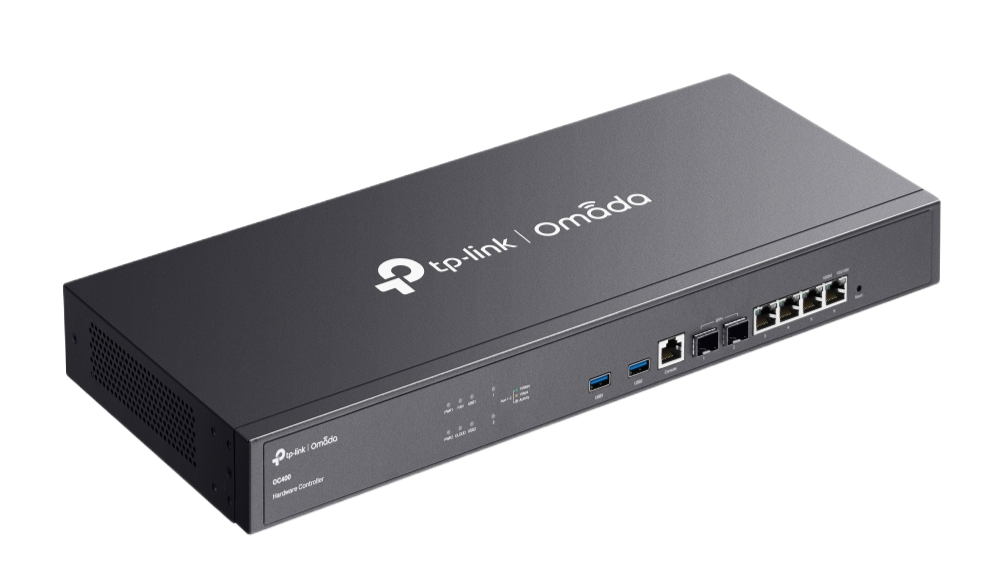

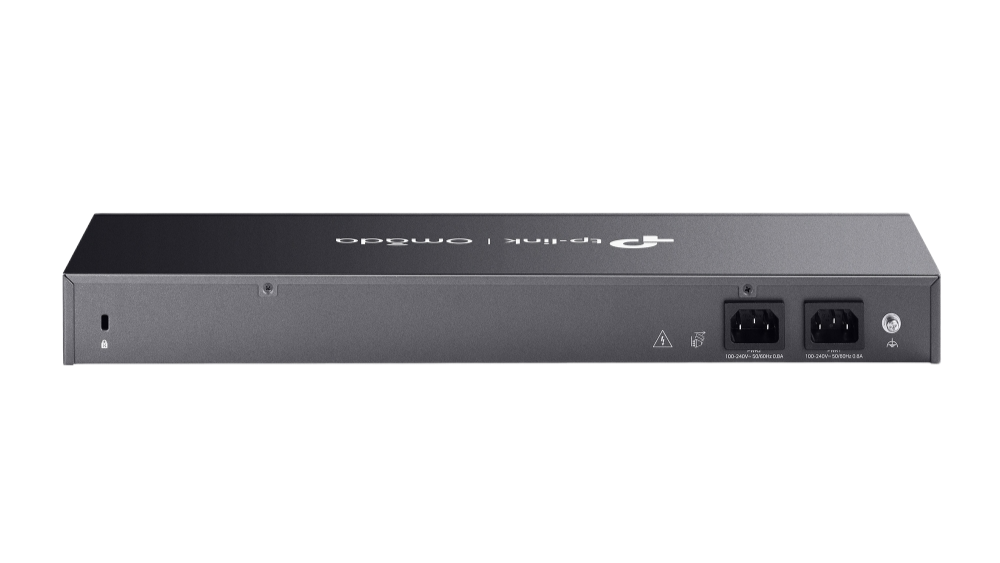

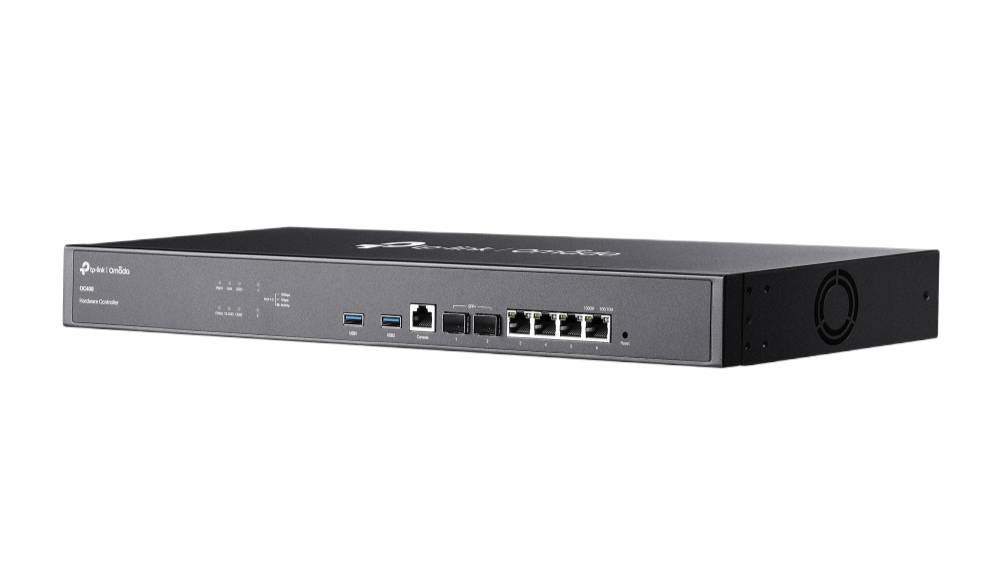

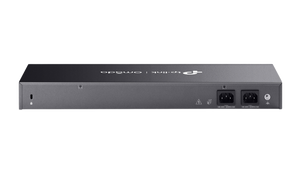

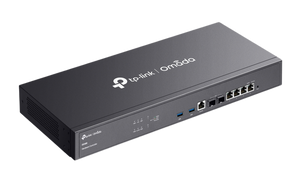

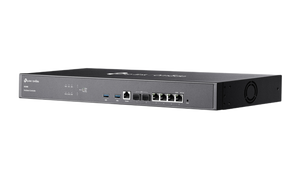

OC400 – Omada Hardware Controller

Regular price
$729.00
Sale price
$729.00
