About

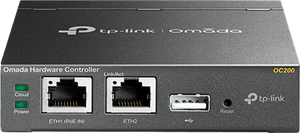

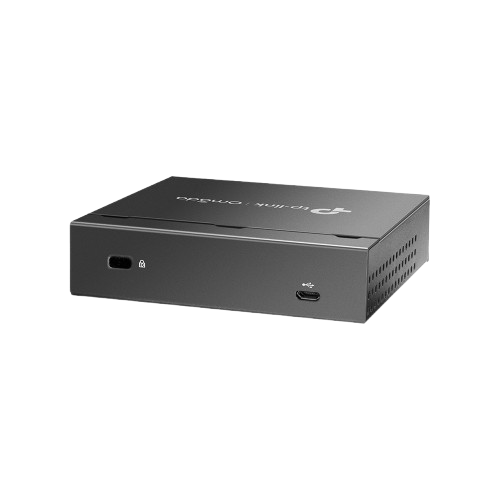

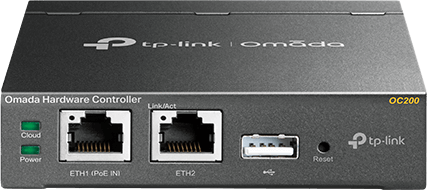

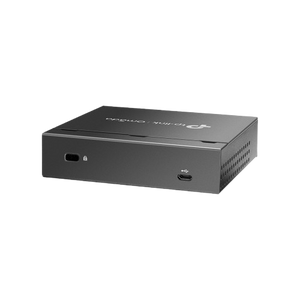

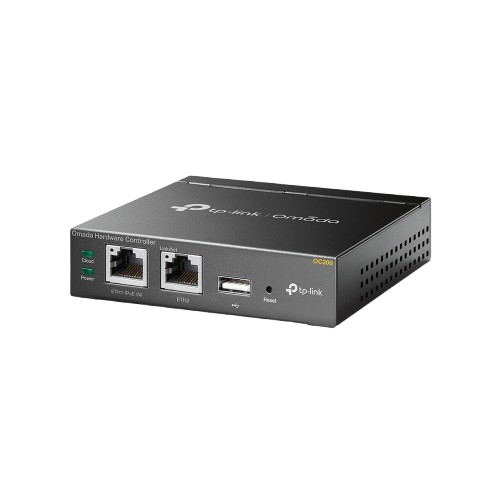

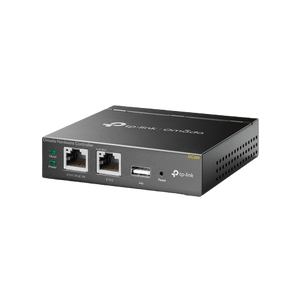

The OC200 v1 is the original hardware controller from TP-Link's Omada SDN series, designed to provide centralized management for Omada access points, switches, and gateways. It enables real-time monitoring, provisioning, and configuration through the Omada SDN Controller, accessible via Cloud Portal or Omada App. Featuring 2 Gigabit Ethernet ports, a USB 2.0 port for storage, and PoE or Micro-USB power options, the OC200 v1 is built with a metal casing for reliability. Ideal for small to medium-sized business networks looking for simplified control and scalability.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | OC200 v1 |
| Product Type | Omada Hardware Controller |
| Management Capacity | Up to 100 EAPs + 20 JetStream Switches + 10 Omada Routers |
| Ports | 2× 10/100/1000 Mbps Ethernet Ports, 1× USB 2.0 Port, 1× Micro USB Port |
| Power Supply | 802.3af/at PoE or Micro-USB (5V/1A) |
| Casing | Metal Housing |
| Installation | Desktop or Wall Mount |
| Cloud Access | Yes, via Omada Cloud Portal |
| Controller Software | Built-in Omada SDN Controller |
| Mobile App | Omada App (iOS/Android) |
| USB Functionality | Supports storage for backups/logs |
| LED Indicators | Power, Cloud, USB |
| Dimensions | 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
The OC200 v1 is the original hardware controller from TP-Link's Omada SDN series, designed to provide centralized management for Omada access points, switches, and gateways. It enables real-time monitoring, provisioning, and configuration through the Omada SDN Controller, accessible via Cloud Portal or Omada App. Featuring 2 Gigabit Ethernet ports, a USB 2.0 port for storage, and PoE or Micro-USB power options, the OC200 v1 is built with a metal casing for reliability. Ideal for small to medium-sized business networks looking for simplified control and scalability.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | OC200 v1 |
| Product Type | Omada Hardware Controller |
| Management Capacity | Up to 100 EAPs + 20 JetStream Switches + 10 Omada Routers |
| Ports | 2× 10/100/1000 Mbps Ethernet Ports, 1× USB 2.0 Port, 1× Micro USB Port |
| Power Supply | 802.3af/at PoE or Micro-USB (5V/1A) |
| Casing | Metal Housing |
| Installation | Desktop or Wall Mount |
| Cloud Access | Yes, via Omada Cloud Portal |
| Controller Software | Built-in Omada SDN Controller |
| Mobile App | Omada App (iOS/Android) |
| USB Functionality | Supports storage for backups/logs |
| LED Indicators | Power, Cloud, USB |
| Dimensions | 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
OC-200 - Omada Hardware Controller
- Regular price
- $157.00
- Sale price
- $157.00
- Regular price
-
$199.00
Couldn't load pickup availability
