About

Learn what makes this product unique and why it’s right for you.

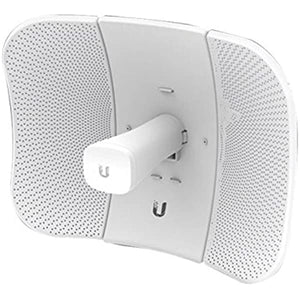

The LiteBeam 5AC Gen2 is a high‑performance outdoor CPE (Customer Premises Equipment) designed for long‑distance wireless links in the 5 GHz band. It features a 23 dBi directional antenna, 2×2 MIMO, and Ubiquiti’s airMAX ac protocol, delivering robust throughput and low latency. Its integrated Wi-Fi management radio allows setup via mobile device, and its sleek design with three‑axis alignment and enhanced ESD protection makes it well suited for outdoor deployments even in challenging environments.





TECHNICAL SPECIFICATION

Category Details
Model / Series LiteBeam 5AC Gen2 (LBE‑5AC‑Gen2)
Wireless Standard / Protocols 802.11ac, airMAX ac (TDMA) / OFDM, QAM
Operating Frequency 5150 – 5875 MHz (region‑dependent)
Antenna Gain 23 dBi (directional parabolic reflector)
Maximum Throughput Up to ~450 Mbps (real‑world performance)
Channels / Bandwidths PtP: 10/20/30/40/50/60/80 MHz; PtMP: 10/20/30/40 MHz
Radio / Polarization 2×2 MIMO, dual linear polarization
Transmit Power (max) ~25 dBm (adjustable)
Receiver Sensitivity Down to –96 dBm (depending on modulation)
Management / Setup Radio Dedicated 2.4 GHz Wi-Fi radio (for mobile setup)
Network Interface 1 × Gigabit Ethernet (10/100/1000 RJ‑45)
Power / PoE 24 V, 0.3 A passive PoE (pairs 4,5+; 7,8 return)
Power Consumption (max) 7 W
Processor / Memory / Storage MIPS 74Kc CPU, 64 MB DDR2 RAM (Flash memory size varies)
LED Indicators Power, Ethernet
Dimensions 358 × 271.95 × 272.5 mm
Weight 800 g (without mount) / 980 g (with mount)
Wind Loading / Survivability 275 N at 200 km/h (61.8 lbf @ 125 mph); survivability up to 200 km/h (125 mph)
Mounting Pole‑mount kit (azimuth + elevation adjustments)
Operating Temperature −40 °C to +70 °C
Operating Humidity 5% to 95% non‑condensing
ESD / Surge Protection ±24 kV contact/air ESD protection
Certifications CE, FCC, IC (depending on region)
Learn what makes this product unique and why it’s right for you.

The LiteBeam 5AC Gen2 is a high‑performance outdoor CPE (Customer Premises Equipment) designed for long‑distance wireless links in the 5 GHz band. It features a 23 dBi directional antenna, 2×2 MIMO, and Ubiquiti’s airMAX ac protocol, delivering robust throughput and low latency. Its integrated Wi-Fi management radio allows setup via mobile device, and its sleek design with three‑axis alignment and enhanced ESD protection makes it well suited for outdoor deployments even in challenging environments.





TECHNICAL SPECIFICATION

Category Details
Model / Series LiteBeam 5AC Gen2 (LBE‑5AC‑Gen2)
Wireless Standard / Protocols 802.11ac, airMAX ac (TDMA) / OFDM, QAM
Operating Frequency 5150 – 5875 MHz (region‑dependent)
Antenna Gain 23 dBi (directional parabolic reflector)
Maximum Throughput Up to ~450 Mbps (real‑world performance)
Channels / Bandwidths PtP: 10/20/30/40/50/60/80 MHz; PtMP: 10/20/30/40 MHz
Radio / Polarization 2×2 MIMO, dual linear polarization
Transmit Power (max) ~25 dBm (adjustable)
Receiver Sensitivity Down to –96 dBm (depending on modulation)
Management / Setup Radio Dedicated 2.4 GHz Wi-Fi radio (for mobile setup)
Network Interface 1 × Gigabit Ethernet (10/100/1000 RJ‑45)
Power / PoE 24 V, 0.3 A passive PoE (pairs 4,5+; 7,8 return)
Power Consumption (max) 7 W
Processor / Memory / Storage MIPS 74Kc CPU, 64 MB DDR2 RAM (Flash memory size varies)
LED Indicators Power, Ethernet
Dimensions 358 × 271.95 × 272.5 mm
Weight 800 g (without mount) / 980 g (with mount)
Wind Loading / Survivability 275 N at 200 km/h (61.8 lbf @ 125 mph); survivability up to 200 km/h (125 mph)
Mounting Pole‑mount kit (azimuth + elevation adjustments)
Operating Temperature −40 °C to +70 °C
Operating Humidity 5% to 95% non‑condensing
ESD / Surge Protection ±24 kV contact/air ESD protection
Certifications CE, FCC, IC (depending on region)

LiteBeam 5AC Gen2

$125.00
$125.00
$147.13
