About

Learn what makes this product unique and why it’s right for you.

Compact powerhouse featuring an Intel® Core™ Ultra 9 285 processor (up to 5.4 GHz with Turbo Boost, 36 MB L3 cache, 24 cores/24 threads) and NVIDIA RTX™ A2000  Ada (16 GB GDDR6) discrete graphics. It includes 48 GB DDR5‑5600 memory, a 1TB PCIe Gen 4 M.2 SSD, and wireless connectivity with Wi‑Fi 6E (Intel® AX211) and Bluetooth 5.3—running Windows 11 Pro. Engineered for maximum performance in a small footprint, with extensive expansion slots, rich I/O, and efficient 500 W internal PSU.





TECHNICAL SPECIFICATION

Category Details
Operating System Windows 11 Pro
Processor Intel® Core™ Ultra 9 285 (up to 5.4 GHz with Turbo Boost, 36 MB L3 cache, 24 cores, 24 threads)
Chipset Intel® W880
Graphics NVIDIA RTX™ 2000 Ada (16GB GDDR6 dedicated)
Memory 48 GB DDR5‑5600 MT/s (1 ×48 GB), 4x Slots
Storage 1TB PCIe® Gen4 M.2 NVMe SSD
Dimensions (W × D × H) 10 × 30.8 × 30.3 cm
Weight Starting at 4 kg
Wireless Intel® Wi‑Fi 6E (AX211) (2×2) and Bluetooth® 5.3
Network Interface Intel® I219‑LM Gigabit Ethernet
Form Factor Small Form Factor
Keyboard HP 320K Wired Keyboard
Pointing Device HP Wired 320M Mouse
Audio Realtek ALC3205 codec, universal audio jack (CTIA/OMTP support)
Expansion Slots 2 M.2 2280 PCIe 4 x4; 1 M.2 2230 for WLAN; 1 PCIe 5 x16; 1 M.2 2280 PCIe 5 x4; 1 PCIe 4 x4
Ports Front: 2× USB‑C 20 Gbps; 4× USB‑A 10 Gbps; 1× headphone/microphone combo
Rear: 2× USB‑A 10 Gbps; 2× DisplayPort 1.4; 1× RJ‑45; 1x Audio line-in/line-out, 3x USB-A 480Mbps
Power Supply 500 W internal adapter, up to 92% efficiency, active PFC
Sustainability EPEAT® registered; low‑halogen; includes post‑consumer and ocean‑bound plastics
Warranty

3‑year limited warranty covering hardware, parts & labour, on‑site repair by HP
Learn what makes this product unique and why it’s right for you.

Compact powerhouse featuring an Intel® Core™ Ultra 9 285 processor (up to 5.4 GHz with Turbo Boost, 36 MB L3 cache, 24 cores/24 threads) and NVIDIA RTX™ A2000  Ada (16 GB GDDR6) discrete graphics. It includes 48 GB DDR5‑5600 memory, a 1TB PCIe Gen 4 M.2 SSD, and wireless connectivity with Wi‑Fi 6E (Intel® AX211) and Bluetooth 5.3—running Windows 11 Pro. Engineered for maximum performance in a small footprint, with extensive expansion slots, rich I/O, and efficient 500 W internal PSU.





TECHNICAL SPECIFICATION

Category Details
Operating System Windows 11 Pro
Processor Intel® Core™ Ultra 9 285 (up to 5.4 GHz with Turbo Boost, 36 MB L3 cache, 24 cores, 24 threads)
Chipset Intel® W880
Graphics NVIDIA RTX™ 2000 Ada (16GB GDDR6 dedicated)
Memory 48 GB DDR5‑5600 MT/s (1 ×48 GB), 4x Slots
Storage 1TB PCIe® Gen4 M.2 NVMe SSD
Dimensions (W × D × H) 10 × 30.8 × 30.3 cm
Weight Starting at 4 kg
Wireless Intel® Wi‑Fi 6E (AX211) (2×2) and Bluetooth® 5.3
Network Interface Intel® I219‑LM Gigabit Ethernet
Form Factor Small Form Factor
Keyboard HP 320K Wired Keyboard
Pointing Device HP Wired 320M Mouse
Audio Realtek ALC3205 codec, universal audio jack (CTIA/OMTP support)
Expansion Slots 2 M.2 2280 PCIe 4 x4; 1 M.2 2230 for WLAN; 1 PCIe 5 x16; 1 M.2 2280 PCIe 5 x4; 1 PCIe 4 x4
Ports Front: 2× USB‑C 20 Gbps; 4× USB‑A 10 Gbps; 1× headphone/microphone combo
Rear: 2× USB‑A 10 Gbps; 2× DisplayPort 1.4; 1× RJ‑45; 1x Audio line-in/line-out, 3x USB-A 480Mbps
Power Supply 500 W internal adapter, up to 92% efficiency, active PFC
Sustainability EPEAT® registered; low‑halogen; includes post‑consumer and ocean‑bound plastics
Warranty

3‑year limited warranty covering hardware, parts & labour, on‑site repair by HP

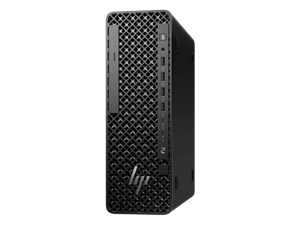

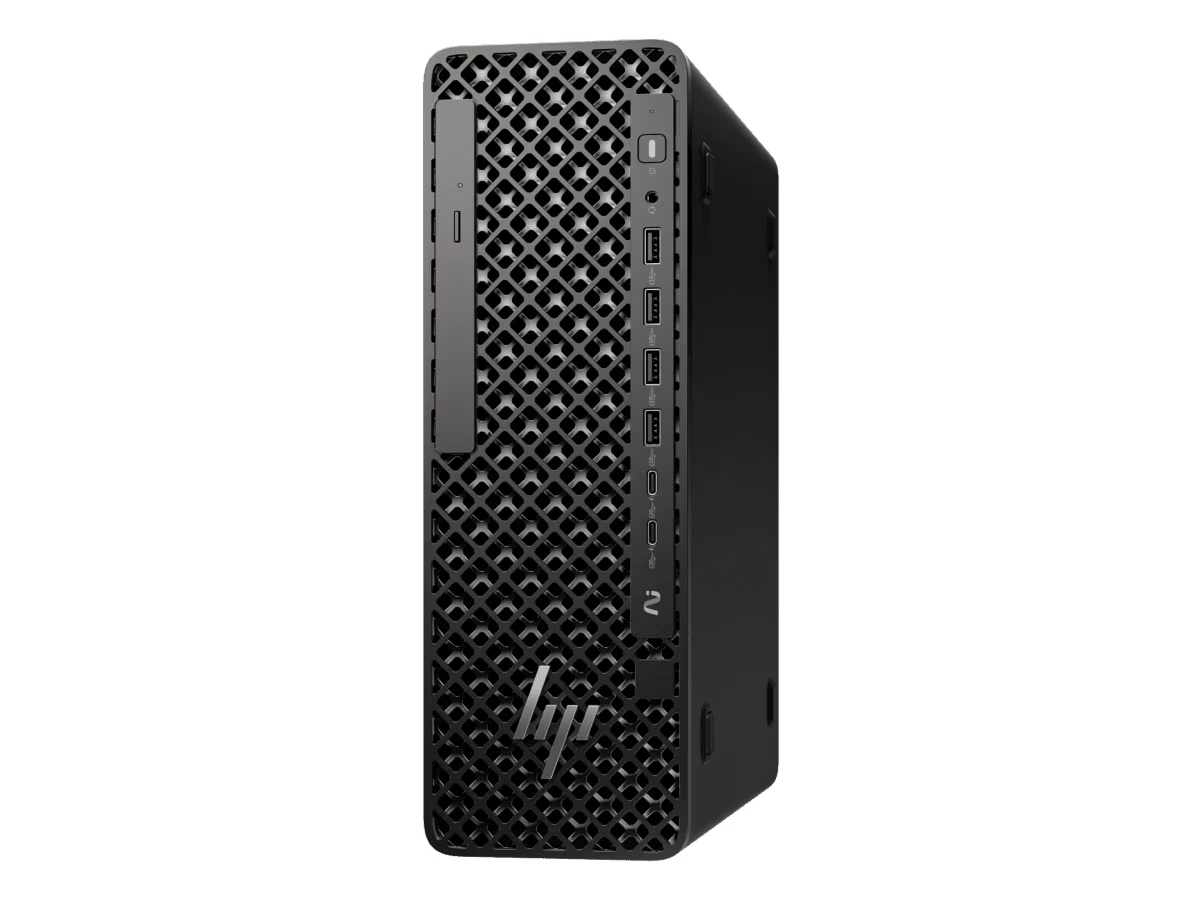

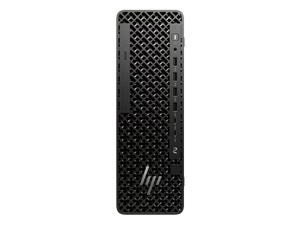

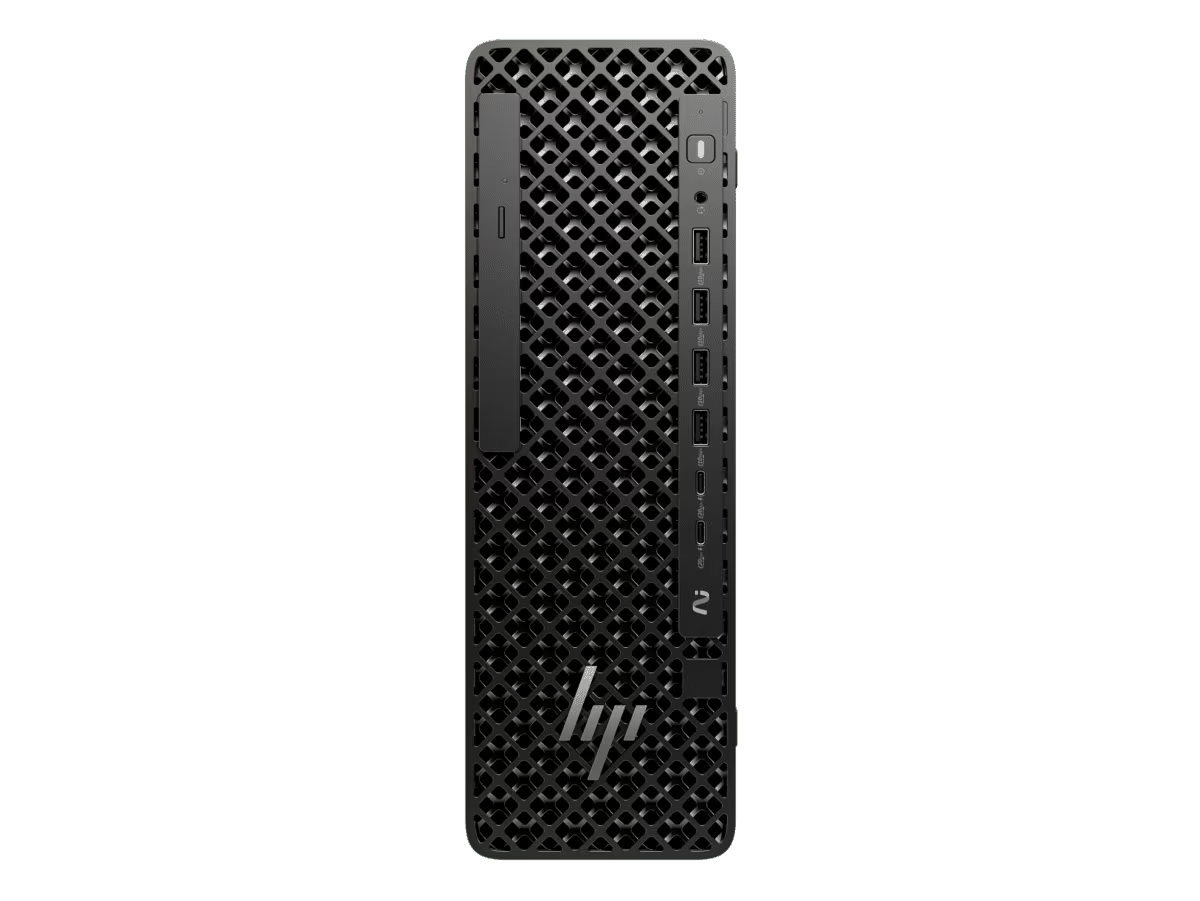

HP Z2 Small Form Factor G1i Workstation U9-285/48GB RAM/1TB SSD/RTX A2000 Ada 16GB (BV5M0PT)

$6,290.00
$6,290.00

SKU: BV8B1PT
