FSPP-H7-S13-10D
FSPP-H7-S13-10D
    FSPP-H7-S13-10D
FSPP-H7-S13-10D

About

Learn what makes this product unique and why it’s right for you.

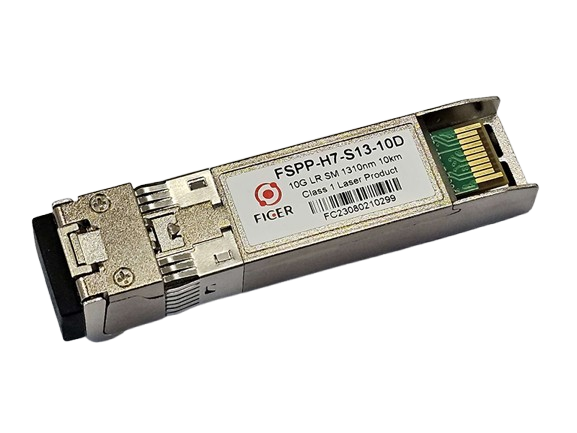

fThe Ficer FSPP‑H7‑S13‑10D is a 10 Gbps SFP+ Long‑Reach (LR) Transceiver utilizing a 1310 nm DFB laser for transmission over single-mode fiber up to 10 km. Featuring a duplex LC interface, it supports hot-pluggable operation, multi-rate speeds from 8.5 to 11.32 Gbps, and includes digital diagnostics (DDM) via a 2-wire SFF-8472 interface. Fully compliant with IEEE 802.3ae, CPRI Option 7/8, and SFP+ MSA standards, this module is powered by a single +3.3 V supply and meets RoHS requirements





KEY FEATURES

Feature Description
Data Rate 10 Gbps (multi-rate support from 8.5 to 11.32 Gbps)
Wavelength 1310 nm DFB laser
Link Distance Up to 10 km over single‑mode fiber
Connector Duplex LC
Hot-Pluggable Yes
Digital Diagnostics 2‑wire SFF‑8472 DDM interface
Standards Compliance IEEE 802.3ae, CPRI Option 7/8, SFP+ MSA, RoHS

Draytek





TECHNICAL SPECIFICATION

Category Details
Interface SFP+ (10GBase-LR)
Laser Type 1310 nm DFB
Fiber Type Single-Mode Fiber
Maximum Distance 10 km
Power Supply +3.3 V
Diagnostics DDM via SFF‑8472
Regulatory RoHS compliant
Learn what makes this product unique and why it’s right for you.

fThe Ficer FSPP‑H7‑S13‑10D is a 10 Gbps SFP+ Long‑Reach (LR) Transceiver utilizing a 1310 nm DFB laser for transmission over single-mode fiber up to 10 km. Featuring a duplex LC interface, it supports hot-pluggable operation, multi-rate speeds from 8.5 to 11.32 Gbps, and includes digital diagnostics (DDM) via a 2-wire SFF-8472 interface. Fully compliant with IEEE 802.3ae, CPRI Option 7/8, and SFP+ MSA standards, this module is powered by a single +3.3 V supply and meets RoHS requirements





KEY FEATURES

Feature Description
Data Rate 10 Gbps (multi-rate support from 8.5 to 11.32 Gbps)
Wavelength 1310 nm DFB laser
Link Distance Up to 10 km over single‑mode fiber
Connector Duplex LC
Hot-Pluggable Yes
Digital Diagnostics 2‑wire SFF‑8472 DDM interface
Standards Compliance IEEE 802.3ae, CPRI Option 7/8, SFP+ MSA, RoHS

Draytek





TECHNICAL SPECIFICATION

Category Details
Interface SFP+ (10GBase-LR)
Laser Type 1310 nm DFB
Fiber Type Single-Mode Fiber
Maximum Distance 10 km
Power Supply +3.3 V
Diagnostics DDM via SFF‑8472
Regulatory RoHS compliant

FSPP‑H7‑S13‑10D

$90.00
$90.00
