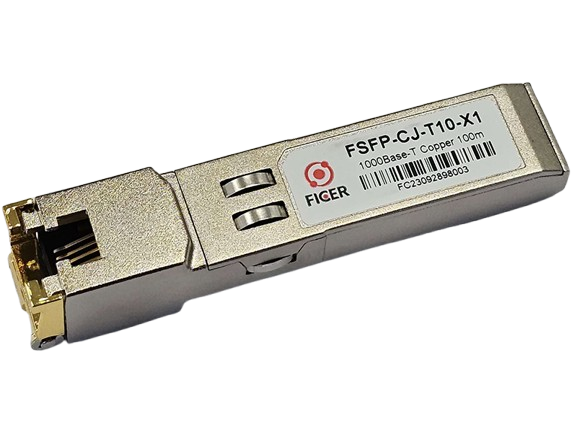

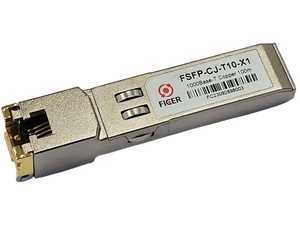

This module is a 1.25 Gbps (Gigabit Ethernet) SFP copper transceiver with an RJ‑45 connector, designed for active copper connection over Category 5 UTP cable up to 100 meters. It supports SERDES (serial interface) rather than SGMII, lacks a link indicator on the Rx_LOS pin, and operates in a commercial temperature range (0 °C to 70 °C).





KEY FEATURES

Feature Description
Data Rate 1.25 Gbps (Gigabit Ethernet)
Interface SERDES
Connector RJ‑45
Link Indicator No Rx_LOS indicator
Hot-Pluggable Yes
MDI/MDI‑X Auto-Detect Yes
Standards Compliance IEEE 802.3 (10/100/1000BASE‑T), SFP MSA





TECHNICAL SPECIFICATION

Category Details
Host Interface Type SERDES
Line Interface RJ‑45, Copper
Supported Speeds 10/100/1000 Mbps over Cat5 UTP up to 100 m
Power Supply Single +3.3 V
Operating Temperature 0 °C to 70 °C
Auto-Negotiation Supported (on copper side)
RoHS Compliance Yes
Learn what makes this product unique and why it’s right for you.

This module is a 1.25 Gbps (Gigabit Ethernet) SFP copper transceiver with an RJ‑45 connector, designed for active copper connection over Category 5 UTP cable up to 100 meters. It supports SERDES (serial interface) rather than SGMII, lacks a link indicator on the Rx_LOS pin, and operates in a commercial temperature range (0 °C to 70 °C).





KEY FEATURES

Feature Description
Data Rate 1.25 Gbps (Gigabit Ethernet)
Interface SERDES
Connector RJ‑45
Link Indicator No Rx_LOS indicator
Hot-Pluggable Yes
MDI/MDI‑X Auto-Detect Yes
Standards Compliance IEEE 802.3 (10/100/1000BASE‑T), SFP MSA





TECHNICAL SPECIFICATION

Category Details
Host Interface Type SERDES
Line Interface RJ‑45, Copper
Supported Speeds 10/100/1000 Mbps over Cat5 UTP up to 100 m
Power Supply Single +3.3 V
Operating Temperature 0 °C to 70 °C
Auto-Negotiation Supported (on copper side)
RoHS Compliance Yes

FSFP‑CJ‑T10‑X1

$110.00
