About

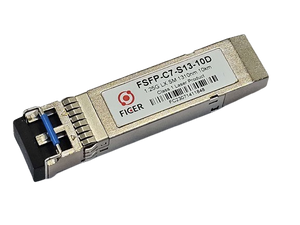

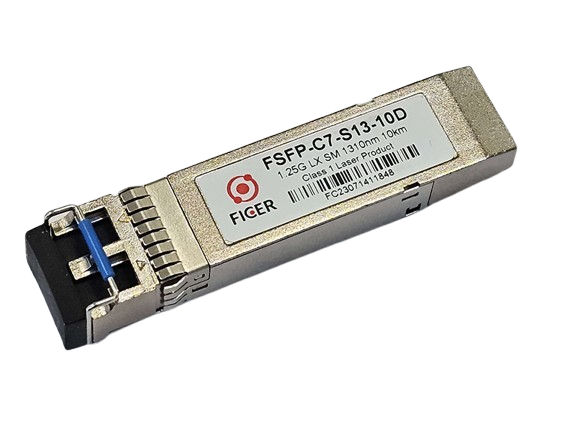

The FSFP‑C7‑S13‑10D is a 1.25 Gbps (Gigabit Ethernet) SFP transceiver from Ficer Technology, featuring a 1310 nm FP laser and dual LC connectors. Designed for single-mode fiber, it reliably transmits data over distances up to 10 km, operating between 0 °C and 70 °C, ideal for long-range network links. It's hot-pluggable and adheres to industry standards like IEEE 802.3z and SFF-8472
KEY FEATURES
| Feature | Description |
|---|---|
| Data Rate | 1.25 Gbps (Gigabit Ethernet / 1GFC) |
| Wavelength | 1310 nm FP laser |
| Distance | Up to 10 km over single-mode fiber |
| Connector | Dual LC (Duplex) |
| Hot‑Pluggable | Yes |
| Standards Compliance | IEEE 802.3z, SFF-8472, INF-8074i SFP MSA |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface | 1.25 Gbps SFP (Gigabit Ethernet, Fiber Channel) |
| Wavelength | 1310 nm |
| Max Distance | 10 km (single-mode fiber) |
| Connector Type | Duplex LC |
| Laser Type | FP Laser |
| Operating Temp | 0 °C to 70 °C |
| Power Supply | Single +3.3 V |
| Diagnostic | 2-wire serial interface (SFF‑8472 DDM) |
| Compliance | RoHS, IEEE 802.3z, SFP MSA |
The FSFP‑C7‑S13‑10D is a 1.25 Gbps (Gigabit Ethernet) SFP transceiver from Ficer Technology, featuring a 1310 nm FP laser and dual LC connectors. Designed for single-mode fiber, it reliably transmits data over distances up to 10 km, operating between 0 °C and 70 °C, ideal for long-range network links. It's hot-pluggable and adheres to industry standards like IEEE 802.3z and SFF-8472
KEY FEATURES
| Feature | Description |
|---|---|
| Data Rate | 1.25 Gbps (Gigabit Ethernet / 1GFC) |
| Wavelength | 1310 nm FP laser |
| Distance | Up to 10 km over single-mode fiber |
| Connector | Dual LC (Duplex) |
| Hot‑Pluggable | Yes |
| Standards Compliance | IEEE 802.3z, SFF-8472, INF-8074i SFP MSA |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Interface | 1.25 Gbps SFP (Gigabit Ethernet, Fiber Channel) |
| Wavelength | 1310 nm |
| Max Distance | 10 km (single-mode fiber) |
| Connector Type | Duplex LC |
| Laser Type | FP Laser |
| Operating Temp | 0 °C to 70 °C |
| Power Supply | Single +3.3 V |
| Diagnostic | 2-wire serial interface (SFF‑8472 DDM) |
| Compliance | RoHS, IEEE 802.3z, SFP MSA |
