About

Learn what makes this product unique and why it’s right for you.

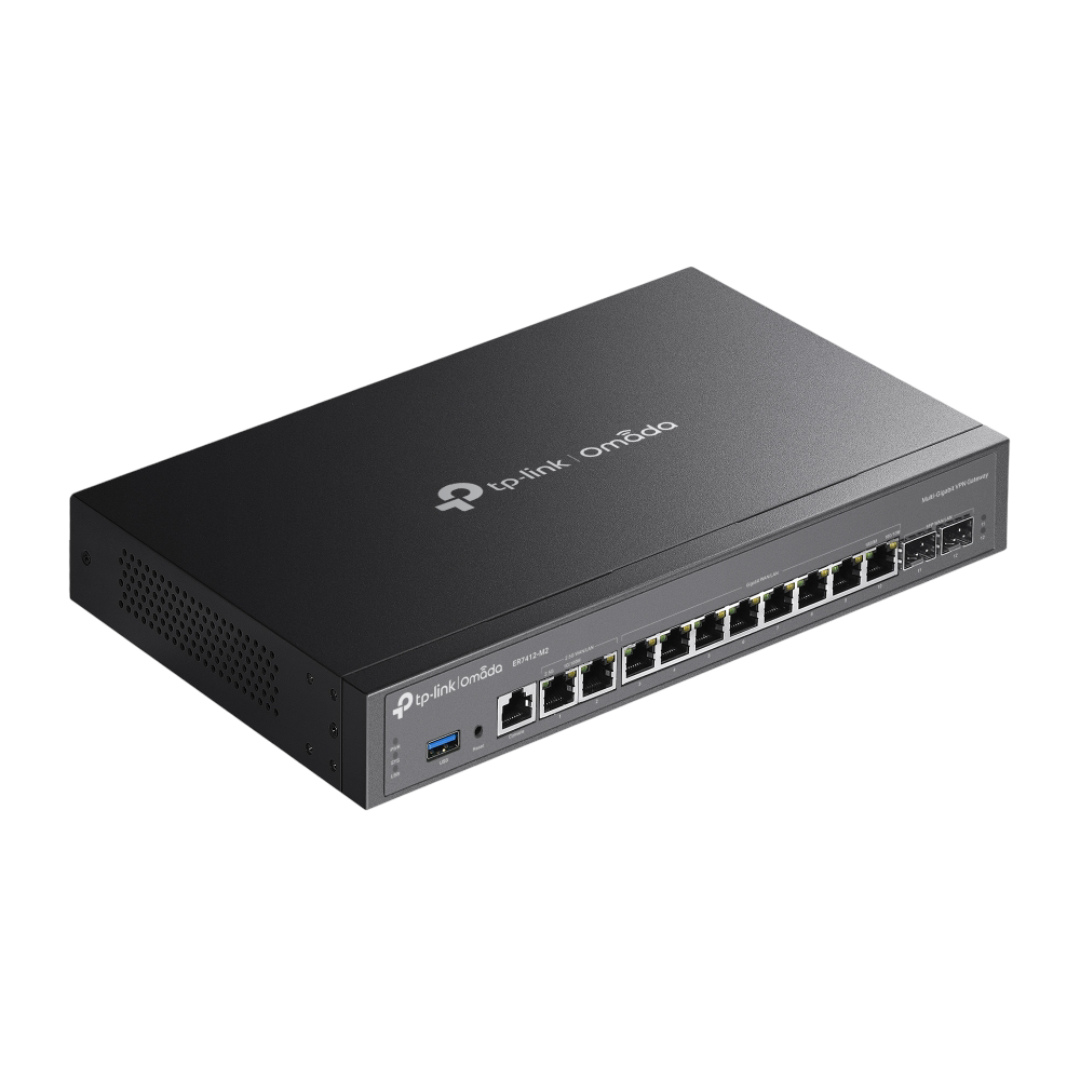

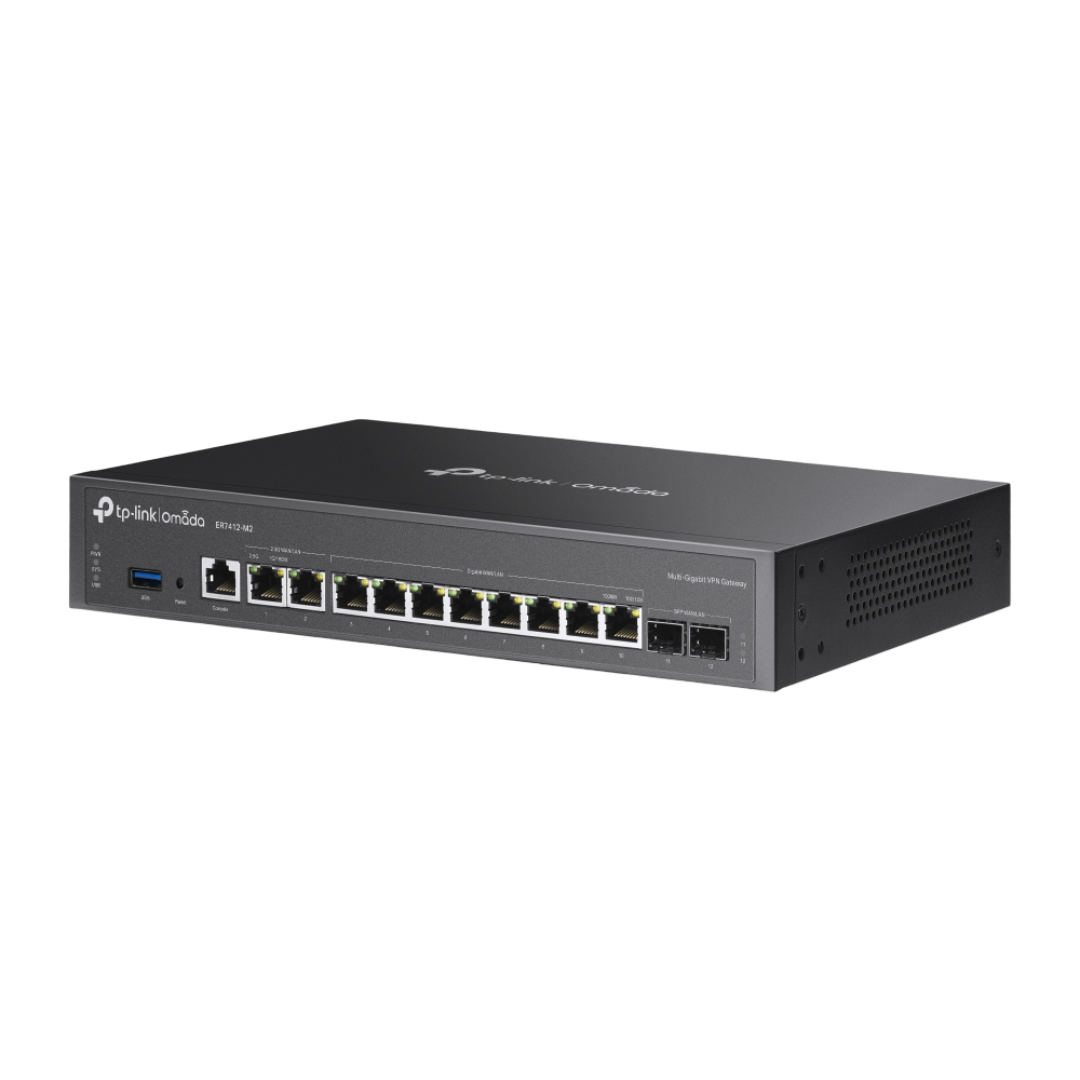

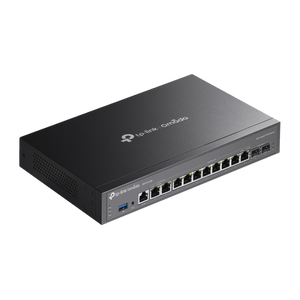

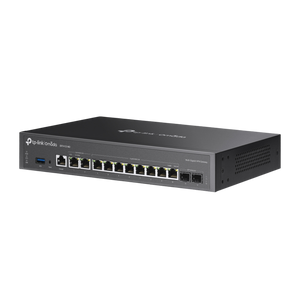

The ER7412‑M2 is a high-performance multi‑gigabit VPN gateway designed for enterprise, campus, and dense network deployments. It features dual 2.5 Gbps RJ45 ports alongside multiple gigabit ports (RJ45 + SFP) to support high‑speed WAN/LAN interconnects. With a quad‑core 2.0 GHz CPU, advanced VPN capabilities (IPSec, SSL, WireGuard, OpenVPN, GRE, PPTP, L2TP), deep packet inspection (DPI), IDS/IPS, load balancing across up to 11 WAN links, and centralized management through Omada SDN (cloud, hardware, or software controller), this router is aimed at providing robust throughput, security, and flexibility in multi‑line broadband environments.





TECHNICAL SPECIFICATION

Category Details
Model / Series ER7412‑M2, Omada Multi‑Gigabit VPN Router / Gateway
CPU / Processing Quad‑core, 2.0 GHz

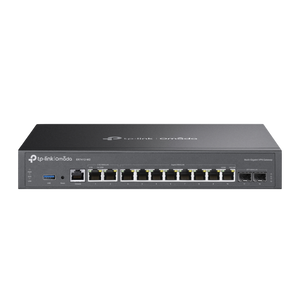

Ports / Interfaces 2 × 2.5 Gbps RJ45 (WAN/LAN)
8 × Gigabit RJ45 (WAN/LAN)
2 × Gigabit SFP (WAN/LAN)
1 × USB 3.0 port (for USB storage, LTE backup)
1 × RJ45 console port
Multi‑WAN & Load Balancing Supports load balancing across up to 11 WAN ports (including USB)
VPN Support / Tunnels SSL VPN (up to 80 tunnels)
IPSec VPN (150 tunnels)
GRE / L2TP / PPTP / OpenVPN / WireGuard (20 tunnels)
Performance / Throughput NAT (Static IP): ~2,345.7 / 2,351.2 Mbps :contentReference[oaicite:11]{index=11}
DPI / Firewall / IDS/IPS: (Nordic spec) ~2.2 Gbps / 573 Mbps (IPS)
WireGuard VPN: ~771.6 Mbps
IPSec (AES‑SHA variants): ~1,125–1,133 Mbps range
OpenVPN (UDP): ~266.2 Mbps
Security / Firewall / DPI / IDS/IPS DoS / DDoS protection, TCP/UDP/ICMP flood defense
IP/MAC binding, ARP inspection, ARP scanning
URL filtering, Web / Group filtering, ACLs
Signature‑based IDS/IPS with regular database updates
Deep Packet Inspection (DPI) engine
Attack defense (block stealth scans, block ping from WAN)
Memory / Storage 1 GB DDR4 RAM, 128 MB NAND flash
Dimensions & Form Factor 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)
Rack‑mountable, steel enclosure with surge protection (4 kV)

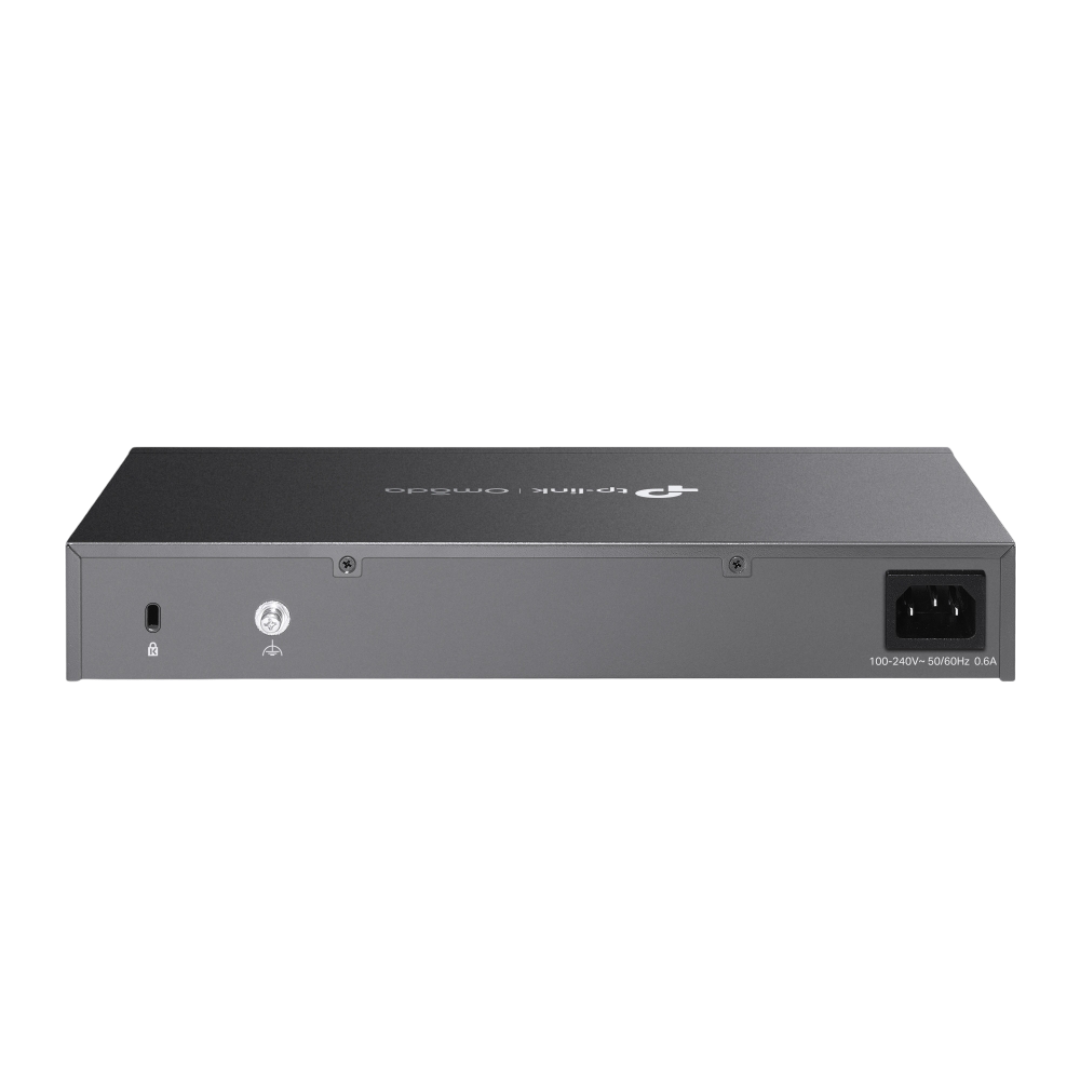

Power / Consumption External power supply, 100–240 VAC, 50/60 Hz
Maximum power consumption: ~18.5 W (with USB 3.0)
Operating Environment Operating temperature: 0 °C to 45 °C
Storage: –40 °C to 70 °C
Humidity: 10%–90% non‑condensing
Certifications: CE, FCC
Package Contents / Accessories ER7412‑M2 unit, power cord, RJ45 console cable, rackmount kit, screws, quick installation guide
Learn what makes this product unique and why it’s right for you.

The ER7412‑M2 is a high-performance multi‑gigabit VPN gateway designed for enterprise, campus, and dense network deployments. It features dual 2.5 Gbps RJ45 ports alongside multiple gigabit ports (RJ45 + SFP) to support high‑speed WAN/LAN interconnects. With a quad‑core 2.0 GHz CPU, advanced VPN capabilities (IPSec, SSL, WireGuard, OpenVPN, GRE, PPTP, L2TP), deep packet inspection (DPI), IDS/IPS, load balancing across up to 11 WAN links, and centralized management through Omada SDN (cloud, hardware, or software controller), this router is aimed at providing robust throughput, security, and flexibility in multi‑line broadband environments.





TECHNICAL SPECIFICATION

Category Details
Model / Series ER7412‑M2, Omada Multi‑Gigabit VPN Router / Gateway
CPU / Processing Quad‑core, 2.0 GHz
Ports / Interfaces 2 × 2.5 Gbps RJ45 (WAN/LAN)
8 × Gigabit RJ45 (WAN/LAN)
2 × Gigabit SFP (WAN/LAN)
1 × USB 3.0 port (for USB storage, LTE backup)
1 × RJ45 console port
Multi‑WAN & Load Balancing Supports load balancing across up to 11 WAN ports (including USB)
VPN Support / Tunnels SSL VPN (up to 80 tunnels)
IPSec VPN (150 tunnels)
GRE / L2TP / PPTP / OpenVPN / WireGuard (20 tunnels)
Performance / Throughput NAT (Static IP): ~2,345.7 / 2,351.2 Mbps :contentReference[oaicite:11]{index=11}
DPI / Firewall / IDS/IPS: (Nordic spec) ~2.2 Gbps / 573 Mbps (IPS)
WireGuard VPN: ~771.6 Mbps
IPSec (AES‑SHA variants): ~1,125–1,133 Mbps range
OpenVPN (UDP): ~266.2 Mbps
Security / Firewall / DPI / IDS/IPS DoS / DDoS protection, TCP/UDP/ICMP flood defense
IP/MAC binding, ARP inspection, ARP scanning
URL filtering, Web / Group filtering, ACLs
Signature‑based IDS/IPS with regular database updates
Deep Packet Inspection (DPI) engine
Attack defense (block stealth scans, block ping from WAN)
Memory / Storage 1 GB DDR4 RAM, 128 MB NAND flash
Dimensions & Form Factor 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)
Rack‑mountable, steel enclosure with surge protection (4 kV)
Power / Consumption External power supply, 100–240 VAC, 50/60 Hz
Maximum power consumption: ~18.5 W (with USB 3.0)
Operating Environment Operating temperature: 0 °C to 45 °C
Storage: –40 °C to 70 °C
Humidity: 10%–90% non‑condensing
Certifications: CE, FCC
Package Contents / Accessories ER7412‑M2 unit, power cord, RJ45 console cable, rackmount kit, screws, quick installation guide

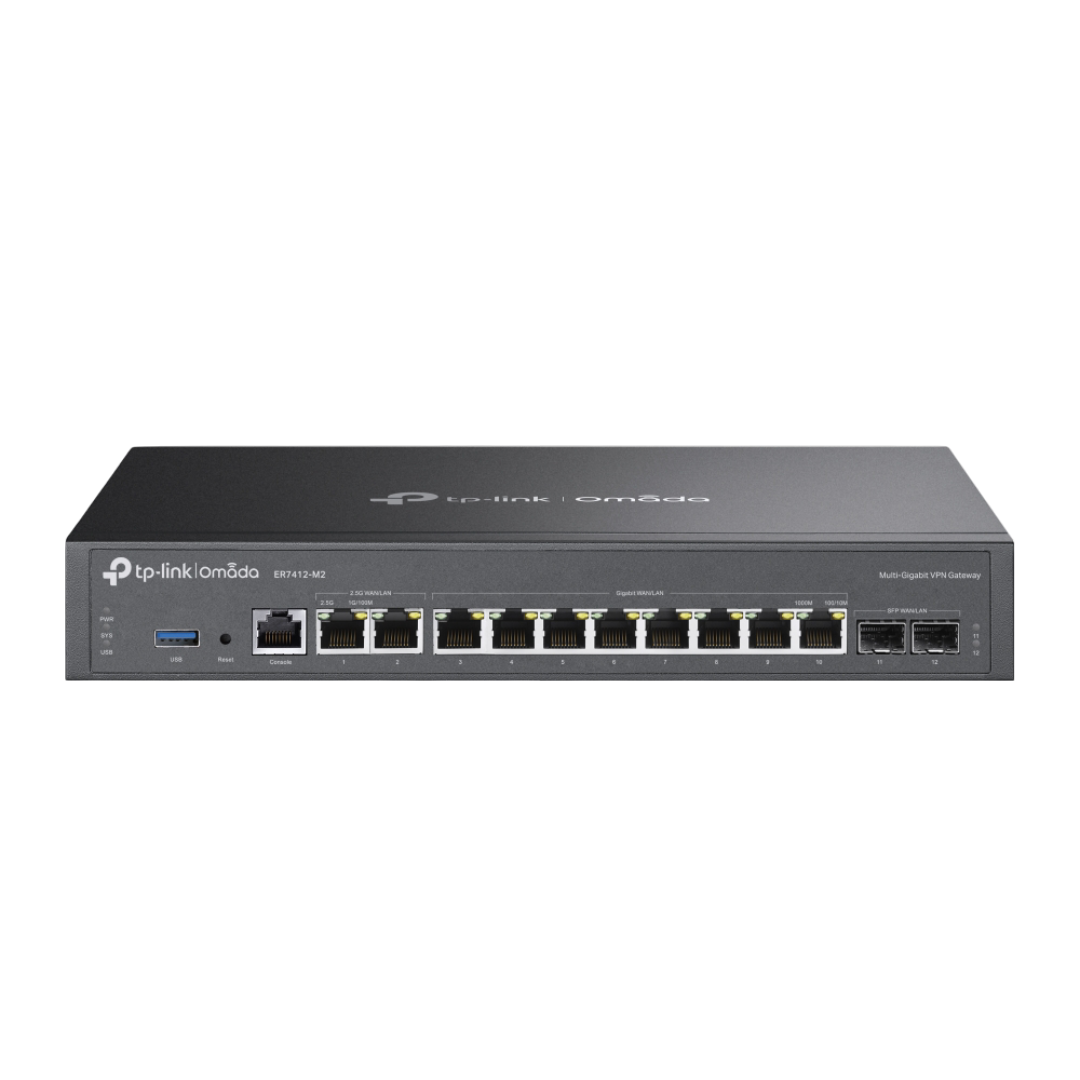

ER7412-M2 - Omada Multi-Gigabit VPN Router

Regular price
$349.00
Sale price
$349.00
Regular price
