About

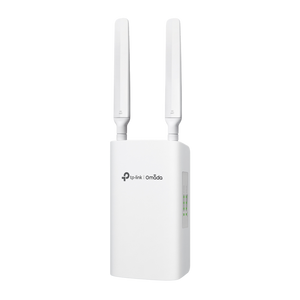

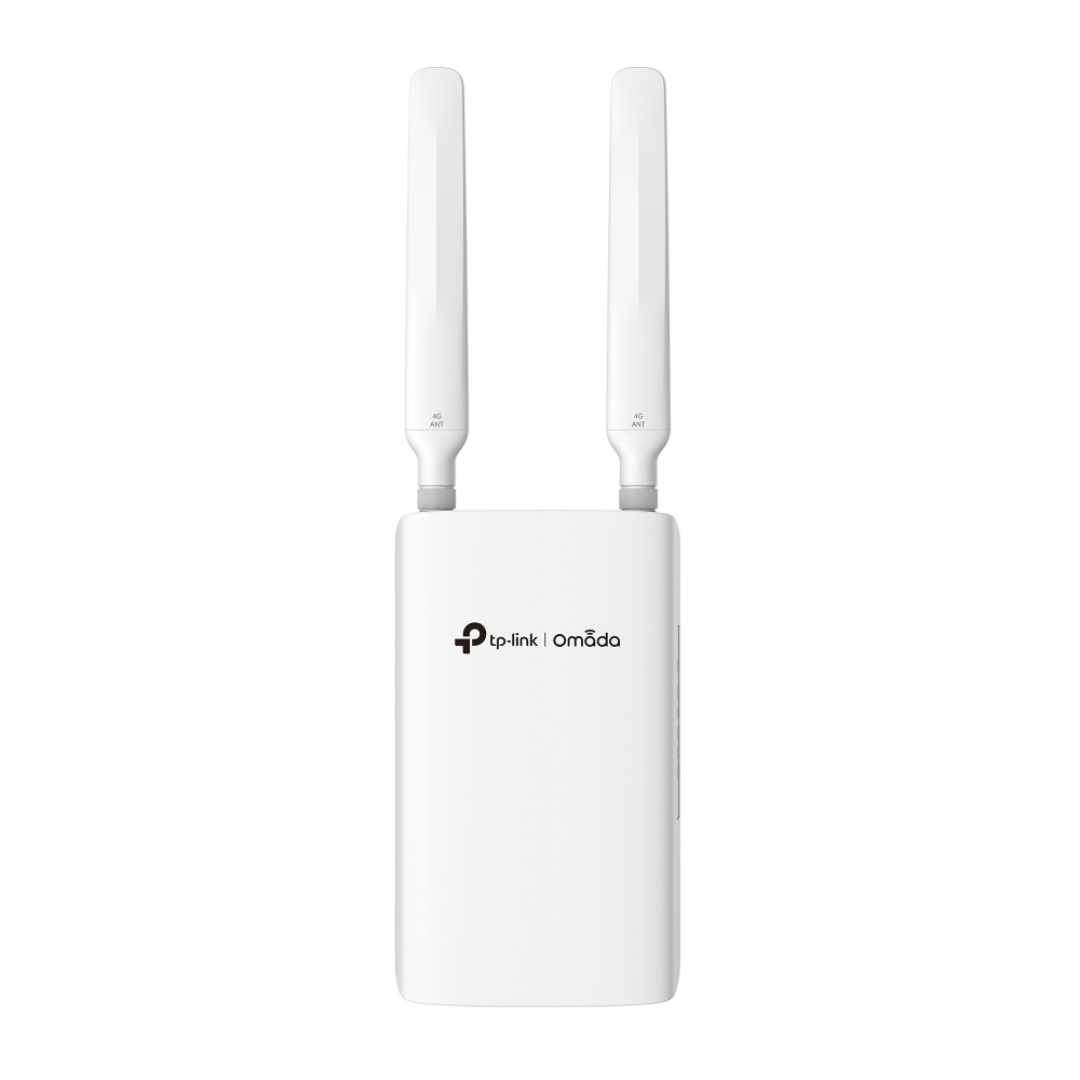

ER703WP-4G-Outdoor is a versatile gateway designed for both outdoor and indoor deployment, offering high-speed Wi-Fi 6 connectivity combined with 4G+ Cat6 LTE for reliable cellular internet access. It supports robust VPN features and is built with weatherproof casing to withstand harsh environments, making it ideal for remote offices, outdoor venues, and other demanding scenarios.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | ER703WP-4G-Outdoor |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11ac/n/a/g/b |
| Wi-Fi Speed | 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) |
| Cellular Standard & Speed | 4G+ LTE Cat6 (LTE Advanced), up to 300 Mbps download speed |
| SIM Slots | 1 x Nano SIM slot (4G+ Cat6) |

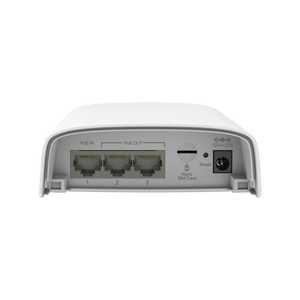

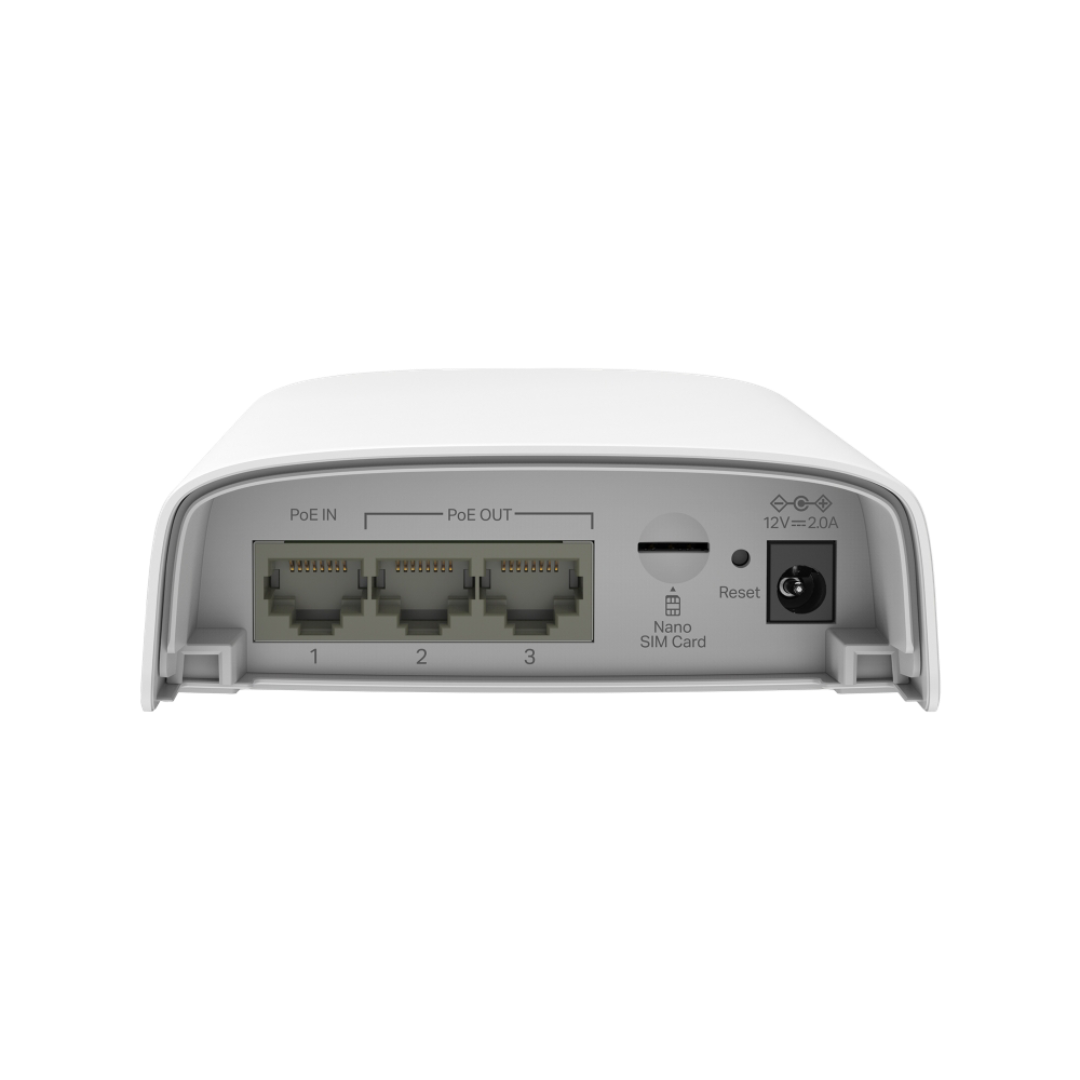

| Ports | 3 x Gigabit WAN/LAN Ports |
| PoE Support | 802.3bt/at/af; 1 Port PoE IN (supports 802.3bt), 2 Ports with 45W PoE Power |
| VPN Support | SSL VPN, OpenVPN, WireGuard, IPsec, PPTP, L2TP, L2TP over IPsec |

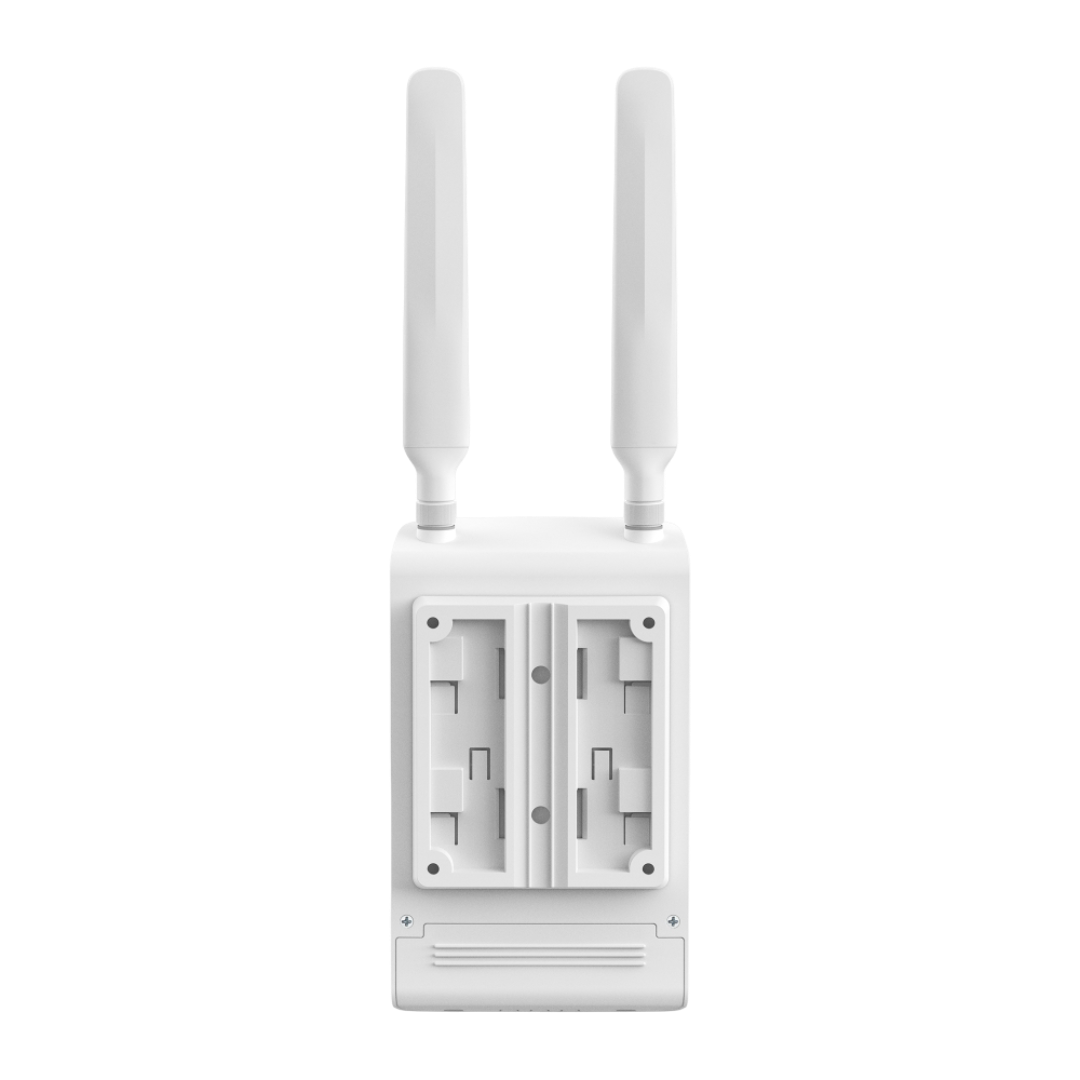

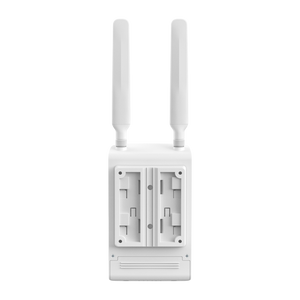

| Antenna | 2 x Detachable LTE Antennas |
| Advanced Wi-Fi Features | 160 MHz Supported, OFDMA, MU-MIMO, Beamforming |
| Network Features | Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, Stateful ACL, mDNS Repeater, Bridge VLAN |
| Management | Integration with Omada SDN Controller, Omada App, Web UI, SNMP |
| Ingress Protection | IP55 Weatherproof (Dust and Water Resistant) |
| Power Supply | 12 V / 2 A DC Adapter, supports PoE |
| Dimensions | 240 x 180 x 55 mm |
| Operating Temperature | -30°C to 60°C |
| Weight | Approx. 850 g |
ER703WP-4G-Outdoor is a versatile gateway designed for both outdoor and indoor deployment, offering high-speed Wi-Fi 6 connectivity combined with 4G+ Cat6 LTE for reliable cellular internet access. It supports robust VPN features and is built with weatherproof casing to withstand harsh environments, making it ideal for remote offices, outdoor venues, and other demanding scenarios.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | ER703WP-4G-Outdoor |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11ac/n/a/g/b |
| Wi-Fi Speed | 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) |
| Cellular Standard & Speed | 4G+ LTE Cat6 (LTE Advanced), up to 300 Mbps download speed |
| SIM Slots | 1 x Nano SIM slot (4G+ Cat6) |
| Ports | 3 x Gigabit WAN/LAN Ports |
| PoE Support | 802.3bt/at/af; 1 Port PoE IN (supports 802.3bt), 2 Ports with 45W PoE Power |
| VPN Support | SSL VPN, OpenVPN, WireGuard, IPsec, PPTP, L2TP, L2TP over IPsec |
| Antenna | 2 x Detachable LTE Antennas |
| Advanced Wi-Fi Features | 160 MHz Supported, OFDMA, MU-MIMO, Beamforming |
| Network Features | Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, Stateful ACL, mDNS Repeater, Bridge VLAN |
| Management | Integration with Omada SDN Controller, Omada App, Web UI, SNMP |
| Ingress Protection | IP55 Weatherproof (Dust and Water Resistant) |
| Power Supply | 12 V / 2 A DC Adapter, supports PoE |
| Dimensions | 240 x 180 x 55 mm |
| Operating Temperature | -30°C to 60°C |
| Weight | Approx. 850 g |

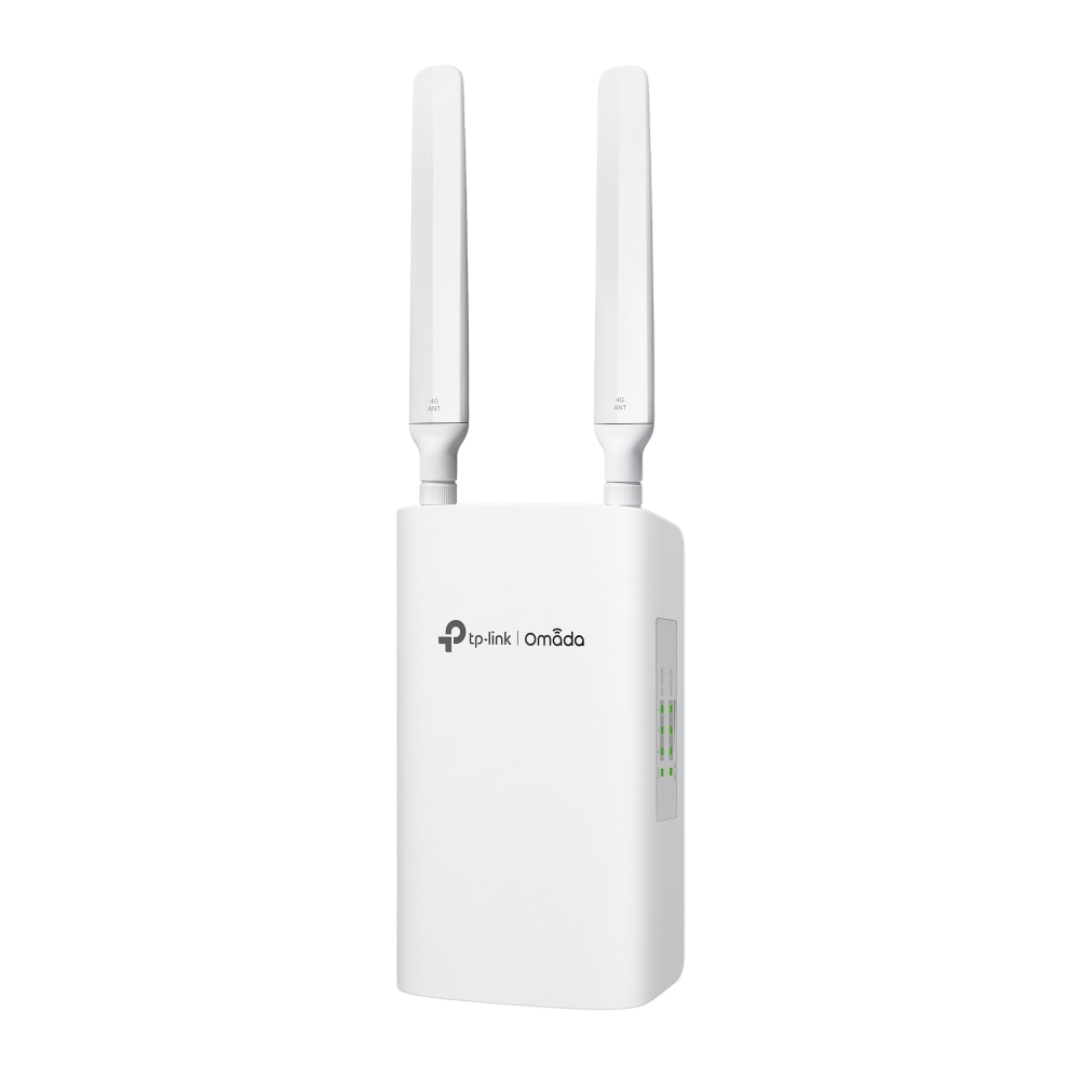

ER703WP-4G-Outdoor - Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
- Regular price
- $449.00
- Sale price
- $449.00
