About
The JR315-SC-SIP Emergency Help Point is a reliable and rugged SIP-enabled communication panel designed for public safety and emergency applications. It provides instant voice communication through a weatherproof and vandal-resistant interface, suitable for use in transportation hubs, public spaces, and industrial environments. Supporting SIP protocol, it integrates easily with VoIP systems for efficient emergency response.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Built-in Camera | Yes |
| Handsfree | Full duplex handsfree communication |
| Keypad | Weather and vandal resistant keypad buttons |

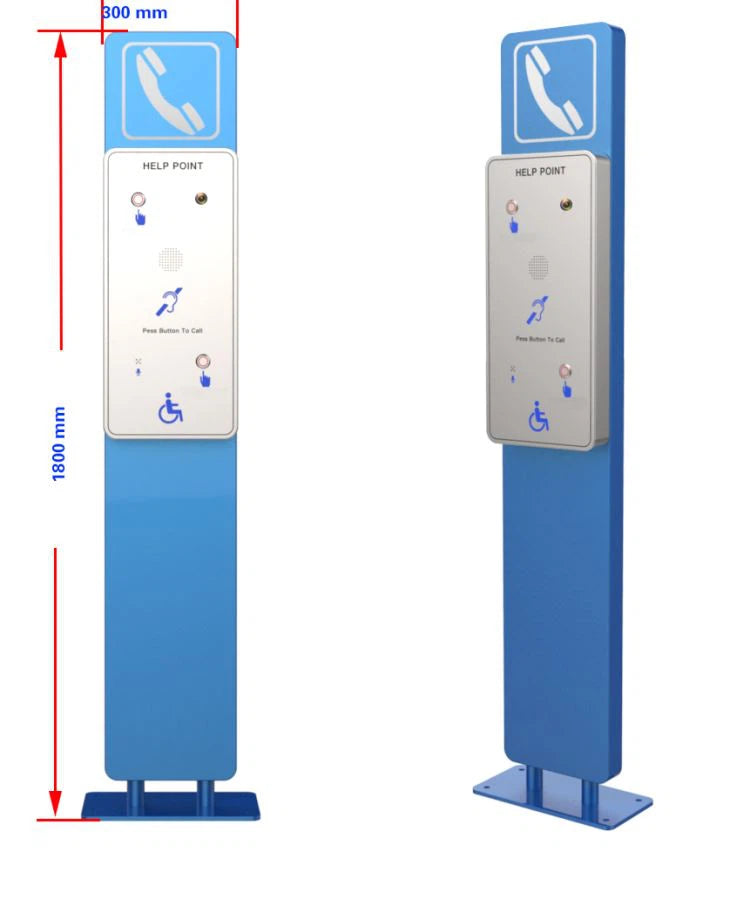

| Mounting Options | Dual purpose design for surface or tower mounting (optional) |
| Housing Material | Stainless steel housing |
| Induction Loop | Included for hearing aid users |
| Emergency Call | Dual button autodial for emergency calls |
| Communication Protocol | SIP 2.0 (RFC 3261) |
| Audio Codec Support | G.711 A/U, G.722, G.729, G.723.1, OPUS |
| Microphone | Noise-canceling microphone |
| Speaker | High-performance speaker with 85 dB(A) @ 1 meter |
| Call Button | Emergency call button with LED indicator |
| Power Supply | PoE (Power over Ethernet) or 12V DC |
| Protection Rating | IP65 - Weatherproof and vandal-resistant |
| Operating Temperature | -40°C to +60°C |
| Dimensions (mm) | 240 x 180 x 100 |
| Weight | 3.5 kg |
| Installation | Wall mount with tamper-proof screws |
The JR315-SC-SIP Emergency Help Point is a reliable and rugged SIP-enabled communication panel designed for public safety and emergency applications. It provides instant voice communication through a weatherproof and vandal-resistant interface, suitable for use in transportation hubs, public spaces, and industrial environments. Supporting SIP protocol, it integrates easily with VoIP systems for efficient emergency response.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Built-in Camera | Yes |
| Handsfree | Full duplex handsfree communication |
| Keypad | Weather and vandal resistant keypad buttons |
| Mounting Options | Dual purpose design for surface or tower mounting (optional) |
| Housing Material | Stainless steel housing |
| Induction Loop | Included for hearing aid users |
| Emergency Call | Dual button autodial for emergency calls |
| Communication Protocol | SIP 2.0 (RFC 3261) |
| Audio Codec Support | G.711 A/U, G.722, G.729, G.723.1, OPUS |
| Microphone | Noise-canceling microphone |
| Speaker | High-performance speaker with 85 dB(A) @ 1 meter |
| Call Button | Emergency call button with LED indicator |
| Power Supply | PoE (Power over Ethernet) or 12V DC |
| Protection Rating | IP65 - Weatherproof and vandal-resistant |
| Operating Temperature | -40°C to +60°C |
| Dimensions (mm) | 240 x 180 x 100 |
| Weight | 3.5 kg |
| Installation | Wall mount with tamper-proof screws |
Emergency Help Point SIP Panel
- Regular price
- $4,095.00
- Sale price
- $4,095.00
