The EAP783 is a high-performance Wi-Fi 7 access point designed for enterprise environments. With tri-band support (2.4 GHz, 5 GHz, and 6 GHz), ultra-fast speeds up to 22 Gbps, and Multi-Link Operation (MLO), it ensures seamless high-density performance. It features 2× 10G Ethernet ports, Omada SDN integration, and advanced security, making it ideal for offices, hotels, schools, and more.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be), Tri-Band |
| Maximum Speeds | 6 GHz: 11,520 Mbps 5 GHz: 8,640 Mbps 2.4 GHz: 1,376 Mbps |
| Ethernet Ports | 2 × 10G Ethernet (PoE++) |
| Power Supply | PoE++ (802.3bt) or 12V DC (adapter not included) |
| Power Consumption | Max 39 W |
| Antenna Gain | 2.4 GHz: 4 × 4 dBi 5 GHz: 4 × 5.5 dBi 6 GHz: 4 × 5 dBi |
| Coverage Area | Up to 200 m² |
| Max Clients | 640–760+ |
| Advanced Features | MU-MIMO, OFDMA, MLO, 4K-QAM, Beamforming, HE320, BSS Coloring, Band Steering, Airtime Fairness |
| Management | Omada SDN (Cloud, App, Web UI), SSH, SNMP |
| Security | WPA2/WPA3, PPSK, VLAN, Captive Portal, MAC Filtering |

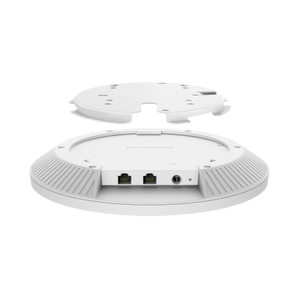

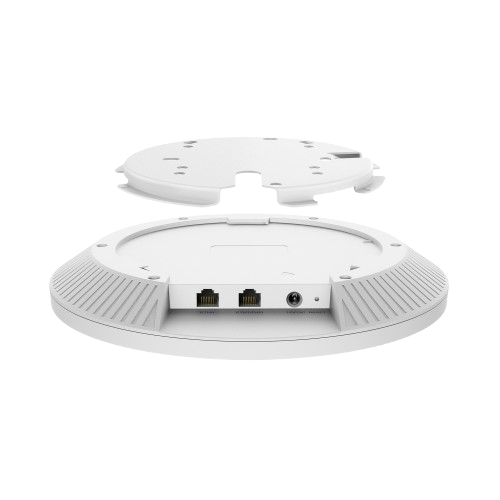

| Mounting | Ceiling or Wall Mount (kits included) |
| Bluetooth | v5.2 |
| Dimensions | 280 × 280 × 46.5 mm |
| Weight | 1.38 kg |
| Operating Temperature | 0–40°C (32–104°F) |
| Certifications | CE, FCC, RoHS, IC |
The EAP783 is a high-performance Wi-Fi 7 access point designed for enterprise environments. With tri-band support (2.4 GHz, 5 GHz, and 6 GHz), ultra-fast speeds up to 22 Gbps, and Multi-Link Operation (MLO), it ensures seamless high-density performance. It features 2× 10G Ethernet ports, Omada SDN integration, and advanced security, making it ideal for offices, hotels, schools, and more.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be), Tri-Band |
| Maximum Speeds | 6 GHz: 11,520 Mbps 5 GHz: 8,640 Mbps 2.4 GHz: 1,376 Mbps |
| Ethernet Ports | 2 × 10G Ethernet (PoE++) |
| Power Supply | PoE++ (802.3bt) or 12V DC (adapter not included) |
| Power Consumption | Max 39 W |
| Antenna Gain | 2.4 GHz: 4 × 4 dBi 5 GHz: 4 × 5.5 dBi 6 GHz: 4 × 5 dBi |
| Coverage Area | Up to 200 m² |
| Max Clients | 640–760+ |
| Advanced Features | MU-MIMO, OFDMA, MLO, 4K-QAM, Beamforming, HE320, BSS Coloring, Band Steering, Airtime Fairness |
| Management | Omada SDN (Cloud, App, Web UI), SSH, SNMP |
| Security | WPA2/WPA3, PPSK, VLAN, Captive Portal, MAC Filtering |
| Mounting | Ceiling or Wall Mount (kits included) |
| Bluetooth | v5.2 |
| Dimensions | 280 × 280 × 46.5 mm |
| Weight | 1.38 kg |
| Operating Temperature | 0–40°C (32–104°F) |
| Certifications | CE, FCC, RoHS, IC |

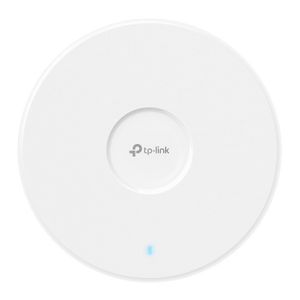

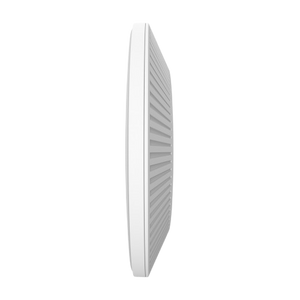

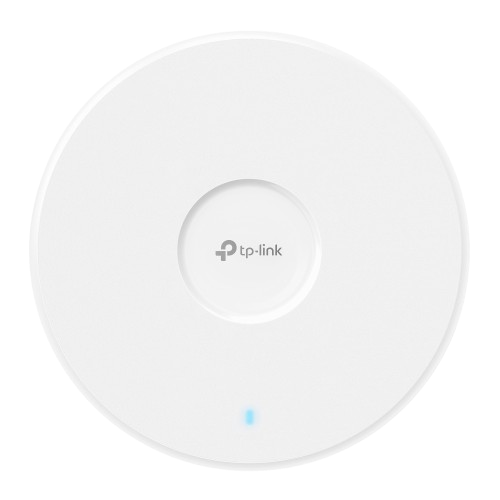

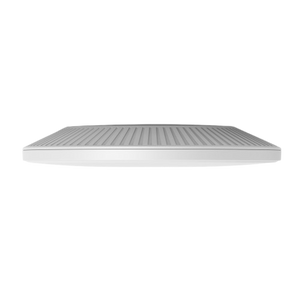

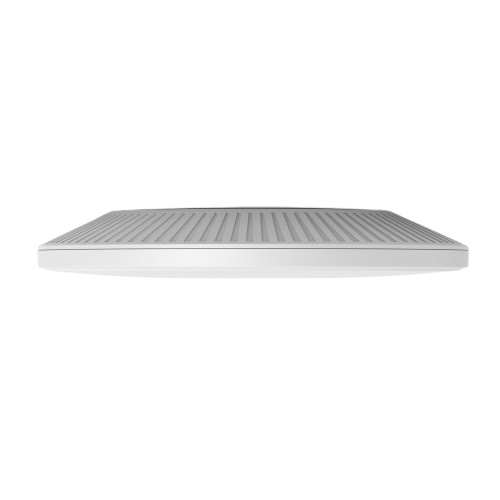

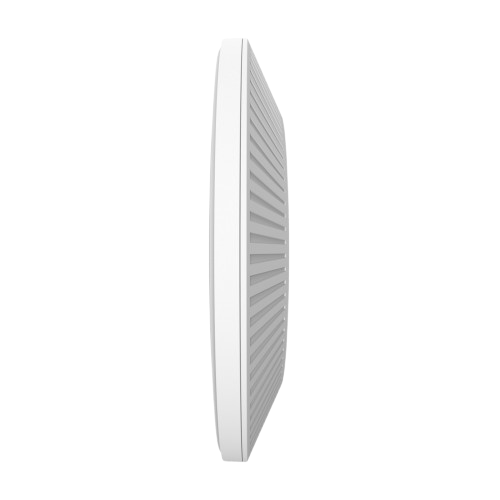

EAP783 - BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- Regular price
- $469.00
- Sale price
- $469.00
