About
The TP‑Link EAP772 (BE9300) is a sleek, ultra-thin Wi‑Fi 7 ceiling-mount access point engineered for enterprise environments. It delivers blazing tri‑band wireless speeds (up to ≈ 9.2 Gbps combined), thanks to 320 MHz channels and Multi‑Link Operation (MLO). With a 2.5 GbE Ethernet uplink, seamless AI roaming, Mesh support, and centralized Omada SDN management (cloud, hardware, or software controllers), it’s ideal for high-density deployments like offices, retail, or hospitality.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be), Tri‑Band |
| Maximum Speeds | 6 GHz: 5,760 Mbps 5 GHz: 2,880 Mbps 2.4 GHz: 574 Mbps |
| Ethernet Port | 1 × 2.5G RJ45 |
| Power Supply | 802.3at PoE or 12 V DC (2.5 A) |
| Power Consumption | ~25.4 W (PoE), ~22.6 W (DC) |
| Antenna Gain | 2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 5 dBi 6 GHz: 2 × 5 dBi |
| Coverage | ≈ 140 m² (1,500 ft²) |
| Concurrent Clients | 380+ |
| Advanced Wireless Features | MLO, 4K‑QAM, MU‑MIMO, EHT320 (320 MHz), Seamless Roaming (802.11k/v/r), Mesh, BSS Coloring, OFDMA, Band Steering, Beamforming, Airtime Fairness, Load Balancing |
| Management | Omada (Cloud / Hardware / Software Controller), Omada App, SNMP, Web UI |
| Security | WPA‑Personal/Enterprise, WPA2, WPA3, Captive Portal, Rogue AP Detection, VLAN, MAC Filtering (up to 4,000), Wireless Isolation |
| Dimensions | 220 × 220 × 32.5 mm |
| Bluetooth | v5.2 (4 dBi) |

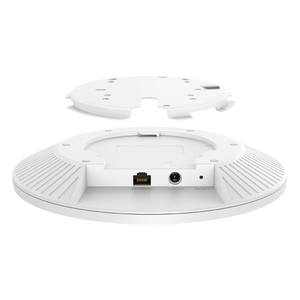

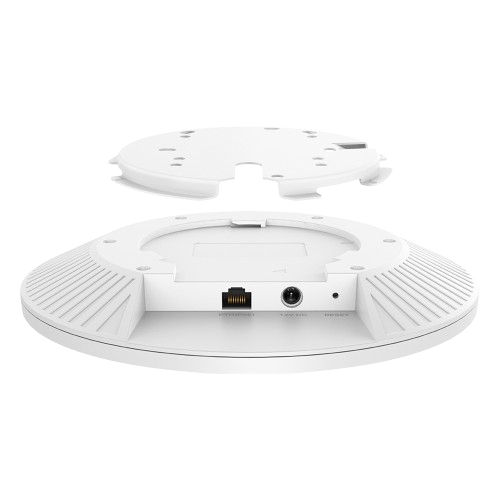

| Mounting | Ceiling / Wall (kits included) |
| Certifications | CE, FCC, RoHS, IC |
| Environmental | Operating: 0–40 °C, Storage: –40–70 °C, Operating Humidity: 10–90% non‑condensing |
The TP‑Link EAP772 (BE9300) is a sleek, ultra-thin Wi‑Fi 7 ceiling-mount access point engineered for enterprise environments. It delivers blazing tri‑band wireless speeds (up to ≈ 9.2 Gbps combined), thanks to 320 MHz channels and Multi‑Link Operation (MLO). With a 2.5 GbE Ethernet uplink, seamless AI roaming, Mesh support, and centralized Omada SDN management (cloud, hardware, or software controllers), it’s ideal for high-density deployments like offices, retail, or hospitality.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be), Tri‑Band |
| Maximum Speeds | 6 GHz: 5,760 Mbps 5 GHz: 2,880 Mbps 2.4 GHz: 574 Mbps |
| Ethernet Port | 1 × 2.5G RJ45 |
| Power Supply | 802.3at PoE or 12 V DC (2.5 A) |
| Power Consumption | ~25.4 W (PoE), ~22.6 W (DC) |
| Antenna Gain | 2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 5 dBi 6 GHz: 2 × 5 dBi |
| Coverage | ≈ 140 m² (1,500 ft²) |
| Concurrent Clients | 380+ |
| Advanced Wireless Features | MLO, 4K‑QAM, MU‑MIMO, EHT320 (320 MHz), Seamless Roaming (802.11k/v/r), Mesh, BSS Coloring, OFDMA, Band Steering, Beamforming, Airtime Fairness, Load Balancing |
| Management | Omada (Cloud / Hardware / Software Controller), Omada App, SNMP, Web UI |
| Security | WPA‑Personal/Enterprise, WPA2, WPA3, Captive Portal, Rogue AP Detection, VLAN, MAC Filtering (up to 4,000), Wireless Isolation |
| Dimensions | 220 × 220 × 32.5 mm |
| Bluetooth | v5.2 (4 dBi) |
| Mounting | Ceiling / Wall (kits included) |
| Certifications | CE, FCC, RoHS, IC |
| Environmental | Operating: 0–40 °C, Storage: –40–70 °C, Operating Humidity: 10–90% non‑condensing |

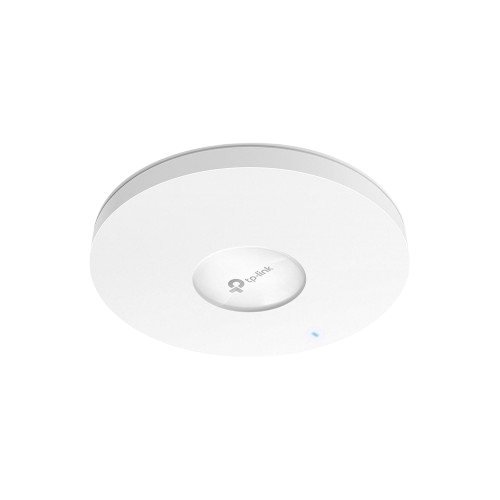

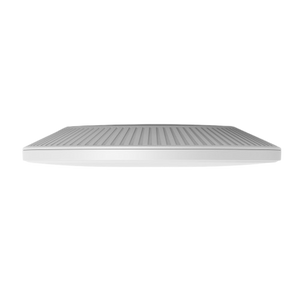

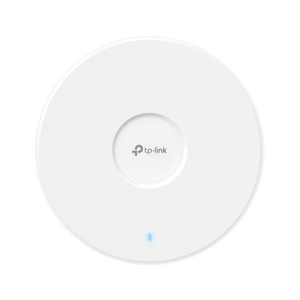

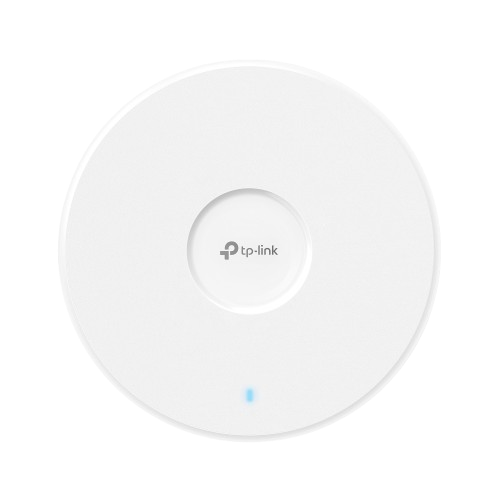

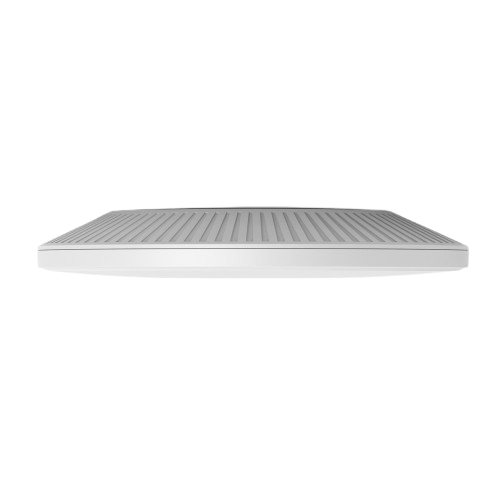

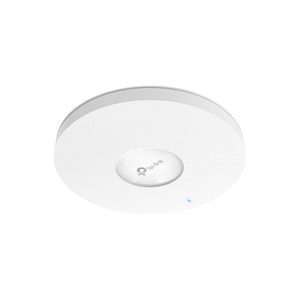

EAP772 - BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- Regular price
- $349.00
- Sale price
- $349.00
- Regular price
-
Couldn't load pickup availability
