About

Learn what makes this product unique and why it’s right for you.

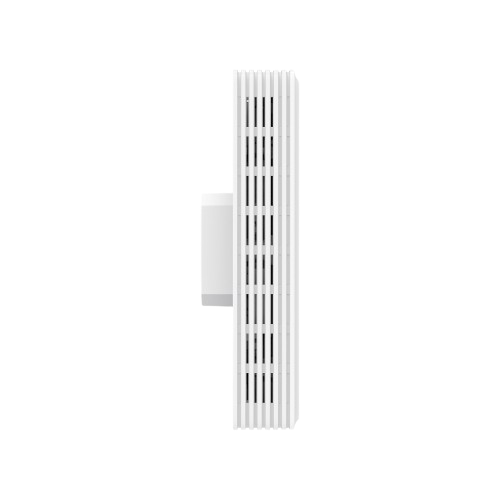

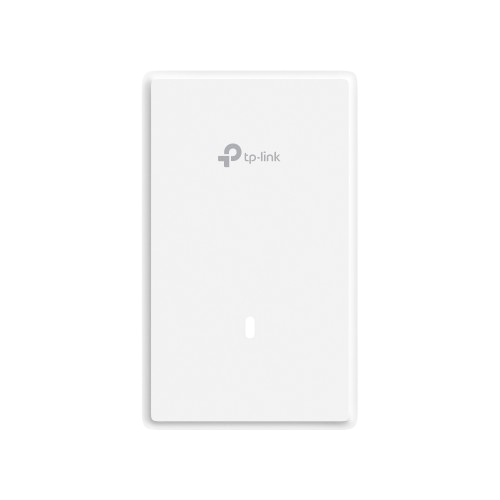

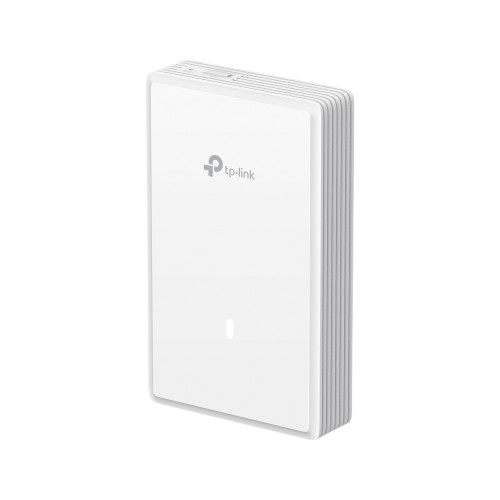

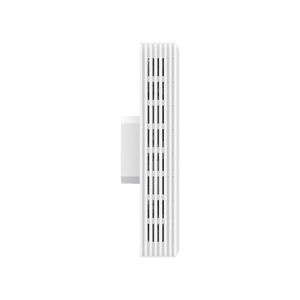

The TP-Link EAP725‑Wall (BE5000) is a sleek wall‑plate Wi‑Fi 7 access point tailored for modern office and hospitality spaces. It offers dual-band Wi‑Fi 7 performance (5 GHz and 2.4 GHz), with peak speeds of up to 4.324 Gbps on 5 GHz and 688 Mbps on 2.4 GHz (US model). Featuring a 2.5 GbE PoE input, a 2.5 GbE pass-through port, and two Gigabit RJ45 downlink ports, it delivers high-speed wired connectivity alongside wireless. It integrates with the Omada SDN platform for centralized management, supports mesh networking, seamless roaming, and offers enhanced security via WPA3, VLAN, captive portal, and more.





SPECIFICATION

Feature Description
Wi‑Fi Standard Wi‑Fi 7 (802.11be), Dual‑Band
Maximum Speeds (US) 5 GHz: up to 4,324 Mbps
2.4 GHz: up to 688 Mbps

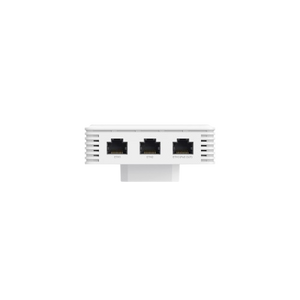

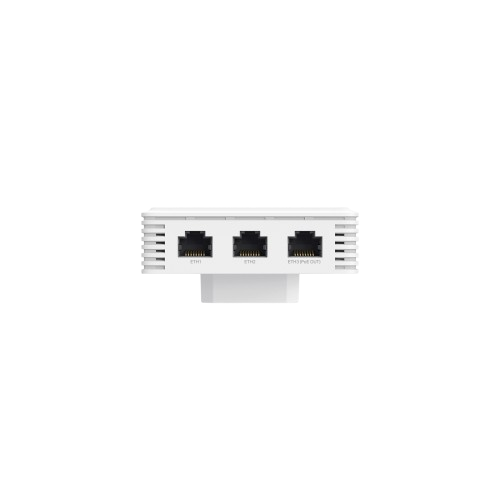

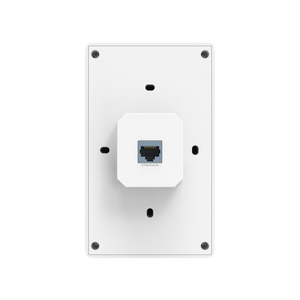

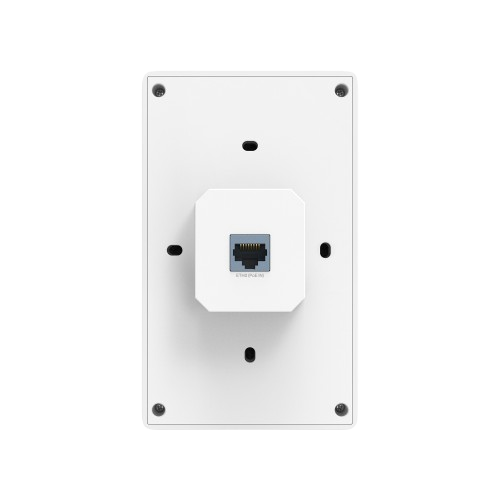

Infrastructure Ports 1× 2.5 GbE PoE input
1× 2.5 GbE pass‑through
2× Gigabit RJ45 downlink
Bandwidth & Multi‑RU 240 MHz bandwidth with Multi‑RUs for efficient throughput :contentReference[oaicite:2]{index=2}
Security & Management Centralized Omada SDN (Cloud/Controller), Mesh, Seamless Roaming
Dimensions 143 × 86 × 40 mm
Antenna Configuration Internal antennas:
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi
Coverage & Clients Approx. 50 m² (600 ft²), 250+ concurrent clients
Wireless Features 16 SSIDs, QoS/WMM, Beamforming, Band Steering, Airtime Fairness, Load Balancing, Rate Limit, Wireless & Reboot Scheduling, RADIUS Accounting, MAC Auth, VLAN, Rogue AP Detection, Captive Portal, WPA/WPA2/WPA3 :contentReference[oaicite:3]{index=3}
Power Consumption 17 W (PoE input—requires 802.3at/bt; up to 15.4 W available for pass‑through) :contentReference[oaicite:4]{index=4}
Mounting Wall mounting; mounting kits included
Environmental Conditions Operating: 0–40 °C, Storage: –40–70 °C;
Humidity: 10–90% (operating), 5–90% (storage) :contentReference[oaicite:5]{index=5}
Certifications FCC, RoHS
Learn what makes this product unique and why it’s right for you.

The TP-Link EAP725‑Wall (BE5000) is a sleek wall‑plate Wi‑Fi 7 access point tailored for modern office and hospitality spaces. It offers dual-band Wi‑Fi 7 performance (5 GHz and 2.4 GHz), with peak speeds of up to 4.324 Gbps on 5 GHz and 688 Mbps on 2.4 GHz (US model). Featuring a 2.5 GbE PoE input, a 2.5 GbE pass-through port, and two Gigabit RJ45 downlink ports, it delivers high-speed wired connectivity alongside wireless. It integrates with the Omada SDN platform for centralized management, supports mesh networking, seamless roaming, and offers enhanced security via WPA3, VLAN, captive portal, and more.





SPECIFICATION

Feature Description
Wi‑Fi Standard Wi‑Fi 7 (802.11be), Dual‑Band
Maximum Speeds (US) 5 GHz: up to 4,324 Mbps
2.4 GHz: up to 688 Mbps
Infrastructure Ports 1× 2.5 GbE PoE input
1× 2.5 GbE pass‑through
2× Gigabit RJ45 downlink
Bandwidth & Multi‑RU 240 MHz bandwidth with Multi‑RUs for efficient throughput :contentReference[oaicite:2]{index=2}
Security & Management Centralized Omada SDN (Cloud/Controller), Mesh, Seamless Roaming
Dimensions 143 × 86 × 40 mm
Antenna Configuration Internal antennas:
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi
Coverage & Clients Approx. 50 m² (600 ft²), 250+ concurrent clients
Wireless Features 16 SSIDs, QoS/WMM, Beamforming, Band Steering, Airtime Fairness, Load Balancing, Rate Limit, Wireless & Reboot Scheduling, RADIUS Accounting, MAC Auth, VLAN, Rogue AP Detection, Captive Portal, WPA/WPA2/WPA3 :contentReference[oaicite:3]{index=3}
Power Consumption 17 W (PoE input—requires 802.3at/bt; up to 15.4 W available for pass‑through) :contentReference[oaicite:4]{index=4}
Mounting Wall mounting; mounting kits included
Environmental Conditions Operating: 0–40 °C, Storage: –40–70 °C;
Humidity: 10–90% (operating), 5–90% (storage) :contentReference[oaicite:5]{index=5}
Certifications FCC, RoHS

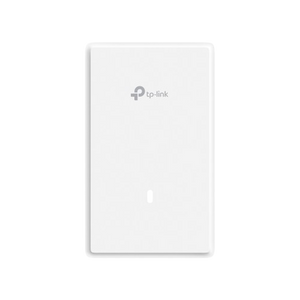

EAP725 - Wall BE5000 Wall Plate Wi-Fi 7 Access Point

$229.00
