About
The TP-Link EAP723 (BE3600) is a compact and efficient Wi‑Fi 7 ceiling-mount access point designed for modern enterprise environments. With dual-band speeds up to 3.6 Gbps, a 2.5 GbE uplink, and support for advanced technologies like 160 MHz bandwidth, 4K-QAM, OFDMA, and MU-MIMO, it ensures high performance, low latency, and seamless connectivity. It integrates smoothly into the Omada SDN platform for centralized management, mesh networking, and enterprise-grade security.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be), Dual‑Band (2.4 GHz & 5 GHz) |
| Maximum Wireless Speed |
5 GHz: up to 2,882 Mbps 2.4 GHz: up to 688 Mbps Combined Total: up to 3.6 Gbps |
| Ethernet Port | 1 × 2.5 Gigabit Ethernet (RJ45, PoE) |
| Port Speed | 2.5 Gbps (Full Duplex) |
| Power Supply | 802.3at PoE or 12 V/1.5 A DC (adapter not included) |
| Power Consumption | PoE: 18.6 W DC: 16.0 W |
| Antenna Gain |
2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 5 dBi |
| Coverage Area | Up to 140 m² |
| Concurrent Clients | 250+ users |
| Wireless Features |
160 MHz bandwidth, 4K‑QAM, MU‑MIMO, OFDMA, Multi‑RUs, Seamless Roaming (802.11k/v/r), Mesh, Band Steering, Beamforming, Airtime Fairness, Load Balancing, Multiple SSIDs (up to 16), QoS (WMM), Rate Limit, Wireless & Reboot Scheduling |
| Security Features |
WPA/WPA2/WPA3, Captive Portal, VLAN Support, Rogue AP Detection, Access Control, MAC Filtering, Wireless Isolation |
| Management |
Omada SDN (Cloud/Hardware/Software Controller), Omada App, SNMP v1/2c/3, Web UI, Email Alerts, LED On/Off, Syslog, Management MAC Access Control |
| Dimensions | 160 × 160 × 36.7 mm |

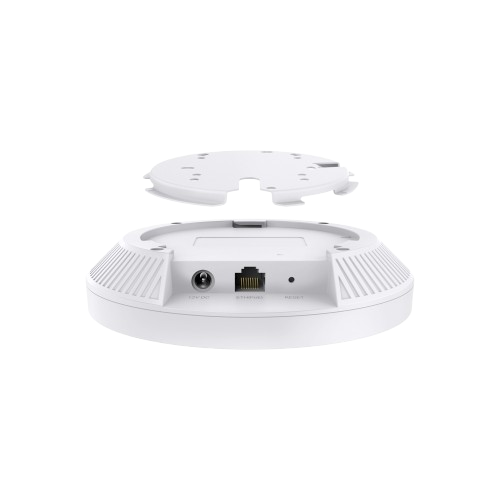

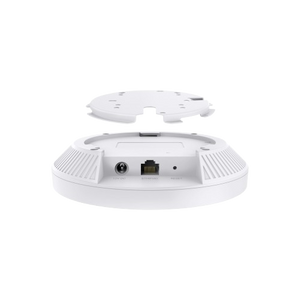

| Mounting Options | Ceiling or Wall Mount (kits included) |
| Operating Conditions |
Temperature: 0–40 °C (operating), –40–70 °C (storage) Humidity: 10–90% (operating), 5–90% (storage) |
| Certifications | CE, FCC, RoHS, IC |
The TP-Link EAP723 (BE3600) is a compact and efficient Wi‑Fi 7 ceiling-mount access point designed for modern enterprise environments. With dual-band speeds up to 3.6 Gbps, a 2.5 GbE uplink, and support for advanced technologies like 160 MHz bandwidth, 4K-QAM, OFDMA, and MU-MIMO, it ensures high performance, low latency, and seamless connectivity. It integrates smoothly into the Omada SDN platform for centralized management, mesh networking, and enterprise-grade security.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be), Dual‑Band (2.4 GHz & 5 GHz) |
| Maximum Wireless Speed |
5 GHz: up to 2,882 Mbps 2.4 GHz: up to 688 Mbps Combined Total: up to 3.6 Gbps |
| Ethernet Port | 1 × 2.5 Gigabit Ethernet (RJ45, PoE) |
| Port Speed | 2.5 Gbps (Full Duplex) |
| Power Supply | 802.3at PoE or 12 V/1.5 A DC (adapter not included) |
| Power Consumption | PoE: 18.6 W DC: 16.0 W |
| Antenna Gain |
2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 5 dBi |
| Coverage Area | Up to 140 m² |
| Concurrent Clients | 250+ users |
| Wireless Features |
160 MHz bandwidth, 4K‑QAM, MU‑MIMO, OFDMA, Multi‑RUs, Seamless Roaming (802.11k/v/r), Mesh, Band Steering, Beamforming, Airtime Fairness, Load Balancing, Multiple SSIDs (up to 16), QoS (WMM), Rate Limit, Wireless & Reboot Scheduling |
| Security Features |
WPA/WPA2/WPA3, Captive Portal, VLAN Support, Rogue AP Detection, Access Control, MAC Filtering, Wireless Isolation |
| Management |
Omada SDN (Cloud/Hardware/Software Controller), Omada App, SNMP v1/2c/3, Web UI, Email Alerts, LED On/Off, Syslog, Management MAC Access Control |
| Dimensions | 160 × 160 × 36.7 mm |
| Mounting Options | Ceiling or Wall Mount (kits included) |
| Operating Conditions |
Temperature: 0–40 °C (operating), –40–70 °C (storage) Humidity: 10–90% (operating), 5–90% (storage) |
| Certifications | CE, FCC, RoHS, IC |
EAP723 - BE3600 Ceiling Mount Wi-Fi 7 Access Point
- Regular price
- $199.00
- Sale price
- $199.00
