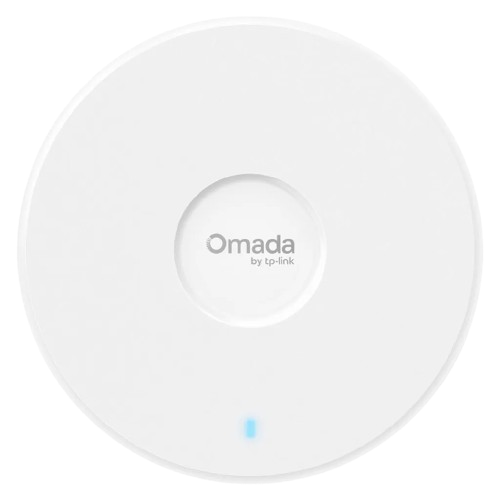

The TP-Link EAP720 (BE3600) is a sleek, dual-band Wi‑Fi 7 (802.11be) ceiling-mount access point engineered for enterprise and high-density spaces. It delivers ultra-fast combined wireless speeds of up to 3.6 Gbps (2.4 GHz + 5 GHz), harnessing a powerful 2.5 GbE Ethernet port (PoE) for high-bandwidth uplinks. Equipped with advanced technologies like 160 MHz channels, 4K‑QAM, Multi-Link Operation (MLO), OFDMA, and MU-MIMO, it ensures low-latency performance and seamless connectivity. Integrated with the Omada SDN platform, it supports centralized management, mesh networking, seamless roaming, and robust security—ideal for modern enterprise deployments.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be), Dual‑Band (2.4 GHz & 5 GHz) |
| Maximum Wireless Speed | 5 GHz: up to 2,882 Mbps 2.4 GHz: up to 688 Mbps Total: up to 3.6 Gbps |

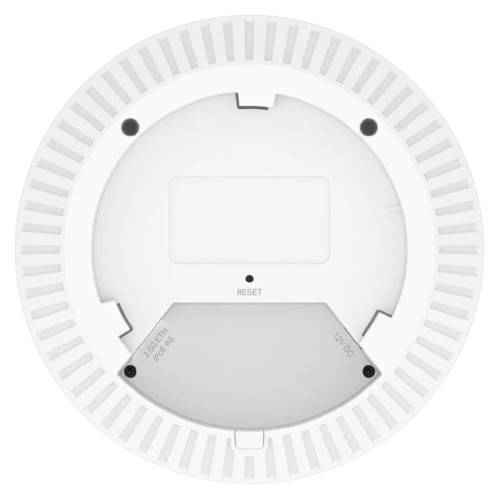

| Ethernet Port | 1 × 2.5 GbE RJ45 (PoE-capable) |
| Port Speed | 2.5 Gbps (Full Duplex) |
| Power Supply | 802.3at PoE or 12 V/1.5 A DC (adapter included or not depending on region) |
| Power Consumption | ~16.8 W (PoE) ~13.0 W (DC) |
| Antenna Gain | 2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 5 dBi |
| Coverage Area | Up to 140 m² (~1,500 ft²) |
| Concurrent Clients | 250+ clients |
| Wireless Features | 160 MHz bandwidth, 4K‑QAM, MU‑MIMO, OFDMA, Multi‑RUs, MLO (Multi‑Link Operation), Mesh, Seamless Roaming (802.11k/v/r), Band Steering, Beamforming, Airtime Fairness, Load Balancing, Up to 16 SSIDs (8 per band), QoS (WMM), Rate Limiting, Wireless/Reboot Scheduling, RADIUS Accounting, MAC Authentication |
| Security Features | WPA/WPA2/WPA3 (Personal & Enterprise), Captive Portal, VLAN, Rogue AP Detection, Access Control, MAC Filtering (up to 4,000), Wireless Isolation |
| Management | Omada SDN (Cloud, Hardware, or Software Controller), Omada App, SNMP v1/v2c/3, Web UI, Email Alerts, LED On/Off Control, Syslog, Management MAC Access Control |
| Dimensions | 160 × 160 × 36.7 mm |

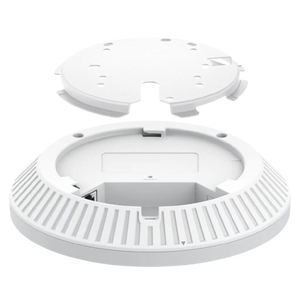

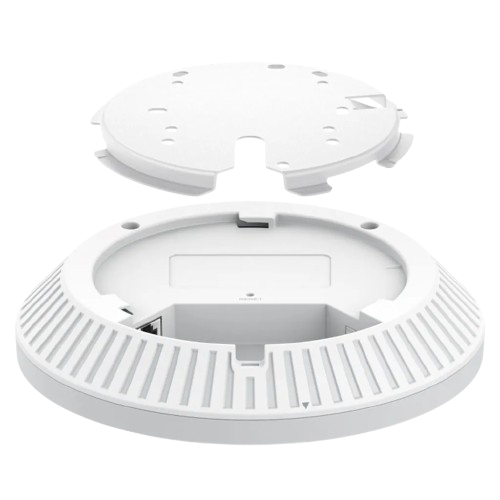

| Mounting Options | Ceiling, wall, or junction box mounting (kits included) |
| Operating Conditions | Temp: 0–40 °C (operating), –40–70 °C (storage) Humidity: 10–90% (operating), 5–90% (storage) |
| Certifications | CE, FCC, RoHS, IC |
The TP-Link EAP720 (BE3600) is a sleek, dual-band Wi‑Fi 7 (802.11be) ceiling-mount access point engineered for enterprise and high-density spaces. It delivers ultra-fast combined wireless speeds of up to 3.6 Gbps (2.4 GHz + 5 GHz), harnessing a powerful 2.5 GbE Ethernet port (PoE) for high-bandwidth uplinks. Equipped with advanced technologies like 160 MHz channels, 4K‑QAM, Multi-Link Operation (MLO), OFDMA, and MU-MIMO, it ensures low-latency performance and seamless connectivity. Integrated with the Omada SDN platform, it supports centralized management, mesh networking, seamless roaming, and robust security—ideal for modern enterprise deployments.
SPECIFICATION
| Feature | Description |
|---|---|
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be), Dual‑Band (2.4 GHz & 5 GHz) |
| Maximum Wireless Speed | 5 GHz: up to 2,882 Mbps 2.4 GHz: up to 688 Mbps Total: up to 3.6 Gbps |
| Ethernet Port | 1 × 2.5 GbE RJ45 (PoE-capable) |
| Port Speed | 2.5 Gbps (Full Duplex) |
| Power Supply | 802.3at PoE or 12 V/1.5 A DC (adapter included or not depending on region) |
| Power Consumption | ~16.8 W (PoE) ~13.0 W (DC) |
| Antenna Gain | 2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 5 dBi |
| Coverage Area | Up to 140 m² (~1,500 ft²) |
| Concurrent Clients | 250+ clients |
| Wireless Features | 160 MHz bandwidth, 4K‑QAM, MU‑MIMO, OFDMA, Multi‑RUs, MLO (Multi‑Link Operation), Mesh, Seamless Roaming (802.11k/v/r), Band Steering, Beamforming, Airtime Fairness, Load Balancing, Up to 16 SSIDs (8 per band), QoS (WMM), Rate Limiting, Wireless/Reboot Scheduling, RADIUS Accounting, MAC Authentication |
| Security Features | WPA/WPA2/WPA3 (Personal & Enterprise), Captive Portal, VLAN, Rogue AP Detection, Access Control, MAC Filtering (up to 4,000), Wireless Isolation |
| Management | Omada SDN (Cloud, Hardware, or Software Controller), Omada App, SNMP v1/v2c/3, Web UI, Email Alerts, LED On/Off Control, Syslog, Management MAC Access Control |
| Dimensions | 160 × 160 × 36.7 mm |
| Mounting Options | Ceiling, wall, or junction box mounting (kits included) |
| Operating Conditions | Temp: 0–40 °C (operating), –40–70 °C (storage) Humidity: 10–90% (operating), 5–90% (storage) |
| Certifications | CE, FCC, RoHS, IC |

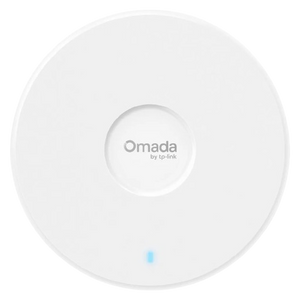

EAP720 - BE3600 Ceiling Mount Wi-Fi 7 Access Point
- Regular price
- $219.00
- Sale price
- $219.00
