About

Learn what makes this product unique and why it’s right for you.

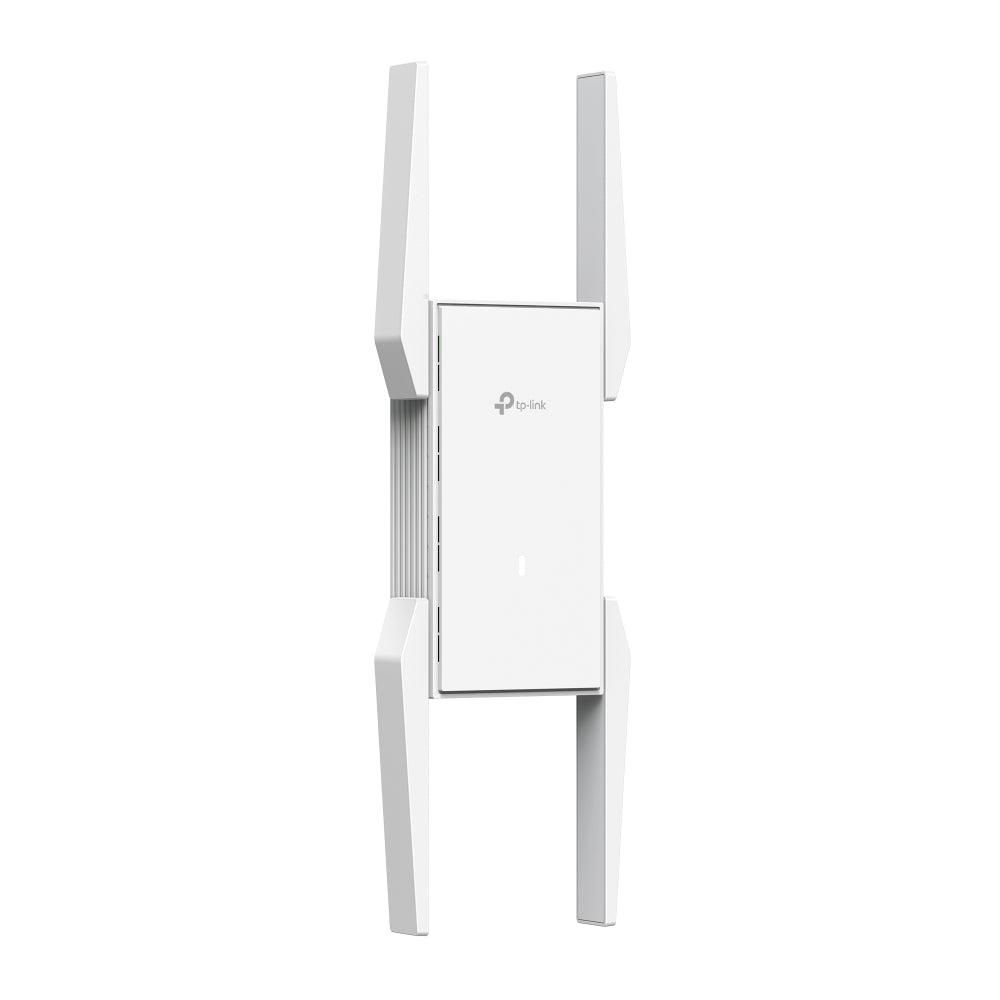

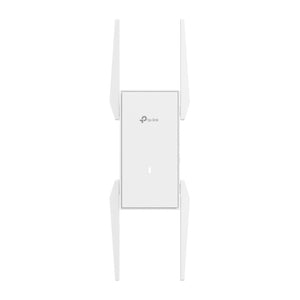

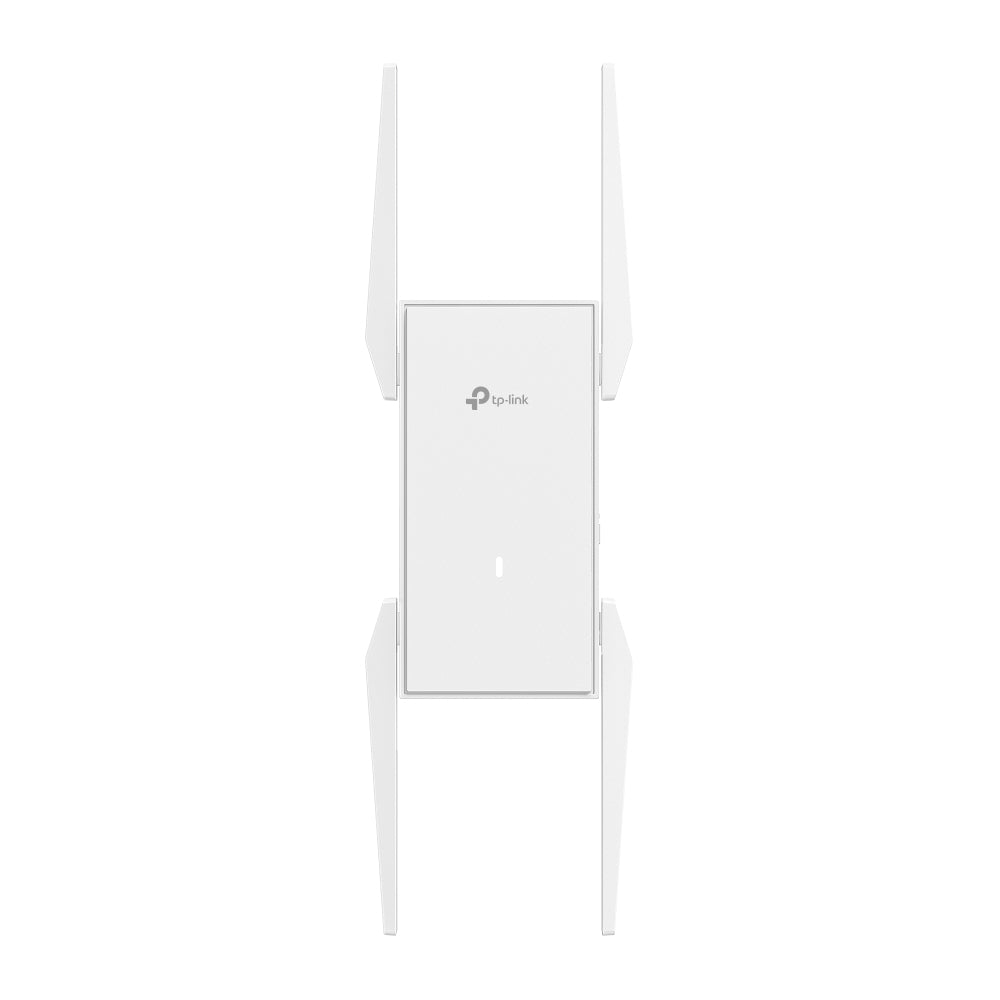

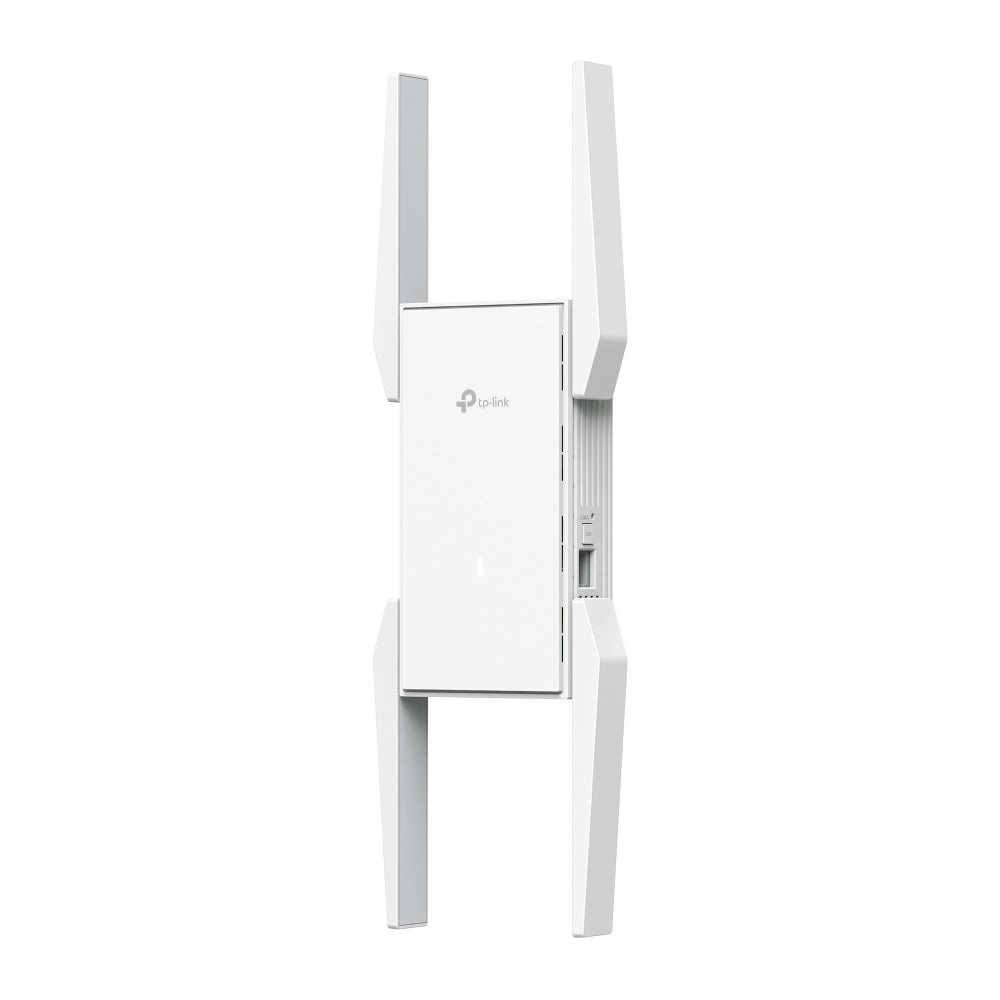

The EAP673‑Extender is a plug‑in Wi‑Fi 6 (802.11ax) extender designed to eliminate dead zones, deliver high-speed coverage, and integrate smoothly into TP-Link’s Omada ecosystem—ideal for both home and business environments . It offers:

  • AX5400 dual‑band performance, reaching up to 5.4 Gbps combined speeds (4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) .
  • Four high‑gain external antennas to boost Wi‑Fi reach and reduce dead zones .
  • AP Mode via a Gigabit Ethernet port, transforming it into an access point when needed .
  • Seamless Mesh Networking with Omada Mesh and roaming, enabling reliable and scalable coverage .
  • Easy deployment with standard AC power—no need for PoE cabling .
  • Centralized management through the Omada App or web, along with cloud integration via the Omada SDN for remote monitoring and control .





SPECIFICATION

Feature Description
Wireless Standard Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
Wi-Fi Speeds AX5400: 4804 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Ethernet Port 1 × Gigabit Ethernet port (LAN / AP Mode)
Antenna 4 external high-gain antennas (2 × 3 dBi for 2.4 GHz, 4 × 5 dBi for 5 GHz)
Coverage Area Up to approximately 140 m² (1,500 ft²)
Concurrent Clients Supports 250+ concurrent devices
Transmit Power CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Band 1/2), <30 dBm (Band 3) / FCC: <25 dBm (2.4 GHz), <28 dBm (5 GHz)
Mesh Support Yes, Omada Mesh support with seamless roaming
Mounting Type Plug-in (Wall mount, no PoE needed)
Management Omada App, Web UI, Omada Cloud, Software & Hardware Controllers
Security Features WPA3, WPA2-Enterprise, MAC filtering, VLAN, Captive Portal, Rogue AP detection
Advanced Features Band Steering, Airtime Fairness, Beamforming, Load Balancing, Rate Limiting, QoS
Max Power Consumption 18W
Power Supply AC 100–240V ~ 50/60Hz

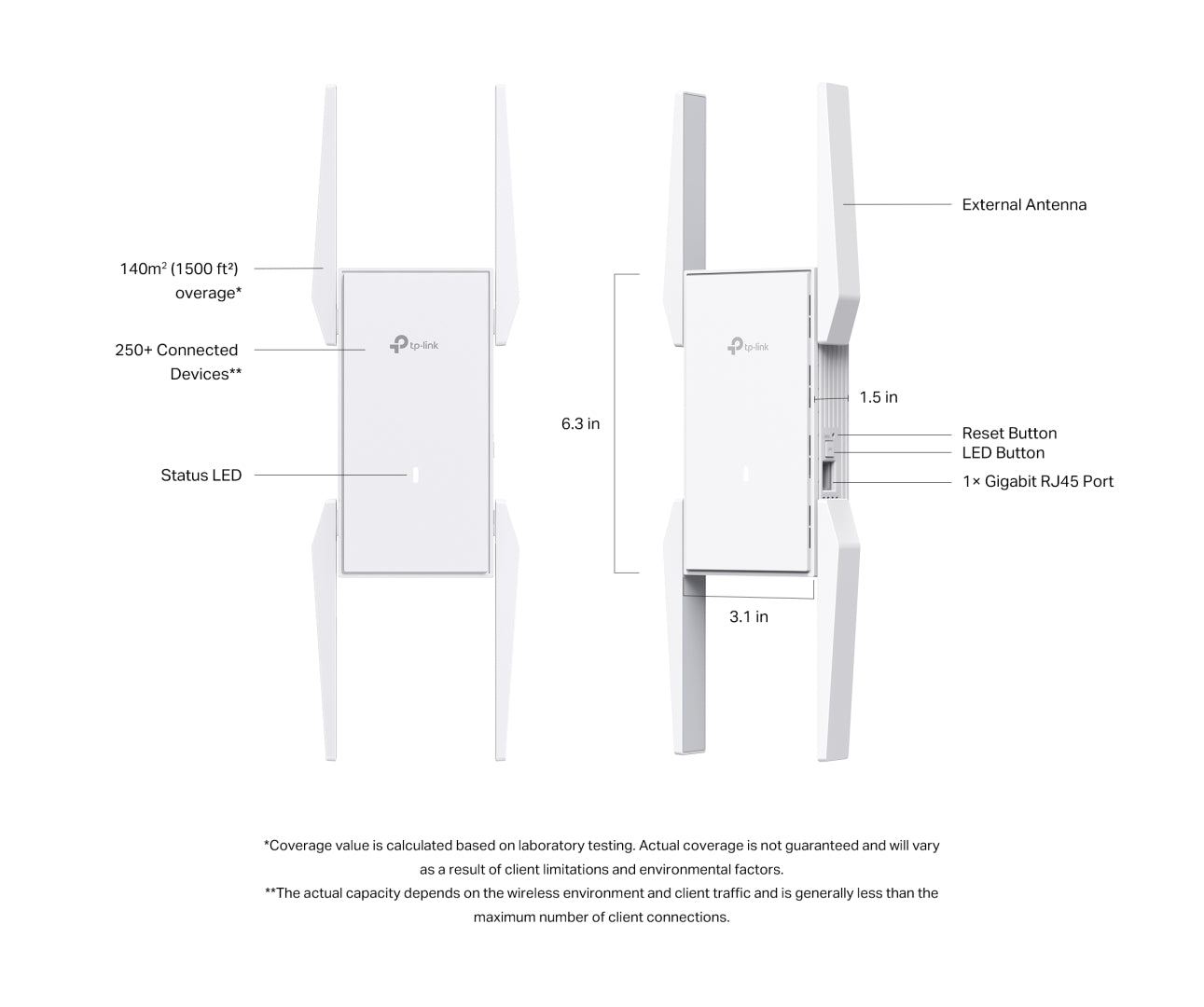

Dimensions 160 × 80 × 37.8 mm (6.3 × 3.1 × 1.5 in)
Operating Temperature 0–40°C (32–104°F)
Storage Temperature -40–70°C (-40–158°F)
Certifications CE, FCC, IC, RoHS, UL
Learn what makes this product unique and why it’s right for you.

The EAP673‑Extender is a plug‑in Wi‑Fi 6 (802.11ax) extender designed to eliminate dead zones, deliver high-speed coverage, and integrate smoothly into TP-Link’s Omada ecosystem—ideal for both home and business environments . It offers:

  • AX5400 dual‑band performance, reaching up to 5.4 Gbps combined speeds (4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) .
  • Four high‑gain external antennas to boost Wi‑Fi reach and reduce dead zones .
  • AP Mode via a Gigabit Ethernet port, transforming it into an access point when needed .
  • Seamless Mesh Networking with Omada Mesh and roaming, enabling reliable and scalable coverage .
  • Easy deployment with standard AC power—no need for PoE cabling .
  • Centralized management through the Omada App or web, along with cloud integration via the Omada SDN for remote monitoring and control .





SPECIFICATION

Feature Description
Wireless Standard Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
Wi-Fi Speeds AX5400: 4804 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Ethernet Port 1 × Gigabit Ethernet port (LAN / AP Mode)
Antenna 4 external high-gain antennas (2 × 3 dBi for 2.4 GHz, 4 × 5 dBi for 5 GHz)
Coverage Area Up to approximately 140 m² (1,500 ft²)
Concurrent Clients Supports 250+ concurrent devices
Transmit Power CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Band 1/2), <30 dBm (Band 3) / FCC: <25 dBm (2.4 GHz), <28 dBm (5 GHz)
Mesh Support Yes, Omada Mesh support with seamless roaming
Mounting Type Plug-in (Wall mount, no PoE needed)
Management Omada App, Web UI, Omada Cloud, Software & Hardware Controllers
Security Features WPA3, WPA2-Enterprise, MAC filtering, VLAN, Captive Portal, Rogue AP detection
Advanced Features Band Steering, Airtime Fairness, Beamforming, Load Balancing, Rate Limiting, QoS
Max Power Consumption 18W
Power Supply AC 100–240V ~ 50/60Hz
Dimensions 160 × 80 × 37.8 mm (6.3 × 3.1 × 1.5 in)
Operating Temperature 0–40°C (32–104°F)
Storage Temperature -40–70°C (-40–158°F)
Certifications CE, FCC, IC, RoHS, UL

EAP673 Extender - AX5400 Mesh Wi-Fi 6 Extender

$199.00
