This sleek wall-plate access point brings blazing-fast AX3000 Wi‑Fi 6 speeds—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—directly into rooms via an elegant, in-wall installation. It features multiple Gigabit Ethernet ports (three downlinks, one with PoE pass-through) to support wired devices alongside wireless coverage. The EAP655‑Wall integrates seamlessly with the Omada SDN platform for centralized management and offers advanced features such as HE160, 1024‑QAM, MU‑MIMO, and robust WPA3 security. Designed for flexible wiring and installation, it fits standard EU/US/86 mm wall boxes and supports both 802.3af/at PoE powering.
SPECIFICATION
Feature | Description |
---|---|
Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
Maximum Data Rate | 5 GHz: 2402 Mbps; 2.4 GHz: 574 Mbps (AX3000 total) |

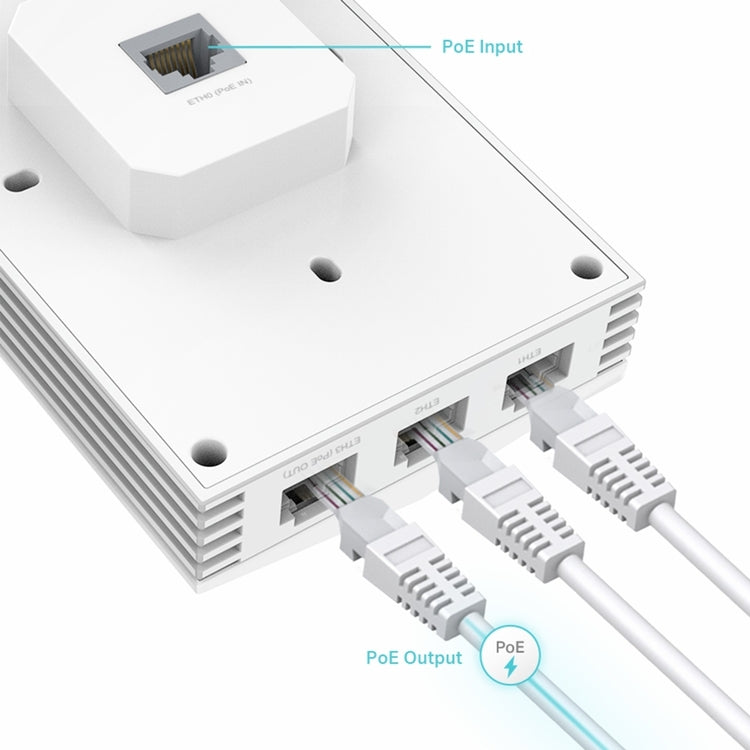

Hardware Interface | 1× Gigabit Ethernet uplink; 3× Gigabit Ethernet downlink ports (one supports PoE pass-through) |
Power Supply | 802.3af/at PoE |
Power Consumption | EU: ~12 W; US: ~12.6 W (when PoE pass-through is off) |
Antennas | 2 Dual-band antennas: 2.4 GHz – 2× 3 dBi; 5 GHz – 2× 5 dBi |
Coverage Area | Up to 50 m² (≈600 ft²) |
Concurrent Clients | Supports 100+ to 120+ devices |
Wireless Features | 16 SSIDs (8 per band), band steering, beamforming, airtime fairness, load balancing, QoS (WMM), automatic channel assignment, rate limit, reboot/wireless scheduling, MAC/radius authentication, wireless stats |
Roaming | Seamless roaming (802.11k/v/r), Omada Mesh integration |
Wireless Security | Captive portal, access control, client isolation, VLAN, Rogue AP detection, WPA/WPA2/WPA3 (Personal & Enterprise), 802.1X |
Transmit Power | CE: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz bands 1/2), < 26 dBm (5 GHz band 3); FCC: < 21 dBm (2.4 GHz & 5 GHz) |
Mounting | Wall plate design; mounts into standard 86 mm / EU / US wall junction boxes (mounting kits included) |
Dimensions | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
Management | Omada App, centralized management via hardware/software/cloud controllers, SNMP v1/v2c/v3, syslog, SSH, web interface, multi-site, VLAN, email alerts, LED control, zero-touch provisioning |
Certifications | CE, FCC, RoHS |
Package Contents | Access Point unit, installation guide, mounting kits |
System Requirements | Windows XP/7/8/10/11, Linux |
Environmental Specs | Operating Temp: 0–40 °C; Storage Temp: −40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH |
This sleek wall-plate access point brings blazing-fast AX3000 Wi‑Fi 6 speeds—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—directly into rooms via an elegant, in-wall installation. It features multiple Gigabit Ethernet ports (three downlinks, one with PoE pass-through) to support wired devices alongside wireless coverage. The EAP655‑Wall integrates seamlessly with the Omada SDN platform for centralized management and offers advanced features such as HE160, 1024‑QAM, MU‑MIMO, and robust WPA3 security. Designed for flexible wiring and installation, it fits standard EU/US/86 mm wall boxes and supports both 802.3af/at PoE powering.
SPECIFICATION
Feature | Description |
---|---|
Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
Maximum Data Rate | 5 GHz: 2402 Mbps; 2.4 GHz: 574 Mbps (AX3000 total) |
Hardware Interface | 1× Gigabit Ethernet uplink; 3× Gigabit Ethernet downlink ports (one supports PoE pass-through) |
Power Supply | 802.3af/at PoE |
Power Consumption | EU: ~12 W; US: ~12.6 W (when PoE pass-through is off) |
Antennas | 2 Dual-band antennas: 2.4 GHz – 2× 3 dBi; 5 GHz – 2× 5 dBi |
Coverage Area | Up to 50 m² (≈600 ft²) |
Concurrent Clients | Supports 100+ to 120+ devices |
Wireless Features | 16 SSIDs (8 per band), band steering, beamforming, airtime fairness, load balancing, QoS (WMM), automatic channel assignment, rate limit, reboot/wireless scheduling, MAC/radius authentication, wireless stats |
Roaming | Seamless roaming (802.11k/v/r), Omada Mesh integration |
Wireless Security | Captive portal, access control, client isolation, VLAN, Rogue AP detection, WPA/WPA2/WPA3 (Personal & Enterprise), 802.1X |
Transmit Power | CE: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz bands 1/2), < 26 dBm (5 GHz band 3); FCC: < 21 dBm (2.4 GHz & 5 GHz) |
Mounting | Wall plate design; mounts into standard 86 mm / EU / US wall junction boxes (mounting kits included) |
Dimensions | 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) |
Management | Omada App, centralized management via hardware/software/cloud controllers, SNMP v1/v2c/v3, syslog, SSH, web interface, multi-site, VLAN, email alerts, LED control, zero-touch provisioning |
Certifications | CE, FCC, RoHS |
Package Contents | Access Point unit, installation guide, mounting kits |
System Requirements | Windows XP/7/8/10/11, Linux |
Environmental Specs | Operating Temp: 0–40 °C; Storage Temp: −40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH |
EAP655 Wall - AX3000 Wall-Plate Dual-Band Wi-Fi 6 Access Point
