About
The EAP653 UR delivers ultra-fast AX3000 Wi‑Fi 6 performance (2402 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz). With enhanced coverage thanks to more internal antennas and higher transmit power, this sleek ceiling‑mount access point ensures stable, wide-area connectivity. It supports advanced Wi‑Fi 6 features like HE160 and 1024‑QAM, and integrates seamlessly into the Omada SDN platform for centralized cloud or on‑premises management. Powering is flexible—via PoE+ or optional DC—done through an ultra-slim design that blends elegantly into indoor spaces.
SPECIFICATION
Feature | Description |
---|---|
Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
Maximum Data Rate | 5 GHz: 2402 Mbps; 2.4 GHz: 574 Mbps (AX3000 total) |
Antennas | Internal omni-directional: 2.4 GHz – 2× 5 dBi; 5 GHz – 3× 5 dBi |
Coverage Area | Up to 185 m² (≈2000 ft²) |
Concurrent Clients | Supports 250+ clients |
Power & Interface | 1× Gigabit Ethernet (PoE+); supports 802.3at PoE, 12 V DC, and 48 V passive PoE |
Power Consumption | EU: ~14.2 W; US: ~15.5 W |
Dimensions | 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in) |

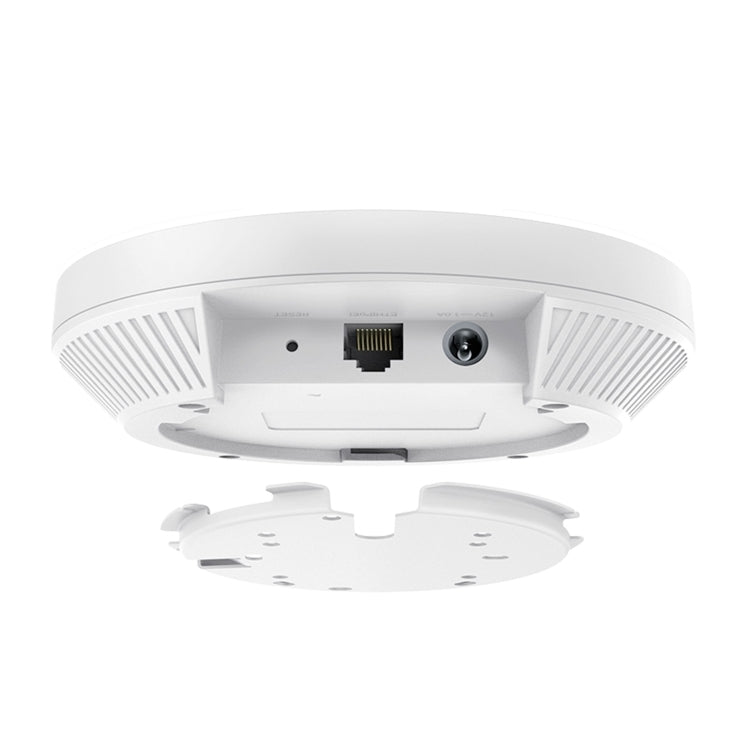

Mounting Options | Ceiling / wall mount (kits included), junction box mount |
Wireless Features | 1024‑QAM, HE160, OFDMA, MU‑MIMO (2×2 DL/UL), multiple SSIDs, band steering, airtime fairness, load balancing, beamforming, rate limiting, automatic channel assignment, wireless scheduling |
Roaming & Mesh | Seamless roaming (802.11k/v/r), Omada Mesh |
Wireless Security | Captive portal, access control, MAC filtering, client isolation, SSID‑to‑VLAN, rogue AP detection, 802.1X, WPA/WPA2/WPA3 |
Transmit Power | CE: < 20 dBm (2.4 GHz), < 23 dBm to 29 dBm (5 GHz); FCC: < 26 dBm (2.4 GHz), < 27 dBm (5 GHz) |
Management | Omada App, cloud/web/software controllers, SNMP, syslog, SSH, multi-site, management VLAN, email alerts, LED control, zero-touch provisioning |
Certifications | CE, FCC, RoHS |
Package Contents | Access point, ceiling/wall mounting kit, installation guide |
System Requirements | Windows XP or later, Linux |
Environmental Specs | Operating Temp: 0–40 °C; Storage Temp: −40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH |
The EAP653 UR delivers ultra-fast AX3000 Wi‑Fi 6 performance (2402 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz). With enhanced coverage thanks to more internal antennas and higher transmit power, this sleek ceiling‑mount access point ensures stable, wide-area connectivity. It supports advanced Wi‑Fi 6 features like HE160 and 1024‑QAM, and integrates seamlessly into the Omada SDN platform for centralized cloud or on‑premises management. Powering is flexible—via PoE+ or optional DC—done through an ultra-slim design that blends elegantly into indoor spaces.
SPECIFICATION
Feature | Description |
---|---|
Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
Maximum Data Rate | 5 GHz: 2402 Mbps; 2.4 GHz: 574 Mbps (AX3000 total) |
Antennas | Internal omni-directional: 2.4 GHz – 2× 5 dBi; 5 GHz – 3× 5 dBi |
Coverage Area | Up to 185 m² (≈2000 ft²) |
Concurrent Clients | Supports 250+ clients |
Power & Interface | 1× Gigabit Ethernet (PoE+); supports 802.3at PoE, 12 V DC, and 48 V passive PoE |
Power Consumption | EU: ~14.2 W; US: ~15.5 W |
Dimensions | 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in) |
Mounting Options | Ceiling / wall mount (kits included), junction box mount |
Wireless Features | 1024‑QAM, HE160, OFDMA, MU‑MIMO (2×2 DL/UL), multiple SSIDs, band steering, airtime fairness, load balancing, beamforming, rate limiting, automatic channel assignment, wireless scheduling |
Roaming & Mesh | Seamless roaming (802.11k/v/r), Omada Mesh |
Wireless Security | Captive portal, access control, MAC filtering, client isolation, SSID‑to‑VLAN, rogue AP detection, 802.1X, WPA/WPA2/WPA3 |
Transmit Power | CE: < 20 dBm (2.4 GHz), < 23 dBm to 29 dBm (5 GHz); FCC: < 26 dBm (2.4 GHz), < 27 dBm (5 GHz) |
Management | Omada App, cloud/web/software controllers, SNMP, syslog, SSH, multi-site, management VLAN, email alerts, LED control, zero-touch provisioning |
Certifications | CE, FCC, RoHS |
Package Contents | Access point, ceiling/wall mounting kit, installation guide |
System Requirements | Windows XP or later, Linux |
Environmental Specs | Operating Temp: 0–40 °C; Storage Temp: −40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH |

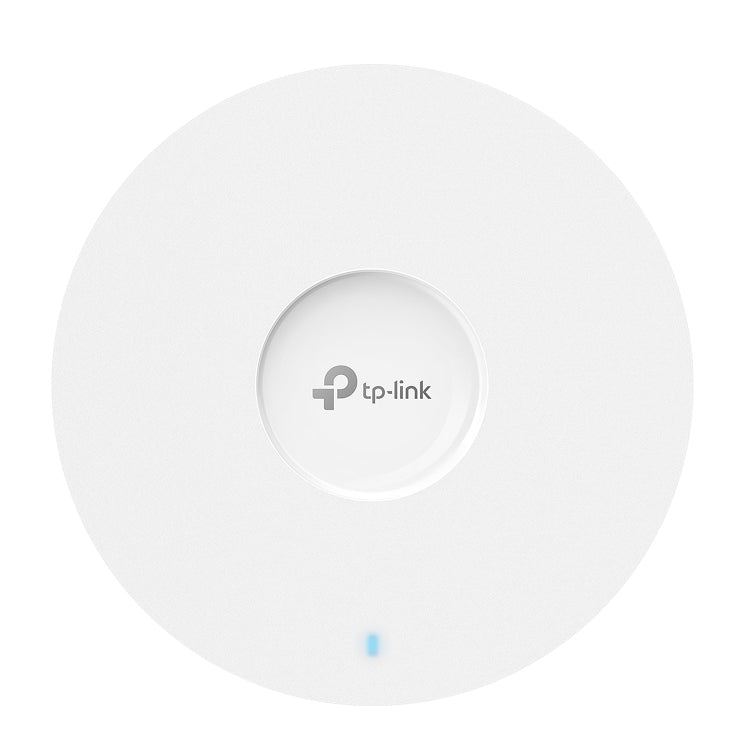

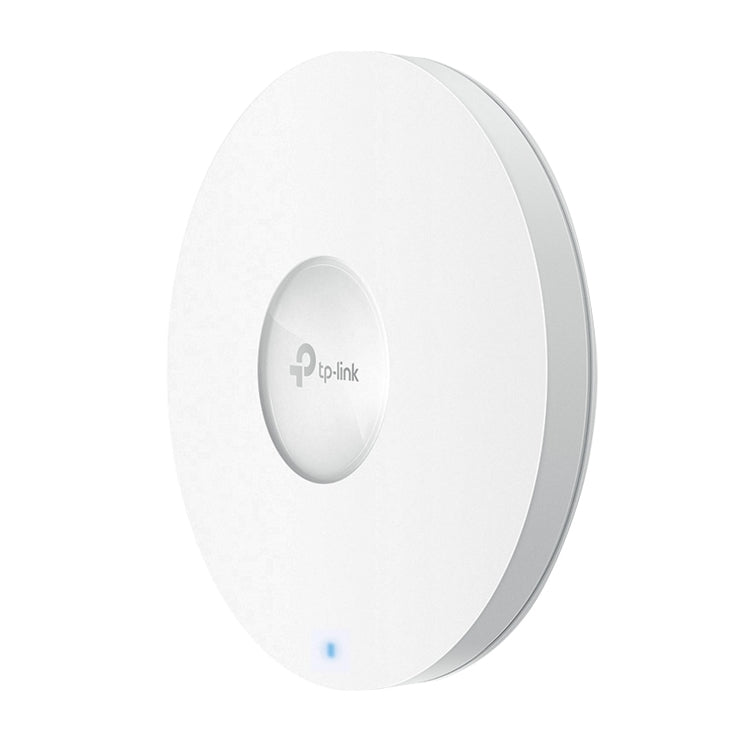

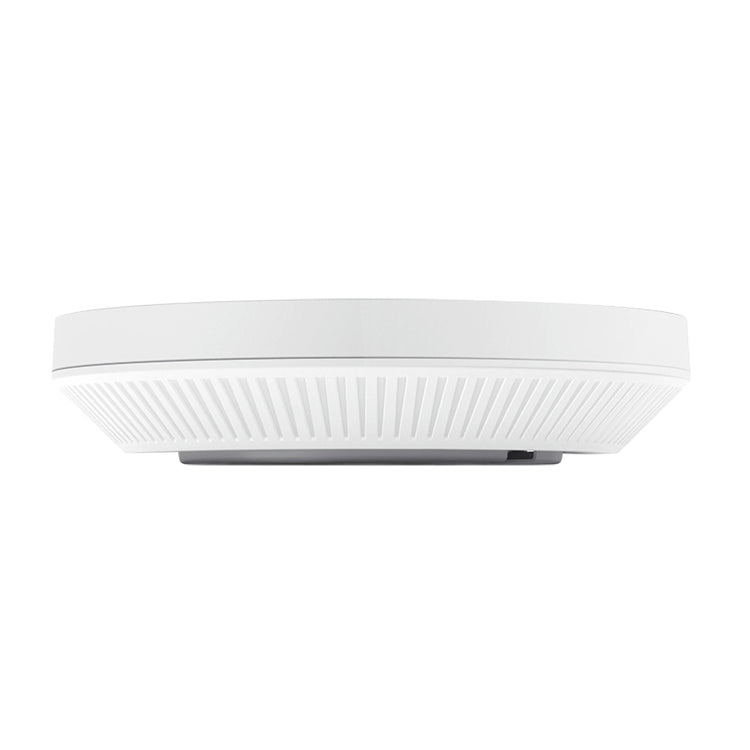

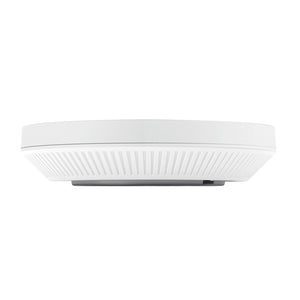

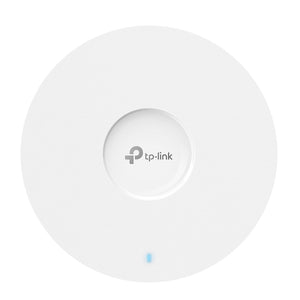

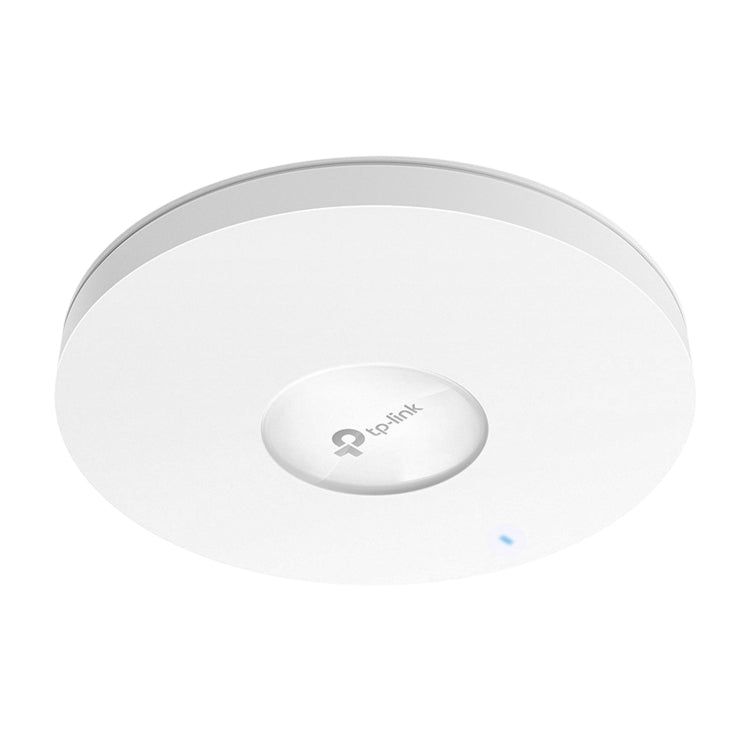

EAP653 UR - AX3000 Ceiling Mount Dual‑Band Wi‑Fi 6 Access Point
- Regular price
- $179.00
- Sale price
- $179.00
