About

Learn what makes this product unique and why it’s right for you.

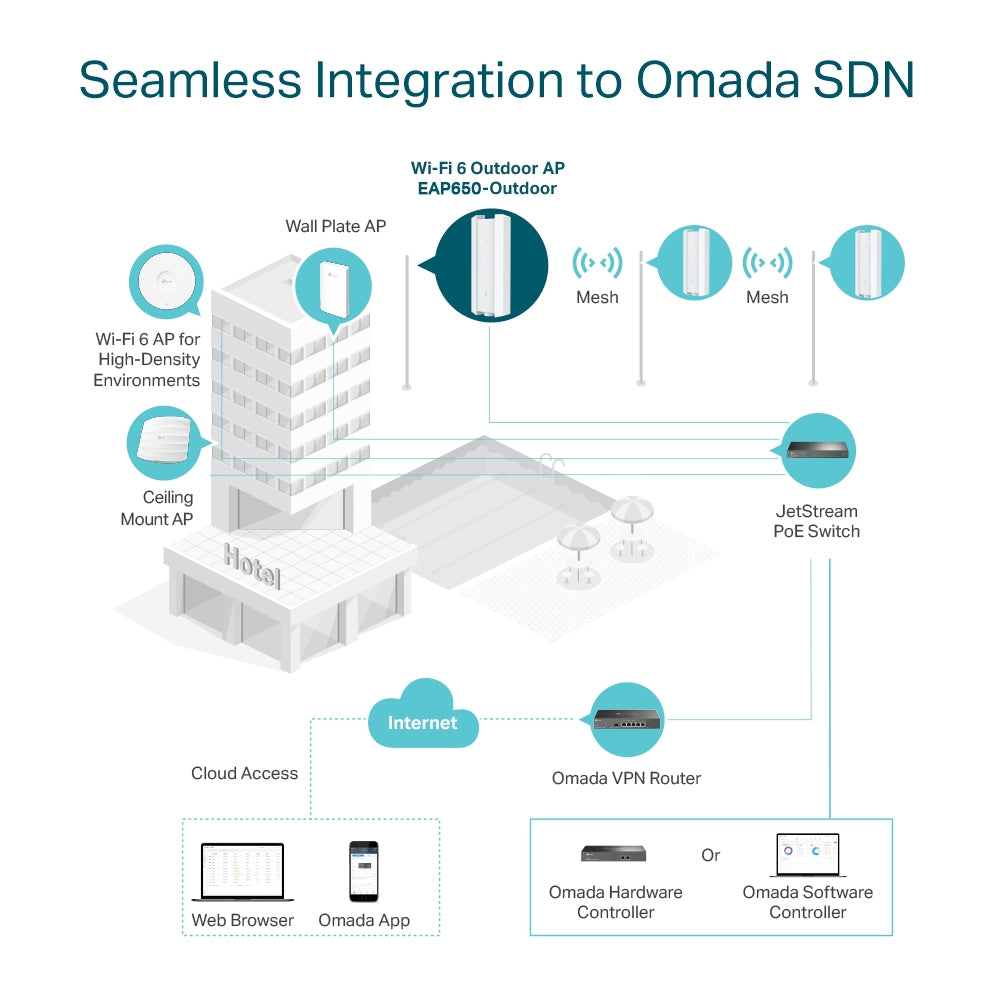

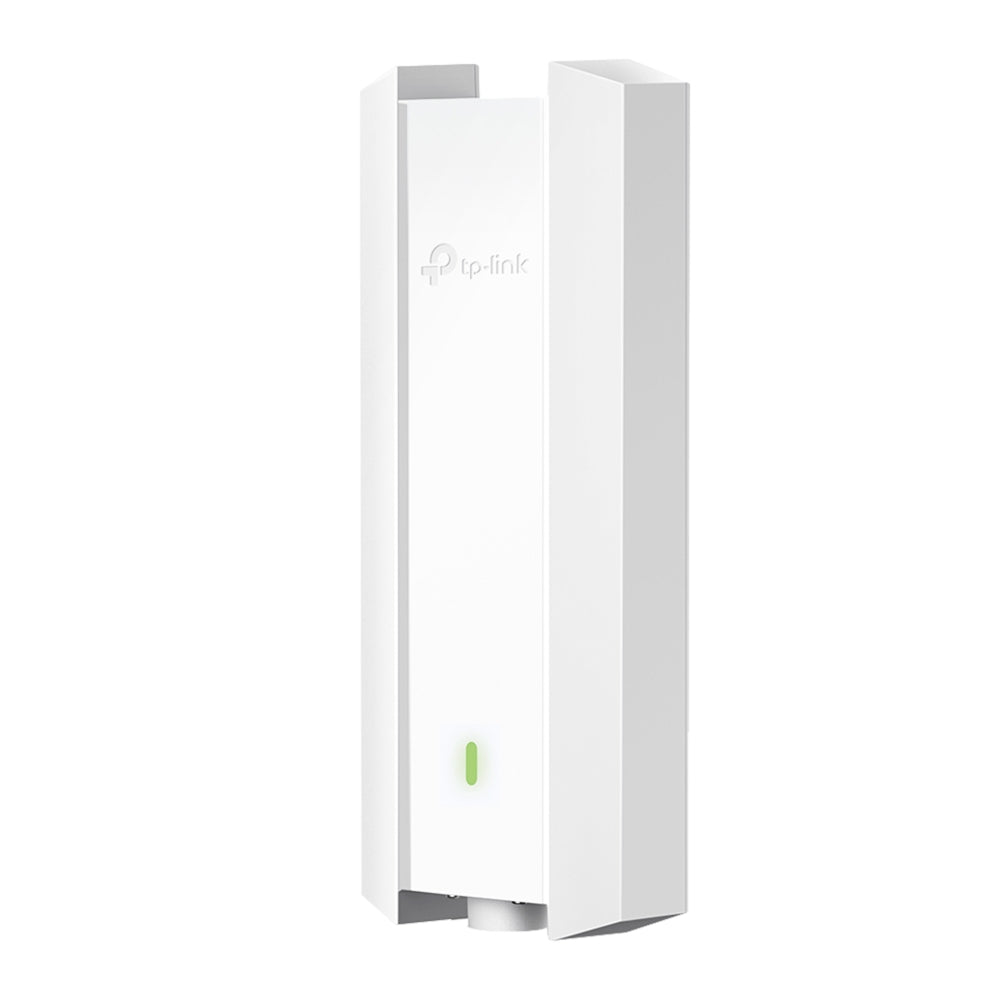

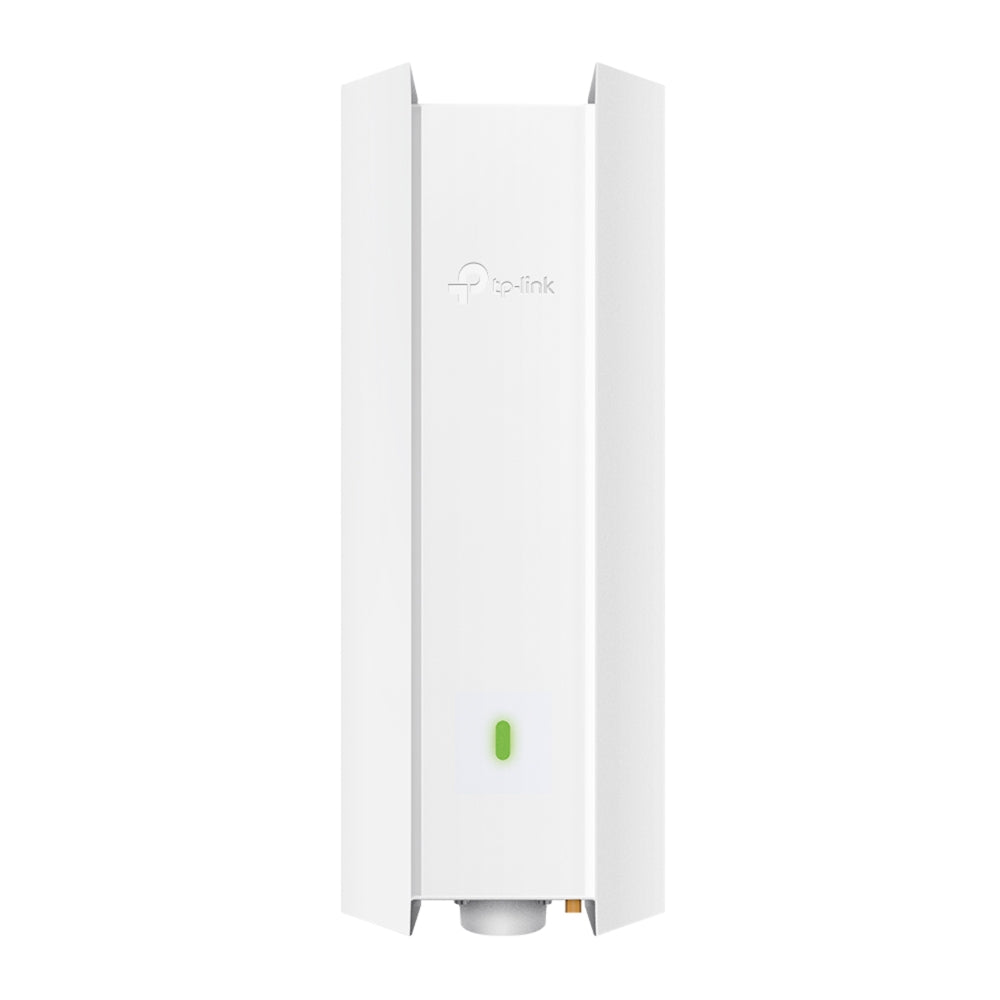

The TP‑Link Omada EAP650‑Outdoor is an advanced dual-band Wi-Fi 6 access point tailored for both indoor and outdoor deployments. It delivers ultra-fast AX3000 speeds (up to 2976 Mbps), supports a wide range of modern wireless features—including HE160, OFDMA, MU-MIMO, and beamforming—and is housed in a rugged, IP67-rated enclosure capable of withstanding harsh environmental conditions. Powered flexibly via PoE+, it integrates seamlessly into TP‑Link’s Omada SDN platform for centralized management (cloud, local, or hybrid) and supports advanced deployment scenarios like mesh networking and seamless roaming. It excels in high-density outdoor environments like campuses, stadiums, resorts, and similar setups.





SPECIFICATION

Feature Description

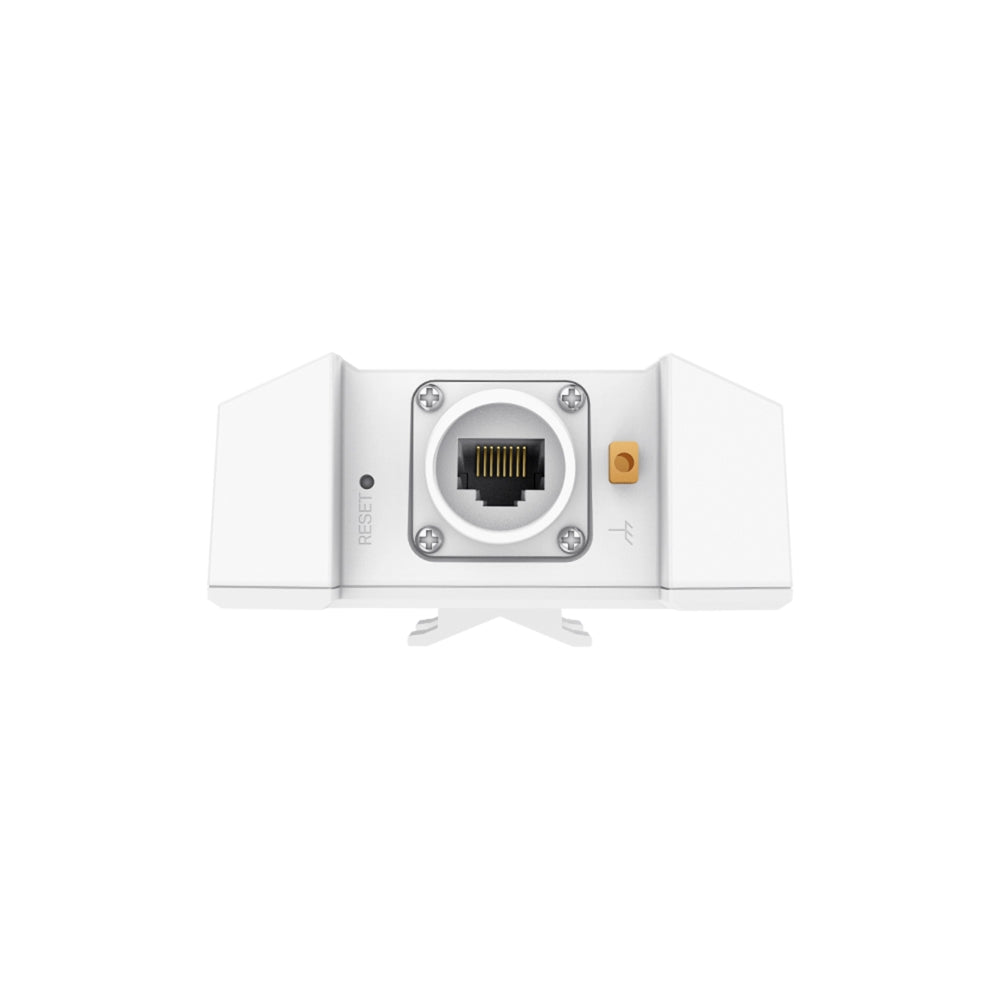

Interface 1× Gigabit Ethernet (RJ‑45) port (supports 802.3at PoE+ and Passive PoE)
Button Reset button
Power Supply 802.3at PoE+; 48 V Passive PoE (adapter included)
Power Consumption EU: 12.5 W; US: 14.7 W (via either PoE mode):contentReference[oaicite:0]{index=0}
Dimensions (W × D × H) 280.4 × 106.5 × 56.8 mm (without antenna & mounting kit):contentReference[oaicite:1]{index=1}
Antenna 2.4 GHz: 2 × 4 dBi; 5 GHz: 2 × 5 dBi (internal smart antennas with horizontal & vertical polarization):contentReference[oaicite:2]{index=2}
Weatherproof Enclosure IP67 (dustproof, water-resistant; rated to endure lightning, dust ingress, shock, vibration, moisture):contentReference[oaicite:3]{index=3}

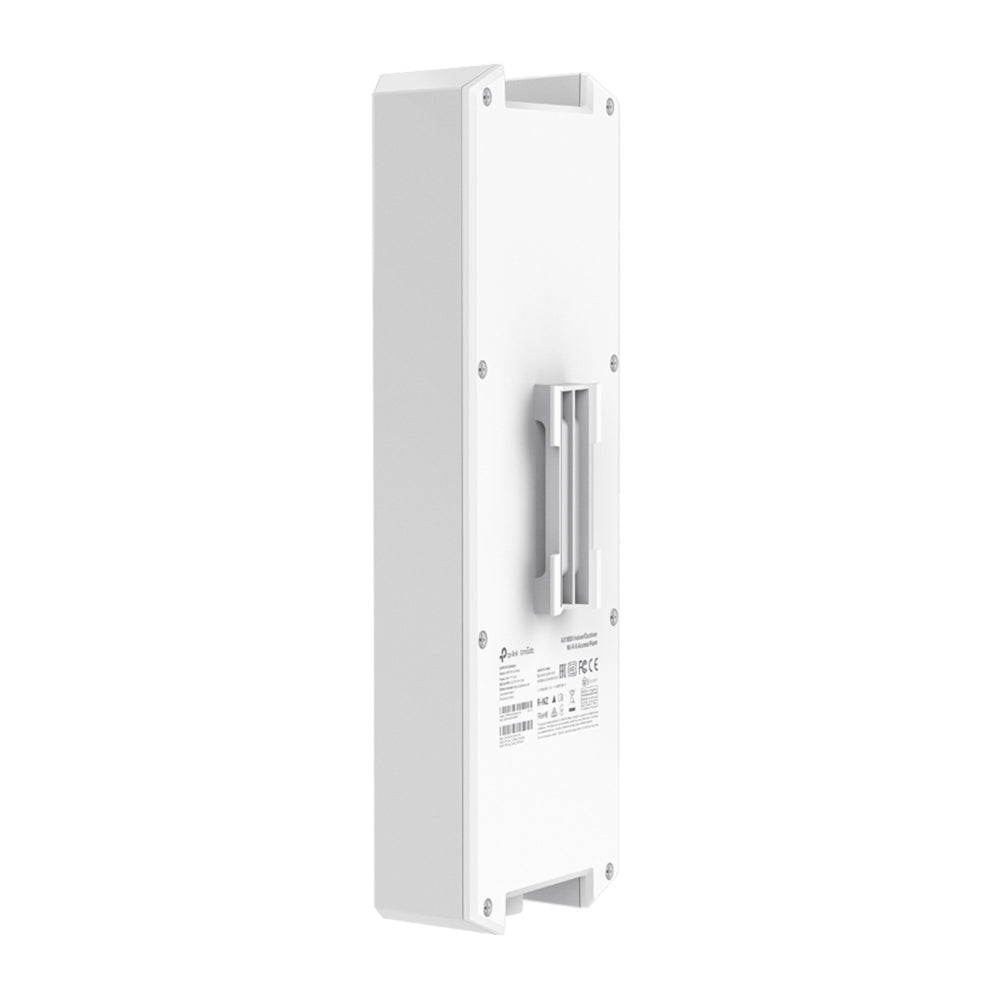

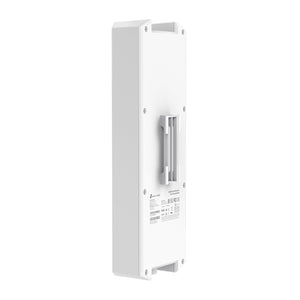

Mounting Pole or wall mounting (mounting kits included):contentReference[oaicite:4]{index=4}
Wireless Standards IEEE 802.11ax/ac/n/g/b/a (Wi‑Fi 6 compatible):contentReference[oaicite:5]{index=5}
Frequency 2.4 GHz and 5 GHz bands

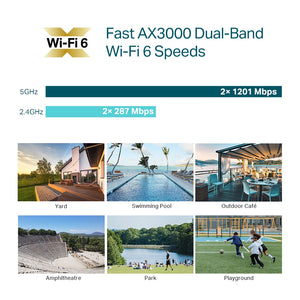

Maximum Data Rate AX3000 total: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz); HE160 supported:contentReference[oaicite:6]{index=6}
Signal Rate Details
  • 802.11ax: 8 Mbps to 1201 Mbps (MCS0–MCS11, NSS 1–2, HE20/40/80)
  • 802.11ac: up to ~1083 Mbps (MCS0–MCS9, VHT20/40/80)
  • 802.11n: up to 300 Mbps (MCS0–MCS15, HT20/40)
  • Legacy a/b/g rates supported:contentReference[oaicite:7]{index=7}
Concurrent Wireless Clients 250+ clients supported:contentReference[oaicite:8]{index=8}
Transmit Power CE: < 20 dBm (2.4 GHz), < 30 dBm (5 GHz); FCC: < 25 dBm both bands:contentReference[oaicite:9]{index=9}
Wireless Features 1024‑QAM, extended OFDM, OFDMA, MU‑MIMO, multiple SSIDs (up to 16 total, 8 per band), band steering, beamforming, airtime fairness, load balancing, rate limiting, transmit power control, automatic channel assignment, schedule-based reboot and wireless schedule, wireless stats, Omada Mesh, seamless roaming:contentReference[oaicite:10]{index=10}
Wireless Security Captive Portal (SMS, voucher, etc.), Access Control, MAC filtering, client isolation, SSID‑to‑VLAN, Rogue AP detection, 802.1X, WEP, WPA‑Personal/Enterprise, WPA2‑Personal/Enterprise, WPA3‑Personal/Enterprise:contentReference[oaicite:11]{index=11}
Management Omada App; centralized management via Omada Cloud, software controller, or hardware controllers (OC300, OC200); features include cloud access, email alerts, MAC-based access control, SNMP v1/v2c, syslog, SSH, web GUI, L3, multi‑site, management VLAN, Zero-Touch Provisioning (ZTP):contentReference[oaicite:12]{index=12}
Certifications CE, FCC, RoHS:contentReference[oaicite:13]{index=13}
Package Contents Access Point, Passive PoE adapter, power cord, mounting kits, installation guide (and depending on version: waterproof kits/antenna):contentReference[oaicite:14]{index=14}
System Requirements Windows XP through Windows 11, Linux systems:contentReference[oaicite:15]{index=15}
Operating Temperature −30 °C to 70 °C (−22 °F to 158 °F):contentReference[oaicite:16]{index=16}
Storage Temperature −40 °C to 70 °C (−40 °F to 158 °F):contentReference[oaicite:17]{index=17}
Operating Humidity 10%–90% RH non‑condensing; Storage Humidity: 5%–90% RH non‑condensing:contentReference[oaicite:18]{index=18}
Learn what makes this product unique and why it’s right for you.

The TP‑Link Omada EAP650‑Outdoor is an advanced dual-band Wi-Fi 6 access point tailored for both indoor and outdoor deployments. It delivers ultra-fast AX3000 speeds (up to 2976 Mbps), supports a wide range of modern wireless features—including HE160, OFDMA, MU-MIMO, and beamforming—and is housed in a rugged, IP67-rated enclosure capable of withstanding harsh environmental conditions. Powered flexibly via PoE+, it integrates seamlessly into TP‑Link’s Omada SDN platform for centralized management (cloud, local, or hybrid) and supports advanced deployment scenarios like mesh networking and seamless roaming. It excels in high-density outdoor environments like campuses, stadiums, resorts, and similar setups.





SPECIFICATION

Feature Description
Interface 1× Gigabit Ethernet (RJ‑45) port (supports 802.3at PoE+ and Passive PoE)
Button Reset button
Power Supply 802.3at PoE+; 48 V Passive PoE (adapter included)
Power Consumption EU: 12.5 W; US: 14.7 W (via either PoE mode):contentReference[oaicite:0]{index=0}
Dimensions (W × D × H) 280.4 × 106.5 × 56.8 mm (without antenna & mounting kit):contentReference[oaicite:1]{index=1}
Antenna 2.4 GHz: 2 × 4 dBi; 5 GHz: 2 × 5 dBi (internal smart antennas with horizontal & vertical polarization):contentReference[oaicite:2]{index=2}
Weatherproof Enclosure IP67 (dustproof, water-resistant; rated to endure lightning, dust ingress, shock, vibration, moisture):contentReference[oaicite:3]{index=3}
Mounting Pole or wall mounting (mounting kits included):contentReference[oaicite:4]{index=4}
Wireless Standards IEEE 802.11ax/ac/n/g/b/a (Wi‑Fi 6 compatible):contentReference[oaicite:5]{index=5}
Frequency 2.4 GHz and 5 GHz bands
Maximum Data Rate AX3000 total: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz); HE160 supported:contentReference[oaicite:6]{index=6}
Signal Rate Details
  • 802.11ax: 8 Mbps to 1201 Mbps (MCS0–MCS11, NSS 1–2, HE20/40/80)
  • 802.11ac: up to ~1083 Mbps (MCS0–MCS9, VHT20/40/80)
  • 802.11n: up to 300 Mbps (MCS0–MCS15, HT20/40)
  • Legacy a/b/g rates supported:contentReference[oaicite:7]{index=7}
Concurrent Wireless Clients 250+ clients supported:contentReference[oaicite:8]{index=8}
Transmit Power CE: < 20 dBm (2.4 GHz), < 30 dBm (5 GHz); FCC: < 25 dBm both bands:contentReference[oaicite:9]{index=9}
Wireless Features 1024‑QAM, extended OFDM, OFDMA, MU‑MIMO, multiple SSIDs (up to 16 total, 8 per band), band steering, beamforming, airtime fairness, load balancing, rate limiting, transmit power control, automatic channel assignment, schedule-based reboot and wireless schedule, wireless stats, Omada Mesh, seamless roaming:contentReference[oaicite:10]{index=10}
Wireless Security Captive Portal (SMS, voucher, etc.), Access Control, MAC filtering, client isolation, SSID‑to‑VLAN, Rogue AP detection, 802.1X, WEP, WPA‑Personal/Enterprise, WPA2‑Personal/Enterprise, WPA3‑Personal/Enterprise:contentReference[oaicite:11]{index=11}
Management Omada App; centralized management via Omada Cloud, software controller, or hardware controllers (OC300, OC200); features include cloud access, email alerts, MAC-based access control, SNMP v1/v2c, syslog, SSH, web GUI, L3, multi‑site, management VLAN, Zero-Touch Provisioning (ZTP):contentReference[oaicite:12]{index=12}
Certifications CE, FCC, RoHS:contentReference[oaicite:13]{index=13}
Package Contents Access Point, Passive PoE adapter, power cord, mounting kits, installation guide (and depending on version: waterproof kits/antenna):contentReference[oaicite:14]{index=14}
System Requirements Windows XP through Windows 11, Linux systems:contentReference[oaicite:15]{index=15}
Operating Temperature −30 °C to 70 °C (−22 °F to 158 °F):contentReference[oaicite:16]{index=16}
Storage Temperature −40 °C to 70 °C (−40 °F to 158 °F):contentReference[oaicite:17]{index=17}
Operating Humidity 10%–90% RH non‑condensing; Storage Humidity: 5%–90% RH non‑condensing:contentReference[oaicite:18]{index=18}

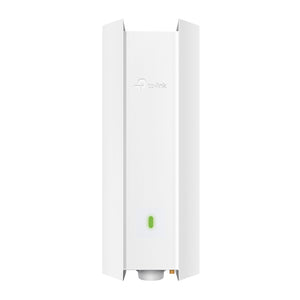

EAP650 Outdoor - AX3000 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point

Regular price
$249.00
Sale price
$249.00
Regular price
