About
The EAP650‑Desktop is a versatile Wi‑Fi 6 access point featuring a desktop-friendly form factor and flexible wall-mount option. It delivers high-speed AX3000 wireless performance—with up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—and includes four Gigabit Ethernet ports, one of which supports powering other devices (PoE Out). Powered through PoE++ (802.3bt) or an included DC adapter, it’s easy to deploy without complex installation. Designed for business environments like offices, hotels, and retail, it supports Omada’s Mesh, seamless roaming, and centralized cloud-based management for efficient network control.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | Wi‑Fi 6 (IEEE 802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Wi‑Fi Speeds | AX3000: 2402 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz (Total ~2976 Mbps) |

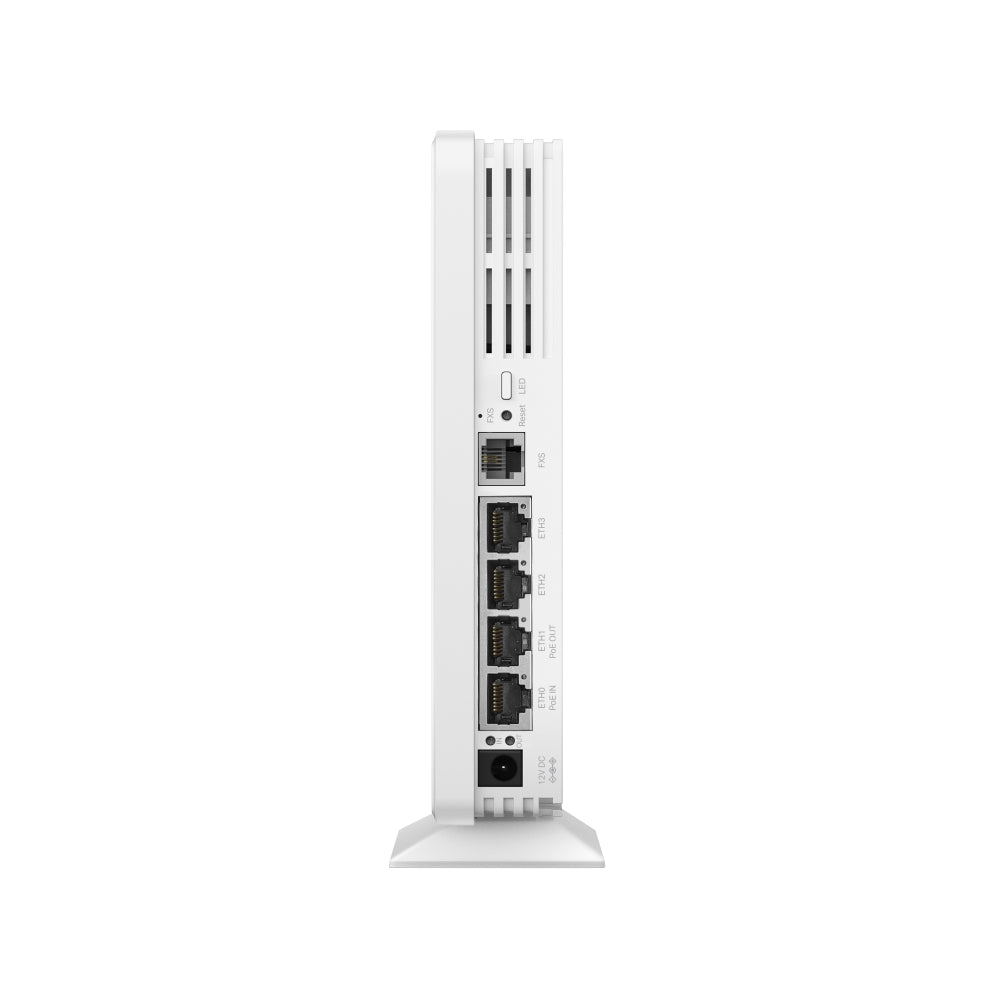

| Ethernet Ports | 4 × 1 Gbps RJ‑45 + 1 × FXS port. One port supports PoE Out (802.3at/af) when powered via PoE In (802.3bt) or DC. |
| Power Supply | Supports 802.3 af/at/bt PoE or 12 V/1.5 A DC (adapter included). PoE Out requires PoE In via 802.3at/bt. |
| Power Consumption | Approximately 17.3 W (when PoE Out is off) |
| Antenna | Internal omni‑directional antennas: • 2.4 GHz: 2 × 5 dBi • 5 GHz: 3 × 4.7 dBi |
| Concurrent Clients | Supports 250+ devices |
| Wireless Functions | 2×2 MU‑MIMO; HE160 (160 MHz); OFDMA; Omada Mesh; Seamless Roaming; Up to 16 SSIDs (8 per band); Band Steering; Airtime Fairness; Beamforming; Load Balancing; QoS/WMM; Transmit Power Control; Rate Limiting; Channel Auto‑Assignment; Wireless Scheduling & Stats |
| Security | Captive Portal; VLAN per SSID; MAC Filtering; Client Isolation; Rogue AP Detection; WPA/WPA2/WPA3 (Personal/Enterprise); 802.1X; Guest Network |
| Transmit Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Bands 1 & 2), <29 dBm (5 GHz Band 3) FCC: <26 dBm (2.4 GHz), <27 dBm (5 GHz) |
| Management | Omada App; Omada Hardware/Software/Cloud Controllers; Cloud Access; SNMP v1/2c/3; Web UI (HTTP/HTTPS); SSH; Email Alerts; LED Control; MAC Access Control; Zero‑Touch Provisioning |
| Mounting | Desktop or Wall mount (kits included) |
| Dimensions & Weight | 175 × 140 × 33 mm (6.9 × 5.5 × 1.3 in); Weight: 452 g (excluding base) |
| Coverage Area | Approximately 140 m² (1,500 ft²) in lab conditions |
| Certifications | CE, FCC, RoHS, IC |
| Package Contents | Access Point unit, Desktop/Wall Mounting Kit, Installation Guide |
| Environment | Operating Temp: 0–40 °C; Storage Temp: –40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH (non‑condensing) |
The EAP650‑Desktop is a versatile Wi‑Fi 6 access point featuring a desktop-friendly form factor and flexible wall-mount option. It delivers high-speed AX3000 wireless performance—with up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—and includes four Gigabit Ethernet ports, one of which supports powering other devices (PoE Out). Powered through PoE++ (802.3bt) or an included DC adapter, it’s easy to deploy without complex installation. Designed for business environments like offices, hotels, and retail, it supports Omada’s Mesh, seamless roaming, and centralized cloud-based management for efficient network control.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | Wi‑Fi 6 (IEEE 802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Wi‑Fi Speeds | AX3000: 2402 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz (Total ~2976 Mbps) |
| Ethernet Ports | 4 × 1 Gbps RJ‑45 + 1 × FXS port. One port supports PoE Out (802.3at/af) when powered via PoE In (802.3bt) or DC. |
| Power Supply | Supports 802.3 af/at/bt PoE or 12 V/1.5 A DC (adapter included). PoE Out requires PoE In via 802.3at/bt. |
| Power Consumption | Approximately 17.3 W (when PoE Out is off) |
| Antenna | Internal omni‑directional antennas: • 2.4 GHz: 2 × 5 dBi • 5 GHz: 3 × 4.7 dBi |
| Concurrent Clients | Supports 250+ devices |
| Wireless Functions | 2×2 MU‑MIMO; HE160 (160 MHz); OFDMA; Omada Mesh; Seamless Roaming; Up to 16 SSIDs (8 per band); Band Steering; Airtime Fairness; Beamforming; Load Balancing; QoS/WMM; Transmit Power Control; Rate Limiting; Channel Auto‑Assignment; Wireless Scheduling & Stats |
| Security | Captive Portal; VLAN per SSID; MAC Filtering; Client Isolation; Rogue AP Detection; WPA/WPA2/WPA3 (Personal/Enterprise); 802.1X; Guest Network |
| Transmit Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Bands 1 & 2), <29 dBm (5 GHz Band 3) FCC: <26 dBm (2.4 GHz), <27 dBm (5 GHz) |
| Management | Omada App; Omada Hardware/Software/Cloud Controllers; Cloud Access; SNMP v1/2c/3; Web UI (HTTP/HTTPS); SSH; Email Alerts; LED Control; MAC Access Control; Zero‑Touch Provisioning |
| Mounting | Desktop or Wall mount (kits included) |
| Dimensions & Weight | 175 × 140 × 33 mm (6.9 × 5.5 × 1.3 in); Weight: 452 g (excluding base) |
| Coverage Area | Approximately 140 m² (1,500 ft²) in lab conditions |
| Certifications | CE, FCC, RoHS, IC |
| Package Contents | Access Point unit, Desktop/Wall Mounting Kit, Installation Guide |
| Environment | Operating Temp: 0–40 °C; Storage Temp: –40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH (non‑condensing) |
