About
Built for demanding environments like warehouses and outdoor installations, the EAP650 D120‑Outdoor offers ultra‑range Wi‑Fi 6 performance with directional coverage. The unit features a rugged IP68‑rated enclosure, built‑in high‑gain directional antennas, and support for seamless roaming—all managed centrally via the Omada SDN platform (cloud, on‑premises, or via app/web UI). It’s ideal for applications requiring precise, robust connectivity over long distances.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | Wi‑Fi 6 (IEEE 802.11ax), Dual‑Band (2.4 GHz & 5 GHz) |
| Maximum Data Rate | 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
| Directional Antennas | Built‑in: 2× 8 dBi (2.4 GHz), 2× 10 dBi (5 GHz); Beamwidth: 120° horizontal, 30° vertical |
| Coverage Range (Open Field) | Up to 200 m (2.4 GHz), 500 m (5 GHz) |
| Seamless Roaming | 802.11k/v/r support for uninterrupted device movement |
| Weatherproof Rating | IP68 (dustproof and waterproof enclosure) |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |

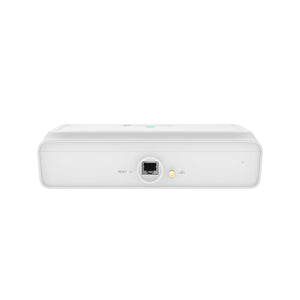

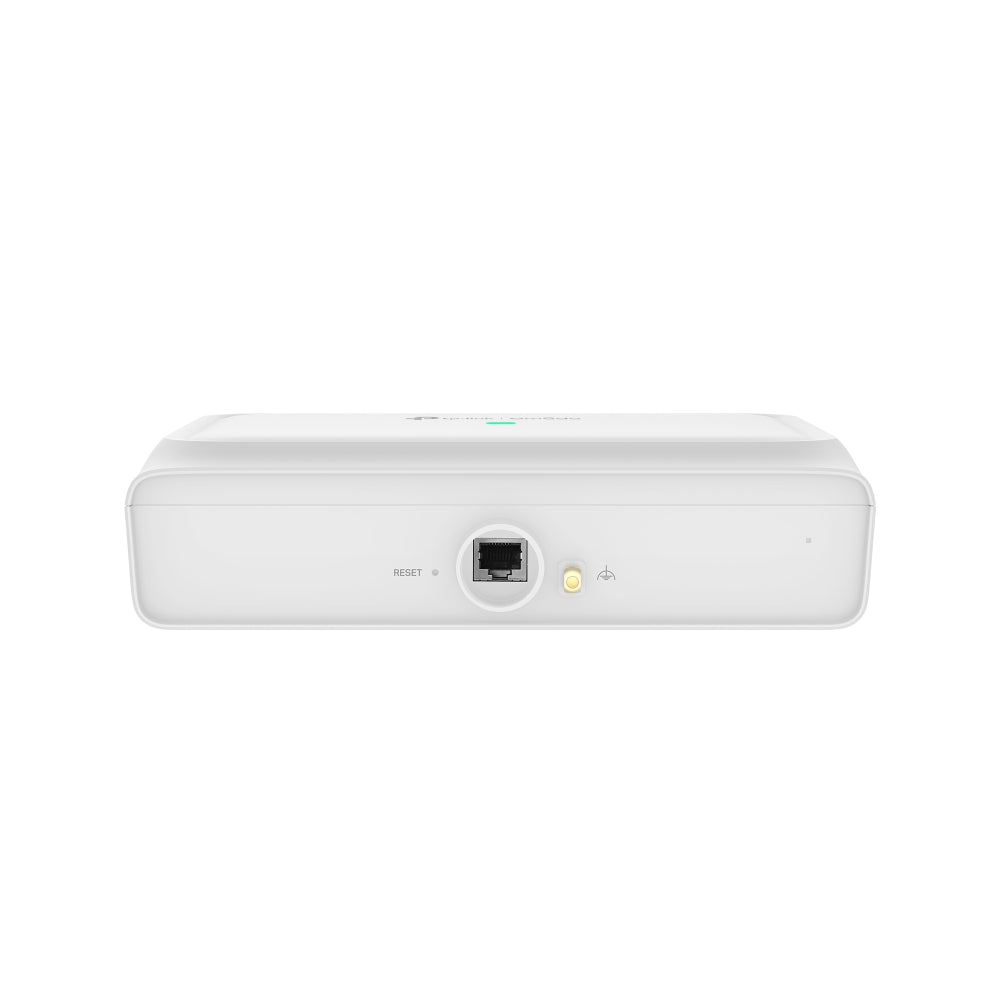

| Power & Interface | 1× Gigabit Ethernet (RJ‑45); supports 802.3at PoE and 48 V Passive PoE; Reset button |
| Power Consumption | EU: 12.5 W; US: 14.7 W |
| Dimensions | 230 × 207.5 × 69.7 mm |
| Bluetooth | Yes (for simplified setup and management) |
| Concurrent Clients | Supports 250+ devices |
| Wireless Features | 1024‑QAM, OFDMA, MU‑MIMO (2×2), multiple SSIDs, band steering, airtime fairness, beamforming, load balancing, Omada Mesh, guest network, QoS, schedule control |
| Security | Captive portal, MAC filtering, client isolation, VLAN, rogue AP detection, WPA/WPA2/WPA3 (Personal & Enterprise), 802.1X |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 23–30 dBm (5 GHz); FCC: < 30 dBm |
| Management & Monitoring | Omada App, cloud/web/software controller, SNMP, SSH, syslog, multi‑site management, Zero‑Touch Provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access Point, mounting kits, installation guide |
| System Requirements | Compatible with Windows XP and above, and Linux |
| Environmental Conditions | Operating Humidity: 10–90% RH; Storage Temp: –40 °C to +70 °C; Storage Humidity: 5–90% RH |
Built for demanding environments like warehouses and outdoor installations, the EAP650 D120‑Outdoor offers ultra‑range Wi‑Fi 6 performance with directional coverage. The unit features a rugged IP68‑rated enclosure, built‑in high‑gain directional antennas, and support for seamless roaming—all managed centrally via the Omada SDN platform (cloud, on‑premises, or via app/web UI). It’s ideal for applications requiring precise, robust connectivity over long distances.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | Wi‑Fi 6 (IEEE 802.11ax), Dual‑Band (2.4 GHz & 5 GHz) |
| Maximum Data Rate | 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
| Directional Antennas | Built‑in: 2× 8 dBi (2.4 GHz), 2× 10 dBi (5 GHz); Beamwidth: 120° horizontal, 30° vertical |
| Coverage Range (Open Field) | Up to 200 m (2.4 GHz), 500 m (5 GHz) |
| Seamless Roaming | 802.11k/v/r support for uninterrupted device movement |
| Weatherproof Rating | IP68 (dustproof and waterproof enclosure) |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Power & Interface | 1× Gigabit Ethernet (RJ‑45); supports 802.3at PoE and 48 V Passive PoE; Reset button |
| Power Consumption | EU: 12.5 W; US: 14.7 W |
| Dimensions | 230 × 207.5 × 69.7 mm |
| Bluetooth | Yes (for simplified setup and management) |
| Concurrent Clients | Supports 250+ devices |
| Wireless Features | 1024‑QAM, OFDMA, MU‑MIMO (2×2), multiple SSIDs, band steering, airtime fairness, beamforming, load balancing, Omada Mesh, guest network, QoS, schedule control |
| Security | Captive portal, MAC filtering, client isolation, VLAN, rogue AP detection, WPA/WPA2/WPA3 (Personal & Enterprise), 802.1X |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 23–30 dBm (5 GHz); FCC: < 30 dBm |
| Management & Monitoring | Omada App, cloud/web/software controller, SNMP, SSH, syslog, multi‑site management, Zero‑Touch Provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access Point, mounting kits, installation guide |
| System Requirements | Compatible with Windows XP and above, and Linux |
| Environmental Conditions | Operating Humidity: 10–90% RH; Storage Temp: –40 °C to +70 °C; Storage Humidity: 5–90% RH |

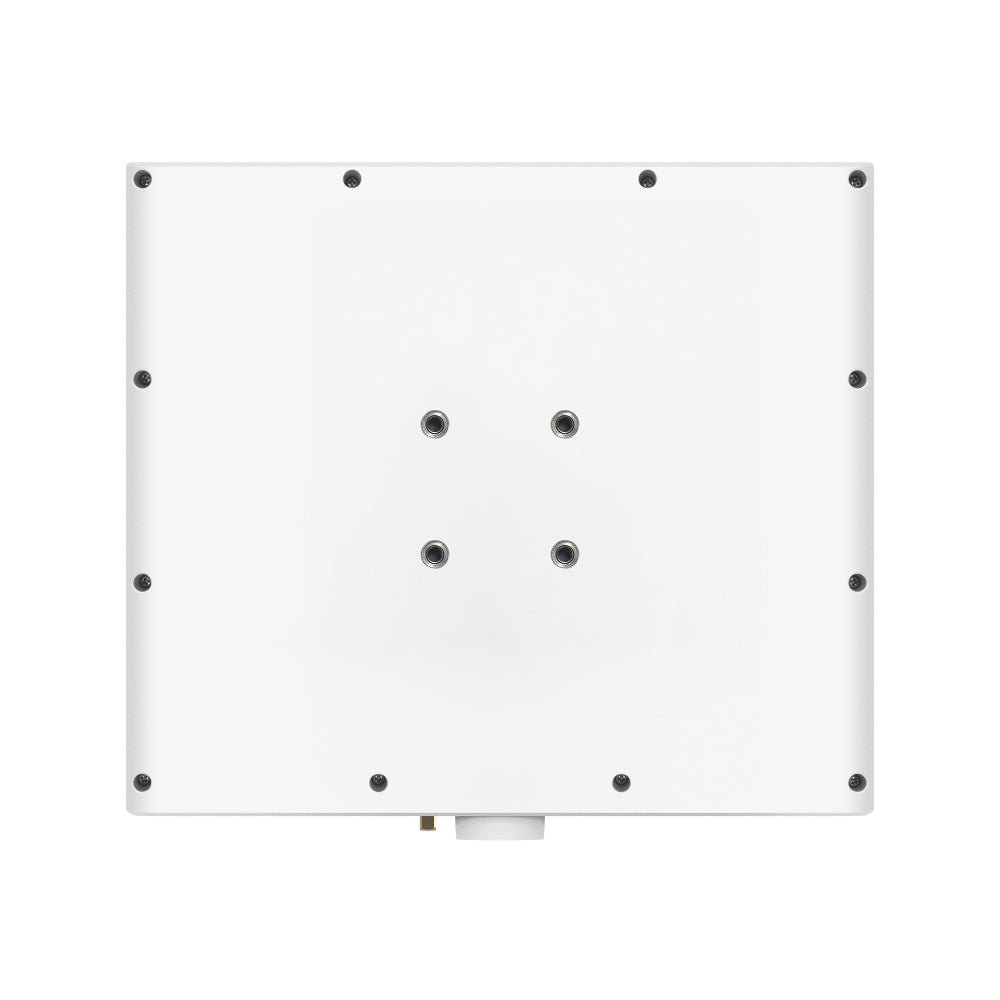

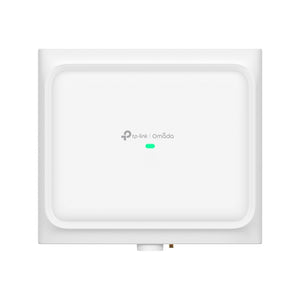

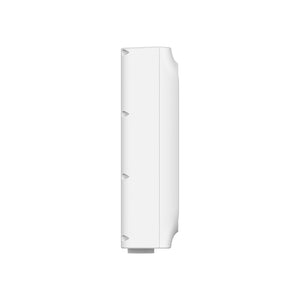

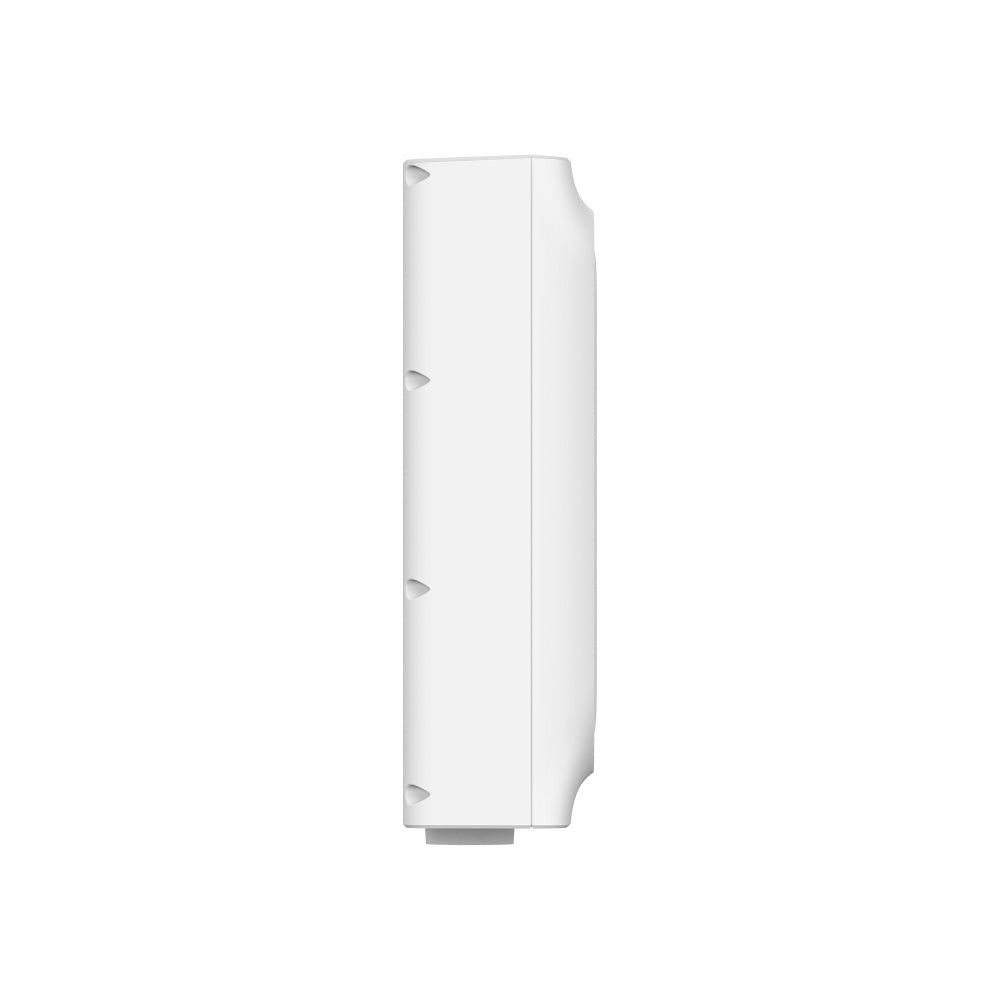

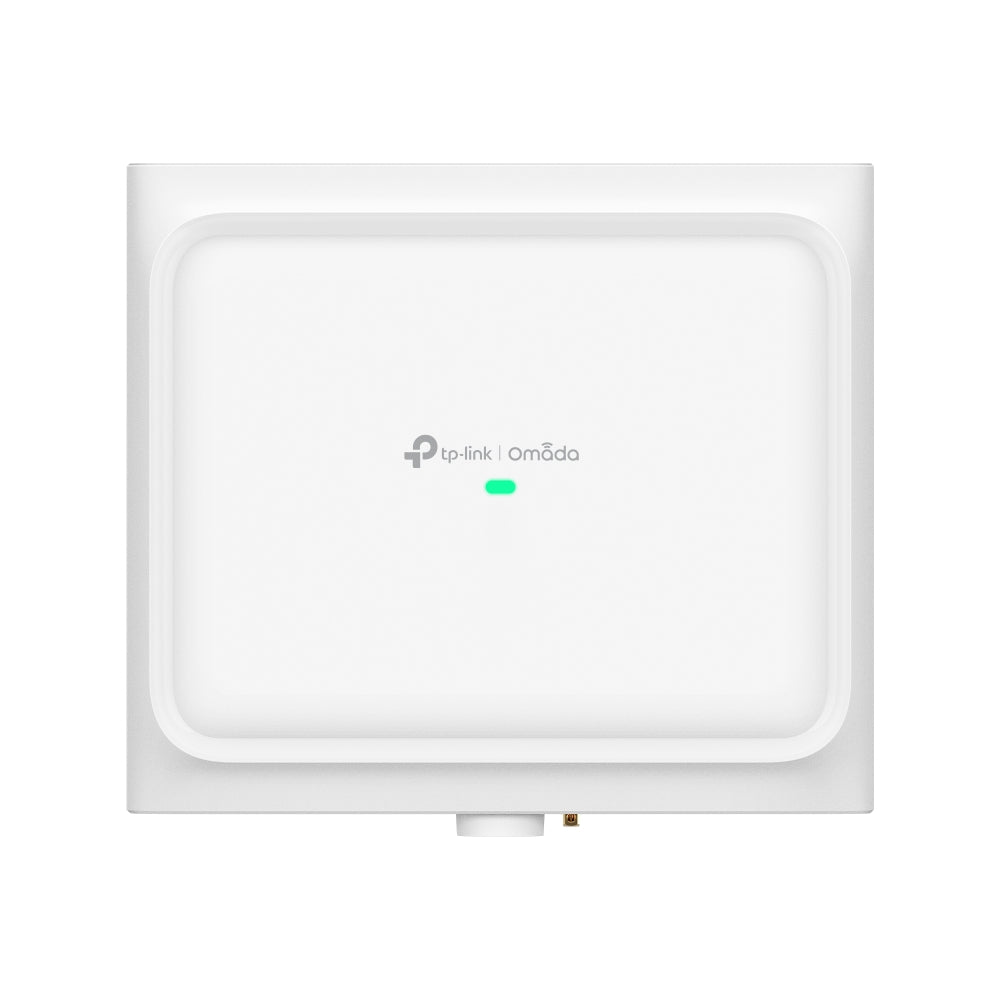

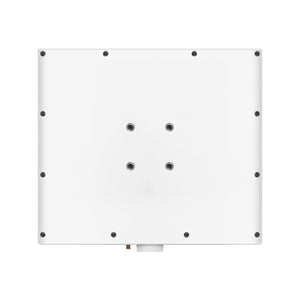

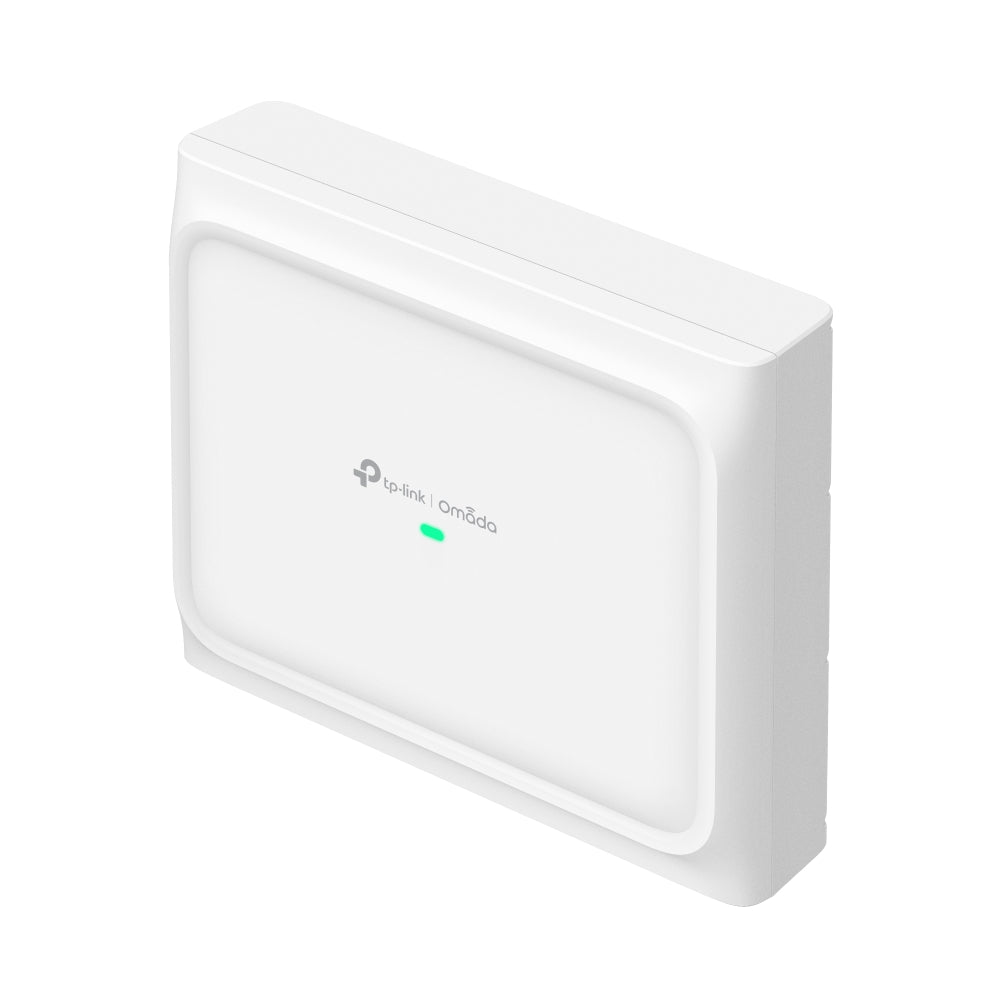

EAP650 D120 Outdoor - AX3000 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point
- Regular price
- $299.00
- Sale price
- $299.00
