About

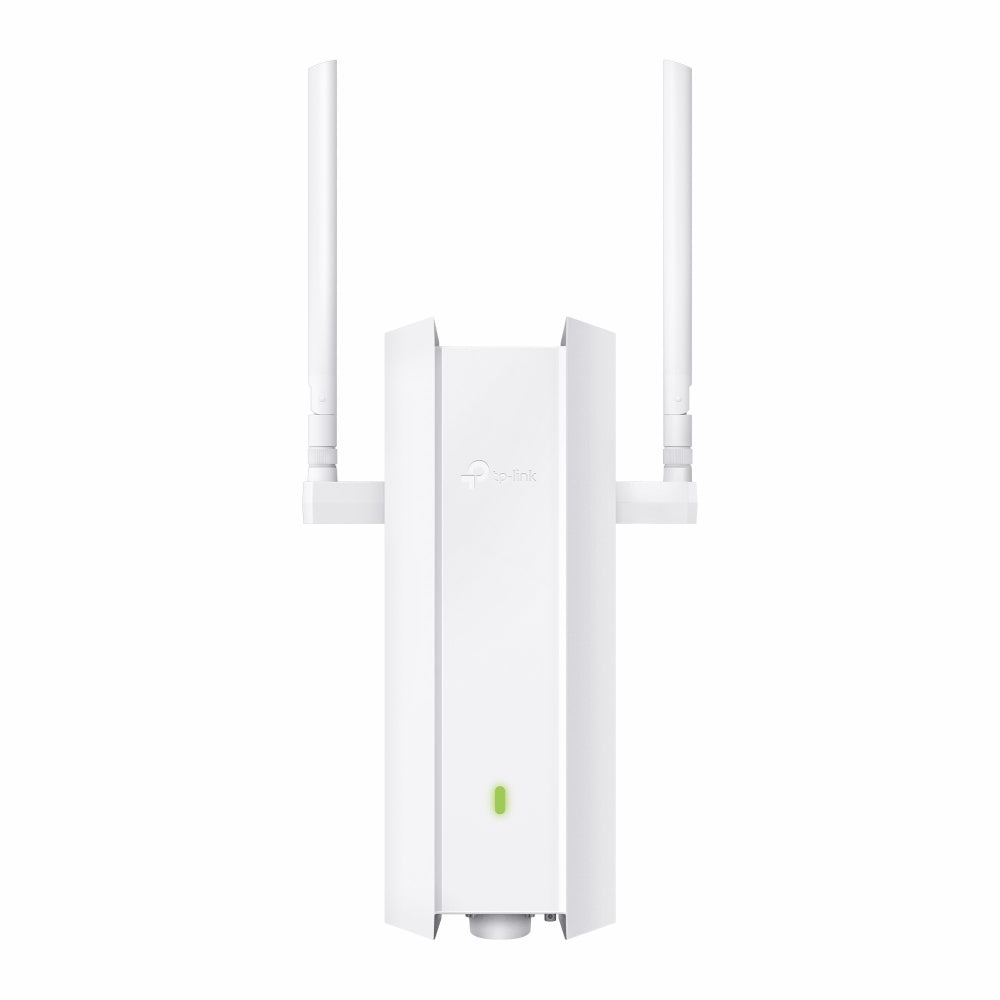

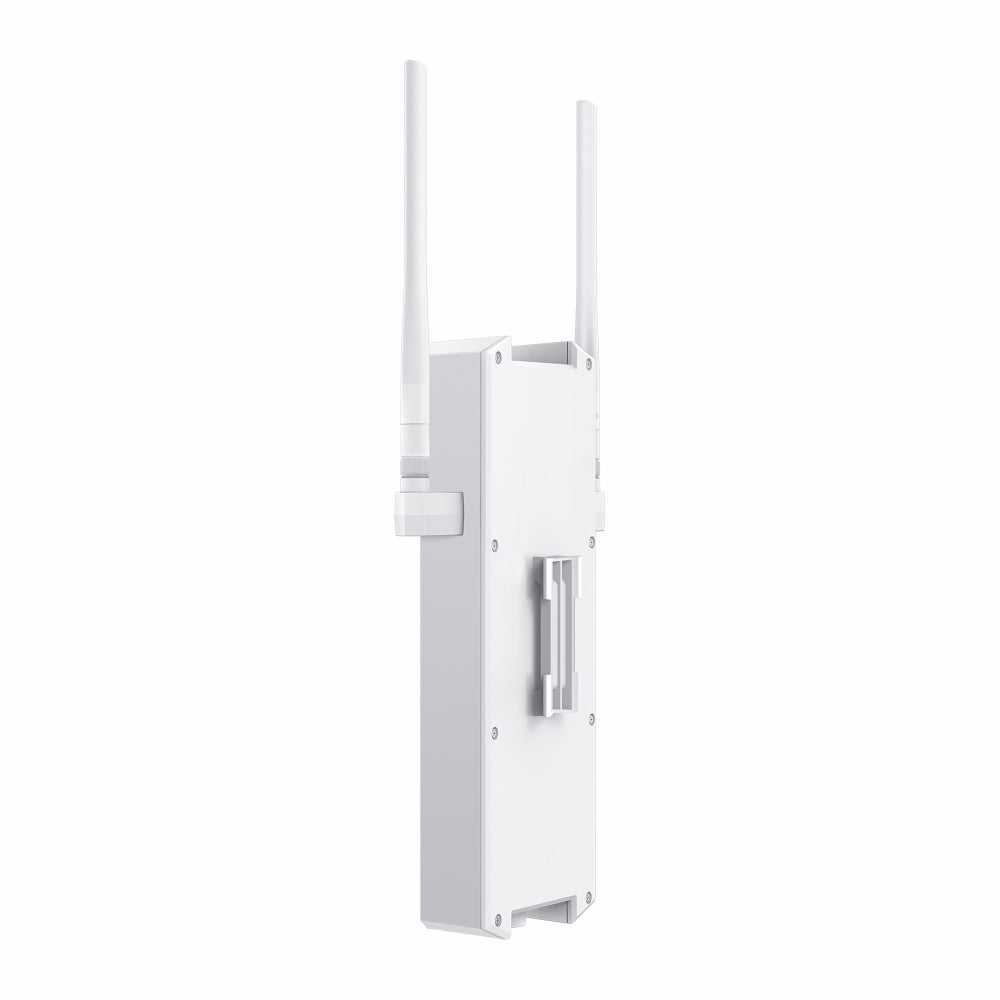

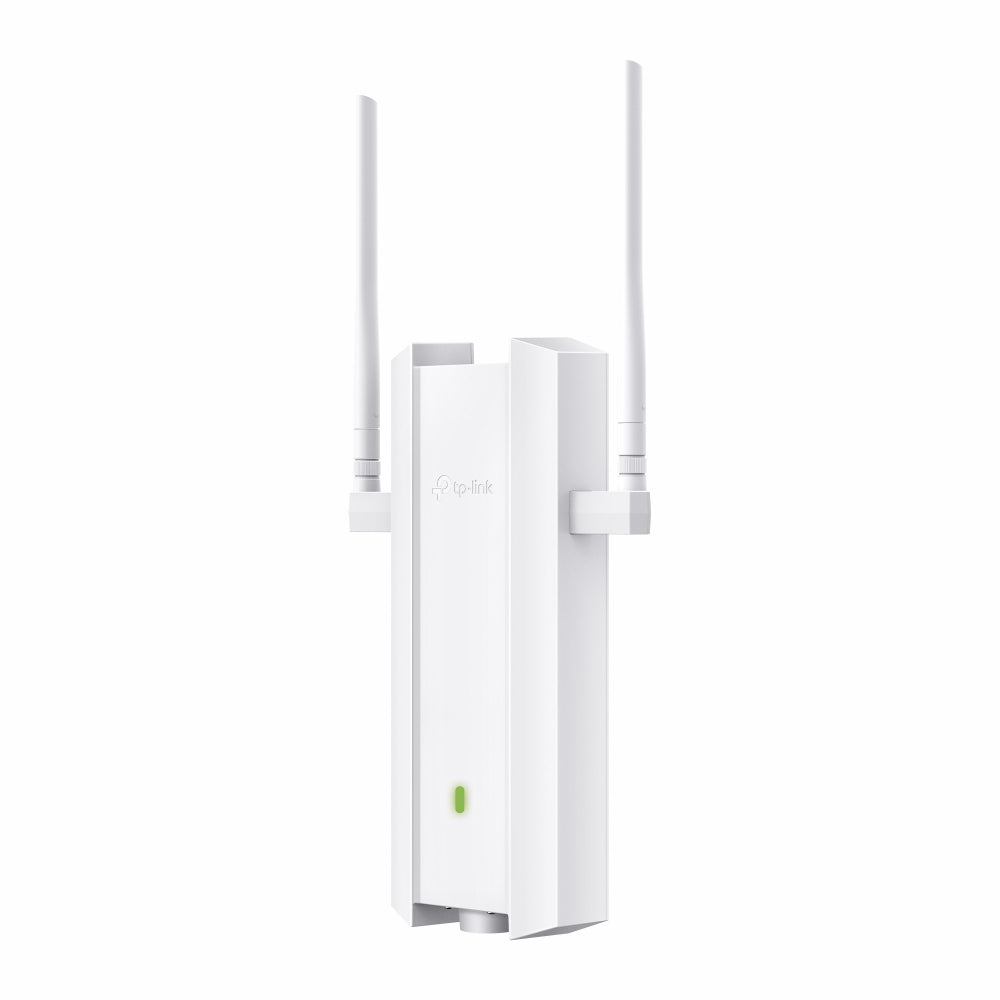

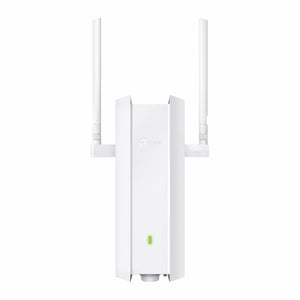

The EAP625‑Outdoor HD is engineered for reliable, high-density outdoor wireless coverage. It delivers AX1800 performance—574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz—leveraging Wi‑Fi 6 technologies like MU‑MIMO, OFDMA, and 1024‑QAM. The device supports over 1,000 concurrent clients, offers long-range coverage via detachable external antennas, and withstands harsh environmental conditions with an IP67-rated enclosure. It features flexible PoE+ deployment and integrates seamlessly with TP‑Link’s Omada SDN platform for centralized management, mesh networking, and seamless roaming.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band (2.4 GHz & 5 GHz) |
| Maximum Data Rate | 2.4 GHz: 574 Mbps; 5 GHz: 1201 Mbps (AX1800 total) |
| External Antennas | 2× dual‑band detachable omni antennas (2.4 GHz: 3 dBi; 5 GHz: 5 dBi) |
| Coverage Range | 2.4 GHz up to 200 m+; 5 GHz up to 300 m+ (open field) |
| Concurrent Clients | Supports over 1,000 devices |

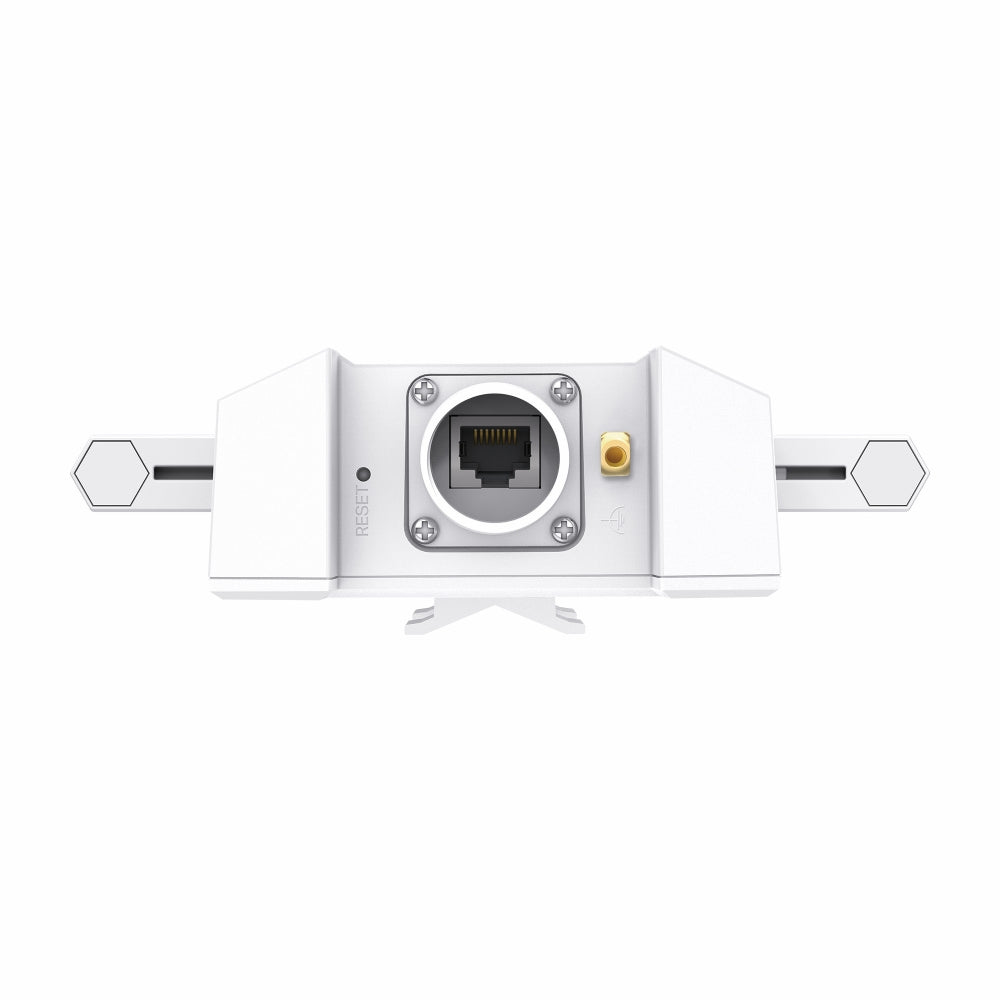

| Interface | 1× Gigabit Ethernet (uplink) |
| Power Supply | 802.3at PoE or 48 V passive PoE (adapter not included) |
| Power Consumption | Approx. 12.5 W (EU) / 14.7 W (US) via PoE |
| Bluetooth | Bluetooth v5.2 |
| Weatherproofing | IP67-rated enclosure, 6 kV lightning protection |
| Mounting Options | Pole or wall mount; mounting kit and waterproof kit included |
| Wireless Features | Mesh, seamless roaming (802.11k/v/r), multiple SSIDs (up to 16), band steering, beamforming, airtime fairness, load balancing, auto channel assignment, schedules, wireless stats, MAC auth, RADIUS, static/dynamic IP |
| Security | Captive portal, VLAN, access control, rogue AP detection, client isolation, MAC filtering (up to 4,000), WPA/WPA2/WPA3 Personal & Enterprise, 802.1X |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 30 dBm (5 GHz); FCC: < 25 dBm (both bands) |
| Management | Omada App; centralized management via hardware/software/cloud controllers; SNMP v1/v2c/v3, SSH, syslog, web GUI, email alerts, LED control, backup/restore |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access point, 2 detachable antennas, mounting kit, waterproof kit, installation guide |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% non‑condensing |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% non‑condensing |
The EAP625‑Outdoor HD is engineered for reliable, high-density outdoor wireless coverage. It delivers AX1800 performance—574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz—leveraging Wi‑Fi 6 technologies like MU‑MIMO, OFDMA, and 1024‑QAM. The device supports over 1,000 concurrent clients, offers long-range coverage via detachable external antennas, and withstands harsh environmental conditions with an IP67-rated enclosure. It features flexible PoE+ deployment and integrates seamlessly with TP‑Link’s Omada SDN platform for centralized management, mesh networking, and seamless roaming.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band (2.4 GHz & 5 GHz) |
| Maximum Data Rate | 2.4 GHz: 574 Mbps; 5 GHz: 1201 Mbps (AX1800 total) |
| External Antennas | 2× dual‑band detachable omni antennas (2.4 GHz: 3 dBi; 5 GHz: 5 dBi) |
| Coverage Range | 2.4 GHz up to 200 m+; 5 GHz up to 300 m+ (open field) |
| Concurrent Clients | Supports over 1,000 devices |
| Interface | 1× Gigabit Ethernet (uplink) |
| Power Supply | 802.3at PoE or 48 V passive PoE (adapter not included) |
| Power Consumption | Approx. 12.5 W (EU) / 14.7 W (US) via PoE |
| Bluetooth | Bluetooth v5.2 |
| Weatherproofing | IP67-rated enclosure, 6 kV lightning protection |
| Mounting Options | Pole or wall mount; mounting kit and waterproof kit included |
| Wireless Features | Mesh, seamless roaming (802.11k/v/r), multiple SSIDs (up to 16), band steering, beamforming, airtime fairness, load balancing, auto channel assignment, schedules, wireless stats, MAC auth, RADIUS, static/dynamic IP |
| Security | Captive portal, VLAN, access control, rogue AP detection, client isolation, MAC filtering (up to 4,000), WPA/WPA2/WPA3 Personal & Enterprise, 802.1X |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 30 dBm (5 GHz); FCC: < 25 dBm (both bands) |
| Management | Omada App; centralized management via hardware/software/cloud controllers; SNMP v1/v2c/v3, SSH, syslog, web GUI, email alerts, LED control, backup/restore |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access point, 2 detachable antennas, mounting kit, waterproof kit, installation guide |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% non‑condensing |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% non‑condensing |
EAP625 Outdoor HD - AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
