The EAP623‑Outdoor HD delivers robust AX1800 performance, offering 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. Designed for high-density outdoor environments, it supports 1,000+ concurrent clients and boasts long-range coverage through smart, high-power antennas. Its rugged IP67-rated enclosure with lightning protection ensures reliable operation under harsh weather conditions. With versatile PoE+ deployment and seamless integration into the Omada SDN ecosystem, it supports features like mesh networking, seamless roaming, captive portal, and centralized management for enterprise-grade wireless coverage.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
| Maximum Data Rate | 2.4 GHz: 574 Mbps; 5 GHz: 1201 Mbps (AX1800 total) |
| Smart Antennas | Horizontally & vertically polarized internal omni antennas for optimized long-range performance |
| Concurrent Clients | Supports over 1,000 client connections |

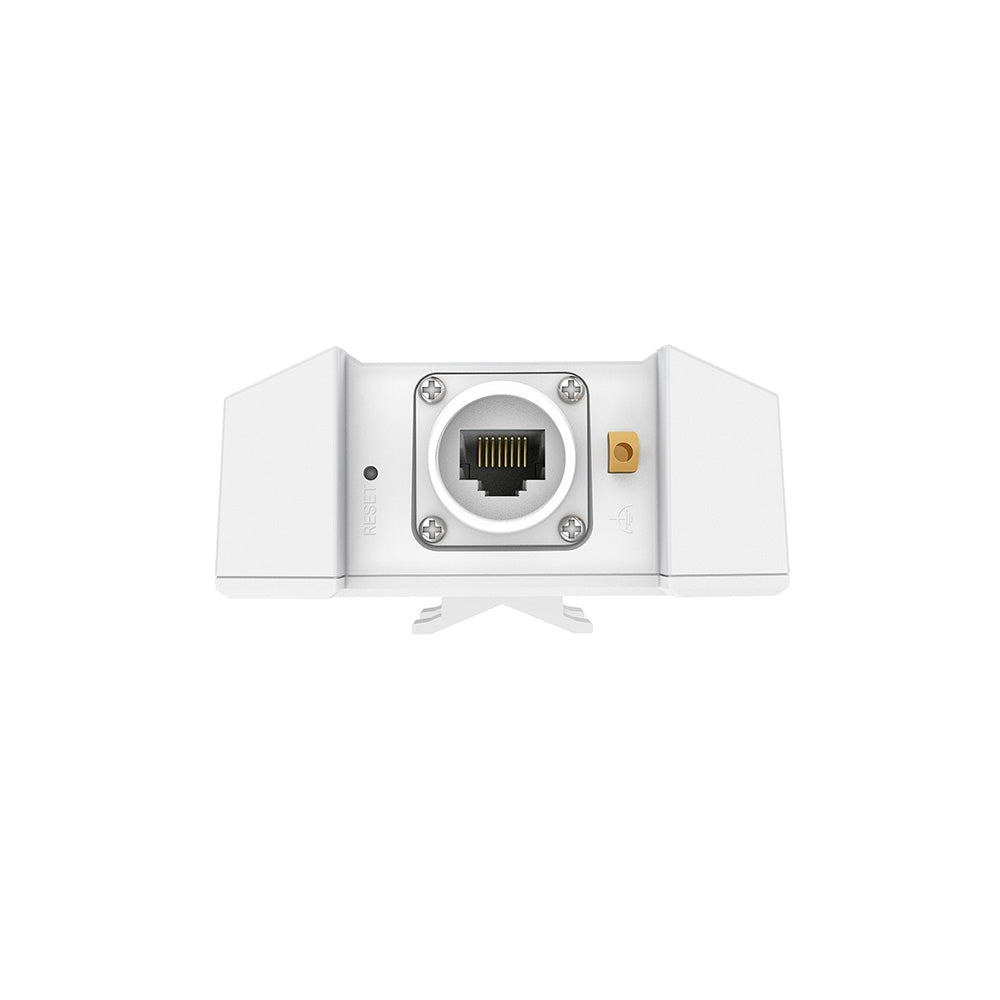

| Power & Interface | 1× Gigabit Ethernet port; supports 802.3at PoE+, 48 V passive PoE (adapter not included) |
| Enclosure & Protection | IP67-rated (dust & waterproof); 6 kV lightning protection |

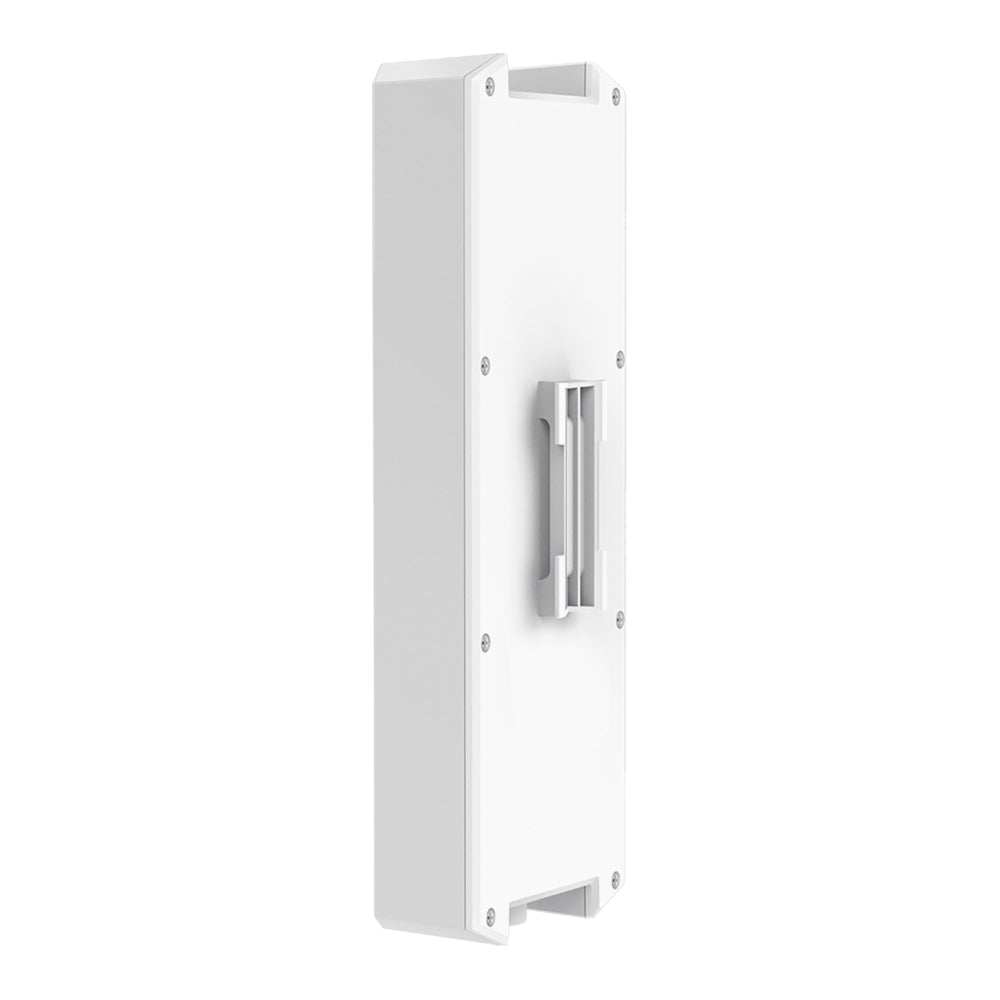

| Mounting Options | Pole or wall mount (kits included); waterproof kit included |
| Wireless Features | OFDMA, MU‑MIMO, 1024‑QAM, HE160, multiple SSIDs (up to 16), band steering, airtime fairness, beamforming, load balancing, auto channel assignment, wireless scheduling, Omada Mesh, seamless roaming, wireless stats |
| Wireless Security | WPA/WPA2/WPA3 (Personal & Enterprise), 802.1X, MAC filtering (up to 4,000), captive portal, access control, rogue AP detection, VLANs, client isolation |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 30 dBm (5 GHz) EIRP; FCC: < 25 dBm both bands |
| Management | Omada App; centralized via hardware/software/cloud controllers; SNMP v1/v2c/v3, SSH, syslog, web GUI, email alerts, LED control, zero-touch provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access point, mounting kit, installation guide, waterproof kit |
| Dimensions | 280.4 × 106.5 × 56.8 mm (approx. 11.0 × 4.2 × 2.2 in) |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% RH non‑condensing |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% RH non‑condensing |
The EAP623‑Outdoor HD delivers robust AX1800 performance, offering 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. Designed for high-density outdoor environments, it supports 1,000+ concurrent clients and boasts long-range coverage through smart, high-power antennas. Its rugged IP67-rated enclosure with lightning protection ensures reliable operation under harsh weather conditions. With versatile PoE+ deployment and seamless integration into the Omada SDN ecosystem, it supports features like mesh networking, seamless roaming, captive portal, and centralized management for enterprise-grade wireless coverage.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
| Maximum Data Rate | 2.4 GHz: 574 Mbps; 5 GHz: 1201 Mbps (AX1800 total) |
| Smart Antennas | Horizontally & vertically polarized internal omni antennas for optimized long-range performance |
| Concurrent Clients | Supports over 1,000 client connections |
| Power & Interface | 1× Gigabit Ethernet port; supports 802.3at PoE+, 48 V passive PoE (adapter not included) |
| Enclosure & Protection | IP67-rated (dust & waterproof); 6 kV lightning protection |
| Mounting Options | Pole or wall mount (kits included); waterproof kit included |
| Wireless Features | OFDMA, MU‑MIMO, 1024‑QAM, HE160, multiple SSIDs (up to 16), band steering, airtime fairness, beamforming, load balancing, auto channel assignment, wireless scheduling, Omada Mesh, seamless roaming, wireless stats |
| Wireless Security | WPA/WPA2/WPA3 (Personal & Enterprise), 802.1X, MAC filtering (up to 4,000), captive portal, access control, rogue AP detection, VLANs, client isolation |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 30 dBm (5 GHz) EIRP; FCC: < 25 dBm both bands |
| Management | Omada App; centralized via hardware/software/cloud controllers; SNMP v1/v2c/v3, SSH, syslog, web GUI, email alerts, LED control, zero-touch provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access point, mounting kit, installation guide, waterproof kit |
| Dimensions | 280.4 × 106.5 × 56.8 mm (approx. 11.0 × 4.2 × 2.2 in) |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% RH non‑condensing |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% RH non‑condensing |

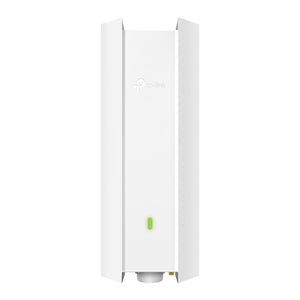

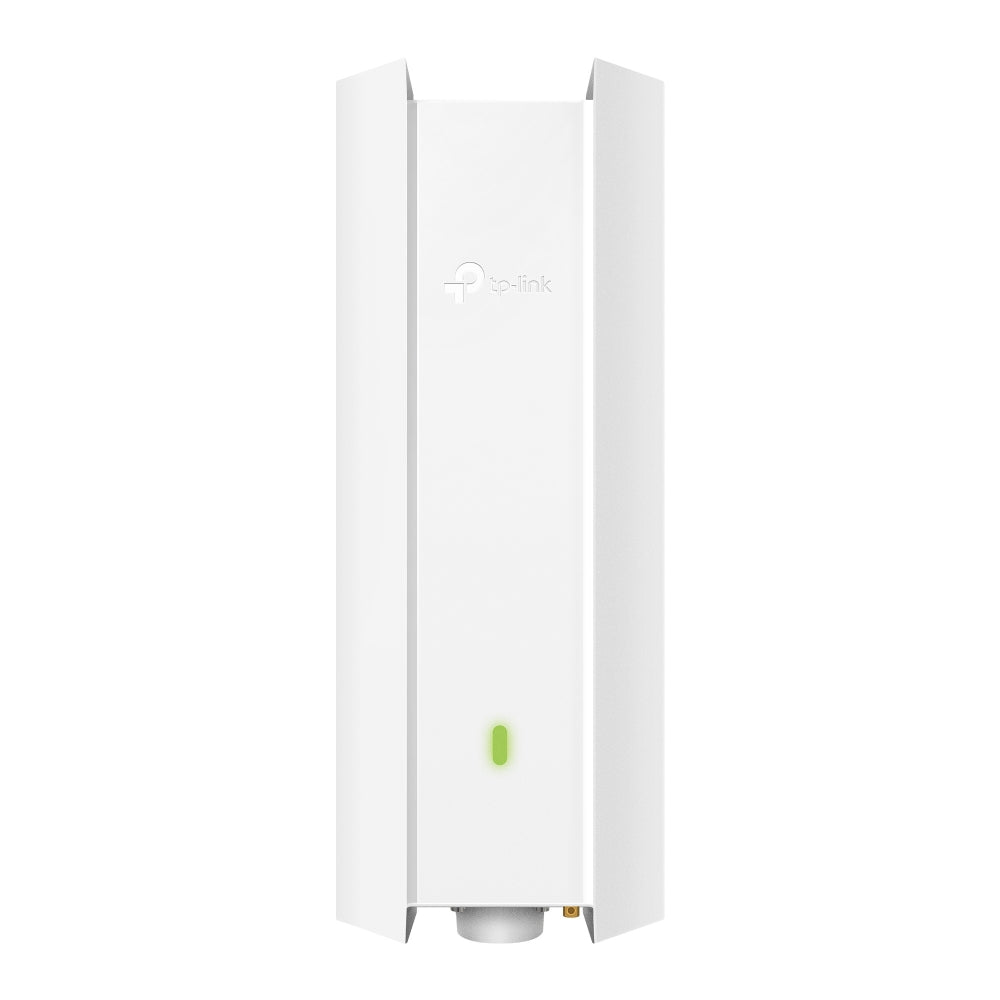

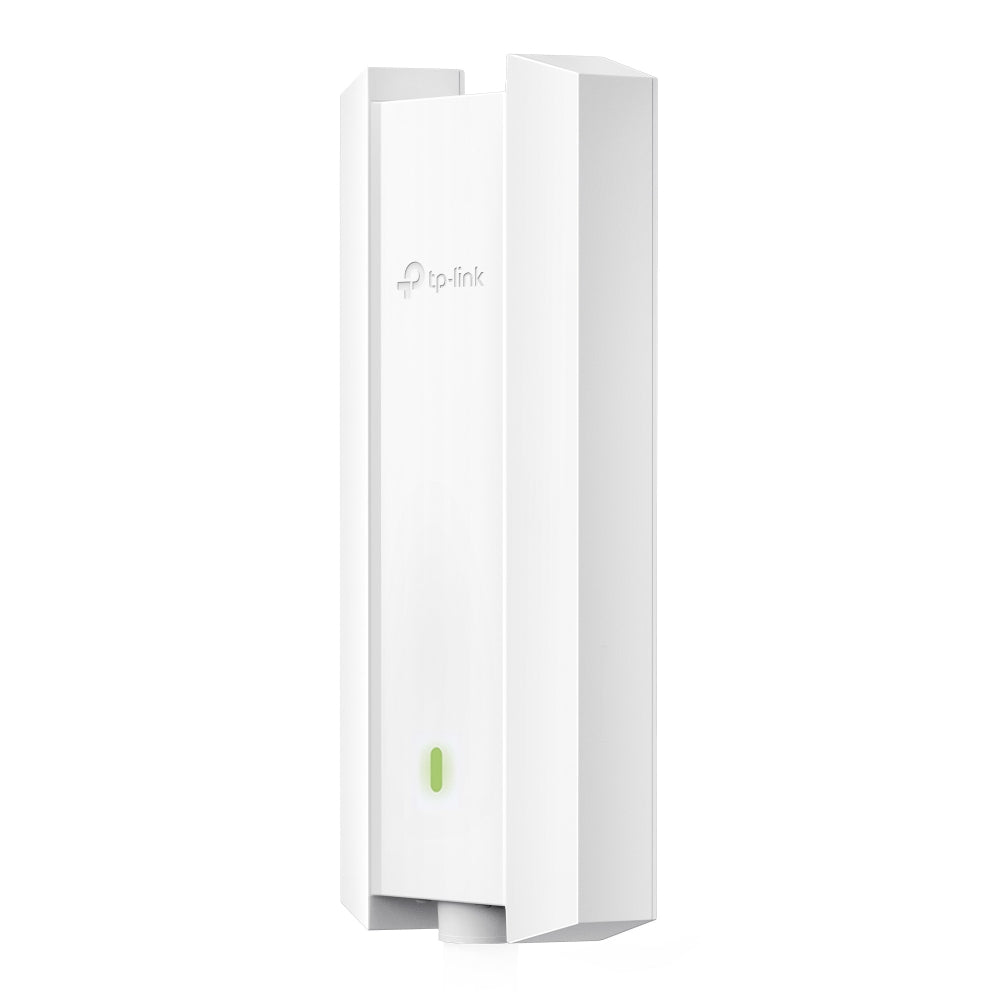

EAP623 Outdoor HD - AX1800 Indoor/Outdoor Wi‑Fi 6 Access Point
- Regular price
- $249.00
- Sale price
- $249.00
- Regular price
-
Couldn't load pickup availability
