About

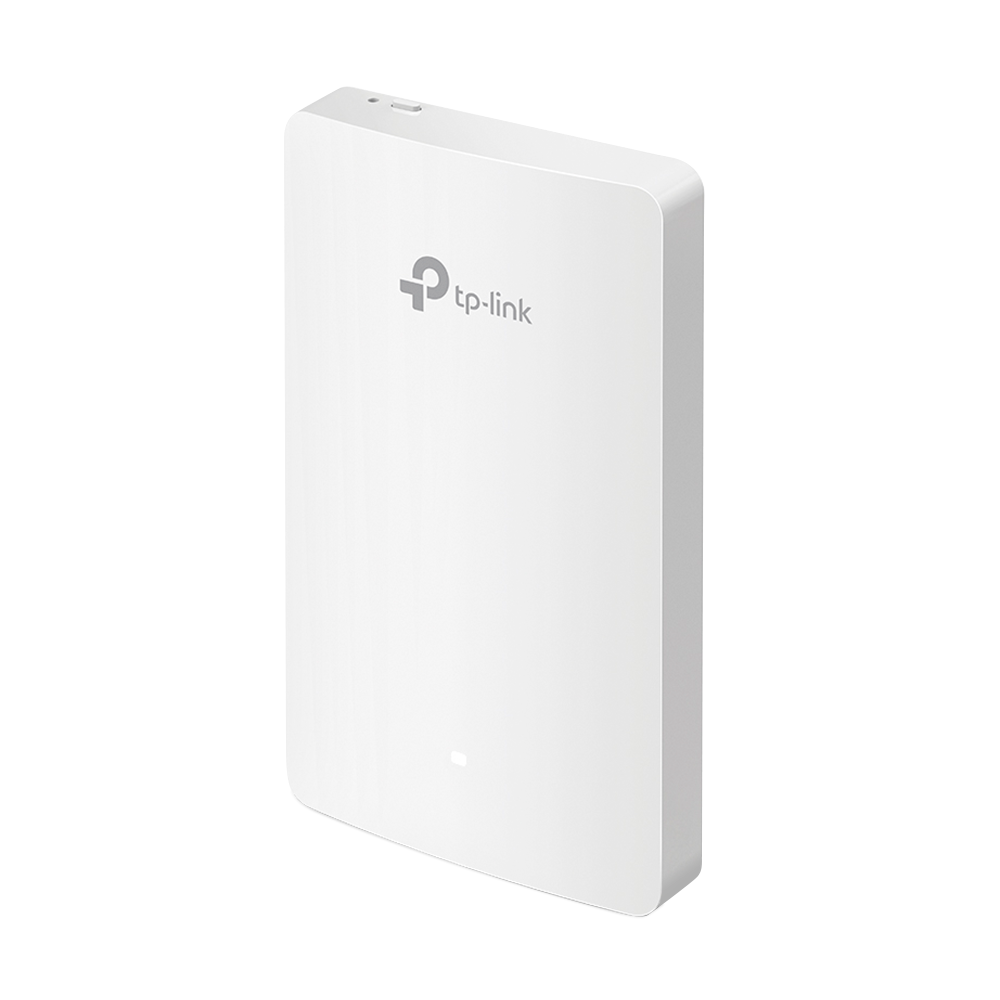

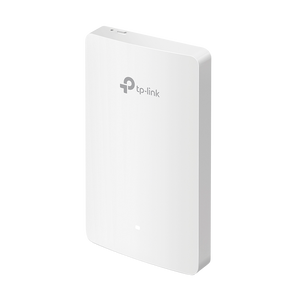

This innovative wall-plate AP delivers fast and reliable Wi‑Fi 6 connectivity—574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz for a combined AX1800 rate. It’s built for high-density indoor environments like hotel rooms, offices, and meeting spaces. Featuring four Gigabit Ethernet ports (one uplink, three downlinks with PoE pass-through), it also integrates seamlessly into the Omada SDN platform for centralized management. The device blends right into standard wall junction boxes (EU, US, or 86 mm), simplifying installation without sacrificing coverage or performance.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
| Maximum Data Rate | 5 GHz: 1201 Mbps; 2.4 GHz: 574 Mbps (AX1800 total) |

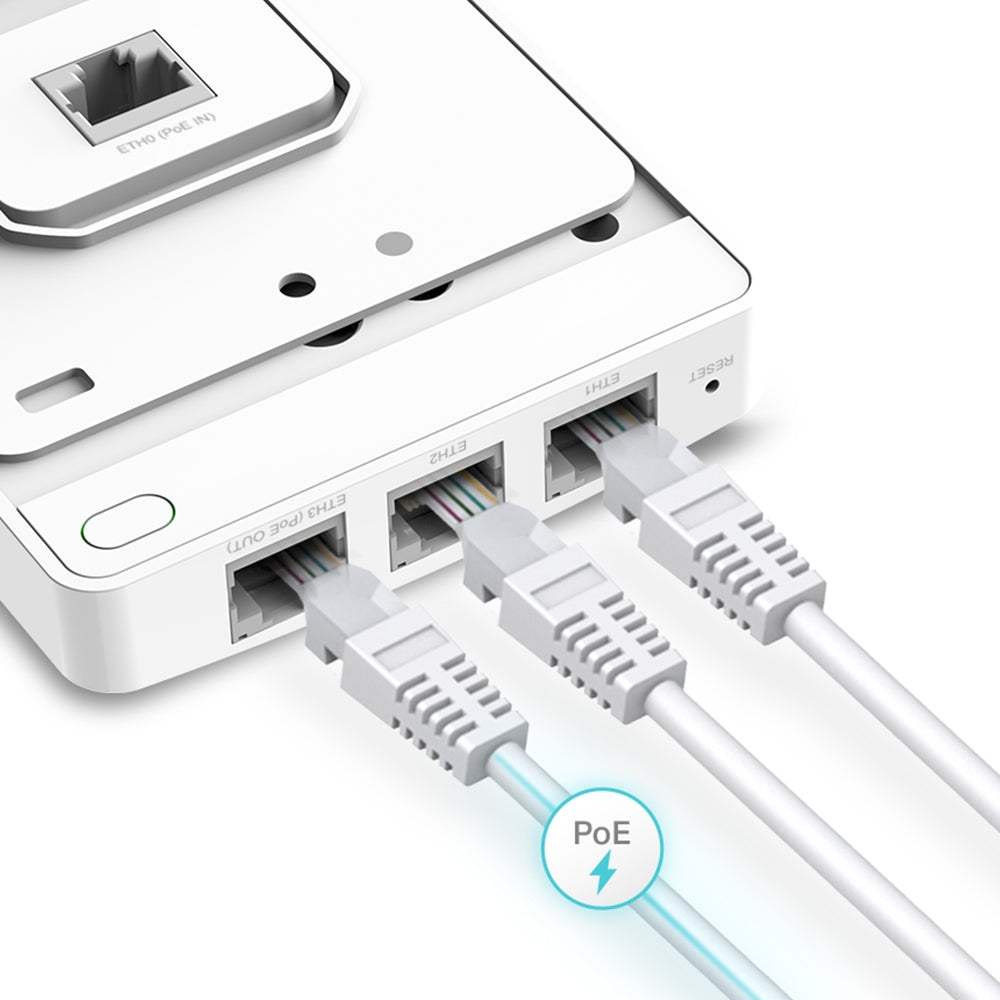

| Ethernet Ports | 1× Gigabit Ethernet uplink; 3× Gigabit Ethernet downlinks (one with PoE pass-through) |
| PoE Pass‑Through | Supported (requires 802.3at input; up to ~13 W output) |
| Power Supply | 802.3af/at PoE |
| Power Consumption | EU: ~10 W (PoE, pass-through off); US: ~11.5 W |
| Antennas | 2 Dual‑Band internal antennas (2.4 GHz: 2× 3 dBi; 5 GHz: 2× 4 dBi) |

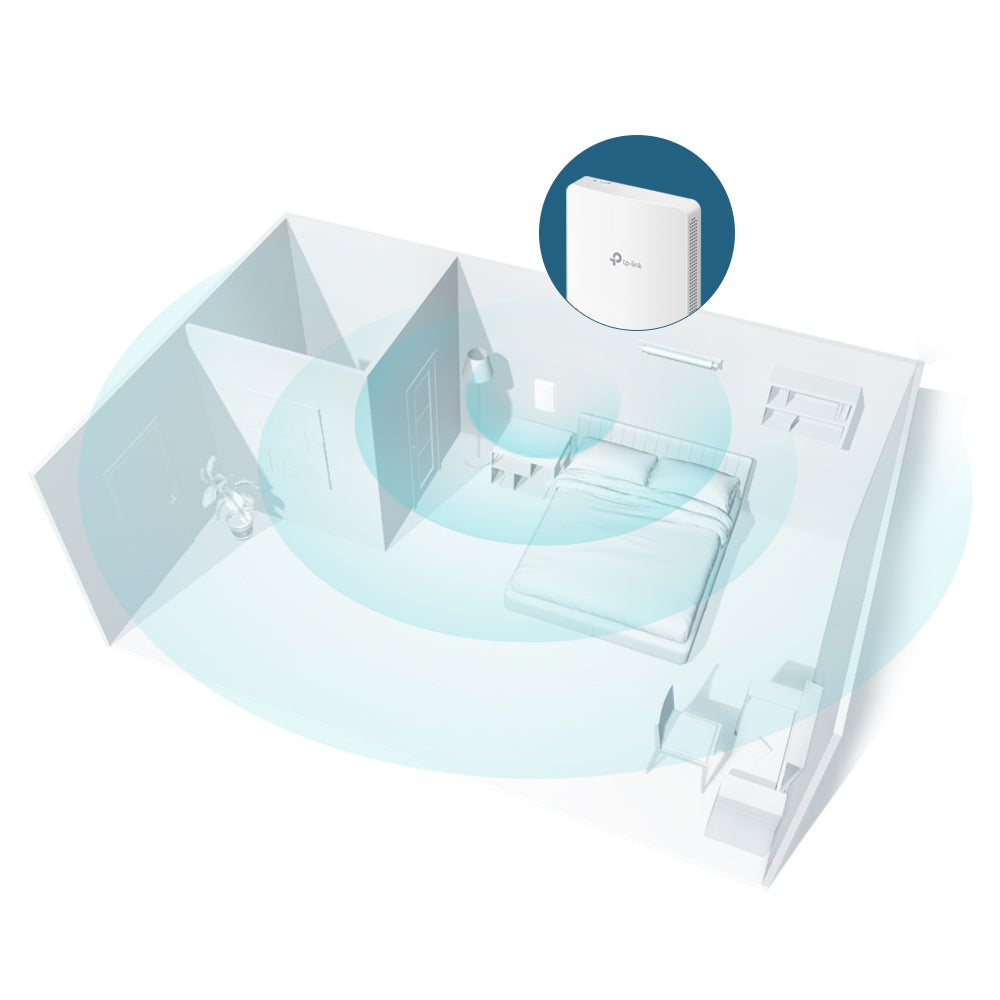

| Coverage Area | Approximately 50 m² (600 ft²) |
| Concurrent Clients | Supports 120+ devices |
| Wireless Features | 16 SSIDs (8 per band), seamless roaming, band steering, airtime fairness, beamforming, MU‑MIMO, rate limiting, load balancing, QoS (WMM), transmit power control, auto channel assignment, wireless scheduling, and statistics |
| Wireless Security | Captive portal, access control, client isolation, MAC filtering, VLAN, rogue AP detection, 802.1X, WPA1/2/3 (Personal & Enterprise) |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz); FCC: < 21 dBm both bands |
| Mounting | Wall‑plate design, fits 86 mm, EU, and US junction boxes; includes mounting kit |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Management | Omada App; centralized via hardware/software/cloud controllers (OC200/OC300); offers SNMP, syslog, SSH, web UI, email alerts, LED control, multi-site, management VLAN, zero‑touch provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access Point unit, mounting kit, installation guide |
| Operating Temp | 0 to 40 °C |
| Storage Temp | ‑40 to 70 °C |
| Operating Humidity | 10–90% RH (non‑condensing) |
| Storage Humidity | 5–90% RH (non‑condensing) |
This innovative wall-plate AP delivers fast and reliable Wi‑Fi 6 connectivity—574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz for a combined AX1800 rate. It’s built for high-density indoor environments like hotel rooms, offices, and meeting spaces. Featuring four Gigabit Ethernet ports (one uplink, three downlinks with PoE pass-through), it also integrates seamlessly into the Omada SDN platform for centralized management. The device blends right into standard wall junction boxes (EU, US, or 86 mm), simplifying installation without sacrificing coverage or performance.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), dual‑band |
| Maximum Data Rate | 5 GHz: 1201 Mbps; 2.4 GHz: 574 Mbps (AX1800 total) |
| Ethernet Ports | 1× Gigabit Ethernet uplink; 3× Gigabit Ethernet downlinks (one with PoE pass-through) |
| PoE Pass‑Through | Supported (requires 802.3at input; up to ~13 W output) |
| Power Supply | 802.3af/at PoE |
| Power Consumption | EU: ~10 W (PoE, pass-through off); US: ~11.5 W |
| Antennas | 2 Dual‑Band internal antennas (2.4 GHz: 2× 3 dBi; 5 GHz: 2× 4 dBi) |
| Coverage Area | Approximately 50 m² (600 ft²) |
| Concurrent Clients | Supports 120+ devices |
| Wireless Features | 16 SSIDs (8 per band), seamless roaming, band steering, airtime fairness, beamforming, MU‑MIMO, rate limiting, load balancing, QoS (WMM), transmit power control, auto channel assignment, wireless scheduling, and statistics |
| Wireless Security | Captive portal, access control, client isolation, MAC filtering, VLAN, rogue AP detection, 802.1X, WPA1/2/3 (Personal & Enterprise) |
| Transmit Power | CE: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz); FCC: < 21 dBm both bands |
| Mounting | Wall‑plate design, fits 86 mm, EU, and US junction boxes; includes mounting kit |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Management | Omada App; centralized via hardware/software/cloud controllers (OC200/OC300); offers SNMP, syslog, SSH, web UI, email alerts, LED control, multi-site, management VLAN, zero‑touch provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access Point unit, mounting kit, installation guide |
| Operating Temp | 0 to 40 °C |
| Storage Temp | ‑40 to 70 °C |
| Operating Humidity | 10–90% RH (non‑condensing) |
| Storage Humidity | 5–90% RH (non‑condensing) |
