About
Learn what makes this product unique and why it’s right for you.

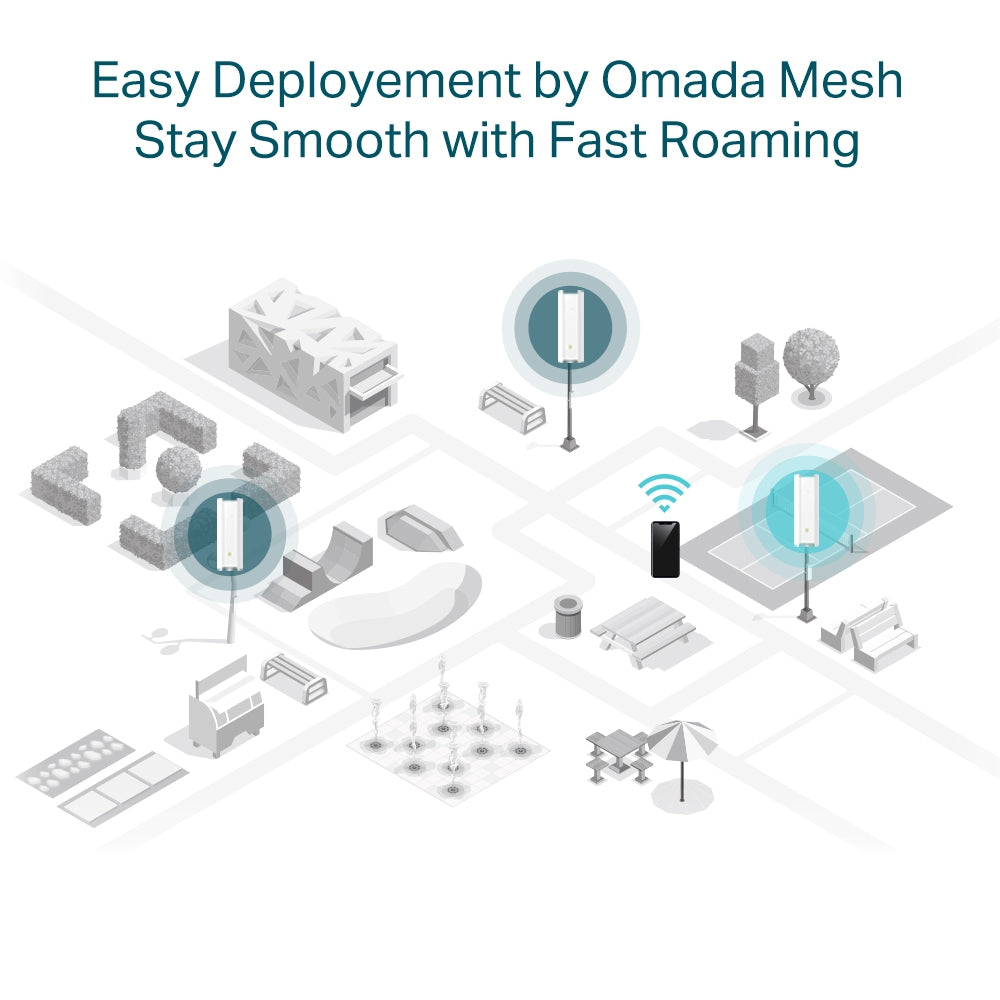

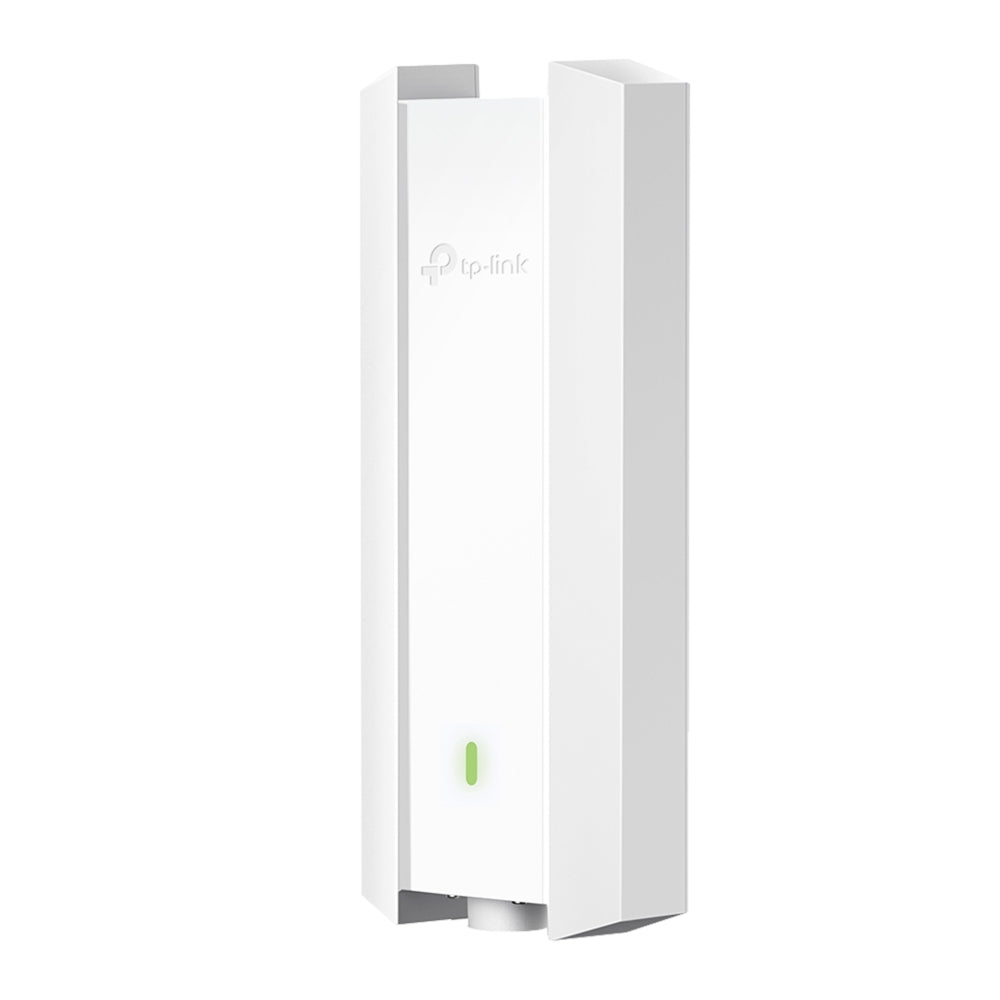

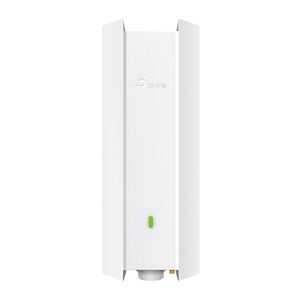

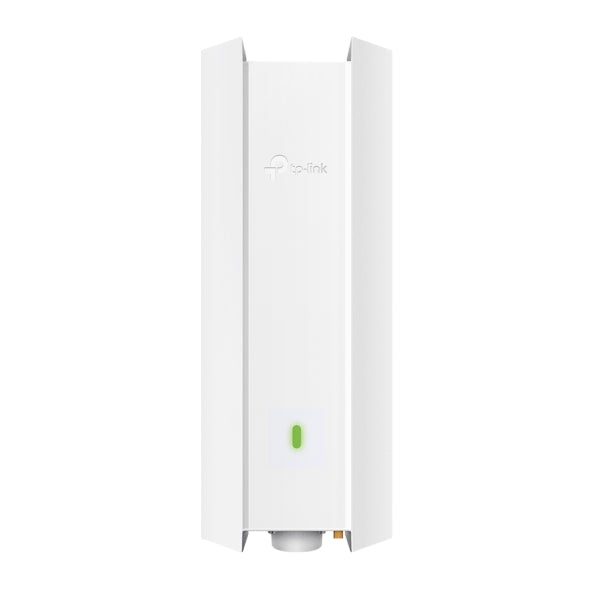

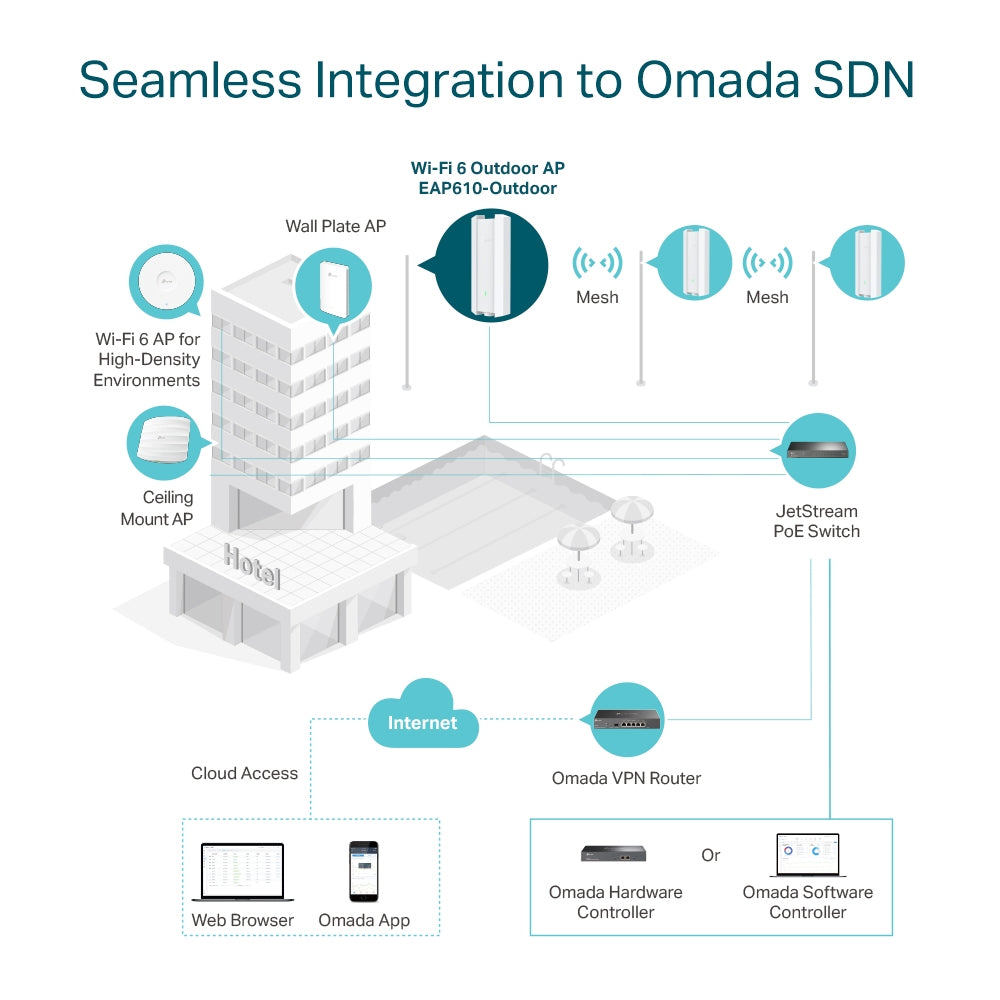

The EAP610‑Outdoor delivers high-speed Wi‑Fi 6 performance—up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—for a combined AX1800 rate. Built for demanding environments, it features a rugged IP67‑rated enclosure, enhanced coverage via high-power antennas, and efficiencies through OFDMA and MU‑MIMO. It supports 250+ concurrent clients, Omada Mesh, seamless roaming, and integrates with Omada SDN for centralized cloud management. Convenient deployment is enabled via dual PoE options (802.3at or passive).
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), Dual‑Band (2.4 GHz & 5 GHz) :contentReference[oaicite:0]{index=0} |
| Maximum Data Rate | Up to ~1775 Mbps (1201 Mbps at 5 GHz + 574 Mbps at 2.4 GHz) :contentReference[oaicite:1]{index=1} |

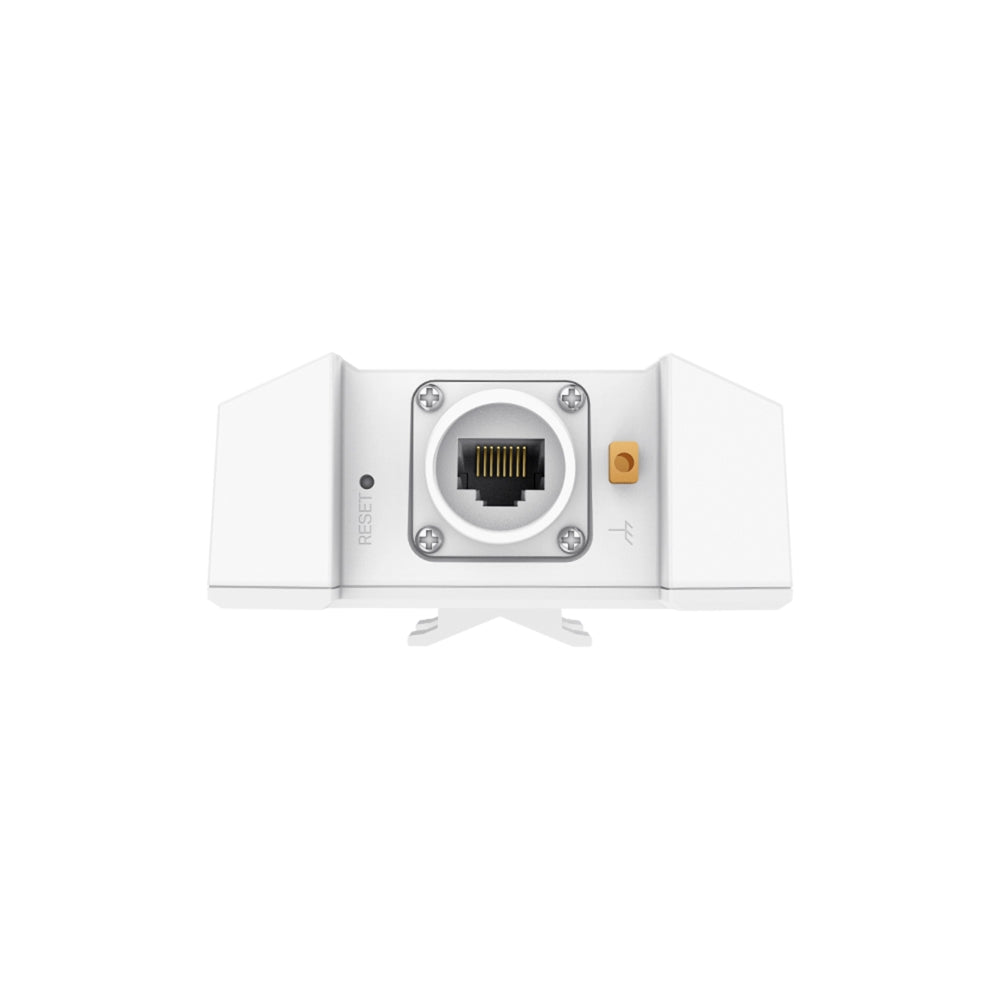

| Ethernet Interface | 1× Gigabit Ethernet (RJ‑45) port; supports 802.3at PoE and 48 V Passive PoE (adapter included) :contentReference[oaicite:2]{index=2} |
| Power Consumption | EU: ~12.5 W; US: ~14.7 W via PoE or passive PoE :contentReference[oaicite:3]{index=3} |
| Antenna | 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi (professional antennas) :contentReference[oaicite:4]{index=4} |
| Weatherproof Enclosure | IP67 rated (dust‑proof, water‑resistant) :contentReference[oaicite:5]{index=5} |

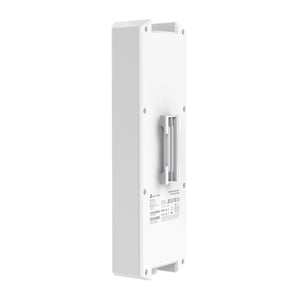

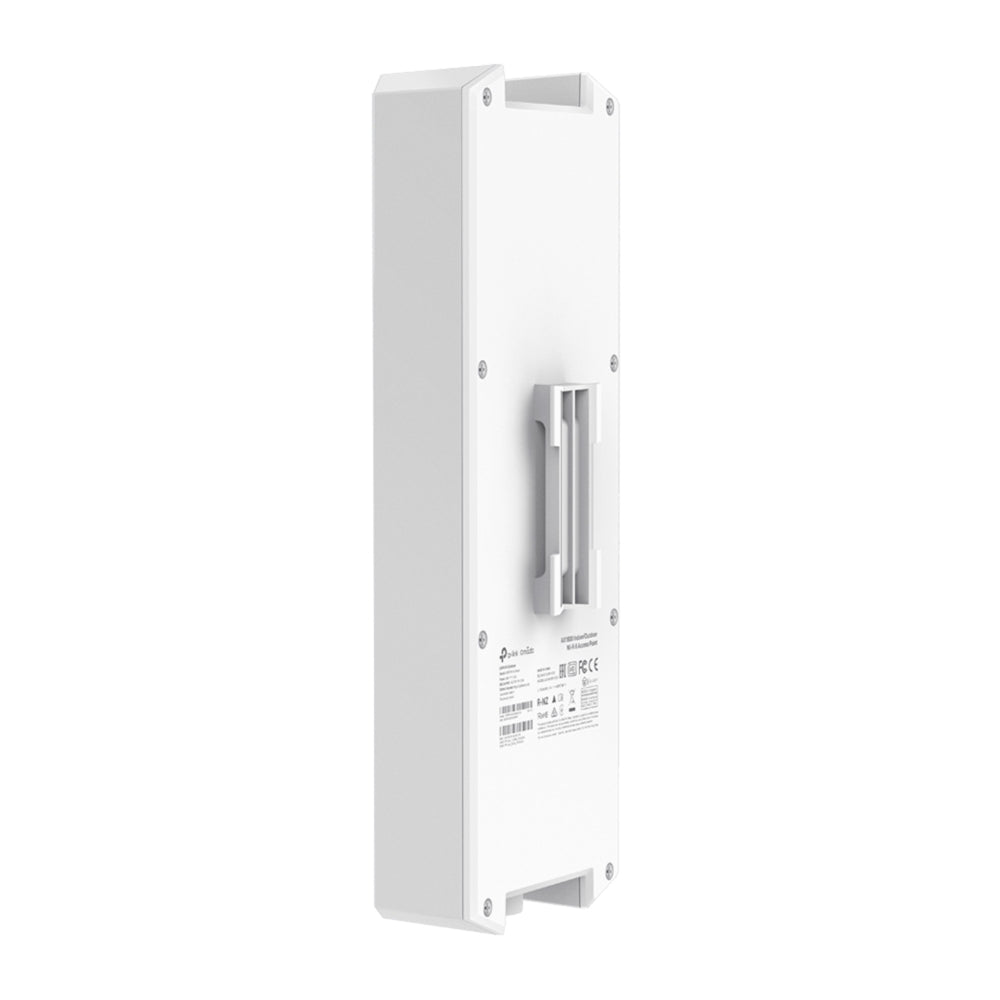

| Mounting Options | Pole or wall mount; includes mounting kits :contentReference[oaicite:6]{index=6} |
| Concurrent Clients | Supports 250+ clients :contentReference[oaicite:7]{index=7} |
| Wireless Features | 1024‑QAM; longer OFDM symbols; OFDMA; up to 16 SSIDs (8 per band); MU‑MIMO; Omada Mesh; seamless roaming; band steering; load balancing; airtime fairness; beamforming; rate limiting; automatic channel assignment; scheduling; wireless stats :contentReference[oaicite:8]{index=8} |
| Wireless Security | Captive portal; access control; MAC filtering; client isolation; SSID‑to‑VLAN mapping; rogue AP detection; 802.1X; WEP; WPA‑Personal/Enterprise; WPA2‑Personal/Enterprise; WPA3‑Personal/Enterprise :contentReference[oaicite:9]{index=9} |
| Transmit Power | CE: < 20 dBm (2.4 GHz); < 30 dBm (5 GHz EIRP); FCC: < 25 dBm both bands :contentReference[oaicite:10]{index=10} |
| Management | Omada App; centralized via hardware/software/cloud controllers (OC200/OC300/Software); cloud access; email alerts; SNMP v1/v2c; syslog; SSH; web GUI; multi‑site; management VLAN; zero‑touch provisioning :contentReference[oaicite:11]{index=11} |
| Certifications | CE, FCC, RoHS :contentReference[oaicite:12]{index=12} |
| Package Contents | Access Point, Passive PoE Adapter, Power Cord, Mounting Kit, Waterproof Kit, Installation Guide :contentReference[oaicite:13]{index=13} |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% RH non‑condensing :contentReference[oaicite:14]{index=14} |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% RH non‑condensing :contentReference[oaicite:15]{index=15} |
Learn what makes this product unique and why it’s right for you.
The EAP610‑Outdoor delivers high-speed Wi‑Fi 6 performance—up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz—for a combined AX1800 rate. Built for demanding environments, it features a rugged IP67‑rated enclosure, enhanced coverage via high-power antennas, and efficiencies through OFDMA and MU‑MIMO. It supports 250+ concurrent clients, Omada Mesh, seamless roaming, and integrates with Omada SDN for centralized cloud management. Convenient deployment is enabled via dual PoE options (802.3at or passive).
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11ax (Wi‑Fi 6), Dual‑Band (2.4 GHz & 5 GHz) :contentReference[oaicite:0]{index=0} |
| Maximum Data Rate | Up to ~1775 Mbps (1201 Mbps at 5 GHz + 574 Mbps at 2.4 GHz) :contentReference[oaicite:1]{index=1} |
| Ethernet Interface | 1× Gigabit Ethernet (RJ‑45) port; supports 802.3at PoE and 48 V Passive PoE (adapter included) :contentReference[oaicite:2]{index=2} |
| Power Consumption | EU: ~12.5 W; US: ~14.7 W via PoE or passive PoE :contentReference[oaicite:3]{index=3} |
| Antenna | 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi (professional antennas) :contentReference[oaicite:4]{index=4} |
| Weatherproof Enclosure | IP67 rated (dust‑proof, water‑resistant) :contentReference[oaicite:5]{index=5} |
| Mounting Options | Pole or wall mount; includes mounting kits :contentReference[oaicite:6]{index=6} |
| Concurrent Clients | Supports 250+ clients :contentReference[oaicite:7]{index=7} |
| Wireless Features | 1024‑QAM; longer OFDM symbols; OFDMA; up to 16 SSIDs (8 per band); MU‑MIMO; Omada Mesh; seamless roaming; band steering; load balancing; airtime fairness; beamforming; rate limiting; automatic channel assignment; scheduling; wireless stats :contentReference[oaicite:8]{index=8} |
| Wireless Security | Captive portal; access control; MAC filtering; client isolation; SSID‑to‑VLAN mapping; rogue AP detection; 802.1X; WEP; WPA‑Personal/Enterprise; WPA2‑Personal/Enterprise; WPA3‑Personal/Enterprise :contentReference[oaicite:9]{index=9} |
| Transmit Power | CE: < 20 dBm (2.4 GHz); < 30 dBm (5 GHz EIRP); FCC: < 25 dBm both bands :contentReference[oaicite:10]{index=10} |
| Management | Omada App; centralized via hardware/software/cloud controllers (OC200/OC300/Software); cloud access; email alerts; SNMP v1/v2c; syslog; SSH; web GUI; multi‑site; management VLAN; zero‑touch provisioning :contentReference[oaicite:11]{index=11} |
| Certifications | CE, FCC, RoHS :contentReference[oaicite:12]{index=12} |
| Package Contents | Access Point, Passive PoE Adapter, Power Cord, Mounting Kit, Waterproof Kit, Installation Guide :contentReference[oaicite:13]{index=13} |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% RH non‑condensing :contentReference[oaicite:14]{index=14} |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% RH non‑condensing :contentReference[oaicite:15]{index=15} |
EAP610 Outdoor - AX1800 Indoor/Outdoor Dual‑Band Wi‑Fi 6 Access Point
- Regular price
- $229.00
- Sale price
- $229.00
