About

Learn what makes this product unique and why it’s right for you.

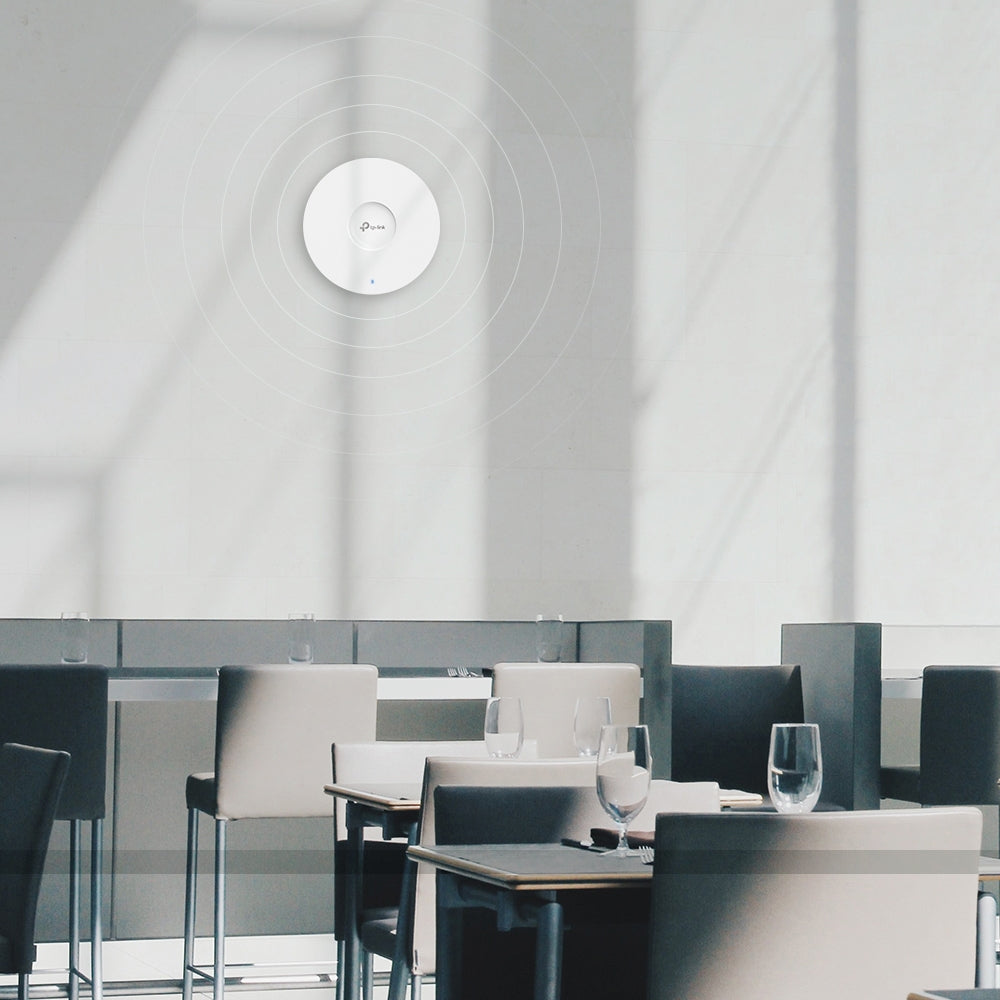

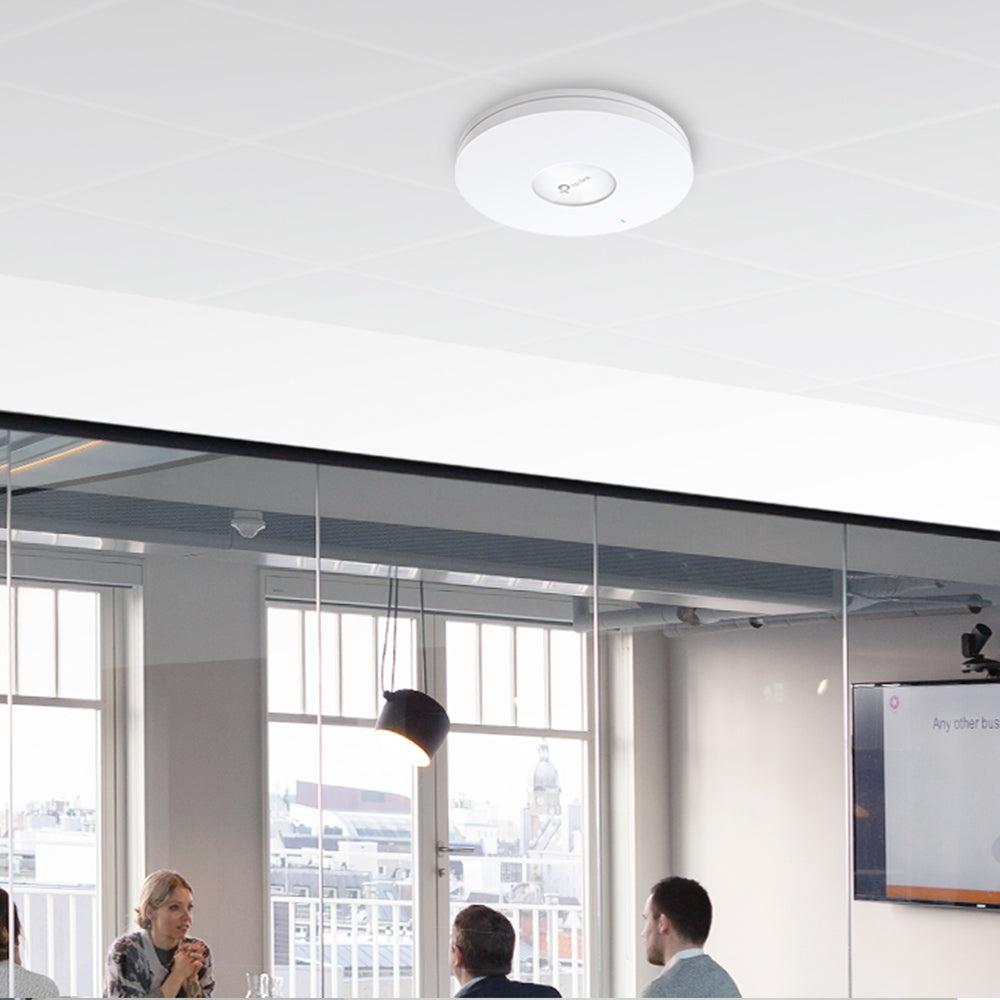

The EAP610 delivers fast, high-efficiency Wi‑Fi 6 performance, with speeds up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, for a total AX1800 throughput. It’s designed for seamless coverage in high-density environments such as offices, classrooms, and hospitality venues. The sleek, ultra-slim form factor (160 mm in diameter, 33.6 mm thick) allows discreet ceiling or wall installation, powered flexibly via PoE+, passive PoE, or included DC adapter. It supports advanced features like OFDMA, MU‑MIMO, seamless roaming, Omada Mesh, and centralized management via the Omada SDN platform.





SPECIFICATION

Feature Description
Wireless Standard IEEE 802.11ax (Wi‑Fi 6), dual‑band (2.4 GHz & 5 GHz) :contentReference[oaicite:0]{index=0}
Maximum Data Rate 2.4 GHz: up to 574 Mbps; 5 GHz: up to 1201 Mbps — AX1800 total :contentReference[oaicite:1]{index=1}

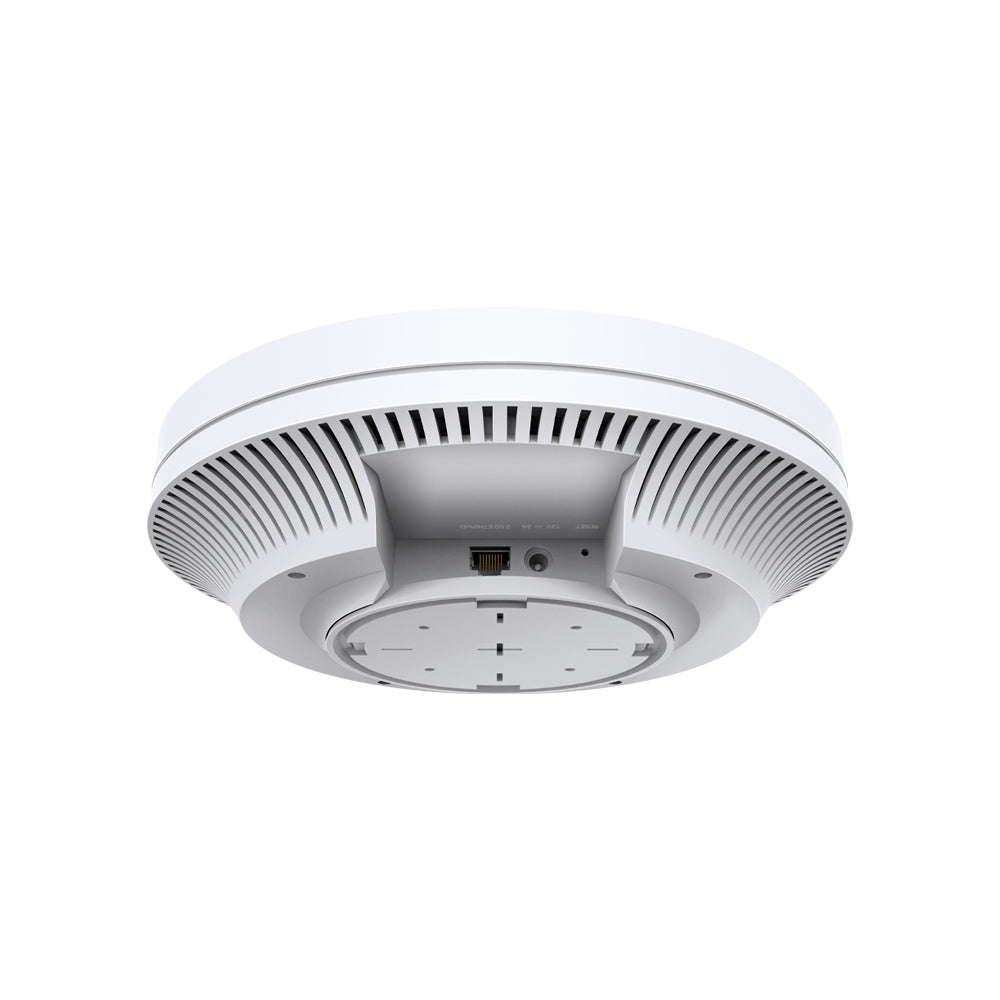

Ethernet Interface 1× Gigabit Ethernet port (supports 802.3at PoE+, passive PoE, and 12 V DC adapter) :contentReference[oaicite:2]{index=2}
Power Supply 802.3at PoE+, Passive PoE, or 12 V DC (adapter included) :contentReference[oaicite:3]{index=3}
Power Consumption EU: ~12.8 W (PoE) / ~10.8 W (DC); US: ~13.9 W (PoE) / ~11.8 W (DC) :contentReference[oaicite:4]{index=4}
Dimensions 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in) — ultra-slim design :contentReference[oaicite:5]{index=5}
Antennas Internal omni-directional; 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi :contentReference[oaicite:6]{index=6}
Mounting Ceiling, wall, or junction box (mounting kits included) :contentReference[oaicite:7]{index=7}
Coverage Area Approximately 115 m² (~1,250 ft²) :contentReference[oaicite:8]{index=8}
Concurrent Clients Supports 250+ clients :contentReference[oaicite:9]{index=9}

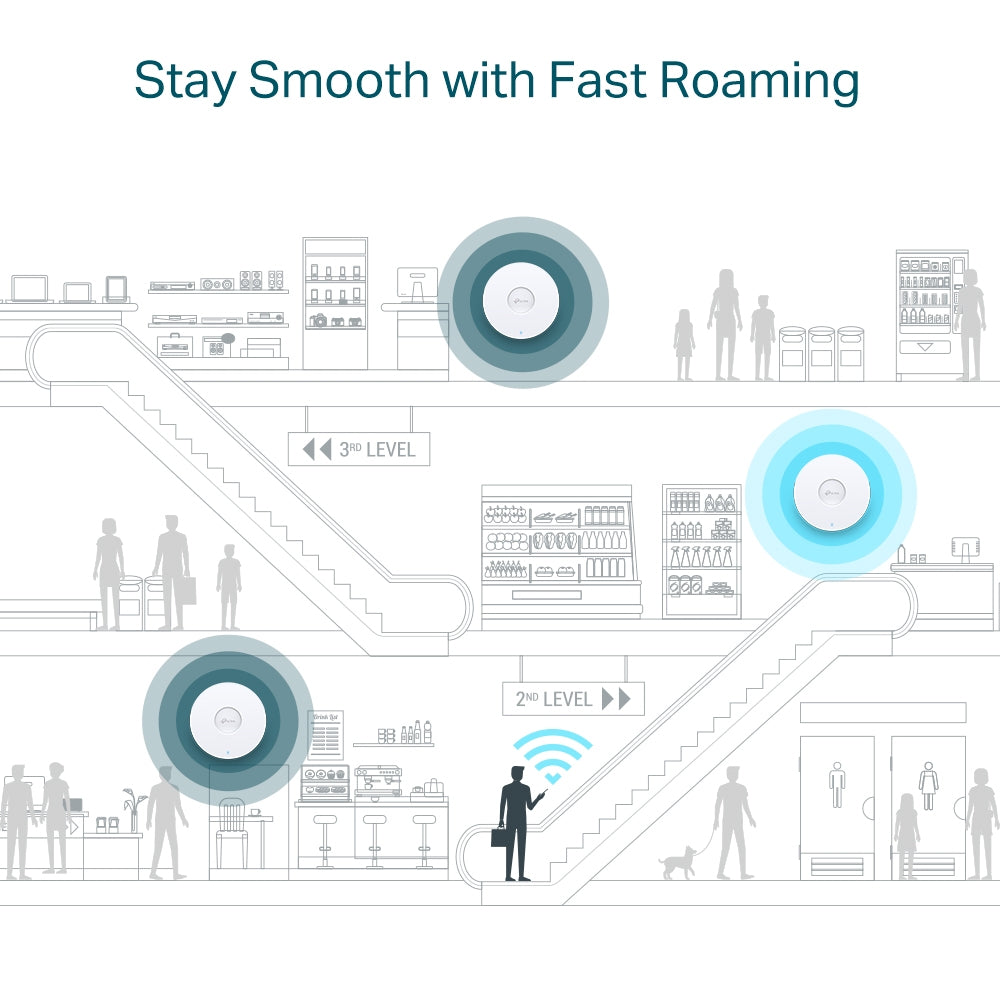

Wireless Features 1024‑QAM, longer OFDM symbols, OFDMA, MU‑MIMO, multiple SSIDs (up to 16), seamless roaming, Omada Mesh, band steering, airtime fairness, load balancing, beamforming, rate limit, auto channel assignment, wireless schedule & stats :contentReference[oaicite:10]{index=10}
Wireless Security Captive portal (SMS/Facebook/Voucher), access control, MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection, 802.1X, WPA/WPA2/WPA3 (Personal & Enterprise) :contentReference[oaicite:11]{index=11}
Transmit Power CE: < 20 dBm (2.4 GHz), < 23–25 dBm (5 GHz); FCC: < 25 dBm (both bands) :contentReference[oaicite:12]{index=12}

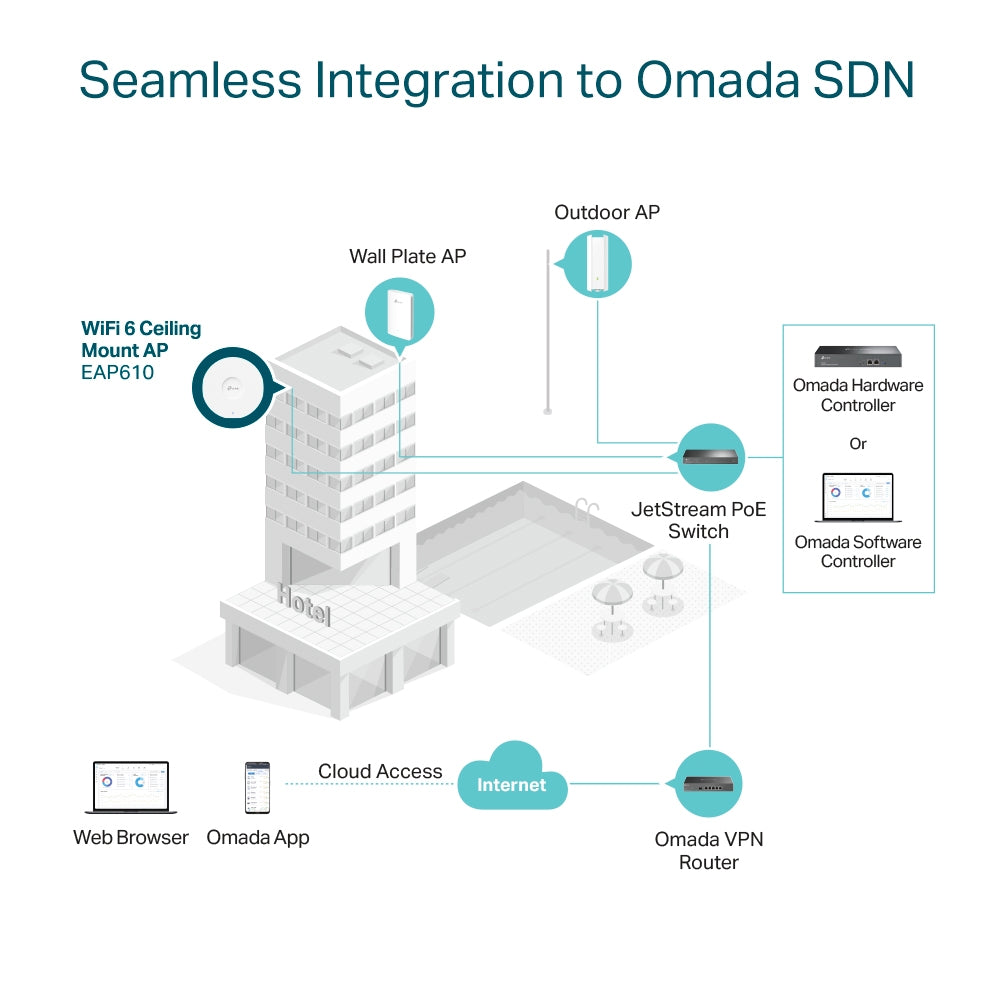

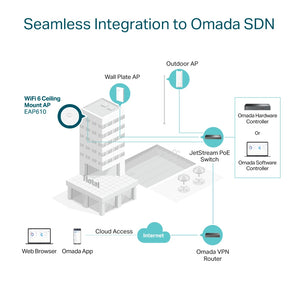

Management Omada App; centralized via cloud, hardware (OC200/OC300), or software controller; SNMP v1/v2c/v3, syslog, SSH, web UI, email alerts, LED control, management VLAN, zero‑touch provisioning :contentReference[oaicite:13]{index=13}
Certifications CE, FCC, RoHS :contentReference[oaicite:14]{index=14}
Package Contents EAP610 unit, power adapter, mounting kits, installation guide :contentReference[oaicite:15]{index=15}
Environment Operating Temp: 0–40 °C; Storage Temp: –40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH :contentReference[oaicite:16]{index=16}
Learn what makes this product unique and why it’s right for you.

The EAP610 delivers fast, high-efficiency Wi‑Fi 6 performance, with speeds up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, for a total AX1800 throughput. It’s designed for seamless coverage in high-density environments such as offices, classrooms, and hospitality venues. The sleek, ultra-slim form factor (160 mm in diameter, 33.6 mm thick) allows discreet ceiling or wall installation, powered flexibly via PoE+, passive PoE, or included DC adapter. It supports advanced features like OFDMA, MU‑MIMO, seamless roaming, Omada Mesh, and centralized management via the Omada SDN platform.





SPECIFICATION

Feature Description
Wireless Standard IEEE 802.11ax (Wi‑Fi 6), dual‑band (2.4 GHz & 5 GHz) :contentReference[oaicite:0]{index=0}
Maximum Data Rate 2.4 GHz: up to 574 Mbps; 5 GHz: up to 1201 Mbps — AX1800 total :contentReference[oaicite:1]{index=1}
Ethernet Interface 1× Gigabit Ethernet port (supports 802.3at PoE+, passive PoE, and 12 V DC adapter) :contentReference[oaicite:2]{index=2}
Power Supply 802.3at PoE+, Passive PoE, or 12 V DC (adapter included) :contentReference[oaicite:3]{index=3}
Power Consumption EU: ~12.8 W (PoE) / ~10.8 W (DC); US: ~13.9 W (PoE) / ~11.8 W (DC) :contentReference[oaicite:4]{index=4}
Dimensions 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in) — ultra-slim design :contentReference[oaicite:5]{index=5}
Antennas Internal omni-directional; 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi :contentReference[oaicite:6]{index=6}
Mounting Ceiling, wall, or junction box (mounting kits included) :contentReference[oaicite:7]{index=7}
Coverage Area Approximately 115 m² (~1,250 ft²) :contentReference[oaicite:8]{index=8}
Concurrent Clients Supports 250+ clients :contentReference[oaicite:9]{index=9}
Wireless Features 1024‑QAM, longer OFDM symbols, OFDMA, MU‑MIMO, multiple SSIDs (up to 16), seamless roaming, Omada Mesh, band steering, airtime fairness, load balancing, beamforming, rate limit, auto channel assignment, wireless schedule & stats :contentReference[oaicite:10]{index=10}
Wireless Security Captive portal (SMS/Facebook/Voucher), access control, MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection, 802.1X, WPA/WPA2/WPA3 (Personal & Enterprise) :contentReference[oaicite:11]{index=11}
Transmit Power CE: < 20 dBm (2.4 GHz), < 23–25 dBm (5 GHz); FCC: < 25 dBm (both bands) :contentReference[oaicite:12]{index=12}
Management Omada App; centralized via cloud, hardware (OC200/OC300), or software controller; SNMP v1/v2c/v3, syslog, SSH, web UI, email alerts, LED control, management VLAN, zero‑touch provisioning :contentReference[oaicite:13]{index=13}
Certifications CE, FCC, RoHS :contentReference[oaicite:14]{index=14}
Package Contents EAP610 unit, power adapter, mounting kits, installation guide :contentReference[oaicite:15]{index=15}
Environment Operating Temp: 0–40 °C; Storage Temp: –40–70 °C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH :contentReference[oaicite:16]{index=16}

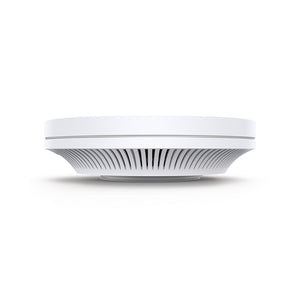

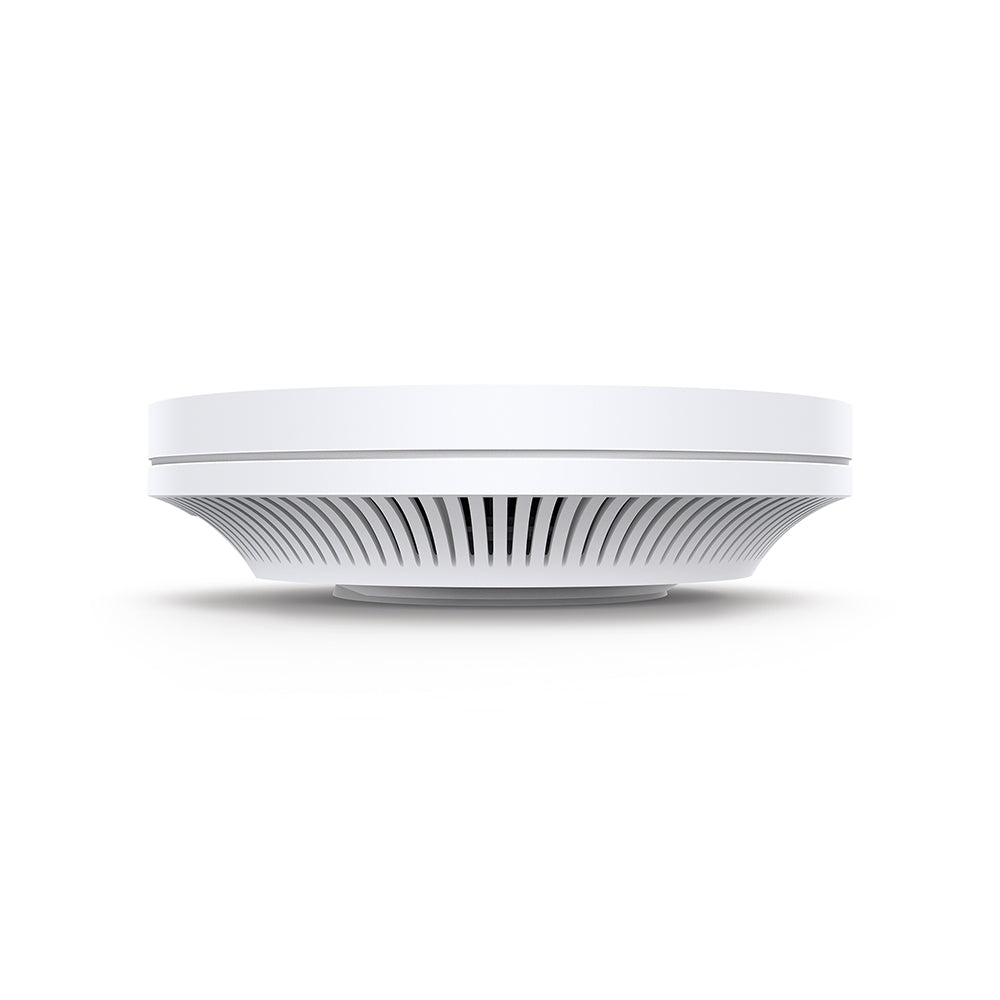

EAP610 - AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point

$159.00
$159.00
