About

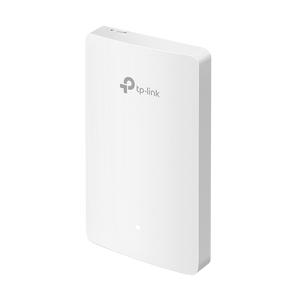

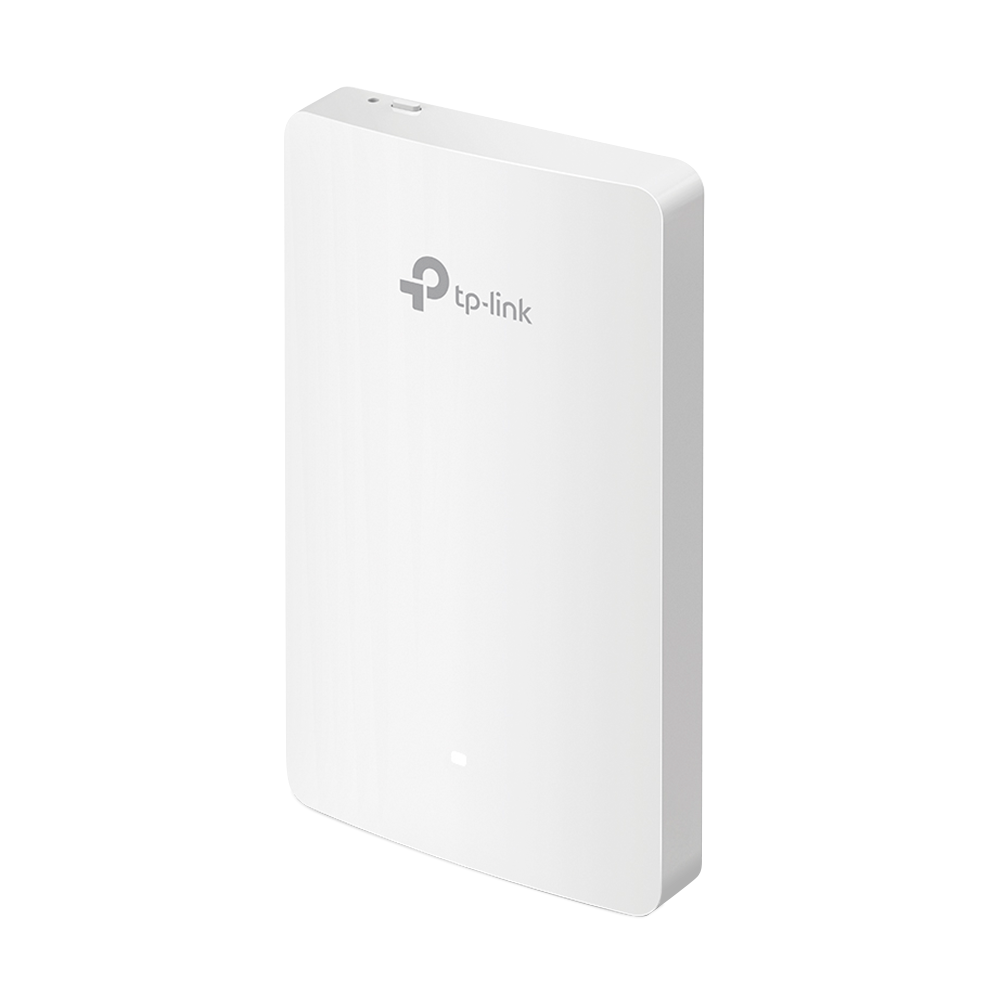

The EAP235‑Wall is a sleek, ultra-thin wall-plate AP that delivers fast dual-band Wi-Fi technology in a discreet form—300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz for a combined AC1200 speed. It's perfectly suited for room-by-room deployment in hotels, dorms, offices, and more. This AP includes four gigabit Ethernet ports (one uplink and three downlinks), with one downlink port supporting PoE pass-through to power other devices. It supports advanced wireless functions like MU‑MIMO, Band Steering, and Beamforming, and integrates seamlessly with the Omada SDN platform for centralized management.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11a/b/g/n/ac (dual‑band) |
| Maximum Data Rate | 5 GHz: up to 867 Mbps; 2.4 GHz: up to 300 Mbps (Total ≈ 1,167 Mbps) |

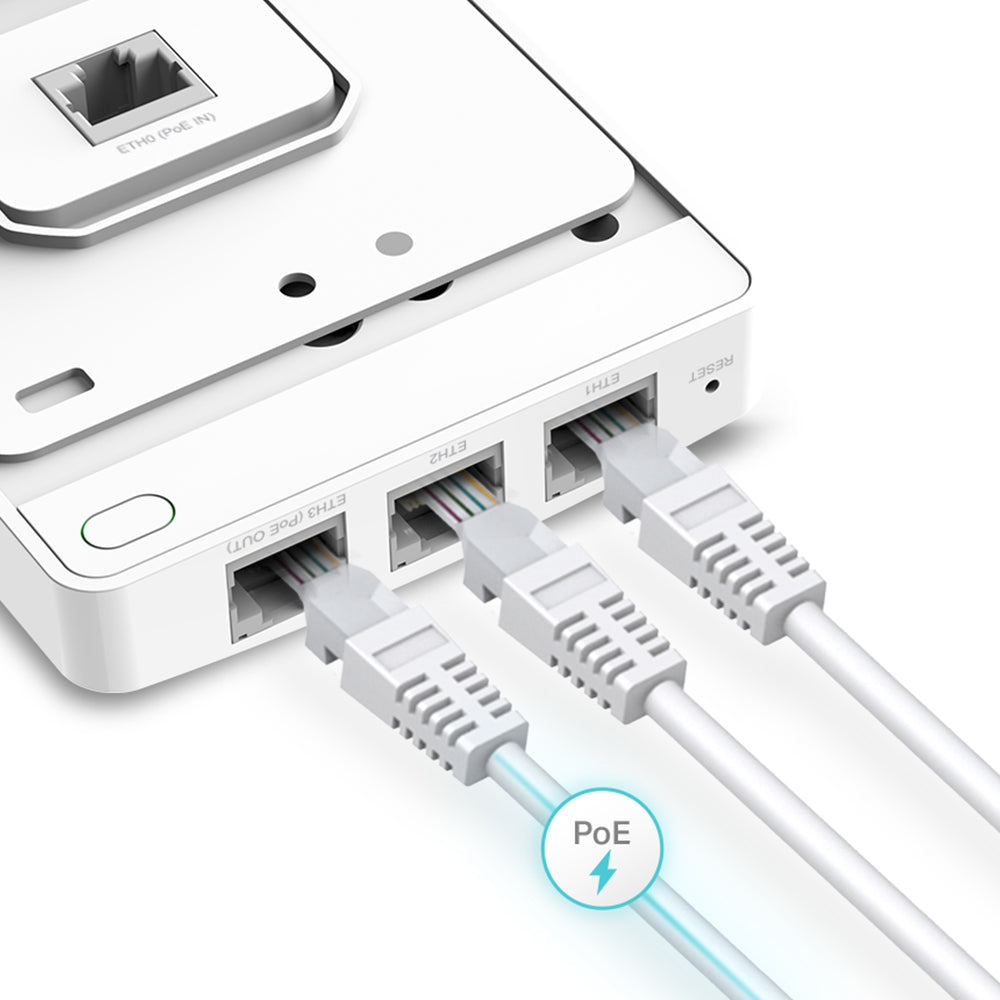

| Ethernet Ports | 1× Gigabit uplink port; 3× Gigabit downlink ports (one supports PoE pass‑through, 13 W max output) |
| Power Supply | 802.3af/at PoE |
| Power Consumption | ~9.8 W (normal); up to ~24.4 W when PoE pass‑through is active |

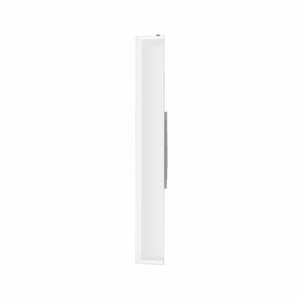

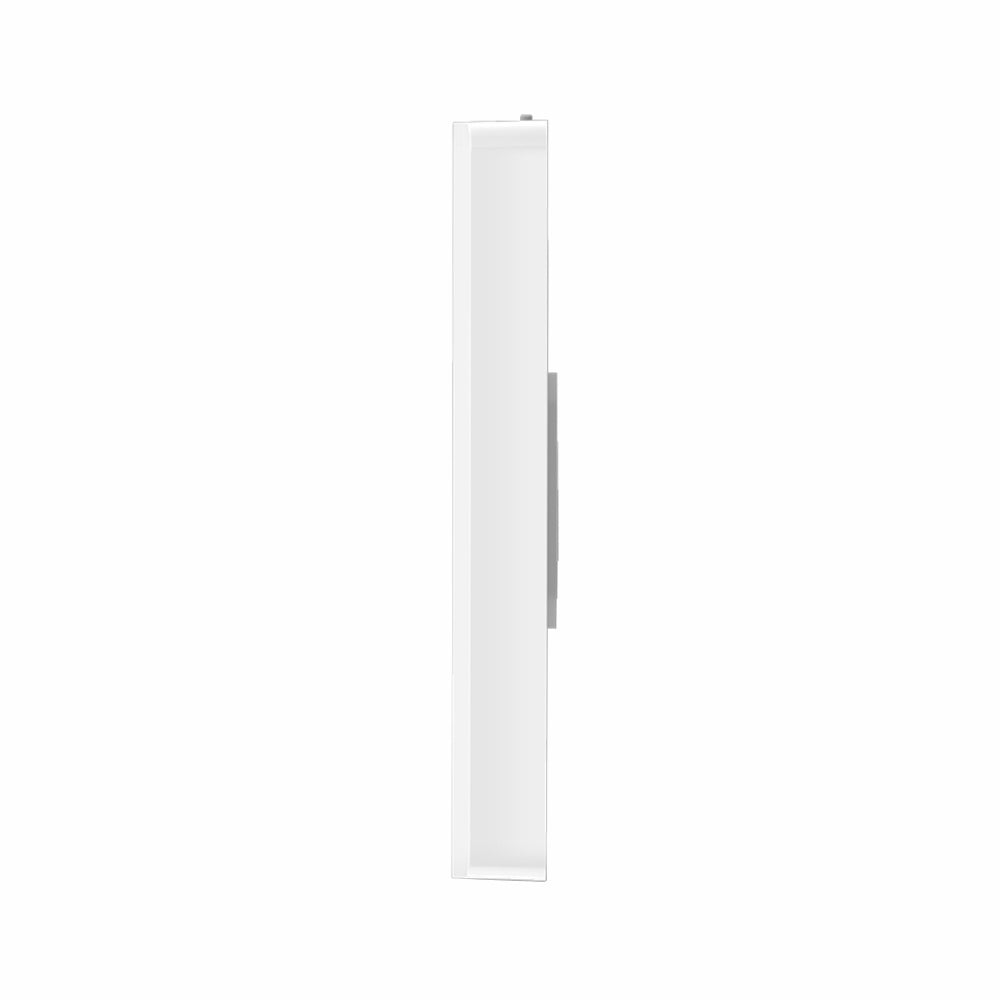

| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antennas | 2 Dual‑Band internal antennas—2.4 GHz: 4 dBi (×2); 5 GHz: 4 dBi (×2) |

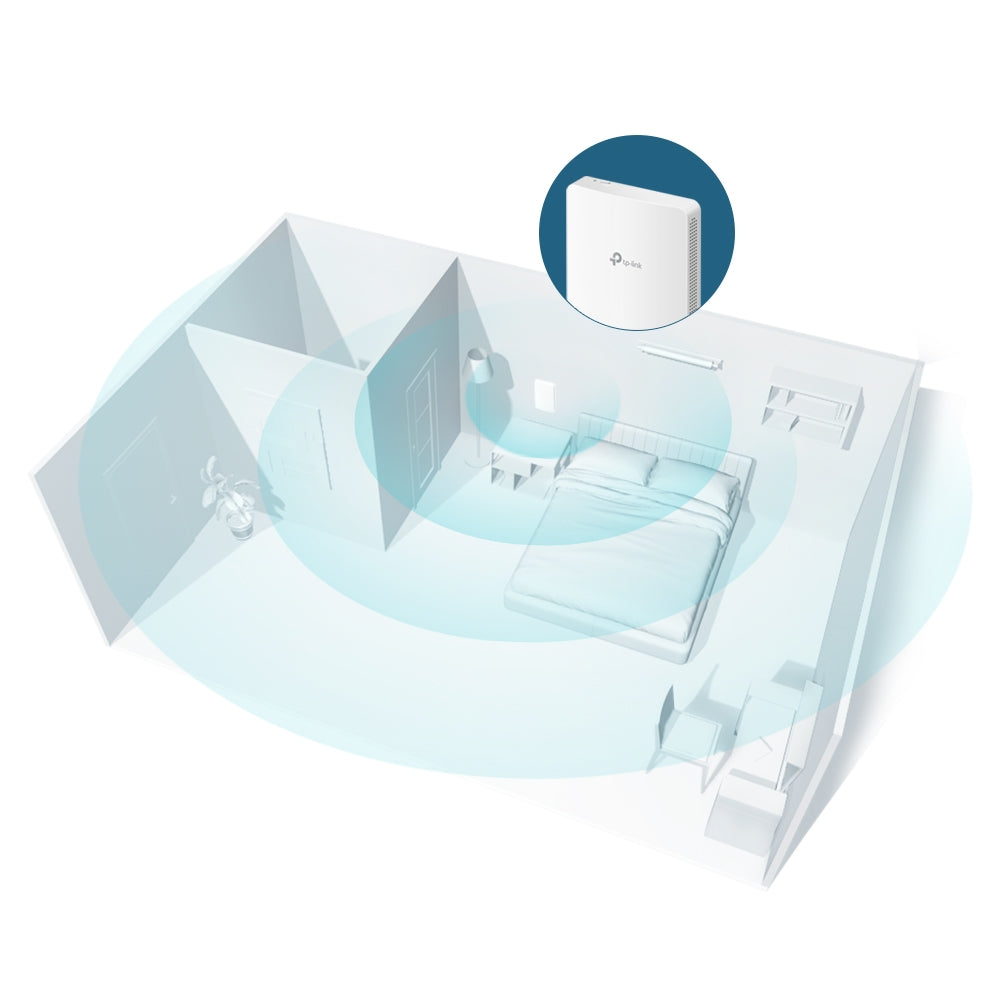

| Coverage Area | Approximately 25 m² (300 ft²) |
| Concurrent Clients | Supports 200+ clients |
| Wireless Features | 16 SSIDs (8 per band), MU‑MIMO, Band Steering, Beamforming, Airtime Fairness, QoS (WMM), Automatic Channel Assignment, Transmit Power Control, Rate Limiting, Scheduled Reboot, Wireless Statistics |
| Security | Captive Portal, MAC Filtering, Client Isolation, SSID‑to‑VLAN, Rogue AP Detection, 802.1X, WEP, WPA/WPA2, VLAN support |
| Transmit Power | CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz); FCC: ≤21 dBm (both bands) |
| Management | Omada App, Omada Cloud/Hardware/Software Controllers, SNMP (v1/v2c), SSH, Web UI, Multi‑site, VLAN, Email Alerts, LED Control, Zero‑Touch Provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access Point unit, mounting screw, installation guide |
| System Requirements | Windows XP–11, Linux |
| Operating Conditions | Temp: 0–40 °C; Humidity: 10–90% RH non‑condensing |
| Storage Conditions | Temp: –40–70 °C; Humidity: 5–90% RH non‑condensing |
The EAP235‑Wall is a sleek, ultra-thin wall-plate AP that delivers fast dual-band Wi-Fi technology in a discreet form—300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz for a combined AC1200 speed. It's perfectly suited for room-by-room deployment in hotels, dorms, offices, and more. This AP includes four gigabit Ethernet ports (one uplink and three downlinks), with one downlink port supporting PoE pass-through to power other devices. It supports advanced wireless functions like MU‑MIMO, Band Steering, and Beamforming, and integrates seamlessly with the Omada SDN platform for centralized management.
