The EAP225‑Outdoor brings robust, dual-band AC1200 performance to outdoor environments, offering up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Built for durability, it features a weatherproof IP65 enclosure and high-power, detachable antennas to ensure extended range—up to 200 m on 2.4 GHz and 300 m on 5 GHz in open environments. With support for MU‑MIMO and Omada Mesh, it delivers efficient multi-user performance, flexible placement, and seamless roaming. PoE flexibility (802.3af/at and passive PoE) supports easy deployment, while Omada SDN integration enables centralized, zero-touch provisioning and cloud-based management.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11a/b/g/n/ac (Wave 2), Dual‑Band |
| Maximum Data Rate | 5 GHz: up to 867 Mbps; 2.4 GHz: up to 300 Mbps (AC1200 total) |

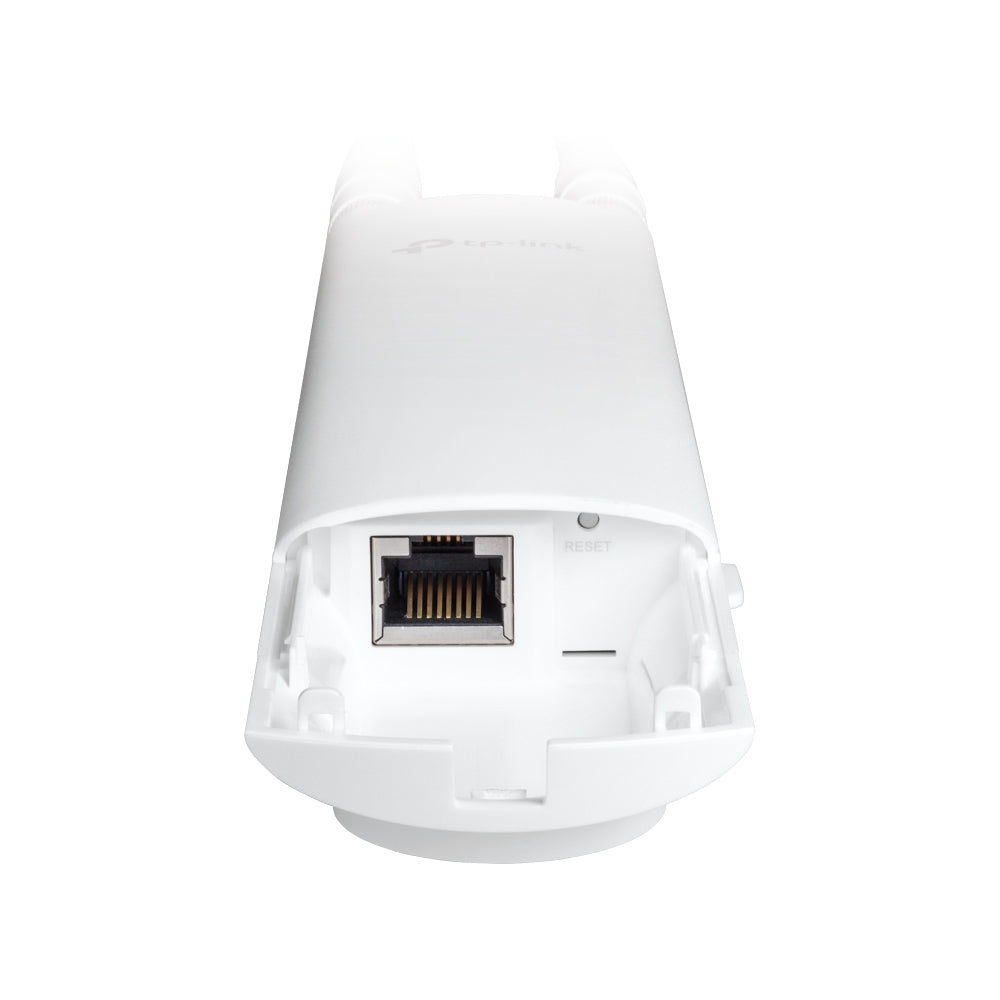

| Gigabit LAN Port | 1× Gigabit Ethernet (RJ‑45); supports 802.3af/at PoE and 24 V passive PoE (adapter included) |
| Power Consumption | Approximately 10.5 W |
| Antenna | Detachable antennas: 2.4 GHz – 2× 3 dBi; 5 GHz – 2× 4 dBi |
| Weatherproof Rating | IP65 (resistant to dust and water) |

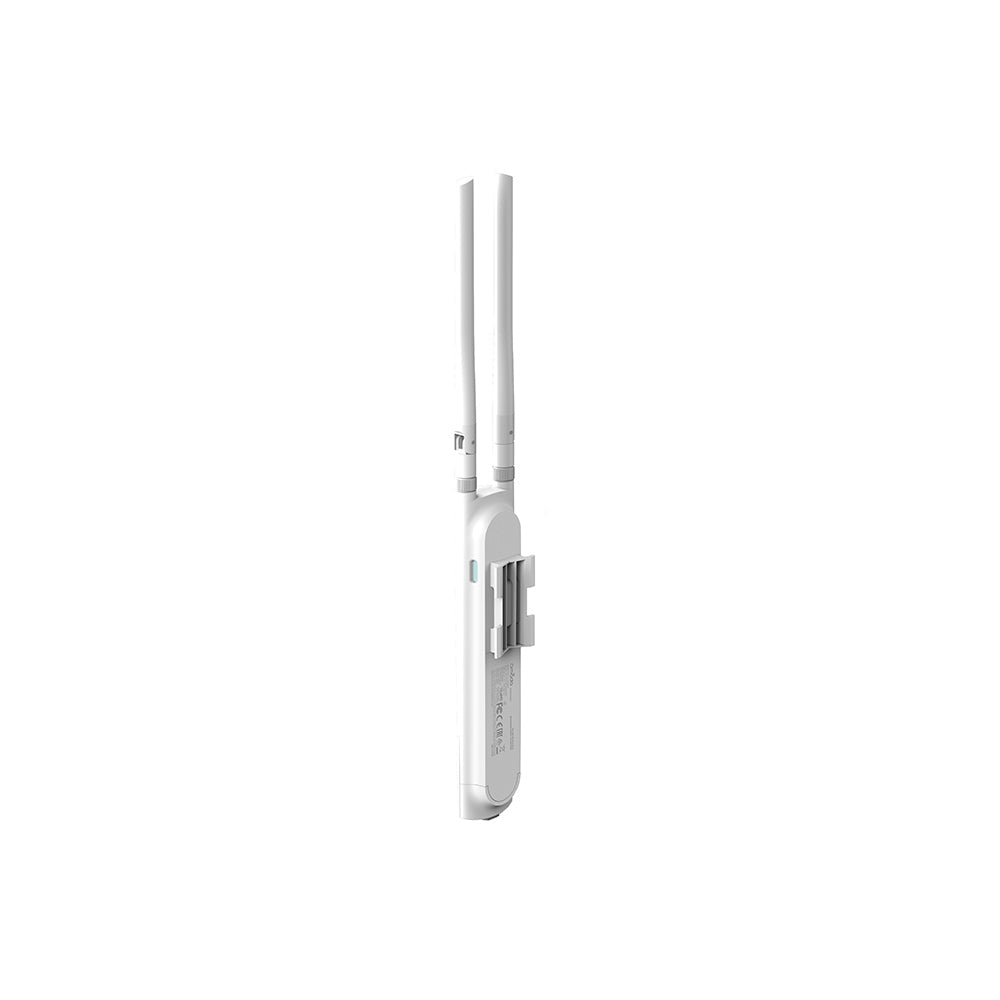

| Mounting Options | Pole or wall mount (mounting kits included) |
| Coverage Range | Approx. 200 m on 2.4 GHz; up to 300 m on 5 GHz (open field) |
| Concurrent Clients | Supports 220+ clients |
| Wireless Features | MU‑MIMO, Beamforming, Band Steering, Airtime Fairness, Multiple SSIDs (up to 16, 8 per band), Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Load Balancing, Rate Limiting, Reboot & Wireless Scheduling, Wireless Statistics |
| Roaming & Mesh | Omada Mesh compatible; Seamless roaming (802.11k/v) |
| Wireless Security | Captive Portal authentication, Access Control, MAC Filtering, Client Isolation, SSID-to-VLAN mapping, Rogue AP detection, 802.1X support |
| Transmit Power | CE: ≤20 dBm (2.4 GHz), ≤27 dBm (5 GHz); FCC: ≤23 dBm (2.4 GHz), ≤22 dBm (5 GHz) |
| Management | Omada App; Centralized via Omada Cloud, Software, or Hardware Controllers (OC200/OC300); includes SNMP, Syslog, SSH, Web UI, Multi‑site, VLAN, Email Alerts, Zero‑Touch Provisioning |
| Certifications | CE, FCC, RoHS |

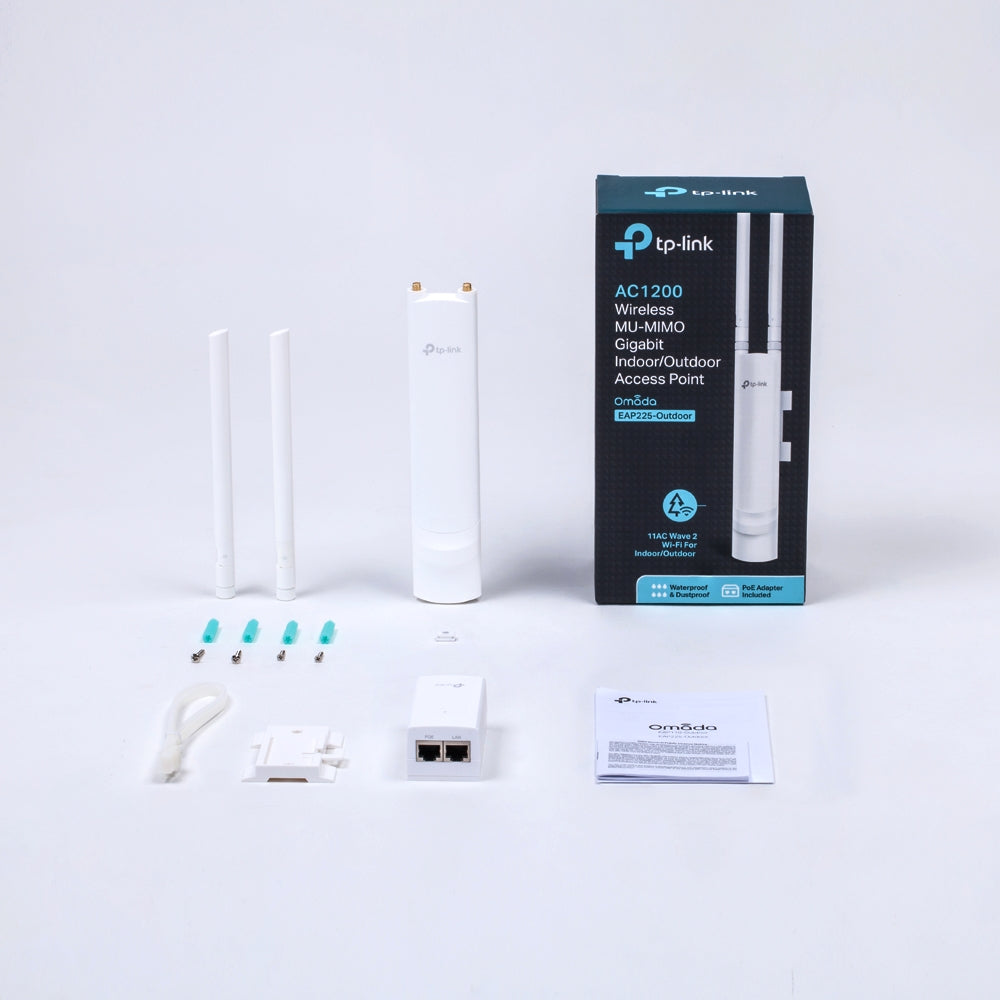

| Package Contents | Access Point, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide, Waterproof Rubber Insert & Antenna |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% RH non‑condensing |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% RH non‑condensing |
The EAP225‑Outdoor brings robust, dual-band AC1200 performance to outdoor environments, offering up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Built for durability, it features a weatherproof IP65 enclosure and high-power, detachable antennas to ensure extended range—up to 200 m on 2.4 GHz and 300 m on 5 GHz in open environments. With support for MU‑MIMO and Omada Mesh, it delivers efficient multi-user performance, flexible placement, and seamless roaming. PoE flexibility (802.3af/at and passive PoE) supports easy deployment, while Omada SDN integration enables centralized, zero-touch provisioning and cloud-based management.
SPECIFICATION
| Feature | Description |
|---|---|
| Wireless Standard | IEEE 802.11a/b/g/n/ac (Wave 2), Dual‑Band |
| Maximum Data Rate | 5 GHz: up to 867 Mbps; 2.4 GHz: up to 300 Mbps (AC1200 total) |
| Gigabit LAN Port | 1× Gigabit Ethernet (RJ‑45); supports 802.3af/at PoE and 24 V passive PoE (adapter included) |
| Power Consumption | Approximately 10.5 W |
| Antenna | Detachable antennas: 2.4 GHz – 2× 3 dBi; 5 GHz – 2× 4 dBi |
| Weatherproof Rating | IP65 (resistant to dust and water) |
| Mounting Options | Pole or wall mount (mounting kits included) |
| Coverage Range | Approx. 200 m on 2.4 GHz; up to 300 m on 5 GHz (open field) |
| Concurrent Clients | Supports 220+ clients |
| Wireless Features | MU‑MIMO, Beamforming, Band Steering, Airtime Fairness, Multiple SSIDs (up to 16, 8 per band), Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Load Balancing, Rate Limiting, Reboot & Wireless Scheduling, Wireless Statistics |
| Roaming & Mesh | Omada Mesh compatible; Seamless roaming (802.11k/v) |
| Wireless Security | Captive Portal authentication, Access Control, MAC Filtering, Client Isolation, SSID-to-VLAN mapping, Rogue AP detection, 802.1X support |
| Transmit Power | CE: ≤20 dBm (2.4 GHz), ≤27 dBm (5 GHz); FCC: ≤23 dBm (2.4 GHz), ≤22 dBm (5 GHz) |
| Management | Omada App; Centralized via Omada Cloud, Software, or Hardware Controllers (OC200/OC300); includes SNMP, Syslog, SSH, Web UI, Multi‑site, VLAN, Email Alerts, Zero‑Touch Provisioning |
| Certifications | CE, FCC, RoHS |
| Package Contents | Access Point, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide, Waterproof Rubber Insert & Antenna |
| Operating Conditions | Temperature: –30 °C to +70 °C; Humidity: 10–90% RH non‑condensing |
| Storage Conditions | Temperature: –40 °C to +70 °C; Humidity: 5–90% RH non‑condensing |
EAP225 Outdoor - AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
- Regular price
- $149.00
- Sale price
- $149.00
