The TP-Link EAP225 Omada AC1350 is a high-performance wireless dual-band ceiling mount access point designed for professional networking environments such as offices, schools, hotels, and retail spaces. It supports seamless roaming, centralized cloud management, and advanced wireless performance using MU-MIMO technology, offering reliable and secure Wi-Fi coverage.
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Model | EAP225 (AC1350, MU‑MIMO) |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Maximum Data Rates | Up to 450 Mbps (2.4 GHz) + 867 Mbps (5 GHz) = ≈1,317 Mbps |
| Antenna | 3× Internal Omni: 2.4 GHz: 4 dBi; 5 GHz: 5 dBi |
| Ethernet Interface | 1× Gigabit Ethernet (RJ‑45), supports 802.3af/at PoE & 24V Passive PoE (adapter included) |
| Power Consumption | EU: 10.5 W; US: 12.6 W |
| Physical Lock / Button | Physical security lock; Reset button |
| Dimensions | 205.5 × 181.5 × 37.1 mm (8.1 × 7.1 × 1.5 in) |
| Mounting | Ceiling / Wall (kits included) |
| Client Capacity / Coverage | Supports 220+ concurrent clients; coverage: ~115 m² (1,250 ft²) |
| Wireless Functions | MU‑MIMO, Band Steering, Airtime Fairness, Beamforming, Seamless Roaming, Load Balance, Omada Mesh, QoS (WMM), Multiple SSIDs (up to 16; 8 per band), Reboot & Wireless Schedule, Rate Limit, SSID/AP/Client stats, Transmit Power Control, Auto Channel Assignment |
| Wireless Security | Captive Portal, SMS/Facebook/Voucher auth, Access Control, MAC Filtering, Wireless Isolation, SSID‑to‑VLAN, Rogue AP Detection, 802.1X, WPA3/WPA2-Enterprise |
| Transmission Power | CE: ≤20 dBm (2.4 GHz EIRP), ≤23 dBm (5 GHz EIRP); FCC: ≤24 dBm (2.4 GHz), ≤22 dBm (5 GHz) |
| Management | Omada App; Centralized via OC200/OC300 HW, Software Controller, or Cloud-Based Controller (V3.0+); Cloud Access, Zero‑Touch Provisioning, Web (HTTP/HTTPS), SNMP v1/v2c, SSH, Email Alerts, LED control, MAC Access Control, Syslog (local/remote), L3, Multi‑site, Management VLAN |
| Certifications | CE, FCC, RoHS |

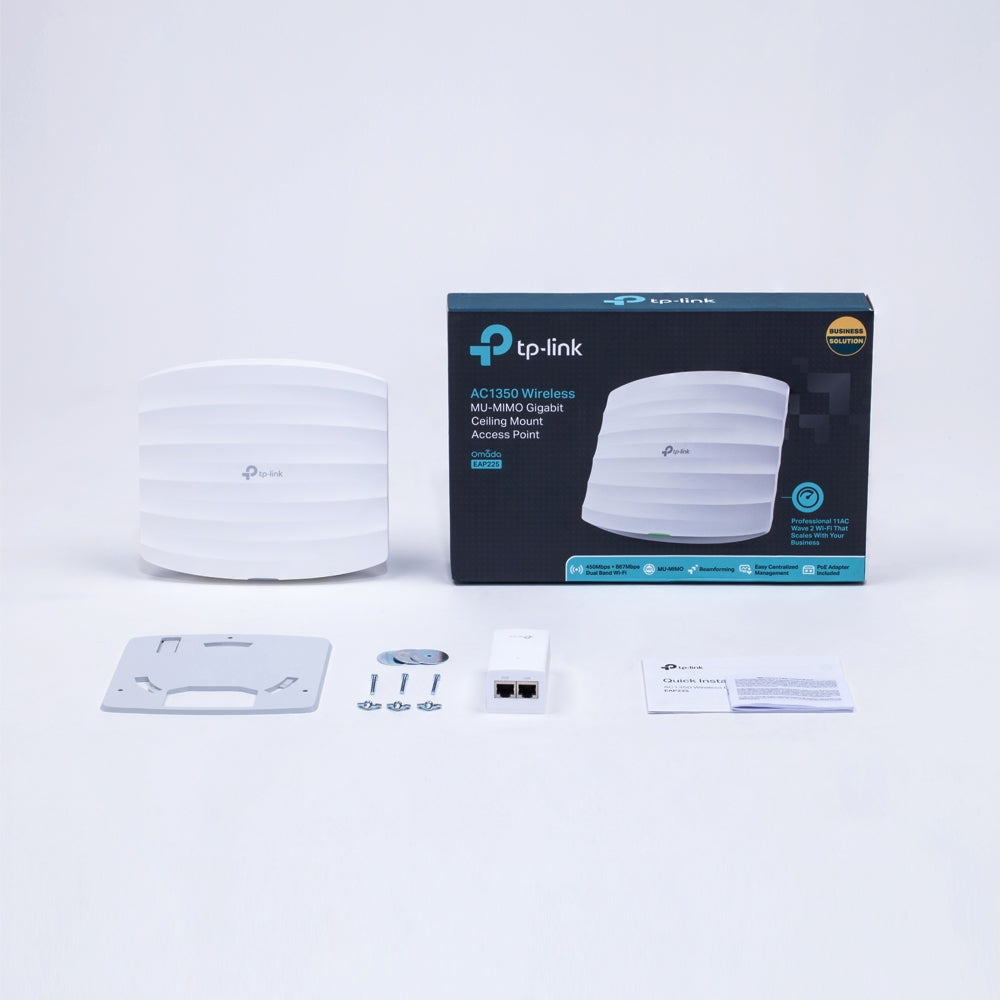

| Package Contents | EAP225 unit, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide |
| System Requirements | Windows XP/Vista/7/8/10/11, Linux |
| Environment | Operating Temp: 0–40 °C (32–104 °F); Storage Temp: –40–70 °C (–40–158 °F); Humidity: 10–90% RH non‑condensing (operating), 5–90% RH (storage) |
