About

Learn what makes this product unique and why it’s right for you.

The EAP223 is a cost-effective, high-performance Wi‑Fi 5 access point ideal for business and enterprise environments. It delivers combined speeds of 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, utilizing MU-MIMO and other advanced technologies to ensure smooth, multi-user performance. Seamless deployment and management are enabled by Omada SDN integration, PoE support, seamless roaming, and mesh capabilities, all packaged in a sleek, ceiling- or wall-mountable design.





SPECIFICATION

Feature Description
Wireless Standard IEEE 802.11ac Wave 2 (Wi‑Fi 5), Dual‑Band
Maximum Data Rate 2.4 GHz: up to 450 Mbps; 5 GHz: up to 867 Mbps (AC1350 total) :contentReference[oaicite:0]{index=0}

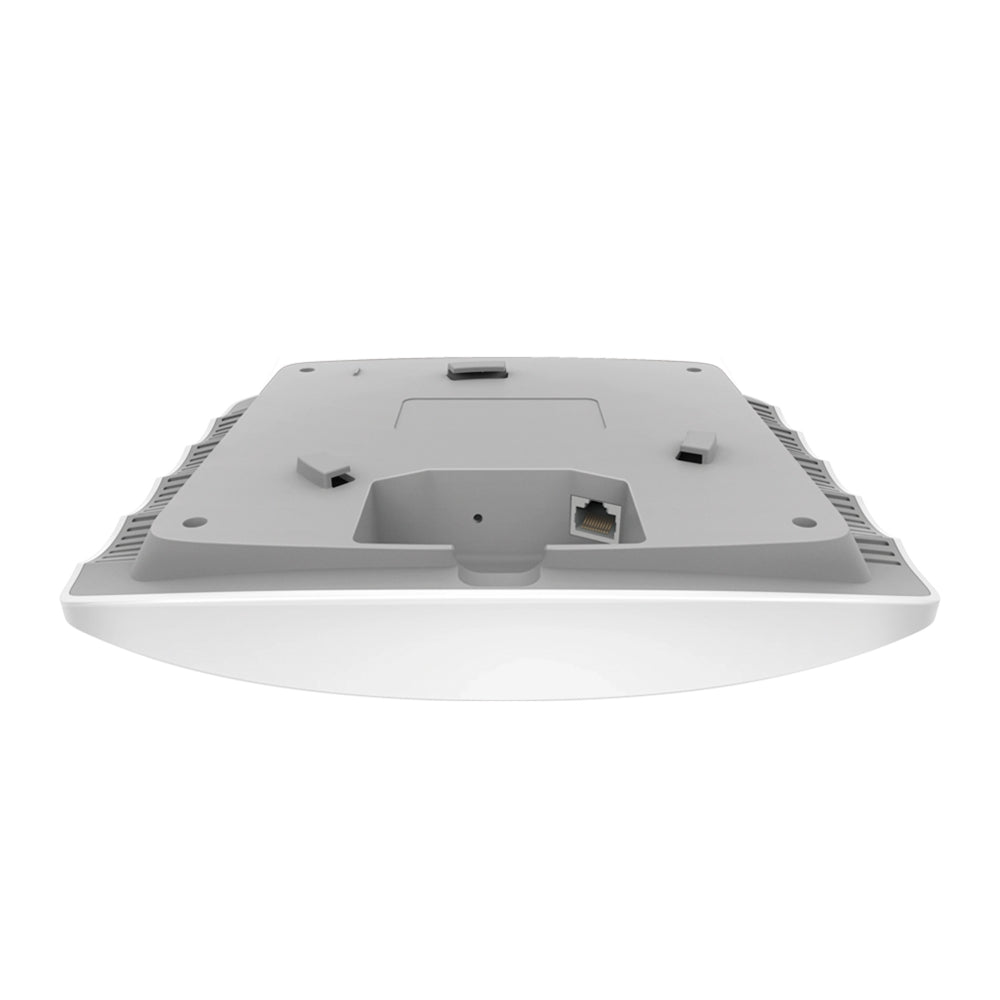

Ethernet Interface 1 × Gigabit Ethernet (RJ‑45) port; supports 802.3af/at PoE and Passive PoE
Power Consumption Approximately 9.7 W (EU); 12.1 W (US) :contentReference[oaicite:1]{index=1}
Antennas 3 × Internal Omni-Directional Antennas
2.4 GHz: 4 dBi; 5 GHz: 5 dBi

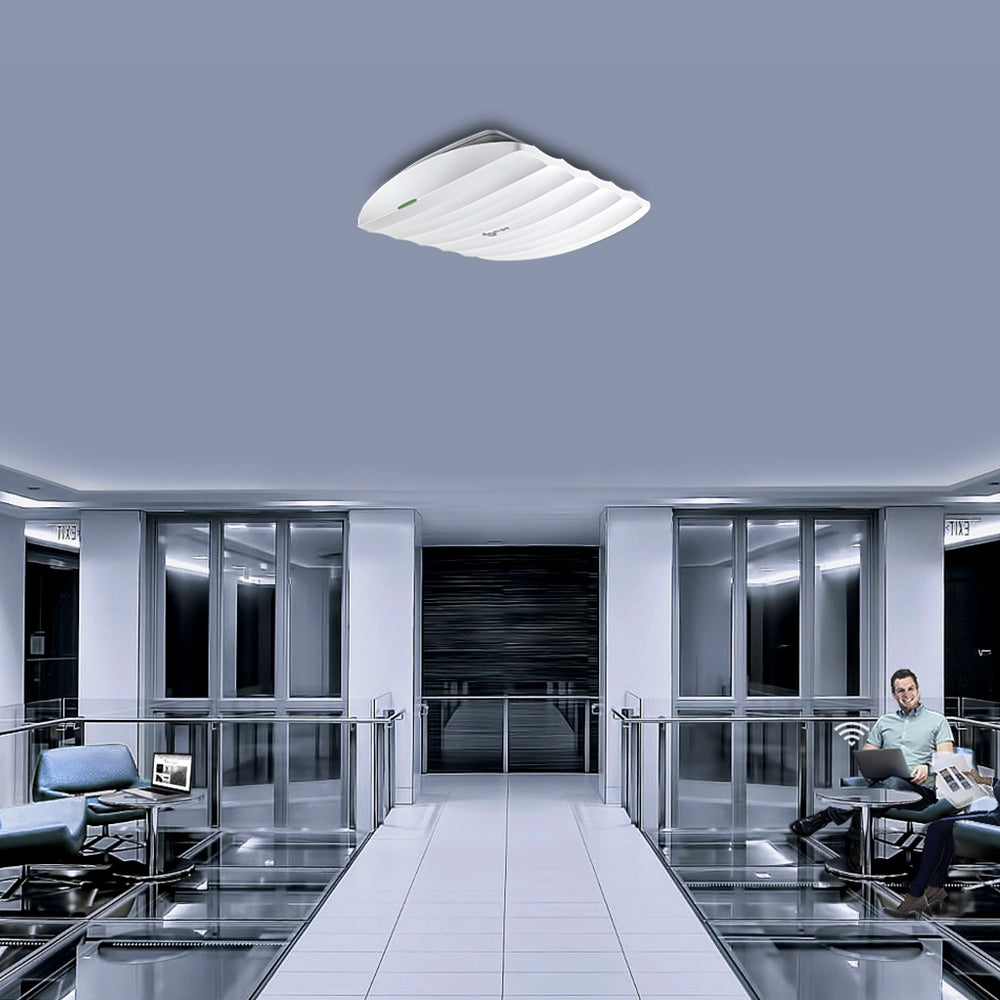

Mounting Ceiling and wall mounting (kits included)
Wireless Features MU‑MIMO, Band Steering, Airtime Fairness, Beamforming, Multiple SSIDs (up to 15–16), QoS (WMM), Load Balancing, Rate Limiting, Automatic Channel Assignment, Wireless Scheduling & Stats, Seamless Roaming, Omada Mesh
Wireless Security Captive Portal (SMS/Facebook/Voucher), Access Control, MAC Filtering, Client Isolation, SSID-to-VLAN, Rogue AP Detection, 802.1X
Transmission Power CE: ≤ 20 dBm (2.4 GHz), ≤ 23 dBm (5 GHz); FCC: ≤ 24 dBm (2.4 GHz), ≤ 22 dBm (5 GHz) :contentReference[oaicite:2]{index=2}
Management Omada App; centralized via Omada Cloud Controller, Software, or Hardware (OC200/OC300); supports Zero-Touch Provisioning, SNMP, Syslog, SSH, Web UI, Multi‑Site, Email Alerts, LED Control, VLAN Management
Certifications CE, FCC, RoHS
Package Contents Access Point, mounting kit, installation guide
System Requirements Windows (XP–11), Linux
Operating Conditions Temperature: 0–40 °C; Humidity: 10–90% RH (non‑condensing)
Storage Conditions Temperature: –40–70 °C; Humidity: 5–90% RH (non‑condensing)





Highlights at a Glance

  • AC1350 performance – high dual-band speed via MU-MIMO.
  • Flexible PoE powering – both standard and passive options supported.
  • Seamless user experience – includes mesh and roaming features for uninterrupted coverage.
  • Centralized management – integrates smoothly with Omada’s cloud/SN controllers.
  • Clean, unobtrusive design – perfect for blending into ceilings or walls.
Learn what makes this product unique and why it’s right for you.

The EAP223 is a cost-effective, high-performance Wi‑Fi 5 access point ideal for business and enterprise environments. It delivers combined speeds of 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, utilizing MU-MIMO and other advanced technologies to ensure smooth, multi-user performance. Seamless deployment and management are enabled by Omada SDN integration, PoE support, seamless roaming, and mesh capabilities, all packaged in a sleek, ceiling- or wall-mountable design.





SPECIFICATION

Feature Description
Wireless Standard IEEE 802.11ac Wave 2 (Wi‑Fi 5), Dual‑Band
Maximum Data Rate 2.4 GHz: up to 450 Mbps; 5 GHz: up to 867 Mbps (AC1350 total) :contentReference[oaicite:0]{index=0}
Ethernet Interface 1 × Gigabit Ethernet (RJ‑45) port; supports 802.3af/at PoE and Passive PoE
Power Consumption Approximately 9.7 W (EU); 12.1 W (US) :contentReference[oaicite:1]{index=1}
Antennas 3 × Internal Omni-Directional Antennas
2.4 GHz: 4 dBi; 5 GHz: 5 dBi
Mounting Ceiling and wall mounting (kits included)
Wireless Features MU‑MIMO, Band Steering, Airtime Fairness, Beamforming, Multiple SSIDs (up to 15–16), QoS (WMM), Load Balancing, Rate Limiting, Automatic Channel Assignment, Wireless Scheduling & Stats, Seamless Roaming, Omada Mesh
Wireless Security Captive Portal (SMS/Facebook/Voucher), Access Control, MAC Filtering, Client Isolation, SSID-to-VLAN, Rogue AP Detection, 802.1X
Transmission Power CE: ≤ 20 dBm (2.4 GHz), ≤ 23 dBm (5 GHz); FCC: ≤ 24 dBm (2.4 GHz), ≤ 22 dBm (5 GHz) :contentReference[oaicite:2]{index=2}
Management Omada App; centralized via Omada Cloud Controller, Software, or Hardware (OC200/OC300); supports Zero-Touch Provisioning, SNMP, Syslog, SSH, Web UI, Multi‑Site, Email Alerts, LED Control, VLAN Management
Certifications CE, FCC, RoHS
Package Contents Access Point, mounting kit, installation guide
System Requirements Windows (XP–11), Linux
Operating Conditions Temperature: 0–40 °C; Humidity: 10–90% RH (non‑condensing)
Storage Conditions Temperature: –40–70 °C; Humidity: 5–90% RH (non‑condensing)





Highlights at a Glance

  • AC1350 performance – high dual-band speed via MU-MIMO.
  • Flexible PoE powering – both standard and passive options supported.
  • Seamless user experience – includes mesh and roaming features for uninterrupted coverage.
  • Centralized management – integrates smoothly with Omada’s cloud/SN controllers.
  • Clean, unobtrusive design – perfect for blending into ceilings or walls.

EAP223 - AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

$109.00
$109.00
