About

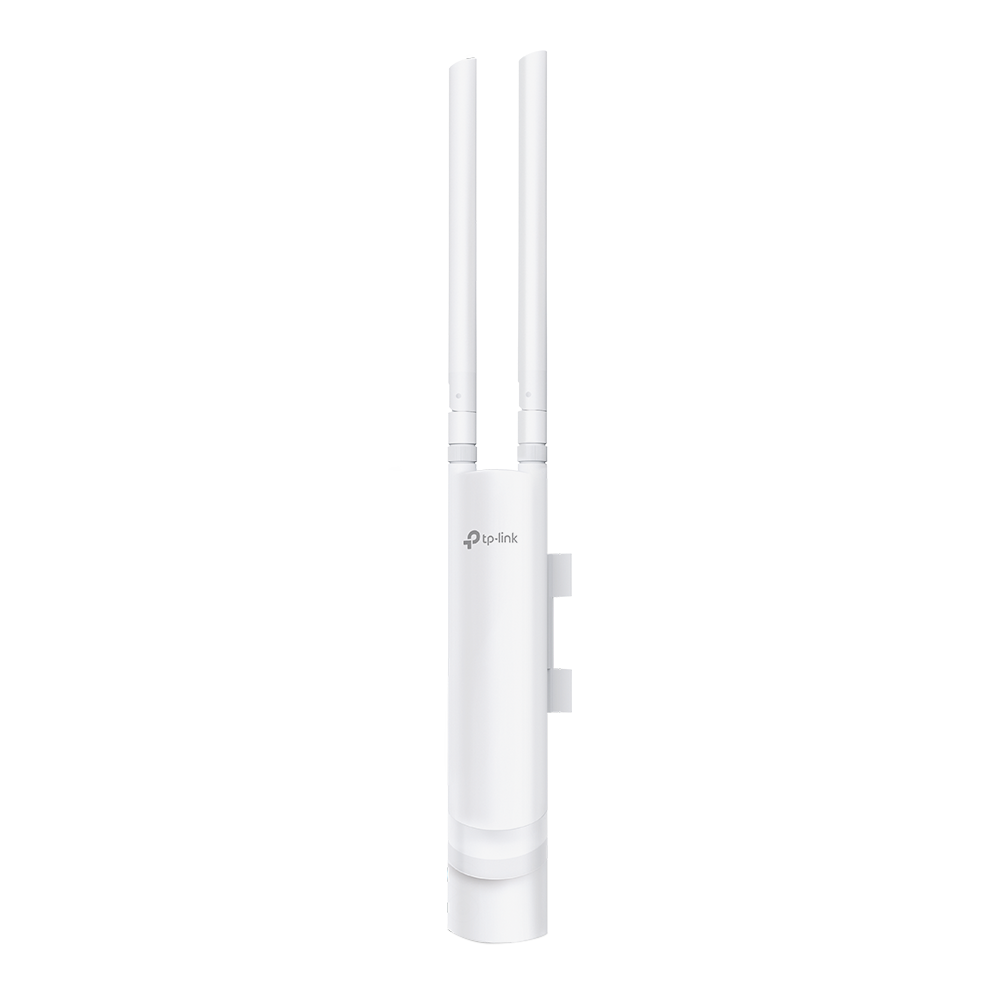

The TP-Link EAP110-Outdoor is a weatherproof, professional-grade wireless N access point designed for outdoor Wi-Fi coverage. With speeds up to 300 Mbps and dual high-gain antennas, it provides reliable long-range connectivity, ideal for outdoor environments such as parks, campuses, and industrial areas. Part of the Omada SDN platform, it supports centralized cloud management, captive portal, and enterprise-class wireless security for seamless outdoor deployment.
SPECIFICATION
| Category | Details |
|---|---|
| Model | EAP110‑Outdoor (Omada, N300, 2×2 MIMO) |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency Band | 2.4 GHz |
| Maximum Data Rates | Up to 300 Mbps |
| Antenna | 2× 3 dBi external omni‑directional, waterproof, detachable |

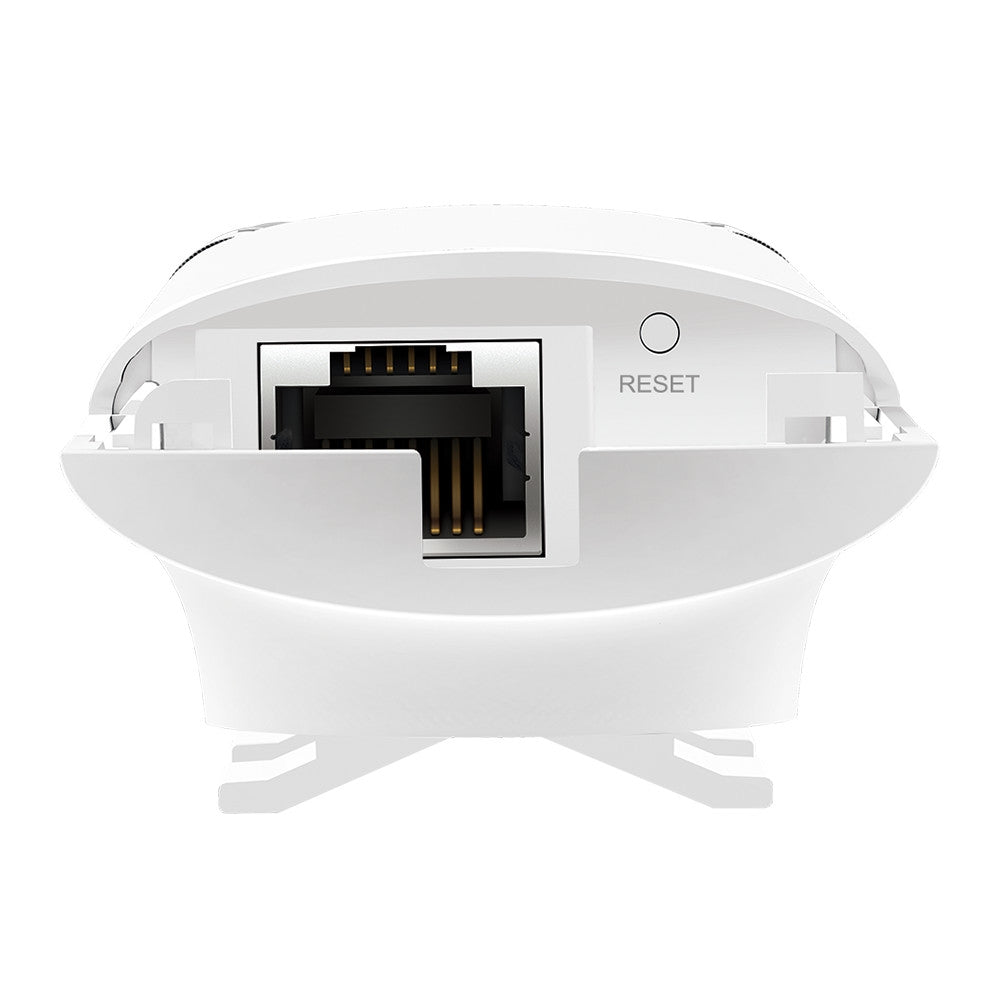

| Ethernet Interface | 1× Fast Ethernet (10/100 Mbps) RJ‑45, supports 24 V Passive PoE (adapter included) |
| Power Consumption | About 3.12 W |
| Weatherproof Rating | IP65 enclosure |

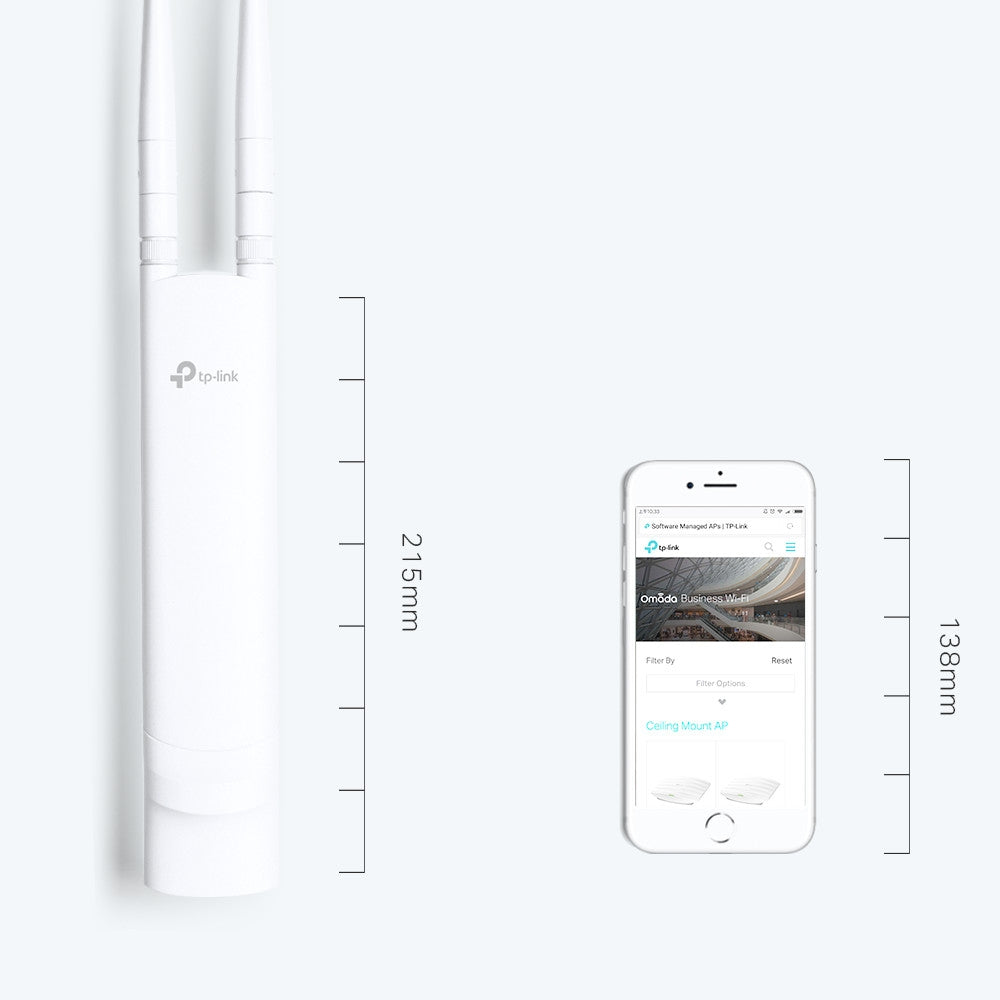

| Dimensions | 216 × 46 × 27 mm (8.5 × 1.8 × 1.1 in) |

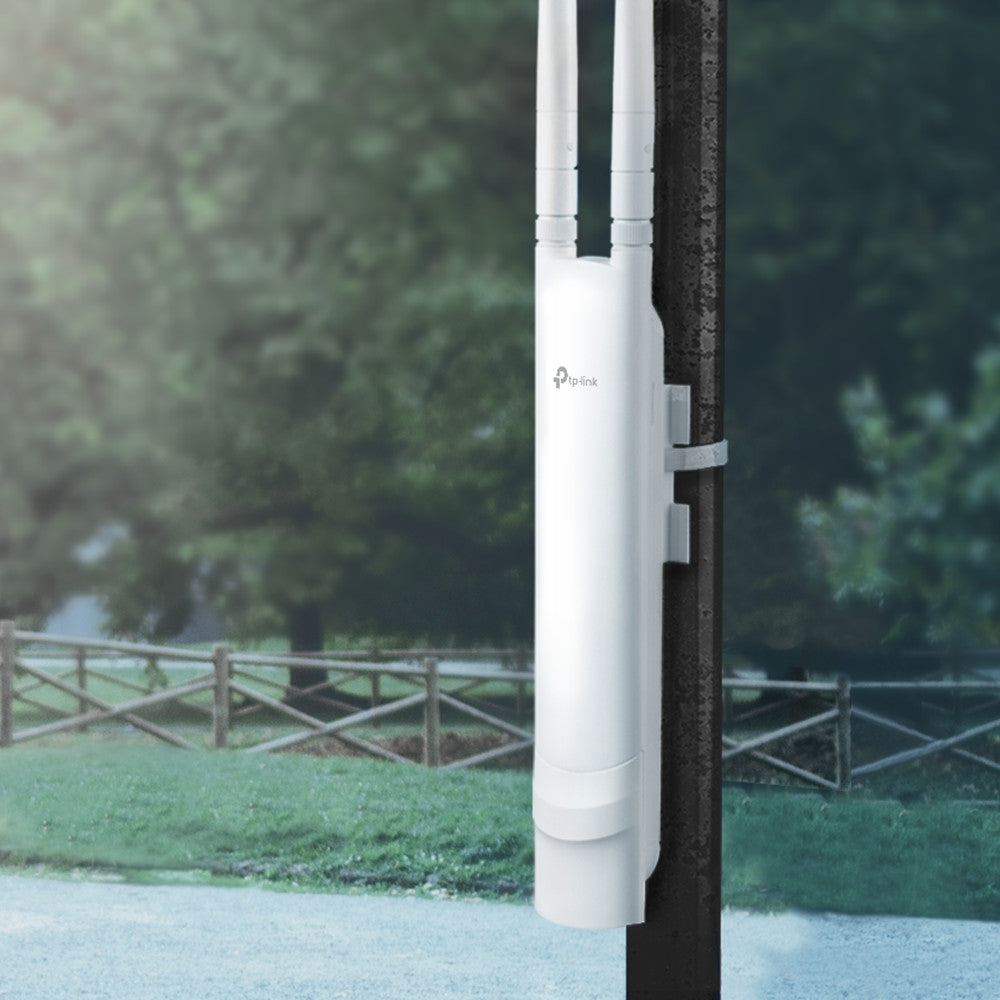

| Mounting | Pole or wall mounting (kits included) |
| Concurrent Clients | 100+ clients supported |
| Wireless Functions | Multiple SSIDs (up to 8), radio on/off, auto channel, transmit power control, QoS (WMM), load balancing, rate limit, reboot schedule, wireless schedule |
| Wireless Security | Captive portal, access control, MAC filtering, client isolation, SSID-to-VLAN, rogue AP detection, WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK |
| Transmission Power | CE: ≤ 20 dBm (EIRP); FCC: ≤ 22 dBm |
| Management | Omada App, Cloud Portal, Software/Hardware/Cloud Controller, SNMP, SSH, SYSLOG, HTTPS, VLAN, multi-site support |
| Certifications | CE, FCC, RoHS |
| Package Contents | EAP110‑Outdoor unit, Passive PoE Adapter, Power Cord, Mounting Kits, Waterproof Antennas, Installation Guide |
| System Requirements | Windows XP/Vista/7/8/10/11, Linux |
| Environment | Operating: –30 °C to 65 °C, Storage: –40 °C to 70 °C, Humidity: 10–90% RH non‑condensing |
The TP-Link EAP110-Outdoor is a weatherproof, professional-grade wireless N access point designed for outdoor Wi-Fi coverage. With speeds up to 300 Mbps and dual high-gain antennas, it provides reliable long-range connectivity, ideal for outdoor environments such as parks, campuses, and industrial areas. Part of the Omada SDN platform, it supports centralized cloud management, captive portal, and enterprise-class wireless security for seamless outdoor deployment.
SPECIFICATION
| Category | Details |
|---|---|
| Model | EAP110‑Outdoor (Omada, N300, 2×2 MIMO) |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency Band | 2.4 GHz |
| Maximum Data Rates | Up to 300 Mbps |
| Antenna | 2× 3 dBi external omni‑directional, waterproof, detachable |
| Ethernet Interface | 1× Fast Ethernet (10/100 Mbps) RJ‑45, supports 24 V Passive PoE (adapter included) |
| Power Consumption | About 3.12 W |
| Weatherproof Rating | IP65 enclosure |
| Dimensions | 216 × 46 × 27 mm (8.5 × 1.8 × 1.1 in) |
| Mounting | Pole or wall mounting (kits included) |
| Concurrent Clients | 100+ clients supported |
| Wireless Functions | Multiple SSIDs (up to 8), radio on/off, auto channel, transmit power control, QoS (WMM), load balancing, rate limit, reboot schedule, wireless schedule |
| Wireless Security | Captive portal, access control, MAC filtering, client isolation, SSID-to-VLAN, rogue AP detection, WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK |
| Transmission Power | CE: ≤ 20 dBm (EIRP); FCC: ≤ 22 dBm |
| Management | Omada App, Cloud Portal, Software/Hardware/Cloud Controller, SNMP, SSH, SYSLOG, HTTPS, VLAN, multi-site support |
| Certifications | CE, FCC, RoHS |
| Package Contents | EAP110‑Outdoor unit, Passive PoE Adapter, Power Cord, Mounting Kits, Waterproof Antennas, Installation Guide |
| System Requirements | Windows XP/Vista/7/8/10/11, Linux |
| Environment | Operating: –30 °C to 65 °C, Storage: –40 °C to 70 °C, Humidity: 10–90% RH non‑condensing |
EAP110-Outdoor - 300Mbps Wireless N Outdoor Access Point
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Couldn't load pickup availability
