About

Learn what makes this product unique and why it’s right for you.

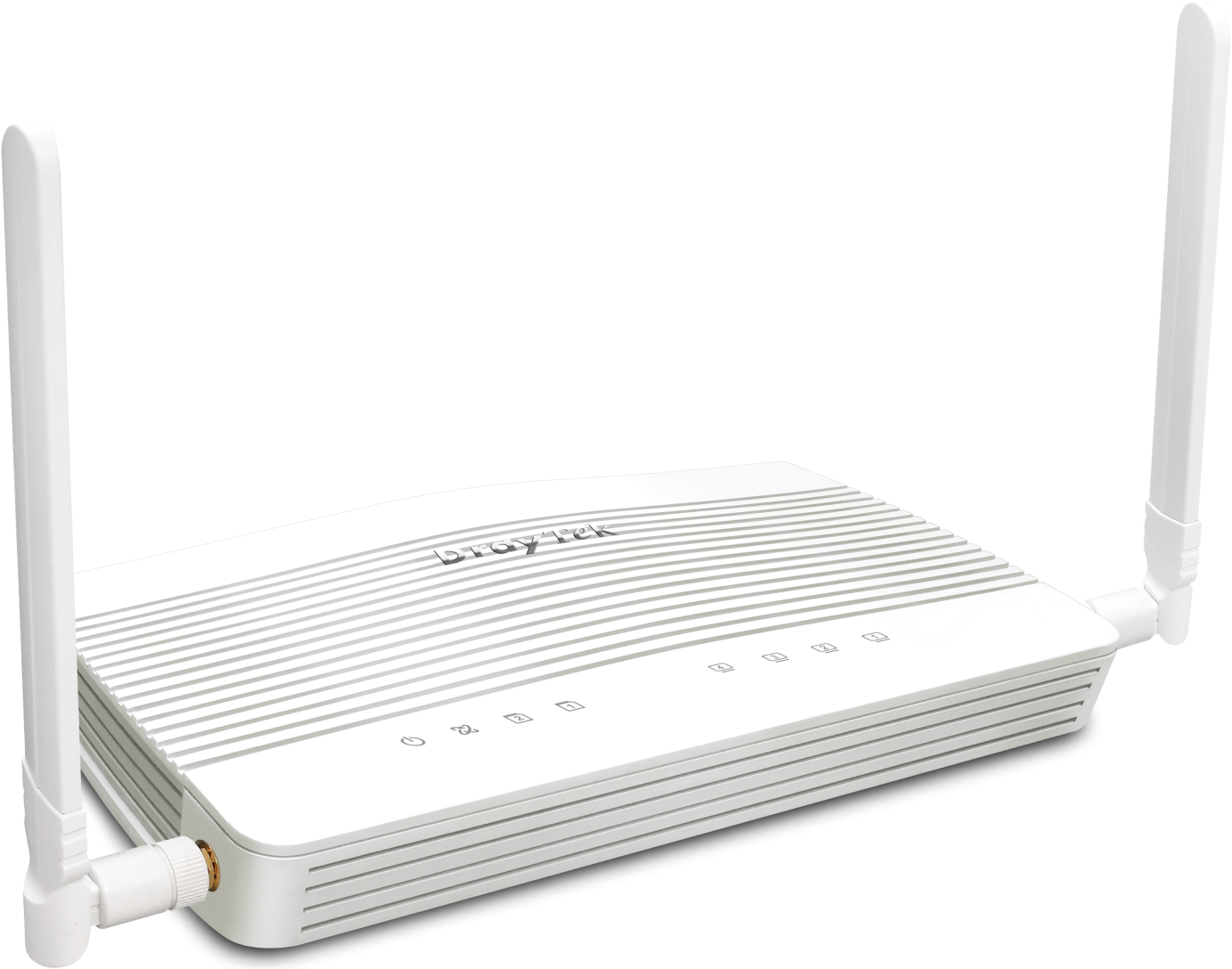

The DrayTek Vigor C510 is a high-performance cellular WAN security router designed for businesses requiring reliable, always-on internet connectivity. It integrates 5G/4G mobile broadband





SPECIFICATION

Interface
Fixed WAN Port 1 x Gigabit Ethernet
LAN/WAN Switchable Port 1 x Gigabit Ethernet
Fixed LAN Port 3 x Gigabit Ethernet
SIM Slot 2 x nano SIM slots (SIM slot 2 for Failover)
4G/5G Antenna 2 x External Dipole
2 x Internal PIFA
Peak Gain: 4 dBi
Performance
NAT Session 50K
NAT Throughput 940 Mbps
5G
5G Band n1, n20, n28, n3, n38, n40, n7, n77, n78, n8
5G Antenna Peak Gain 4 dBi
5G NSA Max. Rx Link Rate ** 3400 Mbps
5G NSA Max. Tx Link Rate ** 550 Mbps
5G SA Max. Rx Link Rate ** 2400 Mbps
5G SA Max. Tx Link Rate ** 900 Mbps
**Typical 5G Downlink/Uplink speeds are 400Mbps/200Mbps, depending on the local conditions.
4G
LTE Category CAT.19
Max. Rx Link Rate 1600 Mbps
Max. Tx Link Rate 200 Mbps
FDD Band 1 (2100MHz), 20 (800MHz), 28 (700MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz)
TDD Band 38 (2600MHz), 40 (2300MHz)
WCDMA (3G) Band 1, 8
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
WAN Failover
Connection Detection ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
Number of LAN Subnet 4
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication
Port Mirroring via future firmware upgrade
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal (Profile No.) 2
Hotspot Authentication Click-Through, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Policy Route, Inter-VLAN Route, OSPF (V2/V3), RIP v1/v2, BGP
Policy-based Routing Protocol, IP Address, Port
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
Local RADIUS server
Bandwidth Management
Traffic Shaping Policy
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) IP Address, Port, Application
APP Qos
Default Policy
VoIP Prioritization
VPN
LAN-to-LAN
Teleworker-to-LAN
EasyVPN
Protocols IPsec, IKEv1/IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN, WireGuard
Max. VPN Tunnels 16
IPsec VPN Throughput (AES 256 bits) (single-directional) 370 Mbps
WireGuard VPN Throughput (single-directional) 50 Mbps
User Authentication Local, RADIUS, TACACS+, mOTP, TOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256
Encryption DES, 3DES, AES
Single-Armed VPN
NAT-Traversal (NAT-T)
VPN Connection Status
Backup & Restore
Security
URL/IP Reputation
Firewall Filter IP, Content, Traffic
Defense Setup ARP Spoofing, IP Spoofing
MAC Filtering Profile
IPv6 Address Security
IAM
Users & Groups
Access Policies
Group Policies
Conditional Access Policy
Resources
Account Status
Backup and Restore
Monitoring
Clients List
Log Center
Wireless Information
WAN
ARP Table
Route Table
DHCP Table
IPv6 TSPC Status
IPv6 Neighbor Table
LLDP Neighbors
information
DNS Cache Table
PPPoE Pass-Through
Session Table
Management
Local Service HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069
Port Knocking for Local Service
Config Backup/Restore
Firmware Upgrade WUI, TFTP, TR-069
Role-based Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Syslog
Virtual AP Controller (Device up to) 20
Mesh (Number of manageable APs) 7
Virtual Switch Controller 5
VigorACS Management (Since f/w) v5.3.1
Physical
Power Supply Vigor C510: DC 12V @ 0.7A
Vigor C510ax: DC 12V @ 1.4A
Max. Power Consumption Vigor C510: 8.1 watts
Vigor C510ax: 16 watts
Dimensions 207mm x 131mm x 42mm
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%

Note :
  • All specifications are subject to change without notice.
  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
Learn what makes this product unique and why it’s right for you.

The DrayTek Vigor C510 is a high-performance cellular WAN security router designed for businesses requiring reliable, always-on internet connectivity. It integrates 5G/4G mobile broadband





SPECIFICATION

Interface
Fixed WAN Port 1 x Gigabit Ethernet
LAN/WAN Switchable Port 1 x Gigabit Ethernet
Fixed LAN Port 3 x Gigabit Ethernet
SIM Slot 2 x nano SIM slots (SIM slot 2 for Failover)
4G/5G Antenna 2 x External Dipole
2 x Internal PIFA
Peak Gain: 4 dBi
Performance
NAT Session 50K
NAT Throughput 940 Mbps
5G
5G Band n1, n20, n28, n3, n38, n40, n7, n77, n78, n8
5G Antenna Peak Gain 4 dBi
5G NSA Max. Rx Link Rate ** 3400 Mbps
5G NSA Max. Tx Link Rate ** 550 Mbps
5G SA Max. Rx Link Rate ** 2400 Mbps
5G SA Max. Tx Link Rate ** 900 Mbps
**Typical 5G Downlink/Uplink speeds are 400Mbps/200Mbps, depending on the local conditions.
4G
LTE Category CAT.19
Max. Rx Link Rate 1600 Mbps
Max. Tx Link Rate 200 Mbps
FDD Band 1 (2100MHz), 20 (800MHz), 28 (700MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz)
TDD Band 38 (2600MHz), 40 (2300MHz)
WCDMA (3G) Band 1, 8
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
WAN Failover
Connection Detection ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
Number of LAN Subnet 4
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication
Port Mirroring via future firmware upgrade
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal (Profile No.) 2
Hotspot Authentication Click-Through, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Policy Route, Inter-VLAN Route, OSPF (V2/V3), RIP v1/v2, BGP
Policy-based Routing Protocol, IP Address, Port
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
Local RADIUS server
Bandwidth Management
Traffic Shaping Policy
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) IP Address, Port, Application
APP Qos
Default Policy
VoIP Prioritization
VPN
LAN-to-LAN
Teleworker-to-LAN
EasyVPN
Protocols IPsec, IKEv1/IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN, WireGuard
Max. VPN Tunnels 16
IPsec VPN Throughput (AES 256 bits) (single-directional) 370 Mbps
WireGuard VPN Throughput (single-directional) 50 Mbps
User Authentication Local, RADIUS, TACACS+, mOTP, TOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256
Encryption DES, 3DES, AES
Single-Armed VPN
NAT-Traversal (NAT-T)
VPN Connection Status
Backup & Restore
Security
URL/IP Reputation
Firewall Filter IP, Content, Traffic
Defense Setup ARP Spoofing, IP Spoofing
MAC Filtering Profile
IPv6 Address Security
IAM
Users & Groups
Access Policies
Group Policies
Conditional Access Policy
Resources
Account Status
Backup and Restore
Monitoring
Clients List
Log Center
Wireless Information
WAN
ARP Table
Route Table
DHCP Table
IPv6 TSPC Status
IPv6 Neighbor Table
LLDP Neighbors
information
DNS Cache Table
PPPoE Pass-Through
Session Table
Management
Local Service HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069
Port Knocking for Local Service
Config Backup/Restore
Firmware Upgrade WUI, TFTP, TR-069
Role-based Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Syslog
Virtual AP Controller (Device up to) 20
Mesh (Number of manageable APs) 7
Virtual Switch Controller 5
VigorACS Management (Since f/w) v5.3.1
Physical
Power Supply Vigor C510: DC 12V @ 0.7A
Vigor C510ax: DC 12V @ 1.4A
Max. Power Consumption Vigor C510: 8.1 watts
Vigor C510ax: 16 watts
Dimensions 207mm x 131mm x 42mm
Operating Temperature 0 to 45°C
Storage Temperature -25 to 70°C
Operating Humidity (non-condensing) 10 to 90%

Note :
  • All specifications are subject to change without notice.
  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.

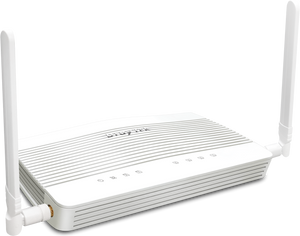

Draytek Vigor C510 Gigabit WAN router with a 5G modem & 2 x SIM card slots, 1 x configurable GbE WAN/LAN port, 3 x GbE LAN ports, SPI Firewall, 16 x IPsec, OpenVPN or Wireguard tunnels, and support VigorACS 3 (Copy)

$690.00
$690.00

SKU: DVC510
