About
Learn what makes this product unique and why it’s right for you.
The Vigor2928 is a Dual-WAN VPN router equipped with three 10G interfaces, supporting both Ethernet and fiber connections. As DrayTek’s first router with a 10G Ethernet WAN, it delivers high-performance WAN connectivity for bandwidth-intensive networks.
The Vigor2928 supports advanced features, including load balancing, VPN, QoS, IP/URL filtering, and a hotspot portal with built-in IAM to enhance network security. It also functions as a virtual controller for the centralized management of VigorAPs and VigorSwitches.
KEY FEATURES

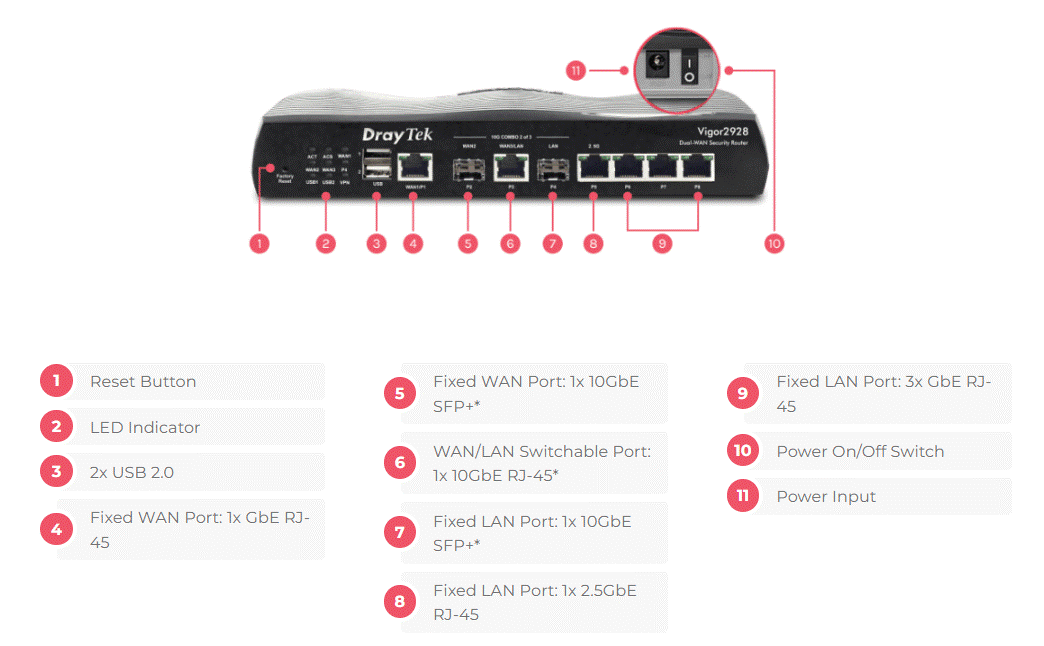

- Ready to connect to NTD (Network Termination Device) of NBN (Aust) and UFB (NZ)
- Multi-WAN for Failover, Load Balancing and High Availability mode
- 1 x fixed GbE WAN port (P1)
- 1 x 10GbE WAN/LAN port (P3)
- 1 x fixed SFP+ WAN port (P2)
- 1 x 10GbE SFP+ LAN slot (P4)
- For P2~P4, any two of these three ports can be used simultaneously, and P3 can also beconfigured as a high-speed LAN port when not serving as the WAN
- 1 x fixed 2.5GbE LAN port (P5)
- 3 x fixed GbE LAN ports (P6~P8)
- 2 x USB 2.0 ports for connection to two 4G LTE USB modems, FTP server, network printer and thermometer
- Up to 8 subnets and 60,000 NAT sessions
- 50 x VPN tunnels, including IPsec, OpenVPN, and WireGuard, with EasyVPN features that simplify VPN setup for effortless connectivity
- IPsec VPN throughput up to 540 Mbps (AES 256 bits)
- WireGuard VPN throughput up to 85 Mbps
- Object-based SPI Firewall, Content Security Management (CSM), URL/IP Reputation and Port Knocking
- IAM (Identity and Access Management) to enhance security management and user experience
- IPv6 & IPv4
- Virtual AP Controller for the deployment of up to 20 wireless VigorAPs
- Virtual Switch Controller to manage up to 10 VigorSwitches
- Supports VigorACS 3 Central Management Software for remote management
- 2 years back to base warranty
SPECIFICATION
| Performance | |
|---|---|
| NAT Session | 60,000 |
| Max. NAT (Mbps) | 9300 |
| WAN | |
|---|---|
| Ethernet (1 GbE) | 1 |
| Ethernet (10 GbE) | 1 |
| SFP (10G) | 1 |
| Ethernet – Switchable |
* When this field is filled, the port count above includes both switchable and fixed ports. |
| Cellular (via USB) | 2 |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Failover | |
| Load Balancing | IP-based, Session-based |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN | |
|---|---|
| Fixed LAN (RJ-45, GbE) | 3 |
| Fixed LAN (RJ-45, 2.5GbE) | 1 |
| LAN Subnet | 8 |
| VLAN | 802.1q Tag-based VLAN |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
| Other Ports | |
|---|---|
| USB | 2 |
| USB Type | 2.0 |
| USB Application | User Management, File Explorer, FTP File Sharing, Device Status, Printer Server, Temperature Sensor, USB WAN |
| SMB File Sharing (Requires external storage) |
|
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Policy Route, Inter-VLAN Route, RIP v1/v2, OSPF(V2/V3), BGP |
| Policy-based Routing | Protocol, IP Address, Port |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| Bandwidth Management | |
|---|---|
| Traffic Shaping Policy | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | IP Address, Port, Application |
| APP QoS | |
| Default Policy | |
| VoIP Prioritization | |
| NAT | |
|---|---|
| Port Forwarding | |
| DMZ Host | |
| Port Trigger | |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| UPnP | |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069 |
| Config Backup/Restore | |
| Firmware Upgrade | WUI, TFTP, TR-069 |
| Role-based Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Virtual AP Controller (Device up to) | 20 |
| Virtual Switch Controller | 10 |
| Managed by VigorACS | Since f/w v5.4.0 |
| Security | |
|---|---|
| URL/IP Reputation | |
| Firewall Filter | IP, Content, Traffic |
| Port Knocking | * |
| Defense Setup | ARP Spoofing, IP Spoofing |
| MAC Filtering Profile | |
| IPv6 Address Security | |
| IAM | |
|---|---|
| Users & Groups | |
| Access Policies | |
| Group Policies | |
| Conditional Access Policy | |
| Resources | |
| Account Status | |
| Backup and Restore | |
| VPN | |
|---|---|
| Site-to-Site VPN | |
| Teleworker VPN | |
| EasyVPN | |
| Protocols | IPsec, IKEv1/IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN, WireGuard |
| Max. VPN Tunnels | 50 |
| IPsec VPN Throughput (AES 256 bits) |
540 Mbps (single-directional) |
| WireGuard VPN Throughput | 85 Mbps (single-directional) |
| User Authentication | Local, RADIUS, TACACS+, mOTP, TOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | DES, 3DES, AES |
| Translate Local Network (Site-to-Site VPN) |
|
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| VPN Matcher | |
| VPN Connection Status | |
| Backup & Restore | |
| Monitoring | |
|---|---|
| Log Center | |
| WAN | |
| ARP Table | |
| Route Table | |
| DHCP Table | |
| IPv6 TSPC Status | |
| IPv6 Neighbor Table | |
| LLDP Neighbors | |
| DNS Cache Table | |
| Remote DSL Status | |
| SFP Information | |
| PPPoE Pass-Through | |
| Session Table | |
| Running Service | |
| Physical | |
|---|---|
| Power Supply | Vigor2928: DC 12V @ 1.15A |
| Max. Power Consumption | Vigor2928: 18 watts |
| Dimension | 241mm x 165mm x 43mm |
| Weight | Vigor2928: 590.6g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
Note :
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
