About
Learn what makes this product unique and why it’s right for you.

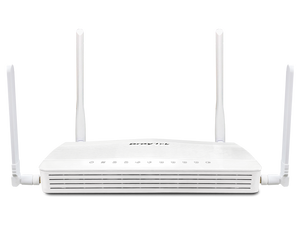

The Vigor2136ax-4G delivers reliable, high-speed connectivity with built-in 4G cellular support. Its embedded dual SIM slots (one active at a time) provide enhanced redundancy to ensure continuous cellular network access. The integrated 2.5GbE WAN port offers ultra-fast wired performance, while Wi-Fi 6 (802.11ax) ensures efficient, stable wireless connections, even in high-density environments.
In addition to the primary 4G WAN connection, the router supports Ethernet WAN or Wi-Fi WAN as backup options, delivering uninterrupted internet connectivity for mission-critical applications.
The Vigor2136ax-4G also integrates a comprehensive suite of enterprise-grade features, including Route Policy, App-based QoS, IP/URL Filtering, SPI Firewall, Port Knocking, up to 16 VPN tunnels, Tag-based VLAN, and advanced traffic management. These capabilities make it a secure and robust networking solution for offices, retail locations, and remote sites.
KEY FEATURES
- Ready to connect to NTD (Network Termination Device) of NBN (Aust) and UFB (NZ)
- Cat.6 4G LTE model with dual nano SIM slots (SIM slot2 for Failover) for FDD & TDD 4GB LTE WAN
- Support 4G LTE bands: B1/B3/B7/B8/B20/B28/B32/B38/B40; great coverage in Australia and New Zealand, Cat.6 4G LTE with 300Mbps download and 50Mbps upload speeds
- 1 x 2.5 Gigabit WAN port with Wi-Fi WAN and 2 x USB ports for 4G Mobile Fail-Over
- 1 x configurable 2.5 GbE WAN/LAN port (P1)
- 3 x Gigabit LAN ports with 50,000 NAT sessions
- NAT throughput with Hardware Acceleration over 2.3 Gbps
- IPsec VPN throughput up to 390 Mbps (AES 256 bits)
- Object-based SPI Firewall, Content Security Management (CSM), URL/IP Reputation and Port Knocking
- IAM (Identity and Access Management) to enhance security management and user experience
- IPv6 & IPv4
- 802.11ax (WiFi 6, AX3000) Wi-Fi up to 574 + 2402 Mbps speed (ax model)
- 16 x VPN tunnels, including IPsec, OpenVPN, and WireGuard, with EasyVPN features
- 2 x USB ports for 4G Backup, FTP server, network printer or thermometer
- Virtual AP Controller for the deployment of up to 20 wireless VigorAPs
- Wireless Mesh (ax model) up to 7 VigorAPs
- Virtual Switch Controller to manage up to 5 VigorSwitches
- Supports VigorACS 3 Central Management Software for remote management
- 2 years back to base warranty
SPECIFICATION
| Interface | |
|---|---|
| WAN Port | 1 x 2.5 GbE |
| Selectable Gigabit WAN/LAN | 1 x 2.5 GbE |
| LAN Port | 3 x Gigabit Ethernet |
| USB Port | 2 x USB 2.0 for 4G/LTE USB modem, storage, printer or thermometer |
| Wi-Fi Antenna | 2x External Dipole, Gain: 2.7 dBi for 5GHz, 2.6 dBi for 2.4GHz (ax model) |
| 2.4G WLAN | 802.11ax 2×2 MIMO, up to 574Mbps Link Rate (ax model) |
| 5G WLAN | 802.11ax 2×2 MU-MIMO, up to 2402Mbps Link Rate (ax model) |
| Performance | |
|---|---|
| NAT Throughput w/ Hardware Acceleration | 2300 Mbps |
| IPsec VPN Performance | 390 Mbps (AES 256 bits) |
| Wireguard VPN Throughput | 90 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels (including OpenVPN/ SSL-VPN/Wireguard) |
16 |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| 4G/LTE WAN with USB modem | |
| WAN Failover | |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS |
|
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| Number of LAN Subnet | 4 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Port Mirroring | * Future Support |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | 2 |
| Hotspot Authentication | Click-Through, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Policy Route, Inter-VLAN Routing, RIP v1/v2, BGP, OSPF(V2/V3) |
| Policy-based Routing | Protocol, IP Address, Port |
| DNS Security (DNSSEC) | |
| Multicast | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | IPsec, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN, Wireguard |
| User Authentication | Local, RADIUS, TACACS+, mOTP, TOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA1, SHA256 |
| Encryption | DES, 3DES, AES128, AES192, AES256 |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| VPN Connection Status | |
| Backup & Restore |
|
| Security | |
|---|---|
| URL/IP Reputation | |
| Firewall Filter | IP, Content, Traffic |
| Port Knocking | |
| Defense Setup | ARP Spoofing, IP Spoofing |
| MAC Filtering Profile | |
| IPv6 Address Security |
|
| IAM | |
|---|---|
| Users & Groups | |
| Access Policies | |
| Group Policies | |
| Conditional Access Policy | |
| Resources | |
| Backup and Restore |
|
| Bandwidth Management | |
|---|---|
| Traffic Shaping Policy | |
| IP-based Bandwidth Limit | |
| QoS (Quality of Service) | IP Address, Port, Application |
| APP QoS | |
| Default Policy | |
| VoIP Prioritization |
|
| Wireless LAN (ax model) | |
|---|---|
| 2.4GHz WLAN | 802.11ax 2×2 MIMO |
| 5GHz WLAN | 802.11ax 3×3 MU-MIMO |
| Antennas | 3 |
| Antenna Spec | 2 x External Detachable + 1 x 5GHz Internal PIFA |
| 2.4GHz Antenna Gain | 2.6dBi |
| 5GHz Antenna Gain | 2.7dBi |
| 2.4GHz Max. Link Rate | 574Mbps |
| 5GHz Max. Link Rate | 2402Mbps |
| Max. Number of SSIDs per band | 8 |
| Security Mode | OWE, WEP, WPA, WPA2, Mixed (WPA+WPA2), WPA3, Mixed (WPA2+WPA3) |
| Authentication | Pre-Shared Key, 802.1x |
| WiFi 6 | |
| OFDMA | |
| Roaming | Assisted Roaming |
| WPS | PIN, PBC |
| WDS | Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| AirTime Fairness | |
| Band Steering | |
| WMM | |
| Mesh (5GHz only) | Root |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069 |
| Port Knocking for Local Service | |
| Config File Export & Import | |
| Firmware Upgrade | WUI, TFTP, TR-069 |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Virtual AP Controller (Device up to) | 20 |
| Mesh (Number of manageable APs) | 7 |
| Virtual Switch Controller | 5 |
| Managed by VigorACS | Since f/w v5.3.0 |
| Physical | |
|---|---|
| Power Supply | DC 12V @ 0.9A (Vigor2136) DC 12V @ 1.5A (Vigor2136ax) |
| Max. Power Consumption | 10 watts (Vigor2136) 18 watts (Vigor2136ax) |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 452g (Vigor2136) 508g (Vigor2136ax) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
Note :
- All specifications are subject to change without notice.
- The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
