About
DR3650v is a versatile all-in-one device that combines DSL modem functionality with high-speed Wi-Fi 6 AX3000 wireless performance and gigabit wired connectivity. Designed for home and small office use, it supports fast and stable internet access over DSL, enhanced wireless capacity, and seamless integration with the Omada SDN platform for centralized management.
TECHNICAL SPECIFICATION
Category | Details |
---|---|
Model | DR3650v |
DSL Standard | VDSL2 / ADSL2+ compatible |
Wireless Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11ac/n/a/g/b |
Wi-Fi Speed | Dual-band AX3000 (2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps) |
WAN Ports | 1 x DSL port (RJ11), 1 x Gigabit WAN (RJ45) |
LAN Ports | 4 x Gigabit LAN ports (RJ45) |
CPU | Quad-core processor |
Memory | 512 MB RAM, 256 MB Flash |
Antenna | 4 internal antennas |
VPN Support | IPSec, OpenVPN, L2TP, PPTP |
Management | Omada SDN Controller, web UI, SNMP |
Security Features | SPI Firewall, DoS Protection, Access Control, MAC Filtering, VPN |
Power Supply | 12 V / 2 A DC Adapter |
Dimensions | 220 x 165 x 50 mm |
Operating Temperature | 0°C to 40°C |
Weight | Approx. 700 g |
DR3650v is a versatile all-in-one device that combines DSL modem functionality with high-speed Wi-Fi 6 AX3000 wireless performance and gigabit wired connectivity. Designed for home and small office use, it supports fast and stable internet access over DSL, enhanced wireless capacity, and seamless integration with the Omada SDN platform for centralized management.
TECHNICAL SPECIFICATION
Category | Details |
---|---|
Model | DR3650v |
DSL Standard | VDSL2 / ADSL2+ compatible |
Wireless Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11ac/n/a/g/b |
Wi-Fi Speed | Dual-band AX3000 (2.4 GHz up to 574 Mbps, 5 GHz up to 2402 Mbps) |
WAN Ports | 1 x DSL port (RJ11), 1 x Gigabit WAN (RJ45) |
LAN Ports | 4 x Gigabit LAN ports (RJ45) |
CPU | Quad-core processor |
Memory | 512 MB RAM, 256 MB Flash |
Antenna | 4 internal antennas |
VPN Support | IPSec, OpenVPN, L2TP, PPTP |
Management | Omada SDN Controller, web UI, SNMP |
Security Features | SPI Firewall, DoS Protection, Access Control, MAC Filtering, VPN |
Power Supply | 12 V / 2 A DC Adapter |
Dimensions | 220 x 165 x 50 mm |
Operating Temperature | 0°C to 40°C |
Weight | Approx. 700 g |

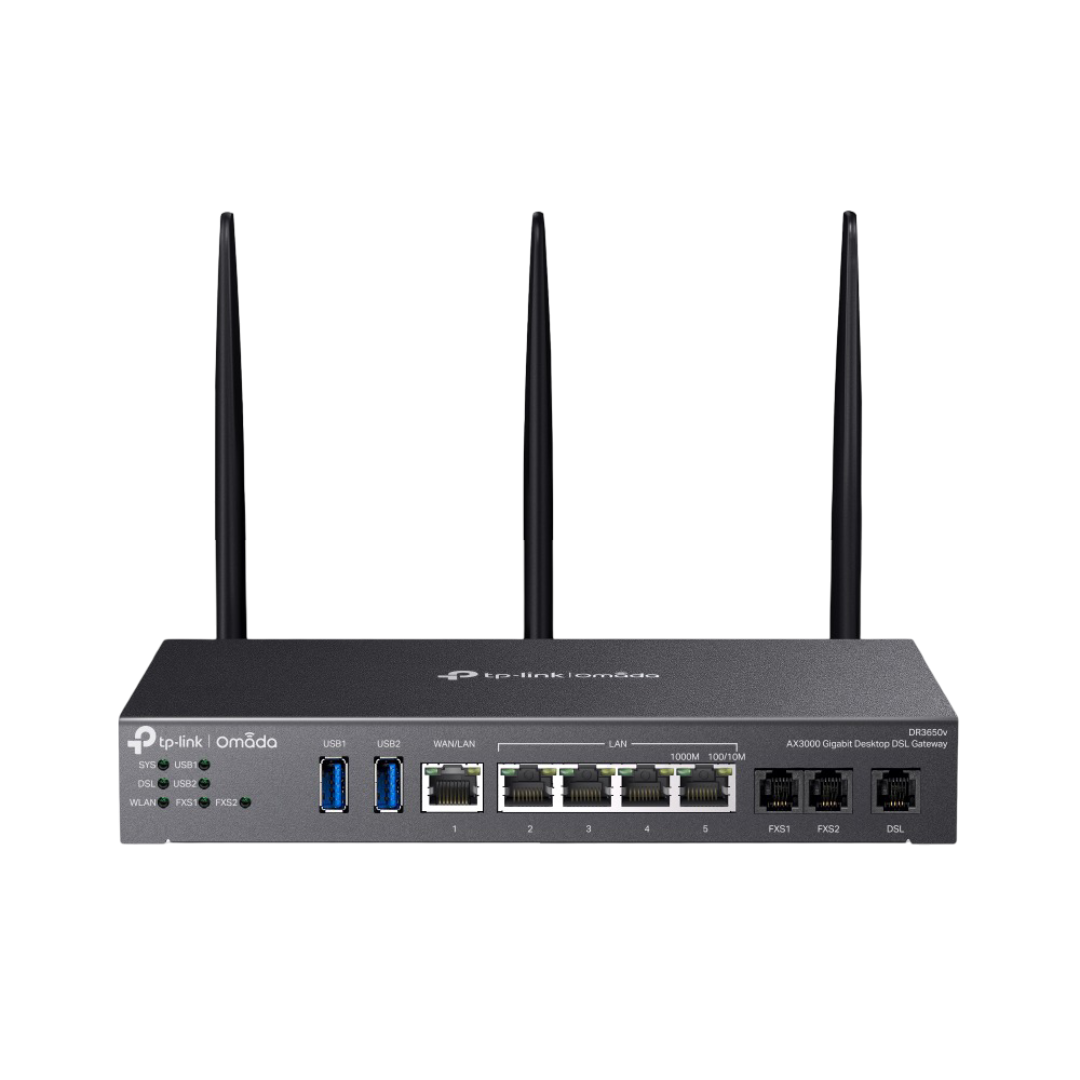

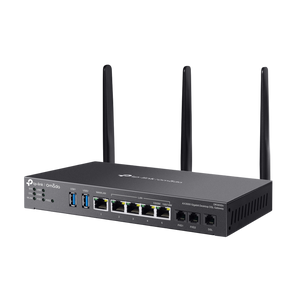

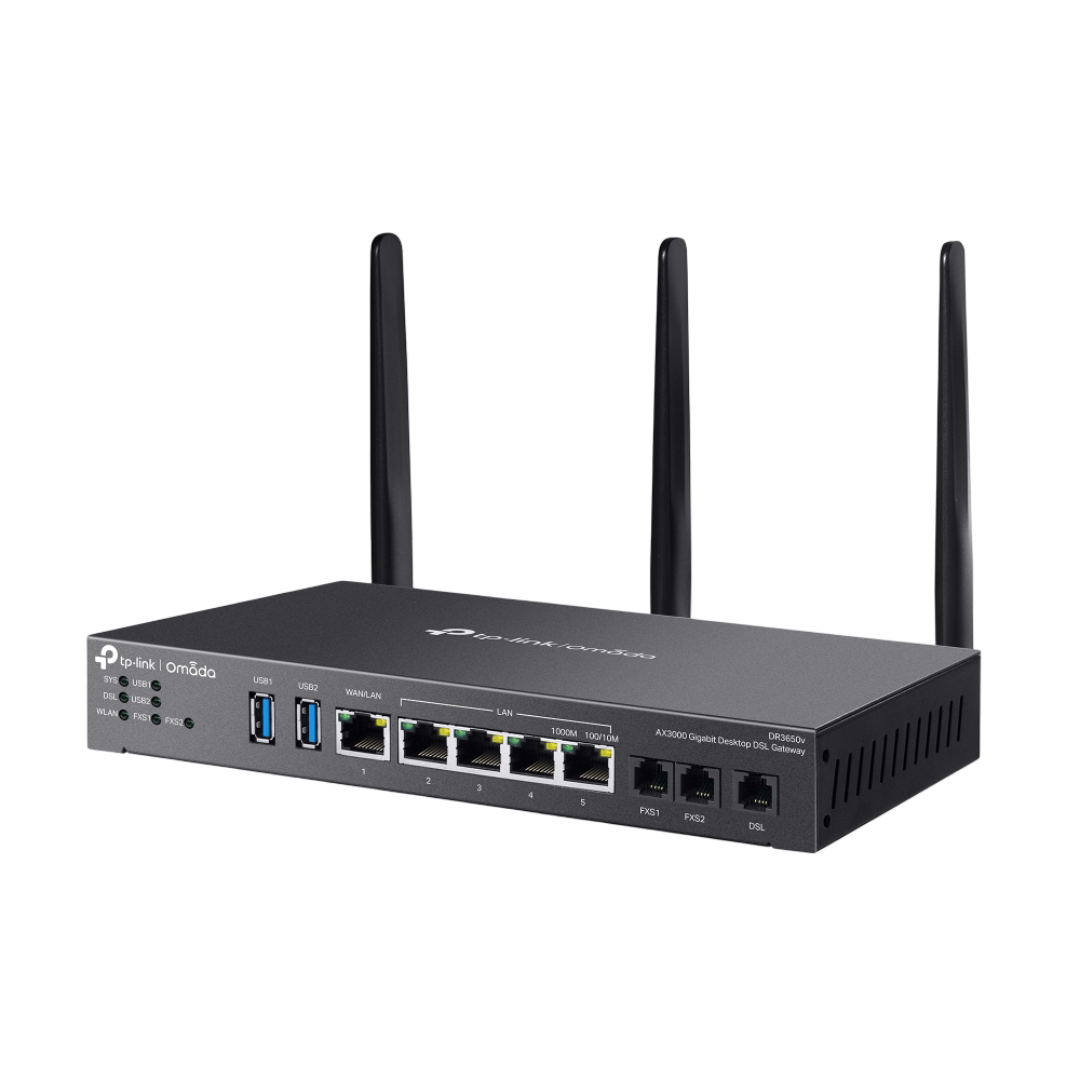

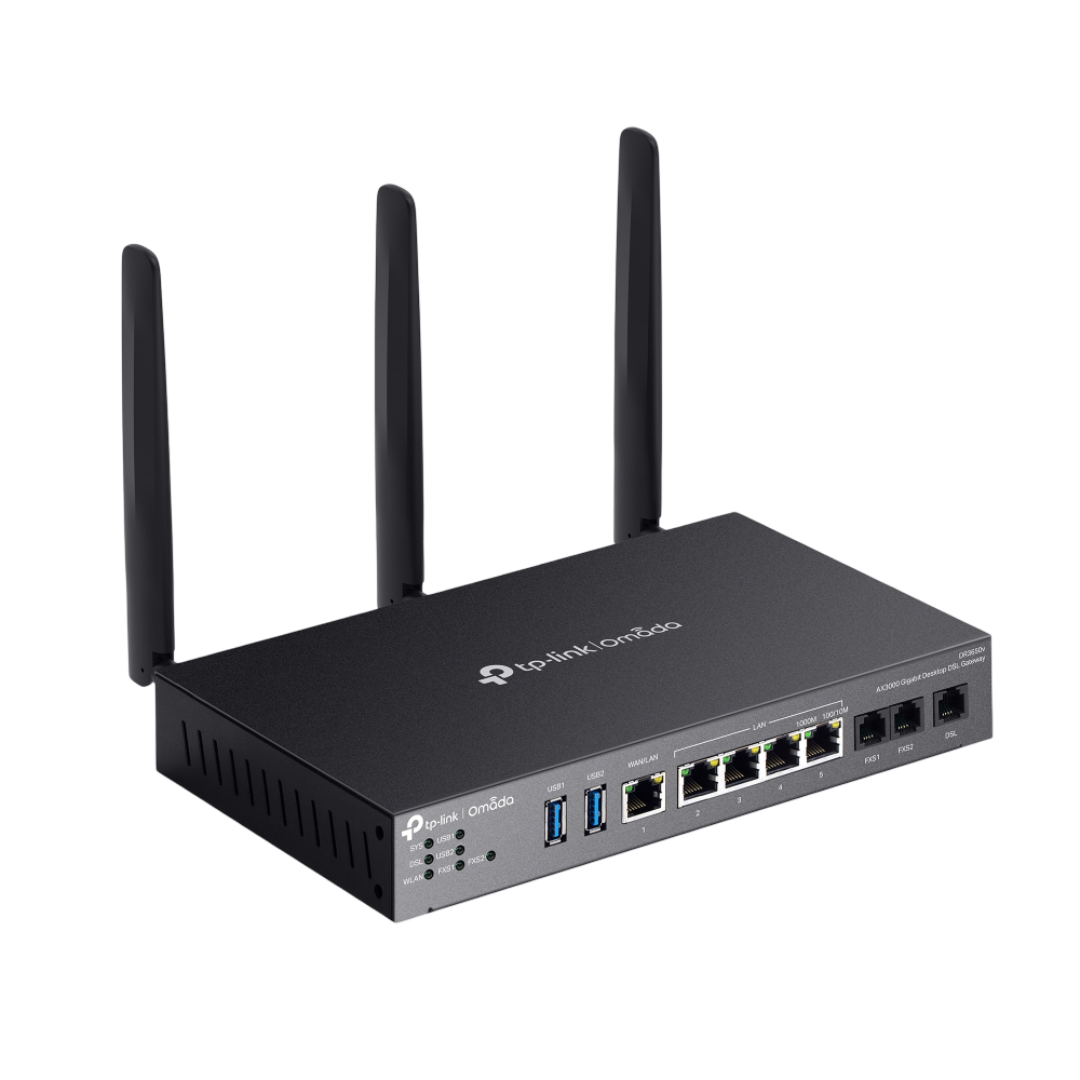

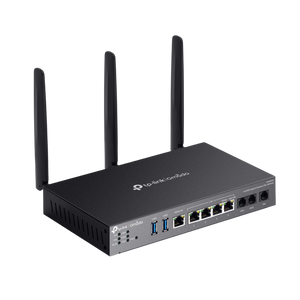

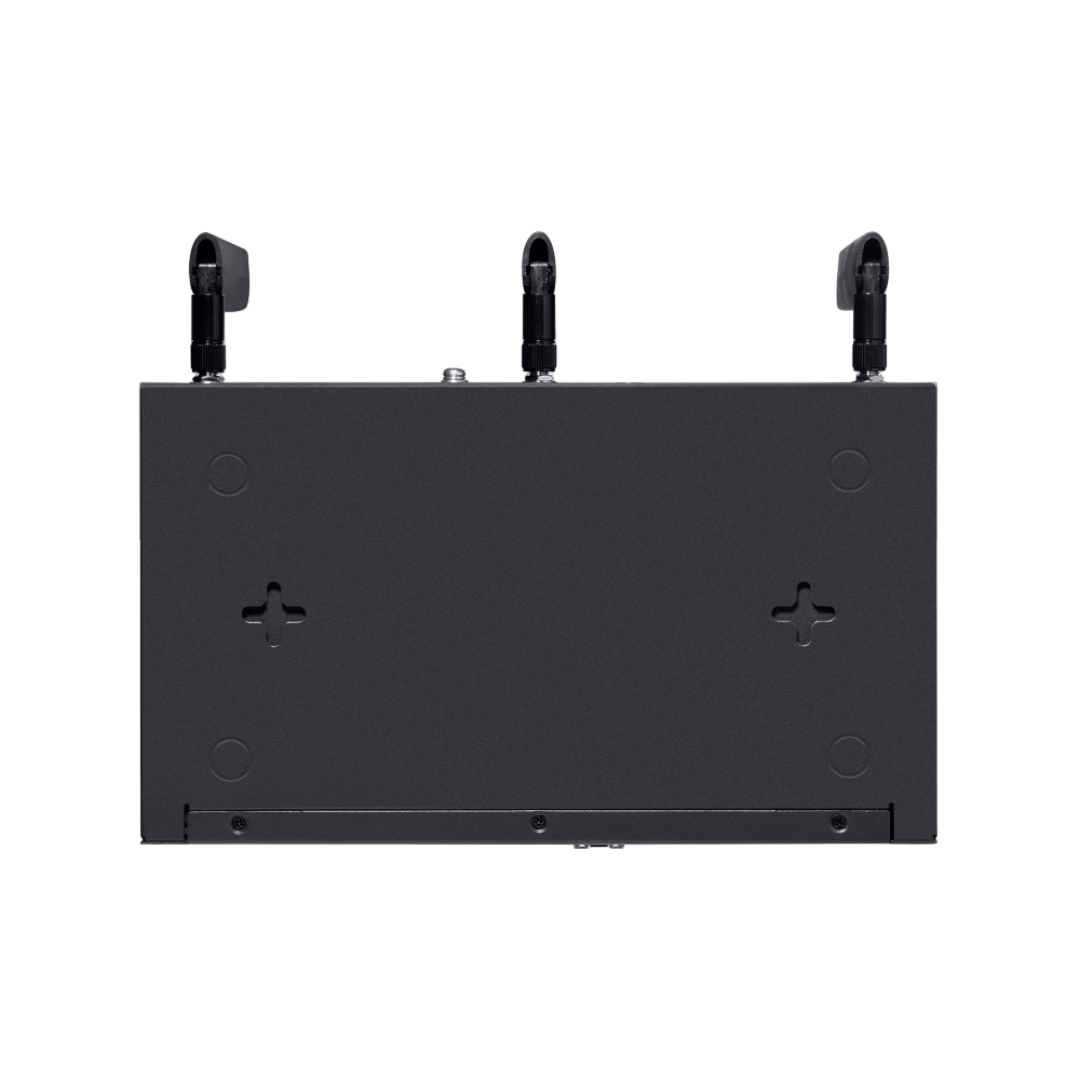

DR3650v - Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
