About

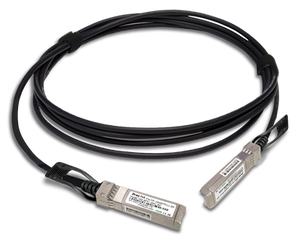

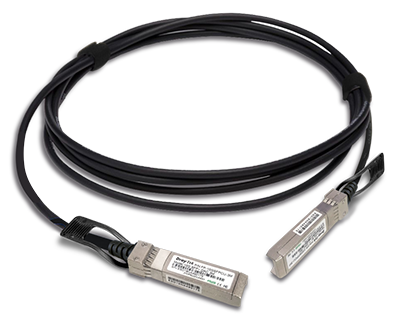

The 3-meter Direct Attach Copper (DAC) Cable is a high-speed, low-latency, and cost-effective copper interconnect designed for short-range data transmission. It connects SFP+ or QSFP+ ports directly using a passive twinax cable, making it ideal for rack-to-rack or switch-to-server connections in data centers. This cable supports data rates up to 10 Gbps (SFP+) or 40 Gbps (QSFP+), features excellent EMI shielding, and is hot-pluggable for easy installation without downtime.
KEY FEATURES
| Feature | Description |
|---|---|
| High-Speed Data Support | Supports data rates up to 10 Gbps (SFP+) or 40 Gbps (QSFP+) depending on model. |
| Passive Twinax Cable | No active electronics, ensuring low latency and minimal power consumption. |
| Hot-Pluggable | Enables connection/disconnection without powering down equipment. |
| Robust EMI Shielding | Provides strong protection against electromagnetic interference for reliable signal quality. |
| Wide Compatibility | Complies with SFP+/QSFP+ MSA standards for broad interoperability. |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Connector Type | SFP+ to SFP+ or QSFP+ to QSFP+ twinax copper cable |
| Maximum Data Rate | Up to 10 Gbps (SFP+) or 40 Gbps (QSFP+) |
| Cable Length | 3 meters |
| Wire Gauge | AWG 30 |
| Operating Temperature | 0°C to 70°C (some models support -20°C to 85°C) |
| Compliance |
RoHS  ,CISPR, ANSI, AS/NZS |
| Power Consumption | Very low, near 0W |
| Dimensions & Weight | Approx. 8.5 × 13.4 × 3000 mm, ~0.15 kg |
The 3-meter Direct Attach Copper (DAC) Cable is a high-speed, low-latency, and cost-effective copper interconnect designed for short-range data transmission. It connects SFP+ or QSFP+ ports directly using a passive twinax cable, making it ideal for rack-to-rack or switch-to-server connections in data centers. This cable supports data rates up to 10 Gbps (SFP+) or 40 Gbps (QSFP+), features excellent EMI shielding, and is hot-pluggable for easy installation without downtime.
KEY FEATURES
| Feature | Description |
|---|---|
| High-Speed Data Support | Supports data rates up to 10 Gbps (SFP+) or 40 Gbps (QSFP+) depending on model. |
| Passive Twinax Cable | No active electronics, ensuring low latency and minimal power consumption. |
| Hot-Pluggable | Enables connection/disconnection without powering down equipment. |
| Robust EMI Shielding | Provides strong protection against electromagnetic interference for reliable signal quality. |
| Wide Compatibility | Complies with SFP+/QSFP+ MSA standards for broad interoperability. |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Connector Type | SFP+ to SFP+ or QSFP+ to QSFP+ twinax copper cable |
| Maximum Data Rate | Up to 10 Gbps (SFP+) or 40 Gbps (QSFP+) |
| Cable Length | 3 meters |
| Wire Gauge | AWG 30 |
| Operating Temperature | 0°C to 70°C (some models support -20°C to 85°C) |
| Compliance |
RoHS ,CISPR, ANSI, AS/NZS |
| Power Consumption | Very low, near 0W |
| Dimensions & Weight | Approx. 8.5 × 13.4 × 3000 mm, ~0.15 kg |
