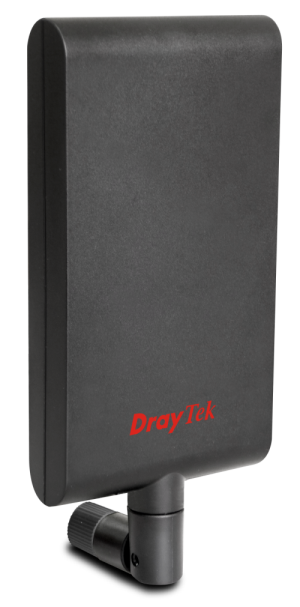

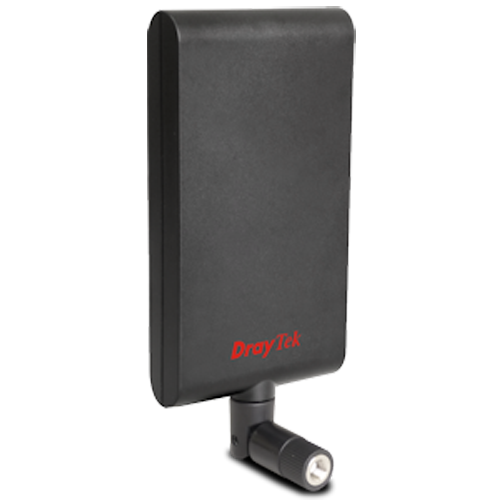

The DrayTek ANT-2520 is a high-gain, dual-band directional panel antenna designed to enhance Wi-Fi coverage for long-distance point-to-point or point-to-multipoint outdoor links. With 20 dBi gain on both 2.4GHz and 5GHz bands, it’s ideal for applications requiring focused and stable wireless connections across open areas or between buildings.
KEY FEATURES
| Feature | Description |
|---|---|
| Dual-Band Directional Antenna | Supports both 2.4GHz and 5GHz for long-range wireless links |
| High-Gain Output | 20 dBi gain for strong and stable signal transmission |
| Outdoor Use | Weather-resistant enclosure for outdoor installation |
| Directional Beam | Focuses wireless signal in one direction for extended range |
| RP-SMA Connector | Compatible with DrayTek devices supporting external antennas |
| Mounting Kit Included | Pole-mount brackets for secure outdoor setup |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Product Type | Dual-band Directional Outdoor Panel Antenna |
| Gain (2.4GHz) | 20 dBi |
| Gain (5GHz) | 20 dBi |
| Frequency Range | 2.4–2.5GHz / 5.1–5.8GHz |
| Connector Type | 2 x RP-SMA Male connectors |
| Polarization | Linear |
| Impedance | 50 Ohms |
| Beamwidth | Horizontal 10°, Vertical 10° |
| Dimensions | 305 x 305 x 60 mm |
| Weight | Approx. 1.5 kg |
| Operating Temperature | -40°C to 60°C |
| Mounting | Pole mount (mounting kit included) |
| Compatibility | DrayTek routers/APs with RP-SMA ports and external antenna support |
