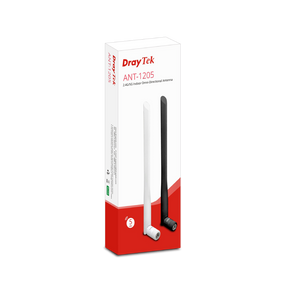

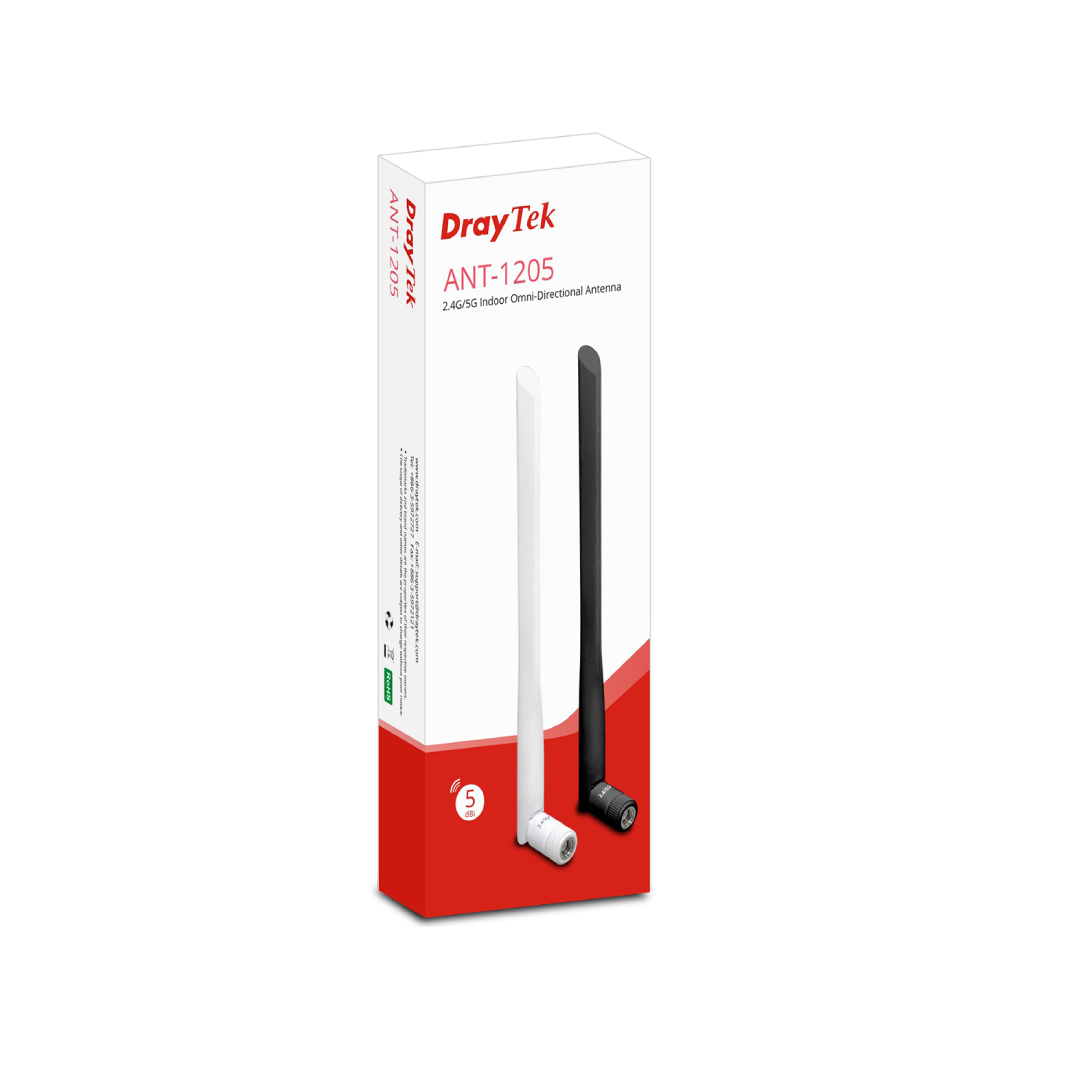

The DrayTek ANT-1205 is a pair of dual-band high-gain omni-directional antennas designed to boost wireless coverage on compatible DrayTek routers and access points. Ideal for improving signal strength in both the 2.4GHz and 5GHz bands, the ANT-1205 is easy to install and flexible in positioning with its adjustable tilt-and-swivel base.
KEY FEATURES
| Feature | Description |
|---|---|
| Dual-Band Antenna | Supports both 2.4GHz and 5GHz frequency bands |
| High-Gain Performance | 4 dBi gain for 2.4GHz and 7 dBi for 5GHz |
| Omni-Directional Coverage | Provides 360° signal coverage for improved range |
| Adjustable Design | Tilt-and-swivel base for optimal signal direction |
| RP-SMA Connector | Compatible with most DrayTek routers and APs with RP-SMA ports |
| Easy Installation | Screw-in mounting, no tools required |
| Pack of Two | Supplied as a pair for dual-antenna configurations |
TECHNICAL SPECIFICATION
| Category | Details |
|---|---|
| Product Type | Dual-band Omni-directional Antennas |
| Gain (2.4GHz) | 4 dBi |
| Gain (5GHz) | 7 dBi |
| Frequency Range | 2.4–2.5GHz / 5.1–5.8GHz |
| Connector Type | RP-SMA Male |
| Impedance | 50 Ohms |
| Polarization | Vertical |
| Dimensions | 196 mm (length per antenna) |
| Operating Temperature | -10°C to 50°C |
| Compatibility | All DrayTek devices with RP-SMA antenna connectors |
